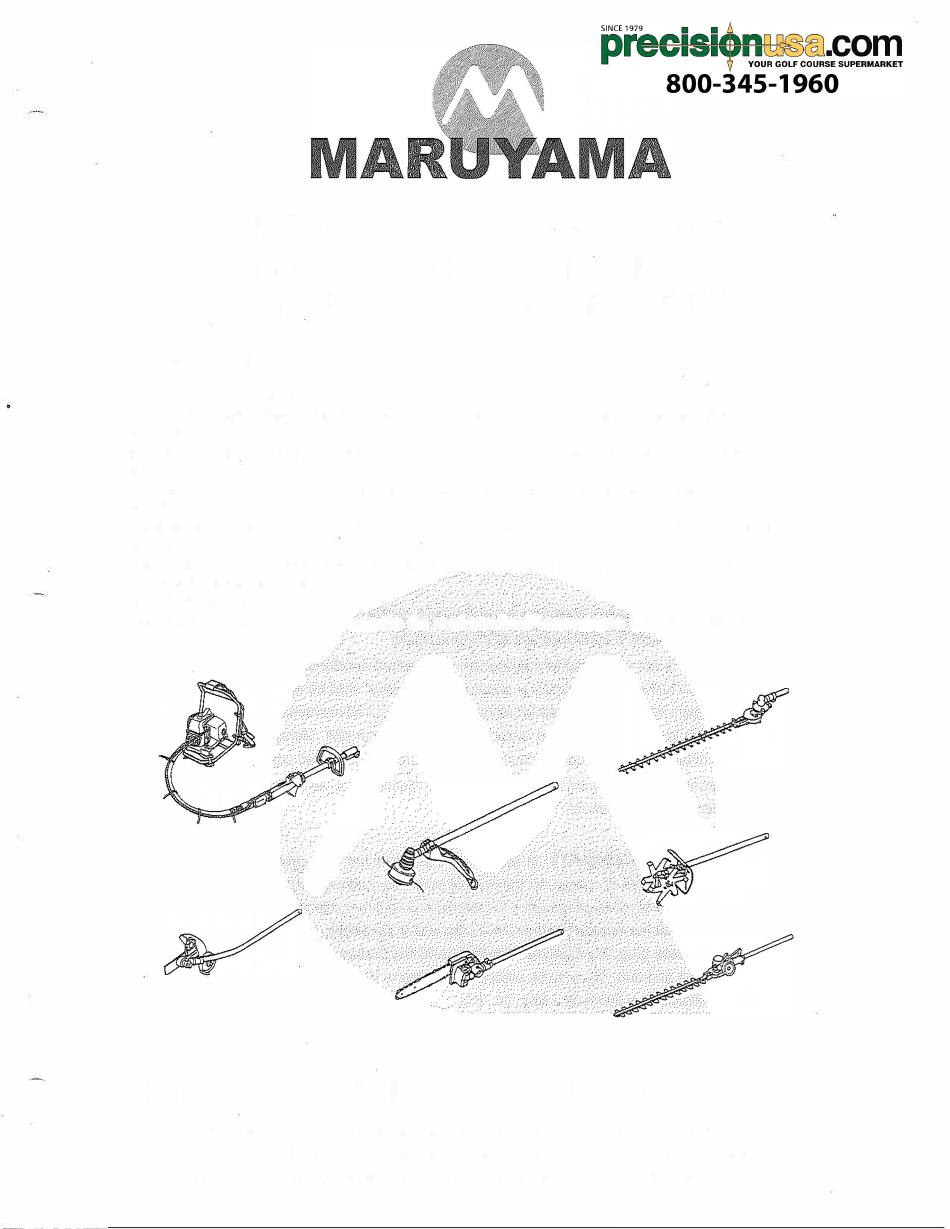

  • Page 1 OPERATOR S MANUAL MANUAL DEL OPERADOR MANUEL D 0PERATEUR Multi-Cutter M30BK-S/M42BK Straight Shaft Attachment/Accesorio de recortadora/Accessoire de taille-bordures MC-SB Edger Attachment/Accesorio de bordeadora/Accessoire de coupe-bordures MC-E Pruner Attachment/Accesorio de podadora/Accessoire de l'elagueuse MC-PS Hedge Trimmer Attachment/Accesorio de cortasetos/Accessoire de taille-haie...
  • Page 2 Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
  • Page 3 This warranty provides you with specific legal rights, which may vary from state to state. It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain war­ ranty service.

  • Page 4: Federal Emission Control

    U.S. EPA stan­ dards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.
  • Page 5 Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

  • Page 6: California Emission Control

    MANUFACTURER'S WARRANTY COVERAGE: The 1995 and later small off-road engines are warranted for two years. 11 any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. OWNER'S WARRANTY RESPONSIBILITIES: (a) As the small off-road engine owner, you are responsible for the peliormance of the required maintenance listed in your owner's manual.

  • Page 7: Product Discription

    Product description M30BK-S/M42BK (Multi-Cutter Power Unit) Shaft connector 12. Knap Sack Band Loop Handle 13. Pad 3. Shaft Assembly 14. Serial Number {on rear of engine) Shaft Grip 5. Clutch Drum Housing Engine Air Filter Fuel Tank Throttle Cable and Stop Switch Wires 10.
  • Page 8 MC-HT (Hedge Trimmer Attachment) 1. Blades and GuideBar 2. Gear case 3. Angle Drive 4. Shaft Assembly MC-T (Cultivator Attachment) 1. Gearcase Debri s Shield 3. Shaft Assembly 4. Cultivator Tines MC-HTS/MC-HTSL (Swiveling Hedge Trimmer Attachment) 1. Blades and GuideBar 2.

  • Page 9: Table Of Contents

    Contents Page US­ Page US­ Limited Warranty Statement ........Operation Federal Emission Control ......... MC-SB (Multi-Cutter with Straight Shaft... 28 California Emission Control ........Attachment) MC-E (Multi-Cutter with Edger Attachment ) ..30 Product Discription ........... MC-PS ( Multi-Cutter with Pruner Attachment) .. 31 Contents ..............

  • Page 10: Introduction

    CAUTION signals a hazard that may cause minor or moderate injury if the recommended precautions are Maruyama, it's distributors, and dealers want you to be not followed. Two other words are also used to high­ completely satisfied with your new product. Please feel light information.

  • Page 11: Multi-Cutter With Tool Attachments Safety

    Note: Remove blade cover from Hedgetrimmer attach-ments prior to operation. Never use a tool attachment head or replacement parts that are not approved by MARUYAMA. Maintain the Multi-Cutter power unit and tool attach-ments according to the recommended maintenance intervals and procedures in the Maintenance section.

  • Page 12: Multi-Cutter With Tool Attachments

    13 . Use the right tool for the job. Do not use the Trimmer for any job that is not recommended by This Trimmer will throw objects and cut. Keep MARUYAMA. children, bystanders and animals outside a 50 ft.( I 5m) radius from the operator and Trimmer.
  • Page 14 Cultivator for any job that is not recommended by MARUYAMA. 11. Use the right tool for the job. Do not use the Hedge Trimmer for any job that is not recom­ mended by MARUYAMA. Cultivator Operating Safety Hedge Trimmer Opera.ting Safety -US-13-...
  • Page 16 MC - PS (Pruner Attachment) &WARNING ;&WARNING ,AWARNING THIS EOUIPMen' BEFORE OPEAATlNQ TlslS HUALED OBJECTS Co.N CAUSE PffOOUc:ES SOUNDS EQU!PMENT, FlE.lO "THE IN.JUITT'. Al.WAYS WEAR PROTECTIVE WHIC!-1(;.oi.D,t,PU,GE OPEF\I\TOl'l'SIIIANUAL CLOTHING N<IO GOGGI..ES WHEN KO.RING. Al.WAYS USE FfJI..URE TQ FOLLOW AJ..L OPERATING THtS EQUIPMENT, H6'/lltlG PROTEcnON MANUFAC11.JRE'S WARNINGS [SEE OPEAATOl'!'S MANUAL)

  • Page 18: Assembly

    Install the four screws and nuts. Leave the screws fingertight. Reposition the loop handle up or down the drive­ shaft to the most comfortable position, but no closer than 9 inches (22.8 cm) from the end of the Remove the bolt and insert the outer fitting (with stop switch.

  • Page 19: Connecting Throttle Cable

    Connecting Throttle Cable Bind the throttle cable and the flexible shaft with four bands. Loosen the knob and remove the air cleaner cover, insert the throttle cable through the cable adjuster sleeve on the carburetor bracket. Make sure the end of the cable housing is seated positively in the Throttle Cable sleeve.

  • Page 20: Mc-Sb (Straight Shaft Attachment)

    IMPORTANT: The boss adapter must be, installed on the attaching shaft between the gearcase and the trimmer head as shown. And Trimmer head adapter is left-head. POTENTIAL HAZARD • Fo reign objects can be thrown by the String Trimmer. WHAT CAN HAPPEN •...

  • Page 21: Mc-E (Edger Attachment)

    POTENTIAL HAZARD • Foreign objects can be thrown by the Edger. WHAT CAN HAPPEN • Contact with thrown objects can cause personal. injury. HOW TO AVOID THE HAZARD • Never operate the Edger without the debris shield in place. the gearcase. POTENTIAL HAZARD •...

  • Page 22: Installing Guide Bar And Chain

    Insert the dr:iveshaft tube assembly into the gearcase Place the chain over the rim sprocket and into the assembly whilerotating the driveshaft to engage the groove on the guide bar. Make sure the c utting splines. Align the locating holes and install the locat­ teeth edges are facing forward on the top side of ing screw through the side of the gearcase.

  • Page 24: Connecting The Tool Attachments To The Power Unit

    The chain and guide bar are lubricated by a centrifugal pump. The oil discharge rate is controlled by the oil discharge adjustment screw on the top of the pruner head. Remove the oil tank filler cap fill the tank, then replace the cap.

  • Page 25: Oil And Fuel

    Only use a two-cycle engine oil formulated for use in high performance, air cooled two cycle engines. MARUYAMA brand 2-cycle oil is formulated for use in high performance, air cooled two-cycle engines. Do not smoke near fuel.

  • Page 26: Mixing Gasoline And Oil

    Mark the container to identify it as fuel mix for F or your fuel premix, use Maruyama Premium the Multi - Cutter. 2-cycle Oil Mix, or equivalent ISO-L-EGD & JASO FD oil with a minimum 89 octane high Use regular unleaded gasoline and fill the contain­...

  • Page 28: Idle Speed Adjustment

    Attaiched Tool rotaites/moves or the engine stalls, stop using the Multi-Cutter immediately! This Multi-Cutter is equipped with non-adjustable fuel Contact your local authorized MARUYAMA Dealer for mixture carburetor. The engine idle speed is the only adjustment for the operator.

  • Page 29: Operation

    WHAT CAN HAPPEN POTENTIAL HAZARD • Foreign objects can be thrown by String Trim.mer. • Contact with thrown objects can cause personal injury. HOW TO AVOID THE HAZARD • Never operate the String Trim.mer with• out the debris shield. • Al. w ays wear gl.oves and protective cloth­ Safety US-10 ing when operating the String Trimmer.
  • Page 30 (7 .6 • Use of improper Hne could result in serious personal injury. • Use only good quality, commercial grade, weld resistant trimmer line diameter of inches mm). • Do not use any type of wire or oilier string-like substance. Do not use metalreinforced line. •...

  • Page 31: Attachment)

    POTENTIAL HAZARD HOW TO AVOID IBE HAZARD • Foreign objects can be thrown by Edger. WHAT CAN HAPPEN • Contact with thrown objects can cause personal. injury. • Never oper ate the Edger without the bilade shield in pl ace. •...

  • Page 32: Mc-Ps ( Multi-Cutter With Pruner Attachment)

    • If • The Pruner can conduct electricity. WHAT CAN HAPPEN • Contact with live electrical wires or cir­ cuits can cause serious injury or death. • Never use the Pruner around electrical lines, circuits or components. • Read the Safety instructions on p age US-11 concerning proper use of the Pruner.

  • Page 33: Mc-Ht/Mc-Hts/Mc-Htsl/Mc-Htr

    • Read the Safety instructions on page US-12 concerning proper use of the Hedge Trimmer. • Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at an • Al.ways wear gloves and protective cloth­ times.
  • Page 34 • Do not touch the sharpened edges of the cutting blades. The cutting blades are extremely sharp and dangerous at all times. Always wear gloves to help pr o­ tect your hands and fingers from inj ur y. • Do not hold any part other than the han­ dle when a djusting the angle of the blades.

  • Page 36: Maintenance

    Air Filter Cover rized by Maruyama Manufacturing Company, Inc. The use of parts that are not equivalent in performance and durability to authorized parts may impair the effective­...

  • Page 37: Spark Plug

    Cooling Fin Cleaning Maintenance Interval • The spark plug should be removed from the engine [M30BK-S] and checked after each 25 hours of operation. With the engine at ambient (room) temperature, • Replace the spark plug after every 100 hours of oper­...

  • Page 38: Spark Arrester

    Spark Arrester Maintenance Loosen the knob and lift off the cylinder cover. [M30BK-S] Clean all dirt and debris from the cooling fins and With the engine at ambient (room) temperature, from around the cylinder base.

  • Page 39: Exhaust Muffler

    Spark Arrester Exhaust Muffler Maintenance Interval Muffler Maintenance Muffler Body [M30BK-S] ' Removal Loctite IMPORTANT: Don't use solvent for deaning inside of muffler, because of the catalytic con­ -US-38-...

  • Page 40: Flexible Shaft

    Flexible Sha.ft Gearcase lubrication Maintenance Interval Remove the cutting attachment and the boss adapter. Clean any dirt and debris from the area between the The flexible shaft should be lubricated after each 20 boss adapter and the gearcase. Remove the grease plug hours of operation from the side of the gearcase.

  • Page 41: Mc-Ps ( Pruner Attachment)

    • DO NOT TOUCH THE SHARPENED EDGES OF THE CUTTING BLADES. CUTTING BLADES EXTREMELY SHARP AND DANGER­ OUS AT ALL TIMES. 30 ho ur s of us e. cut tin g atta chm ent and the bos s ada p Re mo ve th twe en th bri s fro m the are a b...

  • Page 42: Lubrication

    The blades may be warm, but if they are too hot to touch, loosen the tension screws 1/8 tum. Lubrication of the cutting blades should be maintained The gearcase and angle drive should be inspect after at all times. Use a light oil (#!Owt.). each IO hours of use.

  • Page 44: Troubleshooting

    Tighten throttle wire Cutting Dirty air filter Clean or replace air filter Clogged spark arrester or exhaust port. Clean spark arrester or exhaust port. If further assistance is required, contact your local authorized Maruyama service dealer. Maintenance Period Every Every Every •...

  • Page 45: Specifications

    Specifications M30BK-S wi t h MC-SB MC-E MC·T MC-PS Weight (lbs) *'20.3 (9.2kg) "21.3 (9.7kg) "23. 1 { 10.5_ k g) 23.3 (10.6kg) , Engine_Qisplacement (cm') 30.1 ---· Anti Vibration Dual Isolation - grip and engine mount Carburetor Walbro Diaphrag_ m Type...
