Summary of Contents for Avdel 07200

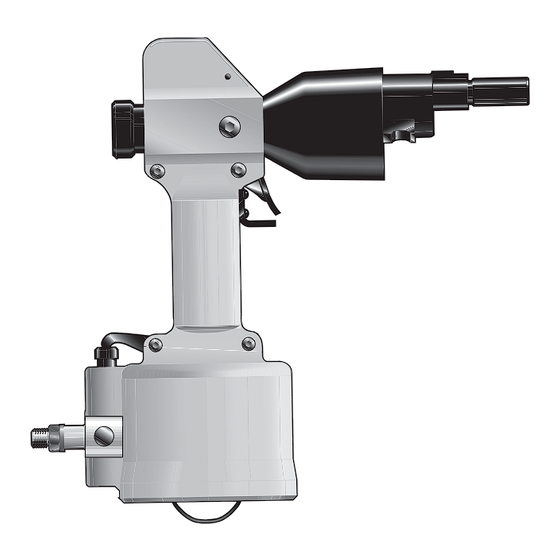

- Page 1 P n e u m a t i c P o w e r T o o l 0720 type 07200-07201...
-
Page 2: Table Of Contents
Instruction and Service Manuals. In the event of a defect or failure, and at its sole discretion, Avdel UK Limited undertakes only to repair or replace faulty components. -
Page 3: Safety Rules
Any modification undertaken by the customer to the tool/machine, nose assemblies, accessories or any equipment supplied by Avdel UK Limited or their representatives, shall be the customer’s entire responsibility. Avdel UK Limited will be pl eased to advise upon any proposed modification. -
Page 4: Tool Specifications
Free Air Volume Required @ 5.4 bar/80 lbf/in 6.2 litres (.22 ft Stroke Minimum 12.7 mm (.5 in) Pull Force 07200 @ 5.4 bar/80 lbf/in 14.68 kN (3300 lbf) 07201 @ 5.4 bar/80 lbf/in 18 kN (4050 lbf) Cycle time Approximately 1.5 seconds... -
Page 5: Intent Of Use
There are two models offering different access to your application. The base tool part number for the 07200 model is 07200-00200 and 07201-00200 for the 07201 model. Select the one most suited to your application requirements. All nose assemblies are available for both models (details pages 10-11). -
Page 6: Putting Into Service
Putting into Service A I R S U P P LY All tools are operated with compressed air at an optimum pressure of 5.4 bar. We recommend the use of pressure regulators and a utomatic oiling/filtering systems on the main air supply. These should be fitted within 3 metres of the tool (see diagram below) to ensur e maximum tool life and minimum tool maintenance. -
Page 7: Accessories
Use 07500-06800 collar splitter to cut ” Avdelok and 07500-06900 to cut ” Avdelok . When using either of these splitters it is necessary to use adaptor kit (part number 07200-09000). Dimensions shown in bold are millimetres. Other dimensions are in inches. -
Page 8: Collar Splitter Assembly And Adaptor Kit
To operate, push the centralising guides over the Avdelok ® collar and depress trigger. * Refers to items included in the 07200 service kit. For complete list see page 13. Item numbers in bold refer to the general assembly drawing and parts list (pages 16-17). -
Page 9: Nose Assemblies
fitted prior to operating the tool. max. max. max. Straight with Vertical Flats Straight Round Straight with Horizontal Flats 07200 NOSE ASSEMBLY SELECTION ® AVDELOK NOSE ASSEMBLY NOSE ASSY. SIZE mm i nc h... -
Page 10: Components
Carefully lower Chuck Collet 2 over the assembled components. • Screw the assembled chuck collet onto the Offset Spindle 18 on 07200 tool or Extension 83 on 07201 tool and tighten with a spanner. • Push the Anvil 1 over the Chuck Collet, lining up the bayonet with the matching slots of the offset adaptor assembly or straight adaptor assembly. -
Page 11: Servicing The Tool
fitted, measured before trigger is pressed and when trigger is fully depressed. • Check offset adaptor setting (see page 15 ”Re-setting 07200 & 07201 Tools"). W E E K LY • Check for air leaks on air supply hose and fittings. -
Page 12: Service Kit
Servicing the Tool S E R V I C E K I T For all servicing we recommend the use of the service kit (part number 07900-02000). SERVICE KIT SERVICE KIT (Continued) ITEM PART Nº DESCRIPTION Nº OFF ITEM PART Nº DESCRIPTION Nº... -
Page 13: Maintenance
Assembly to be located correctly on the tool. When refitting the Offset Adaptor Assembly 16 to the tool refer to page 15 ”Re-setting 07200 & 07201 Tools” before fitting Screws 12 and S T R A I G H T A D A P T O R 0 7 2 0 1 T O O L •... -
Page 14: Pneumatic Cylinder
Refer to the illustration on page 16. • Incorrect adjustment on both 07200 & 07201 tools will cause damage internally and to retaining rings. I M P O R T A N T Check the tool against daily and weekly servicing. -
Page 15: General Assembly Of Base Tools
General Assembly of Base Tools 07200-00200 & 07201-00200 (MAIN DRAWING IS THE 07200-00200 - DRAWING INSIDE DOTTED AREA SHOWS 07201-00200 DIFFERENCES) - Page 16 Parts List for 07200-02000 & 07201-00200...
- Page 17 Incorrect length of bolt Change to correct length bolt Tool slows and fails Insufficient air pressure Check air supply to actuate Exhaust silencer dirty Clean silencer Other symptoms or failures should be reported to your local Avdel authorised distributor or repair centre.
- Page 18 D e c l a r a t i o n o f C o n f o r m i t y We, Avdel UK Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ declare under our sole responsibility that the product: Model Type 0720 Serial No.
