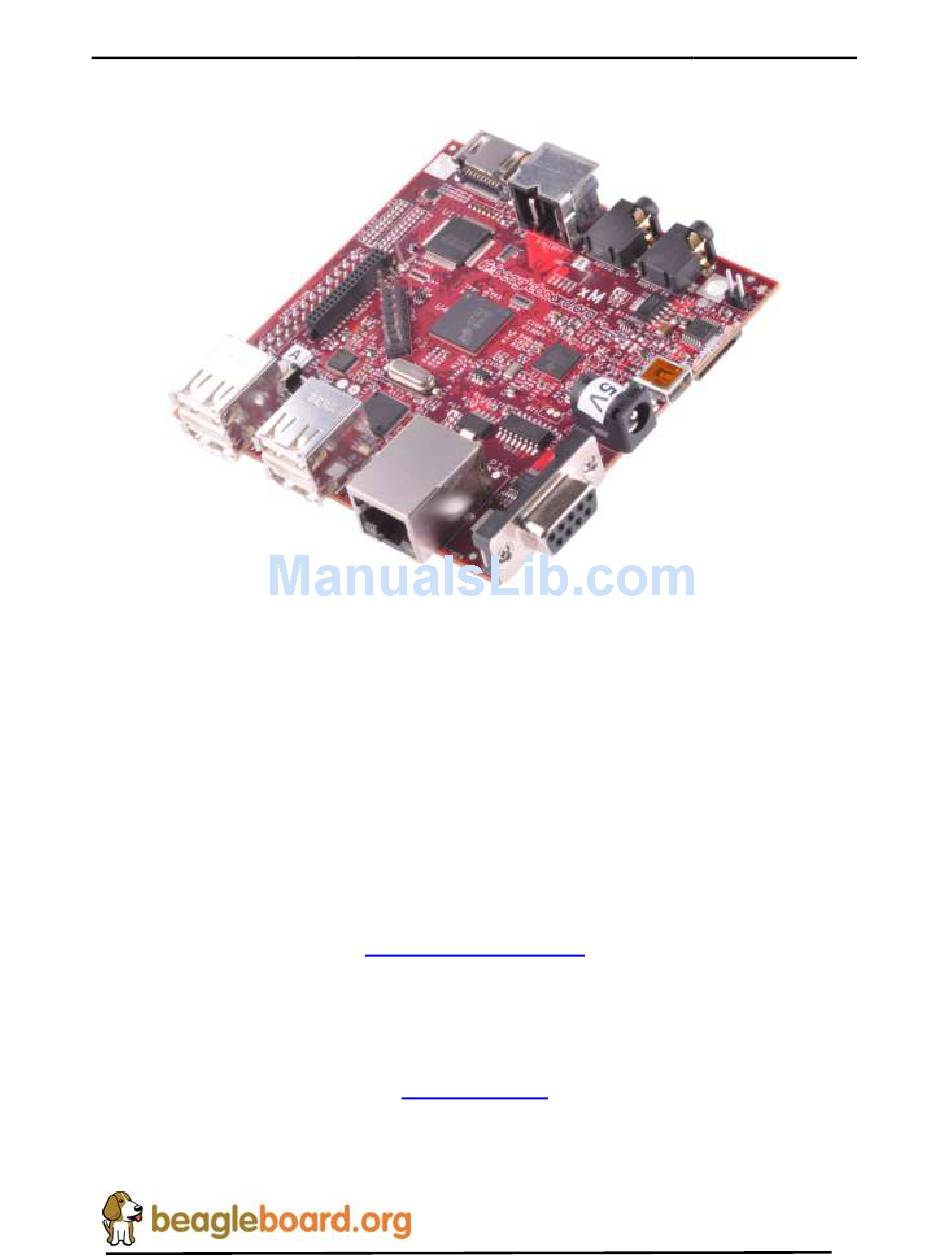

BeagleBoard XM C2 Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REF: BB_SRM_xM
BeagleBoard-xM System
Revision C2
Reference Manual
BeagleBoard-xM Rev C2
System Reference Manual
Revision 0.0
October 11, 2012
Send all comments and errors concerning this SRM to the author at
gerald@beagleboard.org
For other questions you may contact Gerald at:
Gerald Coley
Texas Instruments
12500 TI Blvd. Dallas, Tx 75243
g-coley1@ti.com
Page 1 of 163
