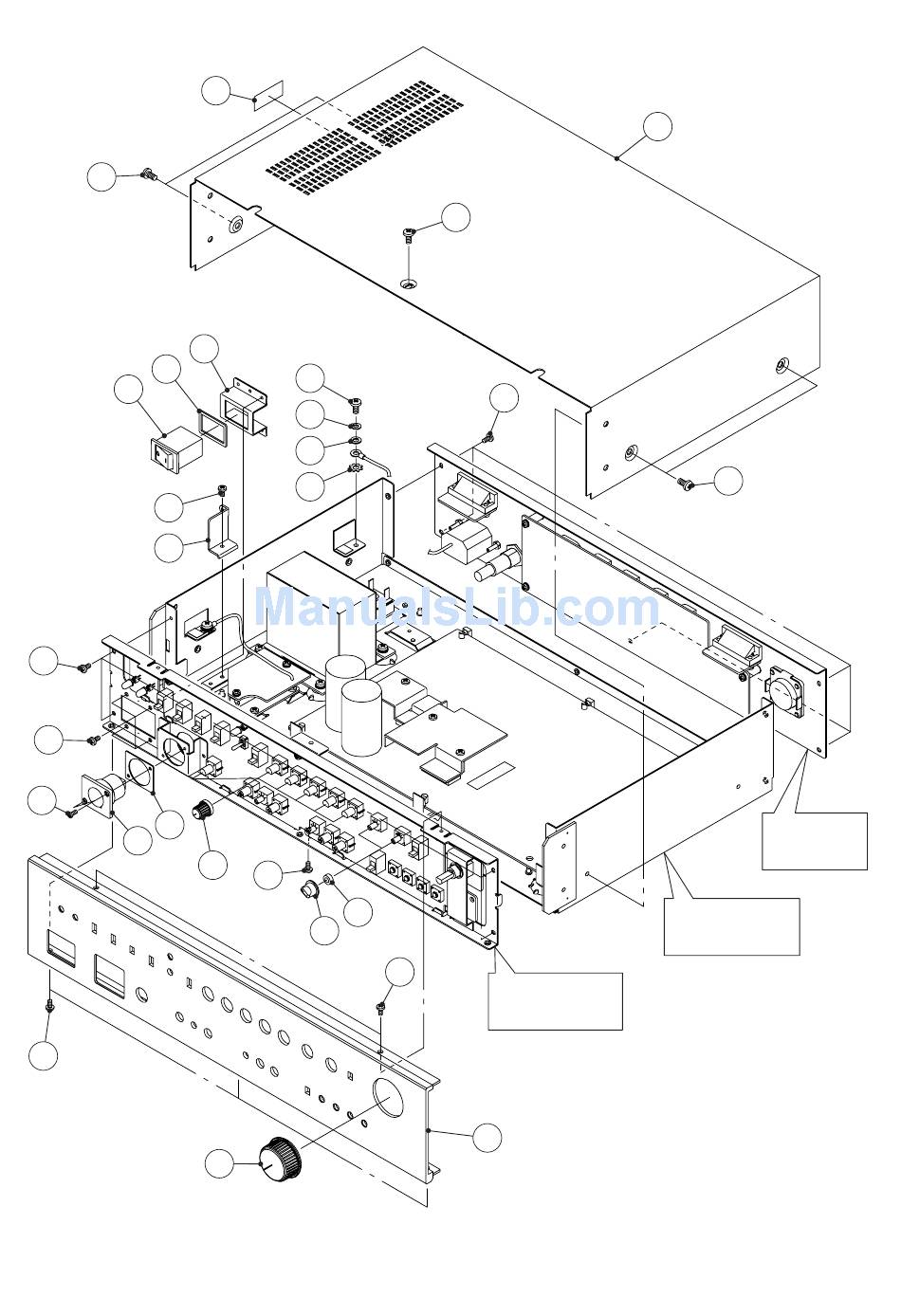

CHASSIS FRAME ASSEMBLY (1)

(AW-RC600P/MC)
102
11
10
101
9
101
101
103
8
7
101
13
12
104
105
106
107
6
101
5
4
2
102
101
101
FRONT CHASSIS
ASSEMBLY
(See PRT-5)
3
PRT-1
1
102
REAR PANEL
ASSEMBLY
(See PRT-6)
CHASSIS FRAME
ASSEMBLY (2)
(See PRT-3)
