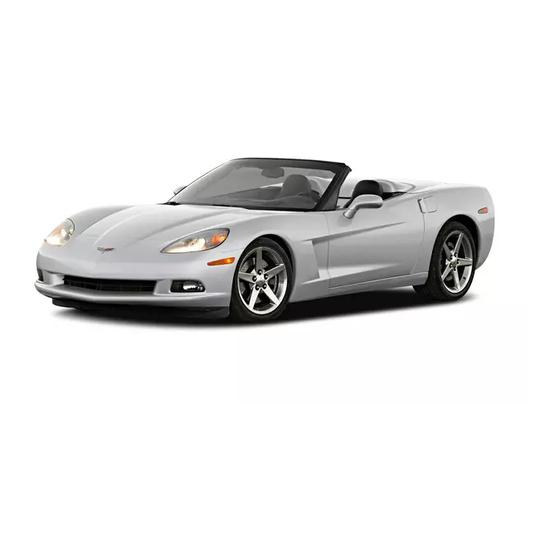

Chevrolet Corvette Owner's Manual
Hide thumbs Also See for Corvette:
Table of Contents

Advertisement

Quick Links

2007 Chevrolet Corvette Owner Manual
Seats and Restraint Systems ....................... 7
Front Seats
.............................................. 8
Safety Belts
............................................ 16
Child Restraints
...................................... 31
Airbag System
........................................ 50
Restraint System Check
Features and Controls ................................ 69
Keys
....................................................... 71
Doors and Locks
.................................... 78
Windows
................................................ 86
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
.................................................. 108
®
OnStar
System
................................... 114
Universal Home Remote System
Storage Areas
...................................... 128
Roof Panel
........................................... 133
Convertible Top
.................................... 138
......................... 66
......................... 88
....... 90
.......... 118
I n f o r ma t i o n P r o v i d e d b y :
Instrument Panel ....................................... 151
Instrument Panel Overview
Climate Controls
................................... 177
Warning Lights, Gages, and
Indicators
.......................................... 186
Driver Information Center (DIC)
Audio System(s)
................................... 242
Driving Your Vehicle ................................. 271
Your Driving, the Road, and Your
Vehicle
.............................................. 272
Towing
................................................. 313
Service and Appearance Care .................. 315
Service
................................................. 318
Fuel
...................................................... 320
Checking Things Under the Hood
Rear Axle
............................................. 370
Bulb Replacement
Windshield Replacement
M
................... 154
............ 205
......... 326
................................ 370
....................... 374
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Corvette and is the answer not in the manual?

Questions and answers

Summary of Contents for Chevrolet Corvette

  • Page 1 2007 Chevrolet Corvette Owner Manual Seats and Restraint Systems ....... 7 Instrument Panel ........151 Front Seats Instrument Panel Overview ..........8 ....154 Safety Belts Climate Controls ..........16 ........177 Child Restraints ........31 Warning Lights, Gages, and Indicators ..........
  • Page 2 Windshield Wiper Blade Replacement ... 375 Maintenance Schedule ......429 Tires ............. 378 Maintenance Schedule ......430 Appearance Care ........407 Customer Assistance Information ..... 451 Vehicle Identification ......418 Customer Assistance and Information ... 452 Electrical System ........419 Reporting Safety Defects ......
  • Page 3: Canadian Owners

    If the vehicle is GENERAL MOTORS, GM, the GM Emblem, sold, leave this manual in it. CHEVROLET, the CHEVROLET Emblem, the names CORVETTE and Z06 and the CORVETTE Emblem are registered trademarks of Canadian Owners General Motors Corporation.
  • Page 4: How To Use This Manual

    How to Use This Manual CAUTION: Many people read the owner manual from beginning to end when they first receive their new vehicle. If this is done, it can help you learn These mean there is something that could about the features and controls for the vehicle. hurt you or other people.
  • Page 5: Vehicle Symbols

    Vehicle Damage Warnings Vehicle Symbols Also, in this manual you will find these notices: The vehicle has components and labels that use symbols instead of text. Symbols are shown along Notice: These mean there is something with the text describing the operation or information that could damage your vehicle.
  • Page 6 These are some examples of symbols that may be found on the vehicle: I n f o r ma t i o n P r o v i d e d b y :...
  • Page 7: Table Of Contents

    Section 1 Seats and Restraint Systems Front Seats ............. 8 Lower Anchors and Tethers for Children Manual Seats ..........8 (LATCH) (Z06 Models Only) ....42 Power Seats ..........8 Lower Anchors and Tethers for Children Power Lumbar and Side Bolsters ....9 (LATCH) (Coupe and Convertible Heated Seats ..........
  • Page 8: Front Seats

    Front Seats Power Seats Manual Seats The control for the driver’s power seat is located on the outboard side of the seat cushion. Your vehicle may also have a passenger power seat. To move a manual passenger seat, pull up the bar •...
  • Page 9: Power Lumbar And Side Bolsters

    Your preferred seat position can be stored and Use the power seat control to move the seat to recalled if you have the memory option. See the proper position. See Power Seats on page 8. Memory Seat, Mirrors and Steering Wheel Use the vertical lumbar switch (A) to adjust on page 10.
  • Page 10: Heated Seats

    Heated Seats Memory Seat, Mirrors and Steering Wheel If your vehicle has heated seats, the buttons are located on the center console. Each seat has two settings: high and low. To turn on the heated seats, press the top button If your vehicle has this feature, memory can once.
  • Page 11 To program each button, use the following steps: • If you have a manual transmission vehicle, press and release the desired button 1 or 2. 1. Adjust the settings for the driver’s seat If the vehicle is on, the parking brake needs to position, both outside mirrors, and the be set to recall the memory position.
  • Page 12 Easy Exit Seat To recall an exit position, do one of the following: • If you have an automatic transmission vehicle, Two personalized exit positions can also be press and release the exit button while the programmed to allow for an easy exit or entry into vehicle is in PARK (P).
  • Page 13: Reclining Seatbacks

    Reclining Seatbacks The seats have manual reclining seatbacks. The lever used to operate them is located on the outboard side of the seats. CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving.
  • Page 14 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
  • Page 15: Seatback Latches

    Seatback Latches To unlock, lift up on the latch and push the seatback rearward. When you return the seatback to its original position, make sure the seatback is locked in place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
  • Page 16: Safety Belts

    Safety Belts CAUTION: Safety Belts: They Are for Everyone It is extremely dangerous to ride in a This part of the manual tells you how to use cargo area, inside or outside of a vehicle. safety belts properly. It also tells you some things In a collision, people riding in these areas you should not do with safety belts.
  • Page 17 Your vehicle has a light Why Safety Belts Work that comes on as a When you ride in or on anything, you go as fast reminder to buckle up. as it goes. See Safety Belt Reminder Light on page 188. In most states and in all Canadian provinces, the law says to wear safety belts.
  • Page 18 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 19 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield... I n f o r ma t i o n P r o v i d e d b y :...
  • Page 20: Questions And Answers About Safety Belts

    Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
  • Page 21: How To Wear Safety Belts Properly

    How to Wear Safety Belts Properly If I am a good driver, and I never drive far from home, why should I wear safety belts? This part is only for people of adult size. You may be an excellent driver, but if you are Be aware that there are special things to know in an accident —...
  • Page 22: Driver Position

    Driver Position 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. Lap-Shoulder Belt The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, The driver has a lap-shoulder belt. Here is how to let the belt go back slightly to unlock it.
  • Page 23 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the The lap part of the belt should be worn low and safety belt through the latch plate to fully snug on the hips, just touching the thighs.
  • Page 24 What is wrong with this? CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body. The shoulder belt is too loose. It will not give nearly as much protection this way.
  • Page 25 What is wrong with this? CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs.
  • Page 26 What is wrong with this? CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones. This could cause serious internal injuries.
  • Page 27 What is wrong with this? CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones.
  • Page 28 What is wrong with this? CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 29: Safety Belt Use During Pregnancy

    To unlatch the belt, push the button on the buckle. A pregnant woman should wear a lap-shoulder The belt should go back out of the way. belt, and the lap portion should be worn as low as possible, below the rounding, throughout the Before you close the door, be sure the belt is out pregnancy.
  • Page 30: Passenger Position

    Passenger Position Safety Belt Extender The passenger’s safety belt works the same way If the vehicle’s safety belt will fasten around you, as the driver’s safety belt. To learn how to you should use it. wear the passenger’s safety belt properly, see But if a safety belt is not long enough, your dealer Driver Position on page 22.
  • Page 31: Child Restraints

    Child Restraints What is the proper way to wear safety belts? If possible, an older child should wear a Older Children lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck.
  • Page 32 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? Move the child toward the center of the vehicle, but be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide.
  • Page 33 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
  • Page 34: Infants And Young Children

    Infants and Young Children Every time infants and young children ride in vehicles, they should have the protection provided Everyone in a vehicle needs protection! This by appropriate restraints. Young children should includes infants and all other children. Neither the not use the vehicle’s adult safety belts alone, distance traveled nor the age and size of the unless there is no other choice.
  • Page 35 CAUTION: Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
  • Page 36 What are the different types of add-on child restraints? CAUTION: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic Newborn infants need complete support, types. Selection of a particular restraint should including support for the head and neck. take into consideration not only the child’s This is necessary because a newborn weight, height, and age but also whether or not...
  • Page 37: Child Restraint Systems

    Child Restraint Systems CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
  • Page 38 A rear-facing infant seat (B) provides restraint A forward-facing child seat (C-E) provides restraint with the seating surface against the back of the for the child’s body with the harness and also infant. The harness system holds the infant sometimes with surfaces such as T-shaped in place and, in a crash, acts to keep the infant or shelf-like shields.
  • Page 39 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
  • Page 40 Securing an Add-on Child Restraint in See Lower Anchors and Tethers for Children (LATCH) (Z06 Models Only) on page 42 or Lower the Vehicle Anchors and Tethers for Children (LATCH) (Coupe and Convertible Models Only) on page 45 for more information. A child can be endangered CAUTION: in a crash if the child restraint is not properly secured in the vehicle.
  • Page 41 Securing the Child Within the Child Restraint CAUTION: There are several systems for securing the child A child can be seriously injured or killed within the child restraint. One system, the three-point harness, has straps that come down in a crash if the child is not properly over each of the infant’s shoulders and buckle secured in the child restraint.
  • Page 42: Lower Anchors And Tethers For Children

    Lower Anchors and Tethers for In order to use the top tether anchors in your vehicle, you need a child restraint equipped with a Children (LATCH) (Z06 Models Only) top tether. The child restraint manufacturer will provide you with instructions on how to use Some child restraints have a LATCH system.
  • Page 43 The top tether attachment (B) on the child restraint Top Tether Anchor Locations connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation (Top Tether Anchor): of the child restraint during driving or in a crash. Seating positions with top tether anchors.
  • Page 44 Securing a Child Restraint with a Top Tether CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety The top tether anchor is located behind the...
  • Page 45: Lower Anchors And Tethers For Children

    2. If the child restraint manufacturer recommends If the position you are that the top tether be attached, attach and using has a fixed head tighten the top tether to the top tether anchor, restraint and you if equipped. Refer to the child restraint are using a dual tether, instructions and the following steps: route the tether...
  • Page 46: Securing A Child Restraint In The Passenger Seat Position

    Some child restraints with a top tether are Securing a Child Restraint in the designed to be used whether the top tether is Passenger Seat Position anchored or not. Other child restraints require that the top tether be anchored. A national or local Your vehicle has a right front passenger airbag.
  • Page 47 CAUTION: (Continued) CAUTION: that rear-facing child restraints be A child in a rear-facing child restraint can transported in vehicles with a rear seat be seriously injured or killed if the right that will accommodate a rear-facing child front passenger’s airbag inflates. This is restraint, whenever possible.
  • Page 48 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
  • Page 49 5. Pull the rest of the shoulder belt all the way 6. To tighten the belt, push down on the child out of the retractor to set the lock. restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
  • Page 50: Airbag System

    7. If your child restraint manufacturer If the on indicator is still lit, do not secure a child recommends using a top tether and your restraint in this vehicle and check with your dealer. vehicle is a Z06 model, attach and tighten the To remove the child restraint, if the top tether is top tether to the top tether anchor.
  • Page 51 Here are the most important things to know about the airbag system: CAUTION: CAUTION: Frontal airbags for the driver and passenger are designed to deploy in moderate to severe frontal and near You can be severely injured or killed in a frontal crashes.
  • Page 52 CAUTION: CAUTION: Both frontal and side impact airbags Anyone who is up against, or very close inflate with great force, faster than the to, any airbag when it inflates can be blink of an eye. If you are too close to an seriously injured or killed.
  • Page 53: Where Are The Airbags

    There is an airbag Where Are the Airbags? readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 189 for more information.
  • Page 54 The passenger’s frontal airbag is in the instrument If your vehicle has a side impact airbag for the panel on the passenger’s side. driver, it is in the side of the driver’s seatback closest to the door. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 55 CAUTION: If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any...
  • Page 56: When Should An Airbag Inflate

    When Should an Airbag Inflate? If the front of your vehicle goes straight into a wall that does not move or deform, the threshold The driver’s and passenger’s frontal airbags are level for the reduced deployment is about designed to inflate in moderate to severe frontal or 10 to 12 mph (16 to 19.3 km/h), and the near-frontal crashes.
  • Page 57: What Makes An Airbag Inflate

    Frontal airbags (driver and passenger) are not What Makes an Airbag Inflate? intended to inflate during vehicle rollovers, In an impact of sufficient severity, the airbag rear impacts, or in many side impacts. sensing system detects that the vehicle is Your vehicle may or may not have side impact in a crash.
  • Page 58: What Will You See After An Airbag

    But the frontal airbags would not help you in many hot for a short time. The parts of the airbag that types of collisions, including rollovers, rear come into contact with you may be warm, but not impacts, and many side impacts, primarily because too hot to touch.
  • Page 59: Passenger Sensing System

    Your vehicle has a feature that may automatically Passenger Sensing System unlock the doors, turn the interior lamps on, and Your vehicle has a passenger sensing system. turn on the hazard warning flashers when the The passenger airbag status indicator in the airbags inflate.
  • Page 60 When the system check is complete, either the Your vehicle has a label on the sun visor that word ON or the word OFF, or the symbol for on or says, “Never put a rear-facing child seat in the symbol for off, will be visible. See Passenger the front.”...
  • Page 61 The passenger sensing system is designed to turn CAUTION: (Continued) off the passenger’s frontal airbag and side impact airbag (if equipped) if: • The passenger’s seat is unoccupied. Even though the passenger sensing • system is designed to turn off the The system determines that an infant is present in a rear-facing infant seat.
  • Page 62 If a child restraint has been installed and the on For some children who have outgrown child indicator is lit, turn the vehicle off. Remove restraints and for very small adults, the passenger the child restraint from the vehicle and reinstall the sensing system may or may not turn off the child restraint following the child restraint passenger’s frontal airbag and side impact airbag...
  • Page 63 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of an airbag.
  • Page 64: Servicing Your Airbag-Equipped Vehicle

    Aftermarket equipment, such as seat covers, can You do not want the system to inflate while affect how well the passenger sensing system someone is working on your vehicle. Your dealer operates. You may want to consider not using seat and the service manual have information about covers or other aftermarket equipment if your servicing your vehicle and the airbag system.
  • Page 65: Adding Equipment To Your

    Adding Equipment to Your Because I have a disability, I have to get my vehicle modified. How can I find out Airbag-Equipped Vehicle whether this will affect my advanced airbag system? Is there anything I might add to the front Changing or moving any parts of the front or sides of the vehicle that could keep the seats, safety belts, the airbag sensing and...
  • Page 66: Restraint System Check

    Restraint System Check Notice: If you damage the covering for the driver’s or the right front passenger’s frontal airbag, or an airbag covering on a seatback Checking the Restraint Systems (if equipped), the airbag may not work properly. You may have to replace the airbag module in Now and then, make sure the safety belt reminder the steering wheel, both the airbag module and light and all your belts, buckles, latch plates,...
  • Page 67: Replacing Restraint System Parts After A Crash

    Replacing Restraint System Parts If belts are cut or damaged, replace them. Collision damage also may mean you will need to After a Crash have LATCH system (if equipped), safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or CAUTION: LATCH system (if equipped) was not being used...
  • Page 68 NOTES I n f o r ma t i o n P r o v i d e d b y :...
  • Page 69: Features And Controls

    Section 2 Features and Controls Keys .............. 71 Manual Transmission Operation ....100 Keyless Access System ......73 Parking Brake ........... 103 Keyless Access System Operation ....74 Shifting Into Park (P) (Automatic Transmission) ....... 103 Doors and Locks .......... 78 Shifting Out of Park (P) Door Locks ..........
  • Page 70 Section 2 Features and Controls Universal Home Remote System ....118 Floor Mats ..........129 Universal Home Remote System Rear Storage Area ........130 (With One Triangular LED) ..... 118 Convenience Net ........131 Universal Home Remote System Cargo Cover ..........132 (With Three Round LED) .......
  • Page 71: Keys

    Keys CAUTION: Leaving children unattended in a vehicle is dangerous, but it is even more dangerous if the keyless access transmitter is also left in the vehicle. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move.
  • Page 72 There is a key, located Your vehicle has a keyless access system with inside the keyless pushbutton start. See Ignition Positions on page 90 access transmitter, that for information on starting the vehicle. works the glove box Notice: If you ever lose your transmitter(s) and can open the and/or key, it could be difficult to get into your hatch/trunk lid if vehicle...
  • Page 73: Keyless Access System

    Keyless Access System If you ever notice a decrease in the keyless access transmitter range, try doing one of the Your vehicle has a Keyless Access System that following: operates on a radio frequency subject to Federal • Check the distance. You may be too far from Communications Commission (FCC) Rules your vehicle.
  • Page 74: Keyless Access System Operation

    Keyless Access System Operation (Unlock): Press this button to unlock the driver’s door. The light on the door will flash Your vehicle has a keyless access system two times. Press the button two times within that allows you to lock and unlock your doors, 10 seconds to unlock both doors.
  • Page 75 Matching Transmitter(s) to Your 6. The DIC will display READY FOR FOB #X, where X can be 2, 3 or 4. Vehicle Each keyless access transmitter is coded to allow only transmitters programmed to your vehicle, to work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer.
  • Page 76 The Canadian immobilizer standard requires 2. Place the new, unrecognized transmitter in Canadian owners to see their dealer for matching the glove box transmitter pocket with the new transmitters when a recognized transmitter buttons facing towards the passenger side. is not available. United States owners are 3.
  • Page 77 13. Press the Acc. button (ignition switch). Battery Replacement 14. The DIC will read WAIT 10 MINUTES and will Under normal use, the battery in your keyless count down to zero, one minute at a time. access transmitter should last about three years. 15.
  • Page 78: Doors And Locks

    Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked it will not open. You increase the chance of being thrown 1.
  • Page 79 CAUTION: (Continued) • Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent injuries or even death from heat stroke. Always lock your vehicle whenever you leave it.
  • Page 80 To open a door from the inside, press the button (B) in front of the door handle and push the door open. You will hear a tone when the button is pressed. If power to the vehicle or the keyless access transmitter is lost, there are two ways to open the door.
  • Page 81: Power Door Locks

    Power Door Locks When lock is pressed, a beep will sound. If the door is closed when lock is pressed, the light will come on for a few seconds, then turn off. If The power door lock the door is open when lock is pressed, the light switches are located on will stay on.
  • Page 82: Programmable Automatic Door Unlock

    Programmable Automatic Lockout Protection Door Unlock Your vehicle can be programmed to sound the horn three times and unlock the driver’s door when Your vehicle is programmed so that when the shift both doors are closed and there is a keyless lever is moved into PARK (P) for automatic access transmitter inside the vehicle.
  • Page 83: Hatch/Trunk

    Hatch/Trunk Notice: Closing the hatch/trunk lid forcefully or from the sides can cause damage to the CAUTION: glass, the defogger or the weather stripping. Be sure objects will fit in the hatch/trunk area before closing the hatch/trunk lid. When It can be dangerous to drive with the closing the hatch/trunk lid, gently pull down hatch/trunk lid open because carbon from the center.
  • Page 84 Hatch/Trunk Lid Release There are several ways to release the hatch/trunk lid. If your vehicle has an automatic transmission, the shift lever must be in PARK (P). For manual transmission vehicles, the parking brake must be set when the ignition is started for the hatch/trunk release to operate.
  • Page 85 Closing the Rear Compartment (Coupe) Notice: Do not use the emergency trunk release handle as a tie-down or anchor point To assist in closing the rear compartment lid when securing items in the trunk as it of your coupe, use the pocket on the underside of could damage the handle.
  • Page 86: Windows

    Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
  • Page 87: Power Windows

    Power Windows Window Indexing This feature automatically lowers the window a The power window small amount when the door is opened. Then, switches are located on when the door is closed, the window will raise to each door. its full up position. If either window does not index properly, it could be due to loss of power.
  • Page 88: Theft-Deterrent Systems

    Lighted Visor Vanity Mirrors Arming the System Pull down the sun visor and lift the cover to Use one of the three following items listed here to expose the lighted vanity mirror. When the cover arm the system: is lifted, the lamps will come on automatically, •...
  • Page 89 The theft-deterrent system will not arm if you lock 5. Reach through the open window and manually the driver’s door with the power door lock pull the release lever on the floor. switch after the doors are closed. 6. Turn off the alarm by pressing the unlock button on the transmitter.
  • Page 90: Starting And Operating Your Vehicle

    Starting and Operating Your Ignition Positions Vehicle Your vehicle has an electronic keyless New Vehicle Break-In ignition with a pushbutton start. Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: •...
  • Page 91: Retained Accessory Power (Rap)

    Retained Accessory Power (RAP) Acc. (OFF/ACCESSORY): When the engine is on or the vehicle is in accessory power mode, it is With RAP, your power windows and the audio recommended that a manual transmission be system will continue to work for up to 10 minutes placed in REVERSE (R).
  • Page 92 Cell phone chargers can interfere with the See “Battery Replacement” under Keyless operation of the Keyless Access System. Battery Access System Operation on page 74 for more chargers should not be plugged in when starting information. If the fob battery is dead, you or turning off the engine.
  • Page 93 Notice: Cranking the engine for long periods Stopping Your Engine of time, by pressing the START button If your vehicle has an automatic transmission, immediately after cranking has ended, can move the shift lever to PARK (P) and press overheat and damage the cranking motor, and the Acc.
  • Page 94: Engine Coolant Heater

    Engine Coolant Heater CAUTION: Your vehicle may have an engine coolant heater. In very cold weather, 0°F (−18°C) or colder, Plugging the cord into an ungrounded the engine coolant heater can help. You will get outlet could cause an electrical shock. easier starting and better fuel economy during Also, the wrong kind of extension cord engine warm-up.
  • Page 95: Automatic Transmission Operation

    Automatic Transmission Operation CAUTION: There are several different positions for It is dangerous to get out of your vehicle your shift lever. if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to.
  • Page 96 You have to fully apply your regular brakes first and then press the shift lever button before you can shift CAUTION: from PARK (P) when the vehicle is running. If you cannot shift out of PARK (P), ease pressure on the Shifting into a drive gear while your shift lever and push the shift lever all the way into PARK (P) as you maintain brake application.
  • Page 97 DRIVE (D): This position is for normal driving. Manual Paddle Shift It provide the best fuel economy for your vehicle. While in the SPORT MODE (S) position, the If you need more power for passing, and you are: paddles located on the steering wheel, can be •...
  • Page 98 To use the system, shift from PARK (P) position to When using the Manual SPORT MODE (S) while stopped and with the Paddle Shift Feature engine running, or from DRIVE (D) with the vehicle while in the SPORT moving. When accelerating your vehicle from a MODE (S), the current stop in snowy and icy conditions, you may want to gear will be displayed...
  • Page 99 When the transmission gear does not respond to The vehicle speeds required for Manual Paddle a shift change, the DIC will show an X over Shift up-shifts depend on several vehicle the gear display. inputs, which will vary the allowed up-shift speed by a few mph (km/h).
  • Page 100: Manual Transmission Operation

    Manual Transmission Operation SECOND (2): Press the clutch pedal as you let up on the accelerator pedal and shift into SECOND (2). Then, slowly let up on the clutch This is the shift pattern pedal as you press the accelerator pedal. for the six-speed manual transmission.
  • Page 101 Your six-speed manual transmission has a feature This chart shows when to shift to the next higher that allows you to safely shift into REVERSE (R) gear for the best fuel economy. while the vehicle is rolling at less than 3 mph (5 km/h).
  • Page 102 One to Four Shift Light Notice: If you skip more than one gear when you downshift, or if you race the engine (Manual Transmission) when you release the clutch pedal while downshifting, you could damage the engine, When this light comes clutch, driveshaft or the transmission.
  • Page 103: Parking Brake

    Parking Brake Shifting Into Park (P) (Automatic Transmission) The parking brake lever is located to the right of the center console. To set the parking brake, hold the brake pedal CAUTION: down. Pull the parking brake lever up. If the ignition is on, the brake system warning light will come on.
  • Page 104 Leaving Your Vehicle With the Engine Torque Lock (Automatic Transmission) Running (Automatic Transmission) If you are parking on a hill and you do not shift your transmission into PARK (P) properly, the weight of the vehicle may put too much force CAUTION: on the parking pawl in the transmission.
  • Page 105: Shifting Out Of Park (P)

    Shifting Out of Park (P) 3. Apply and hold the brake until the end of Step 4. (Automatic Transmission) 4. Shift to NEUTRAL (N). Your vehicle has an automatic transmission shift 5. Start the engine and then shift to the drive lock control system which locks the shift lever gear you want.
  • Page 106: Parking Over Things That Burn

    Parking Over Things That Burn Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
  • Page 107: Running The Engine While Parked

    Running the Engine While Parked CAUTION: It is better not to park with the engine running. But if you ever have to, here are some things to know. It can be dangerous to get out of your vehicle if the shift lever is not fully in CAUTION: PARK (P) with the parking brake firmly set.
  • Page 108: Mirrors

    Mirrors Automatic Dimming Rearview Mirror ® with OnStar and Compass Manual Rearview Mirror The vehicle may have an automatic dimming ® rearview mirror with OnStar , a compass and map When you are sitting in a comfortable driving ® lamps. Three OnStar buttons are at the bottom position, adjust the mirror so you can see clearly ®...
  • Page 109 Map Lamps The mirror compass can be calibrated by driving the vehicle in circles at 5 mph (8 km/h) or less until The mirror has map lamps located at the bottom the display reads a direction. of the mirror. To manually turn the lamps on or off, The compass can be placed in calibration mode press the button next to each lamp.
  • Page 110: With Compass

    To adjust for compass variance, do the following: 3. Once the zone number appears on the display, press the on/off button quickly until you reach 1. Find your current location and variance the correct zone number. Stop pressing the zone number on the zone map that follows. button and the mirror will return to normal operation.
  • Page 111 Automatic Dimming Mirror Operation 2. Press the button again to change the display to the desired unit of measurement. After The automatic dimming mirror function is turned on approximately four seconds of inactivity, the each time the ignition is started. A light near the new unit will be locked in and the on/off button will come on to indicate the automatic compass/temperature display will return.
  • Page 112 Compass Calibration The compass may need calibration if one of the following occurs: • After approximately five seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic field interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder, or a similar magnetic item.
  • Page 113: Outside Power Heated Mirrors

    Cleaning the Mirror Move the top selector control to the left or right to select either the driver’s or passenger’s mirror. When cleaning the mirror, use a paper towel or To adjust the direction of the mirror, use the similar material dampened with glass cleaner. Do arrows on the round four-way control.
  • Page 114: Outside Automatic Dimming Mirror

    ® Outside Automatic Dimming Mirror OnStar System If your vehicle has this feature, the driver’s side outside mirror will adjust for the glare of headlamps behind you. This feature is controlled by the on and off setting on the inside mirror. Outside Convex Mirror ®...
  • Page 115 ® ® OnStar service is provided to you subject to the OnStar Services ® OnStar Terms and Conditions. You may cancel ® For new vehicles equipped with OnStar , the Safe ® your OnStar service at any time by contacting ®...
  • Page 116 ® ® Available Services with Safe & Sound Plan OnStar Hands-Free Calling • Automatic Notification of Airbag Deployment ® OnStar Hands-Free Calling allows eligible ® OnStar subscribers to make and receive calls • Advanced Automatic Crash Notification (AACN) using voice commands. Hands-Free Calling is fully (If equipped) integrated into the vehicle, and can be used •...
  • Page 117 ® ® How OnStar Service Works OnStar service that involves location information about your vehicle cannot work unless GPS ® In order to provide you with OnStar services, your satellite signals are unobstructed and available in ® vehicle’s OnStar system has the capability of that place as well.
  • Page 118: Universal Home Remote System

    Universal Home Remote This device complies with RSS-210 of Industry Canada. Operation is subject to the following System two conditions: 1. This device may not cause interference. Universal Home Remote System 2. This device must accept any interference (With One Triangular LED) received, including interference that may cause undesired operation of the device.
  • Page 119: Universal Home Remote System Operation (With Three Round Led)

    This device complies with Part 15 of the FCC Universal Home Remote System Rules. Operation is subject to the following Operation (With Three Round LED) two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 120 Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter. Be sure to keep the original remote control transmitter for use in other vehicles, as well as, for future programming.
  • Page 121 Programming Universal Home 2. Write down the eight to 12 coding switch settings from left to right. When the switch Remote — Fixed Code is in the up position, write “on,” and when a Fixed Code garage door openers are used for switch is in the down position, write “off”.
  • Page 122 4. The indicator light will blink slowly. In order 7. Immediately release the button when the from left to right, and within two and one-half garage door moves. The indicator light will minutes, enter each switch setting into the blink rapidly until programming is complete. Universal Home Remote System.
  • Page 123 Follow these steps to program up to three channels: After pressing the “learn” button, you have 10 to 30 seconds to complete Step 4 1. Press the two outside buttons at the same depending on your garage control unit. If you time for one to two seconds, and immediately cannot locate the “learn”...
  • Page 124: Universal Home Remote System Operation (With One Triangular Led)

    Using Universal Home Remote Universal Home Remote System Operation Press and hold the appropriate button for at least half of a second. The indicator light will come (With One Triangular LED) on while the signal is being transmitted. Reprogramming Universal Home Remote Buttons You can reprogram any of the three buttons by repeating the instructions.
  • Page 125 If you have a newer garage door opener with rolling Programming Universal Home Remote codes, please be sure to follow Steps 6 through 8 to Follow these steps to program up to three complete the programming of your Universal Home channels: Remote Transmitter.
  • Page 126 4. The indicator light will flash slowly at first and 6. Locate in the garage, the garage door opener then rapidly after Universal Home Remote receiver (motor-head unit). Locate the “Learn” successfully receives the frequency signal or “Smart” button. This can usually be from the hand-held transmitter.
  • Page 127 Gate Operator and Canadian Using Universal Home Remote Programming Press and hold the appropriate Universal Home Remote button for at least half of a second. Canadian radio-frequency laws require transmitter The indicator light will come on while the signal is signals to time out or quit after several seconds being transmitted.
  • Page 128: Storage Areas

    Reprogramming a Single Universal Storage Areas Home Remote Button Glove Box To program a device to Universal Home Remote using a Universal Home Remote button To open the glove box, lift up on the lever. Use previously trained, follow these steps: the key to lock and unlock.
  • Page 129: Center Console Storage Area

    Center Console Storage Area To remove a floor mat, pull up on the rear of To use this storage area, pull up the lid on the the mat to disconnect it driver’s side front edge of the console and swing from the locator pins.
  • Page 130: Rear Storage Area

    Rear Storage Area Notice: Do not store heavy or sharp objects in the rear storage compartments located in the There are two rear storage compartments in the hatch/trunk area. If you do, the objects could floor of the rear hatch/trunk area. damage the underbody.
  • Page 131: Convenience Net

    Convenience Net If your vehicle has this feature it is on the back wall of the rear area of the vehicle. Put small loads, like grocery bags, in the net. It can help keep them from falling over during sharp turns or quick starts and stops. The convenience net is not for larger, heavier loads.
  • Page 132: Cargo Cover

    Cargo Cover If your vehicle has this feature, the security shade can provide hidden storage in the rear area of the vehicle. The shade is also helpful in blocking the glare from the removable roof when it is stored in the rear compartment. Using the Cargo Cover 1.
  • Page 133: Roof Panel

    4. Push the loop to the Removing the Roof Panel top of the striker (base plate). CAUTION: Do not try to remove a roof panel while the vehicle is moving. Trying to remove the roof panel while the vehicle is moving could cause an accident.
  • Page 134 Notice: If you drop or rest a roof panel on its edges, the roof panel, paint and/or weatherstripping may be damaged. Always place the roof panel in the stowage receivers after removing it from the vehicle. 1. Park on a level surface and set the parking brake.
  • Page 135 7. To unlock the rear of the roof panel’s rear release latch, press the back of the release handle (B). Then press the button on the front of the release handle, (A) with your thumb. Pull down the latch lever with your fingers. Driver’s Side Rear Roof Panel Release Hatch 8.
  • Page 136: Storing The Roof Panel

    Storing the Roof Panel 1. Turn the roof panel so that the front edge of the panel is facing the storage area. 2. Insert the roof panel CAUTION: so that the outside front edges line up If a roof panel is not stored properly, it between the receiver covers.
  • Page 137: Installing The Roof Panel

    Installing the Roof Panel In most cases, it makes it easier if two people re-install the roof panel. 1. Park on a level surface and set the parking CAUTION: brake. Shift an automatic transmission into PARK (P). Shift a manual transmission into NEUTRAL.
  • Page 138: Convertible Top

    6. Turn the front Convertible Top release handles inward so that they Convertible Top (Manual) latch to the closed position. For care and cleaning of the convertible top, see Convertible Top on page 414 under “Service and Appearance Care”. High pressure car washes may cause water to enter the vehicle.
  • Page 139 The parts of the manual convertible top that are Notice: Lowering the convertible top when used when lowering and raising it are: there are objects in the storage area could damage it or break the glass rear window. Always verify that no objects are in the storage area before lowering the convertible top.
  • Page 140 Lowering the Manual Convertible Top 1. Park on a level surface. Shift an automatic transmission into PARK (P) and set the parking brake. Shift a manual transmission into NEUTRAL and set the parking brake. 2. Make sure the ignition is off. 3.
  • Page 141 After pressing the release button, the driver’s and passenger’s door glass should retract to the full-down position. If the vehicle has lost battery power, the tonneau cover (C) can still be opened using the manual release cable. The tonneau cover emergency manual release cable is located underneath the carpeting behind the passenger’s seat head restraint, on the underside forward edge of the tonneau...
  • Page 142 7. Pull the cable to release the tonneau cover. 8. Push forward on the front edge (A) of the convertible top to allow the rear edge (B) of the convertible top to be moved to its full-down position. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 143 Raising the Manual Convertible Top 1. Park on a level surface. Shift an automatic transmission into PARK (P) and set the parking brake. Shift a manual transmission into NEUTRAL and set the parking brake. 2. Lower both windows. 3. Make sure the ignition is off. 4.
  • Page 144 6. Pull the convertible top up by firmly gripping 7. Lift the rear edge (B) of the convertible top to the front edge (A) near the center and its full-up position by first raising the front applying a brisk upward and forward motion to edge (A).
  • Page 145: Convertible Top (Power)

    10. Push the front edge (A) of the convertible top Convertible Top (Power) down from the outside of the vehicle, or pull For care and cleaning of the convertible top see the front edge (A) of the convertible top Convertible Top on page 414 under “Service down from the center pull-down handle located and Appearance Care”.
  • Page 146 Notice: If you lower the top on your vehicle in cold weather (0°F/-18°C or lower), you may damage top components. Do not lower the top in cold weather. Notice: If you raise or lower the convertible top while the vehicle is in motion, you could damage the top or the top mechanism.
  • Page 147 4. Push and hold the Raising the Power Convertible Top bottom of the power Notice: If you raise or lower the convertible convertible top top while the vehicle is in motion, you button, located to could damage the top or the top mechanism. the left of the The repairs would not be covered by your steering wheel, on...
  • Page 148 4. After the convertible top is completely raised, tonneau cover, by using the following steps. The release the power convertible top button. carpet liner on the passenger’s side must be pulled back to access the hydraulic pump. 5. Pull the convertible front top latch down and turn it counterclockwise to lock the Manual operation of the power convertible top convertible top.
  • Page 149 The tonneau cover emergency release cable 3. Use the wrench, located in the console, and is located behind the passenger’s seat turn the pressure release bolt head restraint, on the underside forward edge counterclockwise one revolution, to relieve of the tonneau cover. Also, see Hatch/Trunk pressure to the hydraulic pump.
  • Page 150 NOTES I n f o r ma t i o n P r o v i d e d b y :...
  • Page 151 Section 3 Instrument Panel Instrument Panel Overview ......154 Instrument Panel Brightness ...... 170 Hazard Warning Flashers ......156 Courtesy Lamps ........171 Other Warning Devices ......157 Entry/Exit Lighting ........171 Horn ............157 Reading Lamps ......... 171 Tilt Wheel ..........157 Battery Run-Down Protection .....
  • Page 152 Section 3 Instrument Panel Passenger Airbag Status Indicator ..... 190 Driver Information Center (DIC) ....205 Voltmeter Gage ......... 192 DIC Controls and Displays ......206 One-to-Four Shift Light DIC Warnings and Messages ....212 (Manual Transmission) ......193 Other Messages ........230 Brake System Warning Light .....
  • Page 153 NOTES I n f o r ma t i o n P r o v i d e d b y :...
  • Page 154: Instrument Panel Overview

    Instrument Panel Overview I n f o r ma t i o n P r o v i d e d b y :...
  • Page 155 The main components of your instrument panel are the following: A. Air Outlet. See Outlet Adjustment on page 184. J. Center Air Outlets. See Outlet Adjustment on page 184. B. Head-Up Display Controls (If Equipped). See Head-Up Display (HUD) on page 172. K.
  • Page 156: Hazard Warning Flashers

    T. Heated Seat Controls (If Equipped). See Hazard Warning Flashers Heated Seats on page 10. Your hazard warning flashers let you warn others. U. Shift Lever (Automatic Shown). See Automatic They also let police know you have a problem. Transmission Operation on page 95 or Your front and rear turn signal lamps will flash on Manual Transmission Operation on page 100.
  • Page 157: Other Warning Devices

    Other Warning Devices The lever that allows you to tilt the steering wheel is located on the left side of the steering column. If you carry reflective triangles, you can set them up at the side of the road about 300 feet (100 m) behind your vehicle.
  • Page 158: Turn Signal/Multifunction Lever

    Telescopic Steering Column Turn Signal/Multifunction Lever If your vehicle has this feature, the telescopic steering column will allow you to adjust the distance the steering wheel is from the instrument panel. The telescopic steering column switch is located on the right side of the steering column.
  • Page 159: Turn And Lane-Change Signals

    • To signal a lane change, just raise or lower the Flash-to-Pass Feature. See Flash-to-Pass on lever until the arrow starts to flash. Release page 160. the lever and the turn signal will automatically flash • Cruise Control. See Cruise Control on three times.
  • Page 160: Headlamp High/Low-Beam Changer

    Headlamp High/Low-Beam Changer Windshield Wipers To change the headlamps from low beam to high, push the turn signal lever all the way forward. To change from high to low beam, pull the lever rearward. While the high beams are on, this light on the instrument panel Use the lever located on the right side of the cluster will also be lit.
  • Page 161: Windshield Washer

    Windshield Washer (Delay Adjustment): Move the lever to this position to choose a delayed wiping cycle. The lever on the right side of the steering column Turn the intermittent adjust band down for a longer also controls the windshield washer. There is a delay or up for a shorter delay.
  • Page 162: Cruise Control

    Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without Your vehicle has cruise control. keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
  • Page 163 If your vehicle is in cruise control, and has the 3. Press in the set button at the end of the lever Traction Control System (TCS), and it begins to and release it. limit wheel spin, the cruise control automatically 4.
  • Page 164 Increasing Speed While Using Passing Another Vehicle While Using Cruise Control Cruise Control There are two ways to go to a higher speed: Use the accelerator pedal to increase your speed. When you take your foot off the pedal, your •...
  • Page 165 Cruise Control in Sport (S) and Manual Ending Cruise Control Paddle Shift Gear Selection To end a cruise control session, step lightly on the brake pedal. If your vehicle has a manual When your vehicle is in Sport (S) and the manual transmission, lightly tapping the clutch will also paddle shift controls are not being used, cruise end a cruise control session.
  • Page 166: Exterior Lamps

    Exterior Lamps To override AUTO mode, turn the control to off. To reset to AUTO mode turn the control to exterior lamps and then back to AUTO. Automatic mode also resets when your vehicle is turned off and then back on again if the control is left in the AUTO position.
  • Page 167: Wiper Activated Headlamps

    Wiper Activated Headlamps Daytime Running Lamps (DRL) This feature activates the headlamps and parking Daytime Running Lamps (DRL) can make it easier lamps after the windshield wipers have been in for others to see the front of your vehicle during use for approximately 15 seconds and deactivates the day.
  • Page 168 When it is dark enough outside, the front turn Turning the exterior lamp control to off a second signal lamps will turn off and normal low-beam time, or turning on the headlamps will remove headlamps will turn on. the HEADLAMPS SUGGESTED message in the DIC.
  • Page 169: Fog Lamps

    ® Fog Lamps Twilight Sentinel ® Use fog lamps for better vision in foggy or misty Twilight Sentinel can turn your lamps on and off conditions. for you. A light sensor on top of the instrument ® panel makes the Twilight Sentinel work, so The fog lamps control is located on the be sure it is not covered.
  • Page 170: Exterior Lighting Battery Saver

    You can idle the vehicle with the lamps off, even Exterior Lighting Battery Saver when it is dark outside. If the manual parking lamps or headlamps have After starting the vehicle, turn the exterior lamp been left on, the exterior lamps will turn off as soon control band on the multifunction lever to off as the ignition is turned off or Retained Accessory and then release it.
  • Page 171: Courtesy Lamps

    Turn and hold the knob clockwise to brighten the Reading Lamps lights or counterclockwise to dim them. During The inside rearview mirror includes two reading the day, this knob will adjust the instrument panel lamps. The lamps will go on when a door is brightness and at night will adjust all interior opened.
  • Page 172: Head-Up Display (Hud)

    Head-Up Display (HUD) • Manual Paddle Shift Gear Indicator (If Equipped) These displays on the HUD are for use when CAUTION: using the manual paddle shift controls to shift the transmission. See “Manual Paddle Shift” in Automatic Transmission Operation on page 95. If the HUD image is too bright, or too high •...
  • Page 173 There are three HUD modes that you can choose When the desired HUD display has been selected, to view in the HUD display. By pressing the release the MODE button. MODE button, you can scroll through these modes Within each mode, the display, can be further in the following order: customized by pressing the PAGE button.
  • Page 174 The HUD controls are located to the left of the steering wheel. Be sure to continue scanning the displays, controls and driving environment just as you would in a vehicle without HUD. If you never look at To adjust the HUD so you can see it properly, do your instrument panel cluster, you may miss the following: something important, such as a warning light.
  • Page 175 It is possible for sunlight to enter the HUD To change the language and unit selections, see making it difficult to see the image. The display “OPTION” under DIC Controls and Displays will return to normal when the sunlight is no on page 206.
  • Page 176: Accessory Power Outlet(S)

    Accessory Power Outlet(s) Notice: Adding any electrical equipment to your vehicle may damage it or keep other The accessory power outlet can be used to components from working as they should. connect electrical equipment such as a cellular The repairs would not be covered by your phone or CB radio.
  • Page 177: Ashtray(S) And Cigarette Lighter

    Ashtray(s) and Cigarette Lighter Climate Controls The ashtray and cigarette lighter are located on Dual Automatic Climate Control the instrument panel, in front of the shift lever. System To use the ashtray, press on the indentation at the top of the door. With this system you can control the heating, cooling, and ventilation for your vehicle.
  • Page 178 Automatic Operation In cold weather, the system will start at reduced fan speeds to avoid blowing cold air AUTO (Automatic): Press the AUTO button to into your vehicle until warmer air is available. place the entire system in the automatic mode. The system will start out blowing air at the floor When automatic operation is active, the system will but may change modes automatically as the...
  • Page 179 Manual Operation To change the current mode, select one of the following: Driver Power/Temperature: Press the driver temperature knob on the driver side of the climate (Vent): This mode directs most of the air to control panel to turn the climate control system the instrument panel outlets, with a very small off.
  • Page 180 Pressing the arrows will delete AUTO from the (Air Conditioning Off): Press this button to digital display. The fan graphics with the fan speed turn the air conditioning compressor off. Press bars will be shown. To increase the fan speed AUTO to return to automatic operation.
  • Page 181 For quick cool down on hot days press the AUTO Sensors button and adjust the temperature to a cool, The solar sensor on your vehicle monitors the comfortable setting. To achieve maximum cool solar radiation and uses the information to down, do the following: maintain the selected temperature when operating 1.
  • Page 182 These delays prevent false readings. If the (Floor/Defog): This mode directs the air temperature goes down, the outside temperature equally between the windshield and the floor will be shown when you start the vehicle. If it outlets with a small amount to the side window has been turned off for less than three hours, the outlets.
  • Page 183 Rear Window Defogger Your vehicle has heated outside rearview mirrors. The mirrors will heat to help clear fog or frost The rear window defogger uses a warming grid to from the surface of the mirrors when the remove fog or frost from the rear window. rear window defog button is pressed.
  • Page 184: Outlet Adjustment

    Outlet Adjustment Passenger Compartment Air Filter Use the tab located on the air outlets to change The passenger compartment air filter removes the direction of the airflow. certain particles from the air including pollen and dust particles. Reductions in airflow, which Operation Tips may occur more often in dusty areas, indicate that •...
  • Page 185 To check or replace the air filter, do the following: 3. Remove the passenger compartment air filter from the housing. 1. Undo the passenger compartment air filter housing cover retainer clips (A). 4. Insert the new filter into the housing. 5.
  • Page 186: Warning Lights, Gages, And Indicators

    Warning Lights, Gages, and When one of the warning lights comes on and stays on when you are driving, or when one of the Indicators gages shows there may be a problem, check the section that tells you what to do about This part describes the warning lights and gages it.
  • Page 187 United States Manual Transmission shown, Canada, Automatic Transmission and Z06 Model similar I n f o r ma t i o n P r o v i d e d b y :...
  • Page 188: Speedometer And Odometer

    Speedometer and Odometer Notice: Fuel will shut off at about 6600 rpm for the base model and 7100 rpm for the Your speedometer lets you see your speed in Z06 model. If you continue to drive your vehicle either miles per hour (mph) or kilometers per at the fuel shut off rpm, you could damage hour (km/h).
  • Page 189: Airbag Readiness Light

    Airbag Readiness Light CAUTION: There is an airbag readiness light on the instrument panel, which shows a deployed airbag symbol. The system checks the airbag’s If the airbag readiness light stays on after electrical system for malfunctions. The light tells you start your vehicle, it means the airbag you if there is an electrical problem.
  • Page 190: Passenger Airbag Status Indicator

    Passenger Airbag Status Indicator When the vehicle is started, the passenger airbag status indicator will light ON and OFF, or the Your rearview mirror has a passenger airbag symbol for on and off, for several seconds as a status indicator. system check.
  • Page 191 Never put a child in a rear-facing child restraint in If the word ON or the on symbol is lit on the the passenger’s seat unless the passenger airbag passenger airbag status indicator, it means that status indicator shows off and the airbag is off. the passenger’s frontal airbag and side impact Here is why: airbag (if equipped) are enabled (may inflate).
  • Page 192: Voltmeter Gage

    If the word OFF or the off symbol is lit on the Voltmeter Gage passenger airbag status indicator, it means that the passenger sensing system has turned off The voltmeter shows the passenger’s airbag(s). See Passenger Sensing the voltage output of System on page 59 for more on this, including your battery.
  • Page 193: One-To-Four Shift Light

    One-to-Four Shift Light After shifting to FOURTH (4), you may downshift to a lower gear if you prefer. (Manual Transmission) Notice: Forcing the shift lever into any gear except FOURTH (4) when the 1 TO 4 SHIFT light When this light comes comes on may damage the transmission.
  • Page 194: Brake System Warning Light

    Brake System Warning Light If the light comes on while you are driving and you have a CHECK BRAKE FLUID message showing Your vehicle’s hydraulic brake system is divided on the DIC, pull off the road and stop carefully. into two parts. If one part is not working, the other You may notice that the pedal is harder to push or part can still work and stop you.
  • Page 195: Anti-Lock Brake System Warning Light

    Anti-Lock Brake System Traction Control System (TCS) Warning Light Warning Light With the Anti-Lock This light should come Brake System (ABS), on briefly as you start this light will come the engine. If the on when the engine is light does not come on started and may stay on then, have it fixed for several seconds.
  • Page 196: Active Handling System Light

    Active Handling System Light You should have the system serviced as soon as possible. Adjust your driving accordingly. The Active Handling System light will come on When the system is working, you will see the briefly as you start the engine. If the light does not ACTIVE HANDLING message displayed in come on then, have it fixed so it will be ready to the DIC.
  • Page 197: Engine Coolant Temperature Gage

    Engine Coolant Temperature Gage Tire Pressure Light This light will come on briefly when you turn the ignition on. United States Canada This light will also come on when one or more of This gage shows the engine coolant temperature. your tires are significantly underinflated.
  • Page 198: Malfunction Indicator Lamp

    Malfunction Indicator Lamp Notice: If you keep driving your vehicle with this light on, after awhile, your emission Check Engine Light controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly. This could lead to Your vehicle has a costly repairs that may not be covered by your computer which...
  • Page 199 This light should come on briefly, as a check to If the Light Is Flashing show you it is working, as you start the engine. The following may prevent more serious damage If the light does not come on, have it repaired. This to your vehicle: light will also come on during a malfunction in •...
  • Page 200 If the Light Is On Steady Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. You also may be able to correct the emission See Gasoline Octane on page 320. Poor fuel system malfunction by considering the following: quality will cause the engine not to run as Did you recently put fuel into your vehicle?
  • Page 201 Emissions Inspection and Maintenance Your vehicle will not pass this inspection if the OBD (on-board diagnostic) system determines that Programs critical emission control systems have not been Some state/provincial and local governments have completely diagnosed by the system. The vehicle or may begin programs to inspect the emission would be considered not ready for inspection.
  • Page 202: Engine Oil Pressure Gage

    Engine Oil Pressure Gage The engine oil pressure gage shows the engine oil pressure in psi (pounds per square inch) or kPa (kilopascals) when the engine is running. Oil pressure should be 20 to 80 psi (140 to 550 kPa). In certain situations such as long, extended idles on hot days, it could read as low as 6 psi (40 kPa) and still be considered normal.
  • Page 203: Security Light

    Security Light CAUTION: For information regarding this light, see Do not keep driving if the oil pressure is Theft-Deterrent low. If you do, your engine can become so Systems on page 88. hot that it catches fire. You or others could be burned.
  • Page 204: Lights On Reminder

    Lights On Reminder Fuel Gage This light comes on Your fuel gage tells you whenever the parking about how much fuel lamps are on. you have left when the engine is on. See Headlamps on Reminder on page 167 for more information.
  • Page 205: Driver Information Center (Dic)

    The DIC comes on when the ignition is turned on. • After displaying CORVETTE BY CHEVROLET, The gage may not indicate the tank is empty the DIC will display the current driver and when the ignition is turned off.
  • Page 206: Dic Controls And Displays

    If a problem is detected, a warning message will DIC Controls and Displays appear on the DIC display. Be sure to take The Driver Information Center (DIC) has different any message that appears on the display seriously modes which can be accessed by pressing and remember that clearing the message will the following buttons located on the instrument only make the message disappear, not correct the...
  • Page 207 Average Fuel Economy: The average fuel (Gages): Press this button to display gage economy is viewed as a long-term approximation information like oil pressure and temperature, of your overall driving conditions. You should coolant temperature, automatic transmission fluid reset the average fuel economy display every time temperature, if equipped, battery voltage, and you refuel.
  • Page 208 Fuel Range: The range calculates the remaining GAGES Button distance you can drive without refueling. It is The gages button displays oil pressure, oil based on fuel economy and the fuel remaining in temperature, coolant temperature, transmission the tank. fluid temperature for automatic transmission Press the fuel button again to display the range, vehicles only, battery voltage, and tire pressure such as:...
  • Page 209 Coolant Temperature: This display shows the Battery Voltage: This display shows the current engine coolant temperature. battery voltage. Press the gages button again to display the Press the gages button again to display the coolant temperature, such as: battery voltage, such as: •...
  • Page 210 TRIP Button Both of the trip odometers can be used simultaneously. TRIP A could be used to track the The TRIP button displays the odometer, trip distance to a destination. TRIP B could be used distance, elapsed time, average speed, and oil life to track maintenance periods.
  • Page 211 You can start or stop the elapsed time by pressing When the remaining oil life is low, the system will the RESET button. To reset the elapsed time to alert you with the message CHANGE ENGINE OIL. zero, press the RESET button for three seconds Remember, you must reset the engine oil life while the timer is displayed.
  • Page 212: Dic Warnings And Messages

    DIC Warnings and Messages ABS (Anti-lock Brake System) ACTIVE This message displays when the Anti-lock Messages are displayed on the DIC to notify the Brake System (ABS) is adjusting brake pressure driver that the status of the vehicle has changed to help avoid a braking skid.
  • Page 213 ACTIVE HANDLING CALIBRATING ACTIVE HANDLING WARMING UP This message displays and the active handling This message may display when you first start system light on the instrument panel cluster turns your vehicle during cold winter weather, and begin on while the system is calibrating after exceeding to drive away, up to 6 mph (10 km/h).
  • Page 214 BATTERY SAVER ACTIVE The reminder will be repeated if the ignition is on, the vehicle is in motion, the driver is buckled This message displays when the vehicle has and the passenger is still unbuckled, and detected that the battery voltage is dropping the passenger airbag is enabled.
  • Page 215 CHANGE ENGINE OIL CHECK GAS CAP This message displays when the life of the engine This message displays if the fuel cap has not oil has expired. See Scheduled Maintenance on been fully tightened. Check the fuel cap to make page 433.
  • Page 216 CLOSE TRUNK TO MOVE TOP COOLANT OVER TEMPERATURE This message displays and a chime sounds if the This message displays and a chime sounds if the trunk is open while you are trying to operate engine coolant exceeds 255°F (124°C). If you have the convertible top.
  • Page 217 ENGINE DRAG CONTROL ACTIVE You can monitor the oil temperature with the gages button on the DIC. See DIC Controls and This message displays when engine drag control Displays on page 206. is active. When driving in a lower gear in rainy, Multiple chimes sound when this message is snowy, or icy conditions and then letting up on the displayed.
  • Page 218 Have the tire pressures checked and set to those ICE POSSIBLE shown on the Tire Loading Information label. This message displays when the outside air See Extended Mobility Tires on page 384, Loading temperature is cold enough to create icy road Your Vehicle on page 307, Inflation - Tire conditions.
  • Page 219 LOW TIRE PRESSURE This message displays when one or more of the tires is under-inflated. This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate which tire is affected. CAUTION: Multiple chimes sound and the tire pressure light on the instrument panel cluster turns on when When the LOW TIRE PRESSURE or TIRE this message is displayed.
  • Page 220 MAXIMUM SPEED 80 MPH (129 km/h) NO FOBS DETECTED This message displays when a malfunction is This message displays if the vehicle does not present in the Selective Ride Control system. The detect the presence of a keyless access vehicle speed will be limited to a value determined transmitter when you have attempted to start the by the vehicle when the shock absorber system vehicle or a vehicle door has just closed.
  • Page 221 NO FOB - OFF OR RUN? This message displays when the keyless access transmitter is not detected inside the vehicle while you are trying to turn the ignition off. Your vehicle may be near a strong radio antenna signal causing the keyless access system to be jammed.
  • Page 222 PRESS BRAKE TO START ENGINE Multiple chimes sound when this message is displayed. (Automatic Transmission Only) To acknowledge the message, press the This message displays if you try to start the RESET button. The message reappears every engine by pressing the keyless ignition start button five minutes until this condition changes.
  • Page 223 SERVICE AIR CONDITIONING SERVICE TRACTION SYSTEM, and SERVICE ACTIVE HANDLING, and the instrument panel This message displays when the electronic sensors cluster lights will come on along with a chime. that control the air conditioning and heating When the service message is displayed, the systems are no longer working.
  • Page 224 SERVICE ELECTRICAL SYSTEM SERVICE TIRE MONITOR This message displays if an electrical problem This message displays if a part on the Tire has occurred within the Powertrain Control Pressure Monitor (TPM) system is not working Module (PCM). Have your vehicle serviced by properly.
  • Page 225 When this message is displayed, the computer SET PARK BRAKE FOR SEAT RECALL controlled systems will not assist the driver If your vehicle has a manual transmission, this in controlling the vehicle. Have the system repaired message displays if you try to recall the memory by your dealer as soon as possible.
  • Page 226 SHIFT TO PARK SHOCKS INOPERATIVE If your vehicle has an automatic transmission, this This message displays when a malfunction is message displays if the vehicle is not in present in the Selective Ride Control system which PARK (P) when the engine is being turned off. is causing the shocks to be in their full soft The vehicle will be in Acc.
  • Page 227 TIRE FLAT This message is followed by the MAXIMUM SPEED 55 MPH (90 km/h) message, and then by the REDUCED HANDLING message. The Active Handling System will intervene more quickly CAUTION: when a flat tire has been detected. Adjust your driving accordingly.
  • Page 228 TOO COLD TO MOVE TOP TRACTION SYSTEM ACTIVE This message displays and a chime sounds when This message displays when the Traction Control the power convertible top button is pressed and System (TCS) is limiting wheel spin. Slippery the power convertible top pump motor temperature road conditions may exist if this message is below -4°F (-20°C).
  • Page 229 TRACTION SYSTEM AND ACTIVE TRACTION SYSTEM – ON HANDLING – ON This message displays and a single, quick tone sounds when the Traction Control System (TCS) is If the Traction Control System (TCS) and Active turned on by pressing the Active Handling Handling System are off, this message displays System button on the console.
  • Page 230: Other Messages

    If this message is displayed during normal vehicle UNLATCH HEADER TO MOVE TOP operation on flat roads, your vehicle may need This message displays and a chime sounds if you service. See your dealer for an inspection. try to lower the convertible top without first If driving in a performance or competitive manner, unlocking the top.
  • Page 231 • • CRUISE SET TO XXX MPH (XXX km/h) MAXIMUM NUMBER OF FOBS LEARNED See Cruise Control on page 162. See “Matching Transmitter(s) to Your Vehicle” under Keyless Access System • DRIVER DOOR AJAR Operation on page 74. • FOB AUTOLEARN WAIT XX MINUTES •...
  • Page 232: Dic Vehicle Personalization

    DIC Vehicle Personalization The current driver’s preferences are recalled when one of the following occurs: Many features on your vehicle can be • The lock or unlock button on the keyless personalized. This means that the operation of access transmitter, labelled 1 or 2, is pressed. these features can be set to operate differently •...
  • Page 233 Entering the Personal Options Menu 4. Once you have cycled through all of the personal options, pressing the OPTION To enter the personal options menu, use the button a final time exits the personal options following steps: menu. In addition, if no button is pressed 1.
  • Page 234 Auto Memory Recall (Automatic Transmission Auto Exit Recall: If your vehicle has the memory only): If your automatic transmission vehicle package, you may have this option. This option has the memory package, you may have allows the driver’s seat and telescopic steering this option.
  • Page 235 If you choose YES, when you turn the ignition off Press the OPTION button until APPROACH and open the driver’s door or press the unlock LIGHTS appears on the display, then press the button on the keyless access transmitter, the seat RESET button to scroll through the following and the telescopic steering wheel, if your modes:...
  • Page 236 Twilight Delay: This option allows you to set the If you choose 90 S, the twilight delay time will be amount of time you want the parking lamps and set to 90 seconds. front fog lamps to remain on after you exit the When the mode you want is selected, press the vehicle.
  • Page 237 Flash at Lock: This option activates the front and FOB Reminder: This option chirps the horn rear turn signals for one long flash when the three times when the driver’s door is closed and lock button on the keyless access transmitter is there is a keyless access transmitter inside pressed.
  • Page 238 Passive Door Locking: This option allows you to Press the OPTION button until PASSIVE DOOR select whether the doors automatically lock LOCKING appears on the display, then press during normal vehicle exit. When the ignition is the RESET button to scroll through the following turned off and all doors become closed, the vehicle modes: will determine how many keyless access...
  • Page 239 When the mode you want is selected, press the moved into PARK (P) for automatic transmission OPTION button to set your choice and advance to vehicles or when the ignition is turned off or is the next personal option. in RAP for manual transmission vehicles. Press the OPTION button until AUTO UNLOCK Passive Door Unlock: This option allows you to appears on the display, then press the RESET...
  • Page 240 Language: This option allows you to select the When the mode you want is selected, press the language the DIC, the Head-Up Display (HUD), if OPTION button to set your choice and advance to your vehicle has this feature, and the radio the next personal option.
  • Page 241 2. Press the OPTION button until the 6.3. Press the RESET button to select the PERSONALIZE NAME option appears letter and proceed on to the next space on the display. to the right. 3. Select YES under PERSONALIZE NAME by 7.
  • Page 242: Audio System(S)

    Audio System(s) CAUTION: Determine which radio your vehicle has and then read the pages following to familiarize yourself This system provides you with a far greater with its features. access to audio stations and song listings. Driving without distraction is a necessity for a Giving extended attention to entertainment safer driving experience.
  • Page 243: Setting The Time

    Here are some ways in which you can help avoid Your vehicle has a feature called Retained distraction while driving. Accessory Power (RAP). With RAP, the audio system can be played even after the ignition While your vehicle is parked: is turned off.
  • Page 244: Radio With Cd

    Radio with CD Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
  • Page 245 XM™ Satellite Radio Service For XM™ (if equipped), press the information button while in XM™ mode to retrieve four different If your vehicle has the XM™ satellite radio categories of information related to the current service, it is based in the 48 contiguous United song or channel: Artist, Song Title, Category States and Canada.
  • Page 246 ® If your vehicle has the Bose audio system, it Finding a Station ® ® includes Bose AudioPilot noise compensation BAND: Press this button to switch between FM1, ® technology. When turned on, AudioPilot FM2, AM, or XM1 or XM2 (if equipped). The continuously adjusts the audio system to display shows the selection.
  • Page 247 Setting Preset Stations Setting the Tone (Bass/Treble) Up to 30 stations (six FM1, six FM2, and six AM, (Bass/Treble/Midrange): Press this knob to six XM1 and six XM2 (if equipped)), can be select BASS, MIDRANGE, or TREBLE. Turn the programmed on the six numbered pushbuttons, by knob to increase or to decrease the tone.
  • Page 248 Adjusting the Speakers (Balance/Fade) Finding a Category Station (RDS and XM™ (if equipped)) (Balance/Fade): To adjust the balance To select and find a desired category perform the between the right and the left speakers, press this following: knob until BALANCE appears on the display. Turn the knob to move the sound toward the right 1.
  • Page 249 SCAN: Scan the stations within a category by This function does not apply for XM™ Satellite performing the following: Radio Service. 1. Press the CAT button. The last selected RDS Messages category appears on the display. ALERT!: Alert warns of local or national 2.
  • Page 250 Once the complete message has displayed, INFO The radio plays the traffic announcement even if disappears from the display until another new the volume is low. The radio interrupts the message is received. The last message can be play of a CD if the last tuned station broadcasts displayed by pressing this button.
  • Page 251 XM™ Radio Messages The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and If your vehicle has XM™ Satellite Radio Service, the smaller CDs are loaded in the same manner. the radio may display screen messages If playing a CD-R, the sound quality (and playback pertaining to the XM™...
  • Page 252 If there is no apparent damage, try a known (Fast Forward): Press and hold this button to good CD. fast forward through the current track. Do not add any label to a CD, it could get caught RDM (Random): Press this button to hear the in the CD player.
  • Page 253 BAND: Press this button to listen to the radio When a CD is inserted, the CD symbol appears when a CD is playing. The inactive CD remains on the CD. As each new track starts to play, safely inside the radio for future listening. the track number appears on the display.
  • Page 254 If there is no apparent damage, try a known 3. When INSET CD # appears on the display, good CD. load a CD and insert the CD partway into the slot, label side up. The player pulls the CD in. Do not add any label to a CD, it could get caught in the CD player.
  • Page 255 Playing a Specific Loaded CD If the CD is not removed, after 25 seconds, the CD is automatically pulled back into the player. For every CD loaded, a number appears on the If the CD is pushed back into the player, before the display.
  • Page 256 RDM (Random): Press this button to hear the To turn off repeated play, press and release the tracks in random, rather than sequential order, on RPT button until REPEAT OFF appears on one CD or all of the loaded CDs. the display To use random, do one of the following: SEEK...
  • Page 257 Using R (Song List) Mode (Single CD, BAND: Press this button to listen to the radio when a CD is playing. The inactive CD(s) remains MP3, and Six-Disc CD) safely inside the radio for future listening. This feature is capable of saving 20 track CD AUX (Auxiliary): Press this button to play a selections.
  • Page 258 To play the song list, press the song list button. To delete the entire song list, perform the following The recorded tracks begins to play in the steps: order they were saved. 1. Turn the CD player on. Seek through the song list by using the SEEK 2.
  • Page 259: Using An Mp3

    CD Messages Using an MP3 CHECK CD: If this message appears on the MP3 CD-R Disc display and/or the CD comes out, it could be for MP3 Format one of the following reasons: • It is very hot. When the temperature returns to If you burn your own MP3 disc on a personal normal, the CD should play.
  • Page 260 • Root Directory Make sure to finalize the disc when burning an MP3 disc, using multiple sessions. It is The root directory is treated as a folder. If the root usually better to burn the disc all at once. directory has compressed audio files, the •...
  • Page 261 When the CD contains only playlists and When play enters a new folder, the display does compressed audio files, but no folders, all files are not automatically show the new folder name unless located under the root folder. The folder down the folder mode has been chosen as the default and the folder up buttons searches playlists (Px) display.
  • Page 262 Playing an MP3 There may be an increase in skipping, difficulty in finding tracks, and/or difficulty in loading and Insert a CD partway into the slot, label side up. ejecting. If these problems occur, check the bottom The player pulls it in, and READING appears surface of the CD.
  • Page 263 If an error appears on the display, see “CD RDM (Random): Press this button to hear the Messages” later in this section. tracks in random, rather than sequential order, on one CD, one folder, or all of the loaded CDs. (Tune): Turn this knob clockwise or To use random, do one of the following: counterclockwise to go to the next or previous...
  • Page 264 RPT (Repeat): Press this button to hear a track, SEEK : Press the left arrow to go to the CD, or a folder over again. start of the current track, if more than 10 seconds have played. Press the right arrow to go to the To use repeat, do one of the following: next track.
  • Page 265: Xm Radio Messages

    XM Radio Messages If your vehicle has XM™ Satellite Radio Service, the radio may display some of the screen messages as shown in the XM™ Radio Message table. If any of these messages do appear on the radio display, follow the information and/or instructions provided in the table. Radio Display Message Condition Action Required...
  • Page 266 Radio Display Message Condition Action Required No Info Artist Name/Feature No artist information is available at this time on this channel. not available The system is working properly. No Info Song/Program Title No song title information is available at this time on this not available channel.
  • Page 267: Navigation/Radio System

    Navigation/Radio System Audio Steering Wheel Controls Your vehicle may have a navigation radio system. If your vehicle has this The navigation system has built-in features feature, some audio intended to minimize driver distraction. Technology controls can be adjusted alone, no matter how advanced, can never at the steering wheel.
  • Page 268: Radio Reception

    To scan presets, press and hold either arrow for Radio Reception four seconds until PRESET SCAN appears on the You may experience frequency interference and display and you hear a beep. The radio will go static during normal radio reception if items to a station, play for a few seconds, then go on to such as cellphone chargers, vehicle convenience the next station.
  • Page 269: Care Of Your Cds

    FM Stereo Care of Your CDs FM stereo will give the best sound, but FM signals Handle CDs carefully. Store them in their original will reach only about 10 to 40 miles (16 to 65 km). cases or other protective cases and away from Tall buildings or hills can interfere with FM direct sunlight and dust.
  • Page 270: Care Of The Cd Player

    Care of the CD Player XM™ Satellite Radio Antenna System Do not use CD lens cleaners for CD players because the lens of the CD optics can become If your vehicle has the XM™ Satellite Radio contaminated by lubricants. Service, it will have an XM™ Satellite Radio antenna.
  • Page 271: Driving Your Vehicle

    Section 4 Driving Your Vehicle Your Driving, the Road, and Driving at Night ......... 291 Driving in Rain and on Wet Roads .... 293 Your Vehicle ..........272 City Driving ..........295 Defensive Driving ........272 Freeway Driving ........296 Drunken Driving ........
  • Page 272: Your Driving, The Road, And

    Your Driving, the Road, and CAUTION: Your Vehicle Defensive driving really means “Be ready Defensive Driving for anything.” On city streets, rural roads, The best advice anyone can give about driving is: or expressways, it means “Always expect Drive defensively. the unexpected.”...
  • Page 273: Drunken Driving

    Drunken Driving Many adults — by some estimates, nearly half the adult population — choose never to drink Death and injury associated with drinking and alcohol, so they never drive after drinking. driving is a national tragedy. It is the number For persons under 21, it is against the law in one contributor to the highway death toll, every U.S.
  • Page 274 According to the American Medical Association, It is the amount of alcohol that counts. For a 180 lb (82 kg) person who drinks three 12 ounce example, if the same person drank three double (355 ml) bottles of beer in an hour will end up martinis (3 ounces or 90 ml of liquor each) with a BAC of about 0.06 percent.
  • Page 275 But the ability to drive is affected well below a BAC There is something else about drinking and driving of 0.10 percent. Research shows that the driving that many people do not know. Medical research skills of many people are impaired at a BAC shows that alcohol in a person’s system can make approaching 0.05 percent, and that the effects are crash injuries worse, especially injuries to the...
  • Page 276: Control Of A Vehicle

    Control of a Vehicle Braking You have three systems that make your See Brake System Warning Light on page 194. vehicle go where you want it to go. They are the Braking action involves perception time and brakes, the steering, and the accelerator. All reaction time.
  • Page 277: Anti-Lock Brake System (Abs)

    Avoid needless heavy braking. Some people drive Adding non-GM accessories can affect your in spurts — heavy acceleration followed by vehicle’s performance. See Accessories and heavy braking — rather than keeping pace with Modifications on page 318. traffic. This is a mistake. The brakes may not have time to cool between hard stops.
  • Page 278 ABS can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. Let us say the road is wet and you are driving safely.
  • Page 279: Braking In Emergencies

    Remember: ABS does not change the time you Traction Control System (TCS) need to get your foot up to the brake pedal Your vehicle has a traction control system called or always decrease stopping distance. If you get TCS that limits wheel spin. This is especially useful too close to the vehicle in front of you, you will not in slippery road conditions.
  • Page 280 The SERVICE To turn the system off, TRACTION SYSTEM press the button located message and the on the console. TCS warning light will come on to let you know if there is a problem with your TCS system. See DIC Warnings and Messages on page 212.
  • Page 281: Active Handling System

    Adding non-GM accessories can affect your The ACTIVE HANDLING message will come on vehicle’s performance. See Accessories and when the system is operating. See DIC Warnings Modifications on page 318 for more information. and Messages on page 212 for more information. You may also feel or hear the system working.
  • Page 282 The Active Handling System comes on If the Tire Pressure Monitor (TPM) system detects a automatically whenever you start your vehicle. To flat tire and the Driver Information Center (DIC) help maintain directional control of the vehicle, you displays TIRE FLAT, or if the TPM system is should always leave the system on.
  • Page 283: Limited-Slip Rear Axle

    Competitive Driving Mode Notice: When traction control is turned off, or Competitive Driving Mode is active, it is The driver can select this optional handling mode possible to lose traction. If you attempt to shift by pressing the ACTIVE HANDLING button on with the rear wheels spinning with a loss of the console two times within a five second traction, it is possible to cause damage to the...
  • Page 284: Selective Ride Control

    Selective Ride Control SPORT: Use where road conditions or personal preference demand more control. This setting You may have a ride control system on your provides more “feel”, or response to the road vehicle called Magnetic Selective Ride Control. conditions. The system provides the following performance You can select a setting at any time.
  • Page 285 Magnetic Speed Variable Assist Suppose you are steering through a sharp curve. Then you suddenly accelerate. Both control Steering systems — steering and acceleration — have to Your vehicle has a steering system that do their work where the tires meet the road. continuously adjusts the effort you feel when Adding the sudden acceleration can demand too steering at all vehicle speeds.
  • Page 286 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and find a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
  • Page 287: Off-Road Recovery

    Off-Road Recovery You can turn the steering wheel up to one-quarter turn until the right front tire contacts the pavement You may find that your right wheels have dropped edge. Then turn your steering wheel to go off the edge of a road onto the shoulder while straight down the roadway.
  • Page 288 So here are some tips for passing: to move into the other lane. If the way is clear to pass, you will have a running start that more • Drive ahead. Look down the road, to the than makes up for the distance you would lose sides, and to crossroads for situations by dropping back.
  • Page 289: Loss Of Control

    • Skidding Try not to pass more than one vehicle at a time on two-lane roads. Reconsider before passing In a skid, a driver can lose control of the vehicle. the next vehicle. Defensive drivers avoid most skids by taking •...
  • Page 290: Racing Or Other Competitive Driving

    If your vehicle starts to slide, ease your foot off Racing or Other Competitive Driving the accelerator pedal and quickly steer the See your warranty book before using your way you want the vehicle to go. If you start vehicle for racing or other competitive driving. steering quickly enough, your vehicle may straighten out.
  • Page 291: Driving At Night

    Vehicles with the Z51 performance package have Driving at Night greaseable outer ends on both of the rear Night driving is more dangerous than day driving. toe-links. Under normal use, lubrication should be One reason is that some drivers are likely to performed as described in the maintenance be impaired —...
  • Page 292 No one can see as well at night as in the daytime. Keep the windshield and all the glass on your But as we get older these differences increase. vehicle clean — inside and out. Glare at night is A 50-year-old driver may require at least twice as made much worse by dirt on the glass.
  • Page 293: Driving In Rain And On Wet Roads

    Driving in Rain and on Wet Roads The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
  • Page 294 Driving too fast through large water puddles or Driving Through Deep Standing Water even going through some car washes can cause Notice: If you drive too quickly through deep problems, too. The water may affect your brakes. puddles or standing water, water can come in Try to avoid puddles.
  • Page 295: City Driving

    Some Other Rainy Weather Tips City Driving • Besides slowing down, allow some extra following distance. And be especially careful when you pass another vehicle. Allow yourself more clear room ahead, and be prepared to have your view restricted by road spray. •...
  • Page 296: Freeway Driving

    Here are ways to increase your safety in city Freeway Driving driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
  • Page 297 The most important advice on freeway driving Before changing lanes, check your mirrors. is: Keep up with traffic and keep to the right. Then use your turn signal. Drive at the same speed most of the other drivers Just before you leave the lane, glance quickly are driving.
  • Page 298: Before Leaving On A Long Trip

    Before Leaving on a Long Trip Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir Make sure you are ready. Try to be well rested. full? Are all windows clean inside and outside? If you must start when you are not fresh —...
  • Page 299: Highway Hypnosis

    Highway Hypnosis What can you do about highway hypnosis? First, be aware that it can happen. Is there actually such a condition as highway Then here are some tips: hypnosis? Or is it just plain falling asleep at the • Make sure your vehicle is well ventilated, wheel? Call it highway hypnosis, lack of with a comfortably cool interior.
  • Page 300: Hill And Mountain Roads

    Hill and Mountain Roads If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system, and transmission.
  • Page 301 • Know how to go down hills. The most important thing to know is this: let your engine do some of CAUTION: the slowing down. Shift to a lower gear when you go down a steep or long hill. Coasting downhill in NEUTRAL (N) or with •...
  • Page 302: Winter Driving

    Winter Driving Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some Here are some tips for winter driving: winter outer clothing, a small shovel, a flashlight, a red cloth, and a couple of reflective warning •...
  • Page 303 Driving On Snow or Ice What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. Most of the time, those places where the tires But wet ice can be even more trouble because it meet the road probably have good traction.
  • Page 304 The Anti-Lock Brake System (ABS) improves your If You Are Caught in a Blizzard vehicle’s stability when you make a hard stop If you are stopped by heavy snow, you could be in on a slippery road. Even though you have ABS, a serious situation.
  • Page 305 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking your exhaust pipe.
  • Page 306: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow

    You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with CAUTION: your headlamps. Let the heater run for a while. Then, shut the engine off and close the window If you let your vehicle’s tires spin at high almost all the way to preserve the heat.
  • Page 307: Rocking Your Vehicle To Get It Out

    Rocking Your Vehicle to Get It Out Loading Your Vehicle First, turn the steering wheel left and right. It is very important to know how much weight That will clear the area around the front wheels. your vehicle can carry. This weight is called the You should turn the traction control system vehicle capacity weight and includes the weight of off.
  • Page 308 Tire and Loading Information Label A vehicle specific Tire and Loading Information label is attached to the center pillar (B-pillar) of your vehicle. With the driver’s door open, you will find the label attached below the door latch. This label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
  • Page 309 Steps for Determining Correct Load Limit 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That 1. Locate the statement “The combined weight may not safely exceed the available weight of occupants and cargo should never cargo and luggage load capacity calculated exceed XXX kg or XXX lbs”...
  • Page 310 Example 1 Example 2 Item Description Total Item Description Total Vehicle Capacity Vehicle Capacity 400 lbs (181 kg) 400 lbs (181 kg) Weight for Example 1 = Weight for Example 2 = Subtract Subtract Occupant Weight @ 150 lbs (68 kg) Occupant Weight @ 300 lbs (136 kg) 150 lbs (68 kg) x 1 =...
  • Page 311 Certification Label Example 3 Item Description Total Vehicle Capacity 400 lbs (181 kg) Weight for Example 3 = A vehicle specific Certification label is attached to Subtract Occupant Weight @ 400 lbs (181 kg) the rear edge of the driver’s door. It tells you 200 lbs (91 kg) x 2 = the gross weight capacity of your vehicle, called Available Cargo...
  • Page 312 Do not load your vehicle with more weight than it If you put things inside your vehicle — like was designed to carry. See “Steps for Determining suitcases, tools, packages or anything else — they Correct Load Limit” earlier in this section. will go as fast as the vehicle goes.
  • Page 313: Towing

    “Towing Your Vehicle” earlier in this section. Towing a Trailer Your Corvette is neither designed nor intended to tow a trailer. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 314 NOTES I n f o r ma t i o n P r o v i d e d b y :...
  • Page 315: Service And Appearance Care

    Section 5 Service and Appearance Care Service ............318 Manual Transmission Fluid ......346 Accessories and Modifications ....318 Hydraulic Clutch ........346 California Proposition 65 Warning ....319 Engine Coolant .......... 347 Doing Your Own Service Work ....319 Coolant Surge Tank Pressure Cap ....
  • Page 316 Section 5 Service and Appearance Care Windshield Replacement ......374 Appearance Care ........407 Cleaning the Inside of Your Vehicle ..407 Windshield Wiper Blade Replacement ..375 Fabric/Carpet ..........409 Tires ............378 Coated Moldings ........409 Winter Tires ..........379 Leather ............
  • Page 317 Section 5 Service and Appearance Care Vehicle Identification ........418 Power Windows and Other Power Vehicle Identification Number (VIN) ... 418 Options ..........420 Service Parts Identification Label ....418 Fuses and Circuit Breakers ....... 420 Instrument Panel Fuse Block ..... 420 Electrical System ........
  • Page 318: Service

    Service Accessories and Modifications When you add non-GM accessories to your vehicle Your dealer knows your vehicle best and wants they can affect your vehicle’s performance and you to be happy with it. We hope you will go safety, including such things as, airbags, braking, to your dealer for all your service needs.
  • Page 319: California Proposition 65 Warning

    California Proposition 65 Warning CAUTION: (Continued) Most motor vehicles, including this one, contain and/or emit chemicals known to the State of • Be sure to use the proper nuts, bolts, California to cause cancer and birth defects or other and other fasteners. English and reproductive harm.
  • Page 320: Adding Equipment To The Outside Of Your Vehicle

    Adding Equipment to the Outside of Gasoline Octane Your Vehicle If your vehicle has the 6.0L V8 engine (VIN Code U), use premium unleaded gasoline with a Things you might add to the outside of your posted octane rating of 91 or higher. You may also vehicle can affect the airflow around it.
  • Page 321: Gasoline Specifications

    In an emergency, you can use regular unleaded California Fuel gasoline with an octane rating of 87 or higher. If If your vehicle is certified to meet California 87 octane fuel is used, do not perform any Emissions Standards, it is designed to operate on aggressive driving maneuvers such as wide open fuels that meet California specifications.
  • Page 322: Additives

    Additives However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be To provide cleaner air, all gasolines in the United used in vehicles that were not designed for States are now required to contain additives those fuels.
  • Page 323: Fuels In Foreign Countries

    Fuels in Foreign Countries CAUTION: (Continued) If you plan on driving in another country outside the United States or Canada, the proper fuel may be Keep sparks, flames, and smoking hard to find. Never use leaded gasoline or any other materials away from fuel.
  • Page 324 The fuel door release There is also a manual button is located on the fuel door release tab. It instrument panel to the is located against left of the steering wheel. the upper trim in the Push the button to rear compartment release the fuel door.
  • Page 325 The CHECK GAS CAP message will be displayed on the Driver Information Center (DIC) if the CAUTION: fuel cap is not properly installed. See DIC Warnings and Messages on page 212 for more If you spill fuel and then something information.
  • Page 326: Filling A Portable Fuel Container

    Filling a Portable Fuel Container Checking Things Under the Hood CAUTION: CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity An electric fan under the hood can start up discharge from the container can ignite the and injure you even when the engine is not gasoline vapor.
  • Page 327: Hood Release

    Hood Release To open the hood, do the following: 1. Pull the hood release lever with this symbol on it. It is located inside the vehicle below the instrument panel on the driver’s side. 2. Go to the side of the vehicle and pull up on the rear edge of the hood, near the windshield.
  • Page 328: Engine Compartment Overview

    Engine Compartment Overview If your vehicle has the 6.0L LS2 V8 engine and you are facing the front, when you open the hood, here is what you will see: I n f o r ma t i o n P r o v i d e d b y :...
  • Page 329 A. Clutch Master Cylinder Reservoir (If Equipped). G. Engine Oil Fill Cap. See “When to Add Engine See Hydraulic Clutch on page 346. Oil” under Engine Oil on page 332. B. Windshield Washer Fluid Reservoir. See H. Engine Oil Dipstick. See “Checking Engine Oil” “Adding Washer Fluid”...
  • Page 330 If your vehicle has the 7.0L LS7 V8 engine and you are facing the driver’s side of the vehicle, when you open the hood, here is what you will see: I n f o r ma t i o n P r o v i d e d b y :...
  • Page 331 G. Engine Oil Fill Cap. See “When to Add Engine A. Engine Air Cleaner/Filter. See Engine Air Oil” under Engine Oil on page 332. Cleaner/Filter on page 342. H. Coolant Surge Tank and Pressure Cap. See B. Power Steering Fluid Reservoir. See Power Engine Coolant on page 347.
  • Page 332: Engine Oil

    Engine Oil Checking Engine Oil (Z06 Only) Checking Engine Oil (Except Z06) If the CHECK OIL LEVEL message on the Driver Information Center (DIC) comes on, it means you need to check the engine oil level right away. For more information, see Driver Information Center (DIC) on page 205.
  • Page 333 Z06 models have a racetrack-ready dry sump Do not add engine oil based on cold engine engine lubrication system. This high-performance dipstick readings. The engine oil level on the system operates differently than a standard dipstick will also be inaccurate if checked while the engine lubrication system and requires a special engine is running.
  • Page 334 When to Add Engine Oil (Except Z06) Notice: Do not add too much oil. If the engine has so much oil that the oil level gets above the cross-hatched area that shows the proper operating range, the engine could be damaged.
  • Page 335 When to Add Engine Oil (Z06 Only) Notice: Do not add too much oil. If the engine has so much oil that the oil level gets above the cross-hatched area that shows the proper operating range, the engine could be damaged.
  • Page 336 Changing Engine Oil and Filter (Z06 Only) Z06 models have a racetrack-ready dry sump engine lubrication system. This high-performance system operates differently than a standard engine lubrication system and requires a special procedure when changing the engine oil and filter. Follow this procedure closely when changing the engine oil and filter.
  • Page 337 2. Once the oil has been drained from the 6. Add eight quarts (7.6 L) of oil to the oil tank. engine, remove the engine oil filter and See Capacities and Specifications on allow the oil to drain. page 427. 3.
  • Page 338 What Kind of Engine Oil to Use Look for two things: • GM4718M Your vehicle’s engine requires a special oil meeting GM Standard GM4718M. Oils meeting this standard may be identified as synthetic. However, not all synthetic oils will meet this GM standard.
  • Page 339 Oils meeting these Your vehicle’s engine is filled at the factory with a ® requirements should Mobil 1 synthetic oil, which meets all also have the starburst requirements for your vehicle. symbol on the Substitute Engine Oil: When adding oil to maintain container.
  • Page 340: Engine Oil Life System

    Engine Oil Life System When the system has calculated that oil life has been diminished, it will indicate that an oil change is When to Change Engine Oil necessary. A CHANGE ENGINE OIL message will come on. Change your oil as soon as possible Your vehicle has a computer that lets you know within the next 600 miles (1 000 km).
  • Page 341 How to Reset the Engine Oil Life What to Do with Used Oil System Used engine oil contains certain elements that may be unhealthy for your skin and could The Engine Oil Life System calculates when to even cause cancer. Do not let used oil stay on change your engine oil and filter based on vehicle your skin for very long.
  • Page 342: Engine Air Cleaner/Filter

    Engine Air Cleaner/Filter See Engine Compartment Overview on page 328 for the location of the engine air cleaner/filters. Notice: If you spray water into the engine air cleaner/filter intake and water enters the engine air cleaner/filter housing, you could damage your vehicle’s engine. The repairs would not be covered by your warranty.
  • Page 343 When to Inspect the Engine Air To inspect or replace the engine air cleaner/filters, do the following: Cleaner/Filters Inspect the air cleaner/filters at the Maintenance II intervals and replace them at the first oil change after each 50,000 mile (83 000 km) interval. See Scheduled Maintenance on page 433 for more information.
  • Page 344 3. Inspect or replace the filter. See Normal To inspect or replace the engine air cleaner/filters, Maintenance Replacement Parts on do the following: page 445. 4. Reverse Steps 1 and 2 to replace the air cleaner/filter cover. 5. Repeat the procedure for the second air cleaner/filter.
  • Page 345: Automatic Transmission Fluid

    Automatic Transmission Fluid CAUTION: How to Check Automatic Transmission Fluid Operating the engine with the air It is not necessary to check the transmission fluid cleaner/filter off can cause you or others level. A transmission fluid leak is the only to be burned.
  • Page 346: Manual Transmission Fluid

    Change the fluid and filter at the intervals listed in When to Check and What to Use Additional Required Services on page 436, and be sure to use the fluid listed in Recommended The hydraulic clutch Fluids and Lubricants on page 443. fluid reservoir cap has this symbol on it.
  • Page 347: Engine Coolant

    How to Check and Add Fluid A 50/50 mixture of clean, drinkable water and ® DEX-COOL coolant will: Make sure the fluid level is at the MIN (Minimum) Give freezing protection down to −34°F • line on the side of the reservoir. If it is not, (−37°C).
  • Page 348 What to Use Notice: If you use an improper coolant mixture, your engine could overheat and be Use a mixture of one-half clean, drinkable water badly damaged. The repair cost would not be ® and one-half DEX-COOL coolant which will covered by your warranty.
  • Page 349 Checking Coolant The vehicle must be on a level surface. When your engine is cold, the coolant level should be at the FULL COLD mark. The FULL COLD mark The engine coolant is on the front of the coolant surge tank. Do not surge tank is located overfill the surge tank.
  • Page 350: Coolant Surge Tank Pressure Cap

    Coolant Surge Tank Pressure Cap If Steam Is Coming From Your Engine Notice: If the pressure cap is not tightly installed, coolant loss and possible engine CAUTION: damage may occur. Be sure the cap is properly and tightly secured. Steam from an overheated engine can The coolant surge tank pressure cap must be fully burn you badly, even if you just open the installed on the coolant surge tank.
  • Page 351 Notice: If your engine catches fire because If you get the overheat warning with no sign of you keep driving with no coolant, your vehicle steam, try this for a minute or so: can be badly damaged. The costly repairs 1.
  • Page 352: Overheated Engine Protection Operating Mode

    Overheated Engine Protection Cooling System Operating Mode When you decide it is safe to lift the hood, here is what you will see: If an overheated engine condition exists and the messages COOLANT OVER TEMPERATURE and REDUCED ENGINE POWER are displayed, along with the Check Engine light, an overheat protection mode which alternates firing groups of cylinders helps prevent engine damage.
  • Page 353 CAUTION: CAUTION: An electric engine cooling fan under the Heater and radiator hoses, and other hood can start up even when the engine engine parts, can be very hot. Do not is not running and can injure you. Keep touch them. If you do, you can be burned. hands, clothing, and tools away from any Do not run the engine if there is a leak.
  • Page 354 ® Notice: Using coolant other than DEX-COOL If no coolant is visible in the surge tank, add may cause premature engine, heater core, coolant as follows: or radiator corrosion. In addition, the engine coolant could require changing sooner, at CAUTION: 30,000 miles (50 000 km) or 24 months, whichever occurs first.
  • Page 355 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and CAUTION: other parts. Use the recommended coolant and the proper coolant mixture. Adding only plain water to your cooling system can be dangerous. Plain water, or CAUTION: some other liquid such as alcohol, can boil before the proper coolant mixture will.
  • Page 356 2. Then keep turning the pressure cap slowly, and remove it. 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap 3. Fill the coolant surge tank with the proper and upper radiator hose, is no longer hot.
  • Page 357: Power Steering Fluid

    5. Then replace the pressure cap. Be sure the pressure cap is hand-tight and fully seated. Check the level in the surge tank when the system has cooled down. If the coolant is not at the proper level, repeat Steps 1 through 4, then reinstall the pressure cap.
  • Page 358 When to Check Power Steering Fluid The level should be at the FULL COLD mark. If necessary, add only enough fluid to bring the level It is not necessary to regularly check power up to the mark. steering fluid unless you suspect there is a leak in the system or you hear an unusual noise.
  • Page 359: Windshield Washer Fluid

    Windshield Washer Fluid Notice: • When using concentrated washer fluid, What to Use follow the manufacturer’s instructions for adding water. When you need windshield washer fluid, be sure • to read the manufacturer’s instructions before Do not mix water with ready-to-use washer use.
  • Page 360: Brakes

    Brakes So, it is not a good idea to top off your brake fluid. Adding brake fluid will not correct a leak. If you Brake Fluid add fluid when your linings are worn, then you will have too much fluid when you get new brake linings.
  • Page 361 Checking Brake Fluid CAUTION: You can check the brake fluid without taking off the cap. Look at the brake fluid reservoir. The fluid level should be above the MIN mark on the With the wrong kind of fluid in the brake reservoir.
  • Page 362 Brake Wear Notice: Continuing to drive with worn-out brake pads could result in costly brake repair. Your vehicle has four-wheel disc brakes. Some driving conditions or climates may cause Disc brake pads have built-in wear indicators that a brake squeal when the brakes are first applied or make a high-pitched warning sound when the lightly applied.
  • Page 363: Battery

    Replacing Brake System Parts Battery The braking system on a vehicle is complex. Its Your vehicle has a maintenance free battery. many parts have to be of top quality and work When it is time for a new battery, get one that has well together if the vehicle is to have really good the replacement number shown on the original braking.
  • Page 364: Jump Starting

    Vehicle Storage CAUTION: If you are not going to drive your vehicle for 25 days or more, remove the black, negative (-) cable from the battery. This will help keep your battery Batteries can hurt you. They can be from running down. dangerous because: •...
  • Page 365 Notice: If the other vehicle’s system is not a Notice: If you leave your radio or other 12-volt system with a negative ground, accessories on during the jump starting both vehicles can be damaged. Only use procedure, they could be damaged. The repairs vehicles with 12-volt systems with negative would not be covered by your warranty.
  • Page 366 4. Open the hoods and locate the positive (+) The remote negative (−) terminal (B) is located and negative (−) terminal locations on each underneath the engine cover, below the vehicle. engine oil fill cap. See Engine Compartment Overview on page 328 for the location of the engine compartment fuse block and engine oil fill cap.
  • Page 367 CAUTION: CAUTION: Using a match near a battery can cause Fans or other moving engine parts can battery gas to explode. People have been injure you badly. Keep your hands away hurt doing this, and some have been from moving parts once the engine is blinded.
  • Page 368 6. Connect the red positive (+) cable to the 9. Connect the other end of the negative (−) cable positive (+) terminal of the dead battery. at least 18 inches (45 cm) away from the dead Use a remote positive (+) terminal if battery, but not near engine parts that move.
  • Page 369 Notice: If the jumper cables are connected or To disconnect the jumper cables from both removed in the wrong order, electrical shorting vehicles, do the following: may occur and damage the vehicle. The repairs 1. Disconnect the black negative (−) cable from would not be covered by your warranty.
  • Page 370: Rear Axle

    Rear Axle If the level is below the bottom of the filler plug hole, you will need to add some lubricant. Add enough lubricant to raise the level to the When to Check Lubricant bottom of the filler plug hole. It is not necessary to regularly check rear axle What to Use fluid unless you suspect there is a leak or you hear...
  • Page 371: High Intensity Discharge (Hid) Lighting

    High Intensity Discharge (HID) Halogen Bulbs Lighting CAUTION: CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or The low beam high intensity discharge scratch the bulb. You or others could be lighting system operates at a very high injured.
  • Page 372: Headlamps, Front Turn Signal, And Parking Lamps

    Headlamps, Front Turn Signal, and To replace a high-beam or front parking/turn signal/DRL bulb, do the following: Parking Lamps 1. Turn the wheel to allow access to the wheel well. A. High-beam Headlamp B. Low-beam Headlamp C. Front Parking/Turn Signal/Daytime Running Lamp (DRL) If the low-beam headlamp needs to be replaced, you will need to see your dealer.
  • Page 373: Taillamps, Turn Signal, And Stoplamps

    3. Remove the outer cover to expose the Taillamps, Turn Signal, and high-beam headlamp bulb socket once Stoplamps the access cover has been removed. 4. Remove the To replace a stoplamp, taillamp/turn signal bulb, headlamp bulb by do the following: releasing the 1.
  • Page 374: Replacement Bulbs

    3. Turn the bulb socket one-quarter turn Replacement Bulbs counterclockwise and pull it out. 4. Pull the bulb straight out to remove it from the Exterior Lamp Bulb Number socket. Front Parking/Turn Signal/Daytime Running 5. Push the new bulb in the bulb socket until it Lamp (DRL) 5702KA snaps into place.
  • Page 375: Windshield Wiper Blade Replacement

    Windshield Wiper Blade To remove the wiper blade assembly, do the following: Replacement 1. Open the hood to gain access to the windshield wipers. Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance 2. Lift the wiper arm away from the windshield. on page 433 for more information.
  • Page 376 3. Press down on the blade assembly pivot To install the new wiper insert: locking tab (C). Pull down on the blade assembly (A) to release it from the wiper arm hook (F). 4. Remove the insert from the blade assembly (A).
  • Page 377 2. Be sure the notches are locked by the Installation guide: bottom claws. Make sure that all other claws are properly locked on both sides of the insert slots. 3. Put the blade assembly pivot in the wiper arm hook. Pull up until the pivot locking tab locks in the hook slot.
  • Page 378: Tires

    Tires CAUTION: (Continued) Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever • Underinflated tires pose the same have questions about your tire warranty and where danger as overloaded tires. The to obtain service, see your GM Warranty booklet resulting accident could cause serious for details.
  • Page 379: Winter Tires

    Low-Profile Performance Tire All season tires provide good overall performance on most surfaces but they may not offer the traction The original equipment tires on your vehicle are you would like or the same level of performance as classified as low-profile performance tires. winter tires on snow or ice covered roads.
  • Page 380: Tire Sidewall Labeling

    Tire Sidewall Labeling (B) TPC Spec (Tire Performance Criteria Specification): Original equipment tires designed Useful information about a tire is molded into its to GM’s specific tire performance criteria have sidewall. The example below shows a typical a TPC specification code molded onto the sidewall. passenger (p-metric) tire sidewall.
  • Page 381 (F) Uniform Tire Quality Grading (UTQG): Tire (B) Tire Width: The three-digit number indicates manufacturers are required to grade tires the tire section width in millimeters from sidewall based on three performance factors: treadwear, to sidewall. traction and temperature resistance. For more (C) Aspect Ratio: A two-digit number that information see Uniform Tire Quality Grading on indicates the tire height-to-width measurements.
  • Page 382: Tire Terminology And Definitions

    Tire Terminology and Definitions Cold Tire Pressure: The amount of air pressure in a tire, measured in pounds per square inch (psi) or kilopascals (kPa) before a tire has built up Air Pressure: The amount of air inside the tire heat from driving.
  • Page 383 Intended Outboard Sidewall: The side of an Occupant Distribution: Designated seating asymmetrical tire, that must always face outward positions. when mounted on a vehicle. Outward Facing Sidewall: The side of an Kilopascal (kPa): The metric unit for air pressure. asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
  • Page 384: Extended Mobility Tires

    Sidewall: The portion of a tire between the tread Vehicle Capacity Weight: The number of and the bead. designated seating positions multiplied by 150 lbs (68 kg) plus the rated cargo load. See Loading Speed Rating: An alphanumeric code assigned Your Vehicle on page 307.
  • Page 385 If a tire goes flat, you won’t need to stop on the side As soon as possible, contact the nearest of the road to change the tire. You can just keep on authorized GM or Goodyear EMT servicing facility driving. The shorter the distance you drive and the for inspection and repair or replacement.
  • Page 386: Inflation - Tire Pressure

    The valve stems on your extended mobility tires Inflation - Tire Pressure have sensors that are part of the Tire Pressure Tires need the correct amount of air pressure to Monitor (TPM). See Tire Pressure Monitor System operate effectively. on page 389. The TPM sensors contain batteries which are designed to last for 10 years under Notice: Do not let anyone tell you that normal driving conditions.
  • Page 387 A Tire and Loading Information label is attached to How to Check the vehicle’s b-pillar. This label lists your vehicle’s Use a good quality pocket-type gage to check tire original equipment tires and shows the correct pressure. You cannot tell if your tires are inflation pressures for your tires when they properly inflated simply by looking at them.
  • Page 388: High-Speed Operation

    Tire Pressure Monitor System High-Speed Operation Your vehicle has a Tire Pressure Monitor (TPM) that sends tire pressure information to the CAUTION: Driver Information Center (DIC). Using the DIC control buttons, the driver is able to check tire pressure levels in all four tires. See Tire Driving at high speeds, 100 mph Pressure Monitor System on page 389 and DIC (160 km/h) or higher, puts an additional...
  • Page 389: Tire Pressure Monitor System

    If you will be driving your vehicle at speeds of Tire Pressure Monitor System 175 mph (282 km/h) or higher, where it is legal, set The Tire Pressure Monitor System (TPMS) uses the cold inflation pressure to the maximum inflation radio and sensor technology to check tire pressure pressure shown on the tire sidewall, or levels.
  • Page 390 The low tire pressure warning symbol on the As an added safety instrument panel cluster and the LOW TIRE feature, your vehicle PRESSURE message on the DIC display will has been equipped with appear at each ignition cycle until the tires a tire pressure are inflated to the correct inflation pressure.
  • Page 391 Your vehicle has also been equipped with a TPMS A Tire and Loading Information label, attached to malfunction indicator to indicate when the your vehicle, shows the size of your vehicle’s system is not operating properly. The TPMS original equipment tires and the correct inflation malfunction indicator is combined with the low tire pressure for your vehicle’s tires when they pressure telltale.
  • Page 392: Tire Rotation

    TPMS Sensor Identification Codes The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Each TPMS sensor has a unique identification RSS-210 of Industry and Science Canada. code. Any time you replace one or more of Operation is subject to the following two the TPMS sensors, the identification codes will conditions:...
  • Page 393: When It Is Time For New Tires

    When It Is Time for New Tires Buying New Tires One way to tell when it GM has developed and matched specific tires for is time for new tires is your vehicle. The original equipment tires to check the treadwear installed on your vehicle, when it was new, were indicators, which will designed to meet General Motors Tire...
  • Page 394 Winter tires with the same speed rating as your original equipment tires may not be available for H, CAUTION: V, W, Y, and ZR speed rated tires. If you choose snow tires with a lower speed rating, never If you use bias-ply tires on your vehicle, exceed the tire’s maximum speed capability.
  • Page 395: Different Size Tires And Wheels

    Vehicles that have a tire pressure monitoring system may give an inaccurate low-pressure CAUTION: warning if non-TPC spec rated tires are installed on your vehicle. Non-TPC Spec rated tires If you add different sized wheels, your may give a low-pressure warning that is higher or lower than the proper warning level you would vehicle may not provide an acceptable get with TPC Spec rated tires.
  • Page 396: Uniform Tire Quality Grading

    Uniform Tire Quality Grading While the tires available on General Motors passenger cars and light trucks may vary with Quality grades can be found where applicable on respect to these grades, they must also conform the tire sidewall between tread shoulder and to federal safety requirements and additional maximum section width.
  • Page 397: Wheel Alignment And Tire Balance

    Traction – AA, A, B, C The grade C corresponds to a level of performance which all passenger car tires must meet under The traction grades, from highest to lowest, are AA, the Federal Motor Vehicle Safety Standard A, B, and C. Those grades represent the tire’s No.
  • Page 398: Wheel Replacement

    Wheel Replacement CAUTION: Replace any wheel that is bent, cracked, or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts, and wheel Using the wrong replacement wheels, nuts should be replaced. If the wheel leaks air, wheel bolts, or wheel nuts on your vehicle replace it (except some aluminum wheels, can be dangerous.
  • Page 399 CAUTION: CAUTION: Rust or dirt on a wheel, or on the parts to Never use oil or grease on studs or the which it is fastened, can make wheel nuts threads of the wheel nuts. If you do, the become loose after a time. The wheel wheel nuts might come loose and the could come off and cause a crash.
  • Page 400 Tightening Wheel Lug Nuts Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly CAUTION: tighten the wheel nuts in the proper sequence and to the proper torque specification. Incorrect wheel nuts or improperly Tighten the wheel tightened wheel nuts can cause the wheel lug nuts firmly in a...
  • Page 401: Tire Chains

    Used Replacement Wheels Tire Chains CAUTION: CAUTION: Putting a used wheel on your vehicle is Do not use tire chains. There is not enough dangerous. You cannot know how it has clearance. Tire chains used on a vehicle been used or how far it has been driven. It without the proper amount of clearance could fail suddenly and cause a crash.
  • Page 402: Lifting Your Vehicle

    Lifting Your Vehicle CAUTION: CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off Lifting a vehicle can cause an injury. The the jack, you could be badly injured or vehicle can slip off the jack and roll over killed.
  • Page 403 Lift only in the areas shown in the following pictures. For additional information, see your dealer and the Chevrolet Corvette service manual. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 404 1. Locate the front lifting points (A), according to 3. Lift the vehicle with the jack, making sure the illustration shown. the jack spans at least two of the crossmember ribs (B). 2. Be sure to place a block or pad between the jack and the vehicle.
  • Page 405 Lifting From the Rear The rear lifting points can be accessed from the rear of the vehicle, on either the driver’s or passenger’s side. 1. Locate the rear lifting points (A), according to the illustration shown. 2. Be sure to place a block or pad between the jack and the vehicle.
  • Page 406: If A Tire Goes Flat

    If a Tire Goes Flat Your Corvette has no spare tire, no tire changing equipment, and no place to store a tire. It is unusual for a tire to blow out while you are driving, especially if you maintain your tires properly.
  • Page 407: Appearance Care

    Appearance Care CAUTION: Cleaning the Inside of Your Vehicle Special tools and procedures are required Your vehicle’s interior will continue to look its to service an Extended Mobility Tire best if it is cleaned often. Although not always (EMT). If these special tools and visible, dust and dirt can accumulate on your procedures are not used you or others upholstery.
  • Page 408 Use glass cleaner only on glass. Remove any Do not clean your vehicle using the following accidental over-spray from other surfaces cleaners or techniques: immediately. To prevent over-spray, apply cleaner • Never use a knife or any other sharp object to directly to the cleaning cloth.
  • Page 409: Fabric/Carpet

    Fabric/Carpet 4. Continue to gently rub the soiled area until the cleaning cloth remains clean. Use a vacuum cleaner with a soft brush 5. If the soil is not completely removed, use a attachment frequently to remove dust and loose mild soap solution and repeat the cleaning dirt.
  • Page 410: Leather

    Leather Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is A soft cloth dampened with water may be used to necessary, a soft cloth dampened with a mild soap remove dust.
  • Page 411: Cargo Cover And Convenience Net

    Cargo Cover and Convenience Net Weatherstrips Wash with warm water and mild detergent, Silicone grease on weatherstrips will make them rinse with cold water and tumble dry on low. Do last longer, seal better, and not stick or squeak. not use chlorine bleach. Apply silicone grease with a clean cloth.
  • Page 412: Cleaning Exterior Lamps/Lenses

    Do not use cleaning agents that are petroleum Cleaning Exterior Lamps/Lenses based, or that contain acid or abrasives. All Use only lukewarm or cold water, a soft cloth and cleaning agents should be flushed promptly and a car washing soap to clean exterior lamps not allowed to dry on the surface, or they and lenses.
  • Page 413: Windshield And Wiper Blades

    The vehicle has a basecoat/clearcoat paint finish. Windshield and Wiper Blades The clearcoat gives more depth and gloss to If the windshield is not clear after using the the colored basecoat. Always use waxes windshield washer, or if the wiper blade chatters and polishes that are non-abrasive and made for a when running, wax, sap, or other material may basecoat/clearcoat paint finish.
  • Page 414: Removable Roof Panel

    Removable Roof Panel Convertible Top The vehicle’s convertible top should be cleaned Notice: If you use a glass treatment and/or often. However, high pressure car washes conditioner that contains ethyl alcohol or ethyl may cause water to enter your vehicle. sulfate on the roof panel, you could damage the panel.
  • Page 415: Aluminum Wheels

    Aluminum Wheels Notice: If you drive your vehicle through an automatic car wash that has silicone carbide Notice: If you use strong soaps, chemicals, tire cleaning brushes, you could damage abrasive polishes, cleaners, brushes, or the aluminum or chrome-plated wheels. The cleaners that contain acid on aluminum or repairs would not be covered by your warranty.
  • Page 416: Finish Damage

    Finish Damage Fiberglass Springs (Composite Springs) Any stone chips, fractures or deep scratches in the finish should be repaired right away. Notice: If you use acidic or corrosive cleaning Minor chips and scratches can be repaired with products, engine degreasers or aluminum touch-up materials available from your dealer cleaning agents on fiberglass springs, you may or other service outlets.
  • Page 417: Vehicle Care/Appearance Materials

    Vehicle Care/Appearance Materials Description Usage Removes swirl marks, fine Swirl Remover Polish scratches, and other light Description Usage surface contamination. Polishing Cloth Interior and exterior Removes light scratches Wax-Treated polishing cloth. Cleaner Wax and protects finish. Tar and Road Removes tar, road oil, Cleans, shines, and Oil Remover and asphalt.
  • Page 418: Vehicle Identification

    Vehicle Identification Engine Identification The eighth character in the VIN is the engine code. This code will help you identify your vehicle’s Vehicle Identification Number (VIN) engine, specifications, and replacement parts. Service Parts Identification Label You will find this label on the inside of the glove box.
  • Page 419: Electrical System

    Electrical System Headlamp Wiring The headlamp wiring is protected by fuses. An Add-On Electrical Equipment electrical overload will cause the lamps to remain off. If this happens, have your headlamp wiring Notice: Do not add anything electrical to your checked right away. vehicle unless you check with your dealer first.
  • Page 420: Power Windows And Other Power Options

    Power Windows and Other If you ever have a problem on the road and do not have a spare fuse, you can borrow one Power Options that has the same amperage. Just pick some feature of your vehicle that you can get along Circuit breakers protect the power seats, power without –...
  • Page 421 You can remove fuses using the fuse puller. Fuses Usage Fuses Usage SPARE Spare Fuse SPARE Spare Fuse SPARE Spare Fuse Tonneau Pulldown Actuator ® SPARE Spare Fuse ONSTAR OnStar I n f o r ma t i o n P r o v i d e d b y :...
  • Page 422 Fuses Usage Fuses Usage DRIV DR Electric Inside Rearview Mirror, Driver Door Switch ISRVM/HVAC SWTCH Heating Ventilation, Air Conditioning TELE Telescope Switch, Memory Seat CRUISE Cruise Control Switch SWTCH/MSM Module SWTCH IGN SWTCH/ TONNEAU Ignition Switch, Intrusion Sensor Tonneau Release INTR SNSR RELSE BCK/UP LAMP...
  • Page 423 Fuses Usage Fuses Usage TONNEAU PASS HTD Tonneau Release Passenger’s Heated Seat RELSE SEAT TRUNK RELSE Trunk Release BLANK Not Used REAR/FOG Rear Fog Lamps PWR/ WNDWS/ Power Windows, Trunk, Fuel Door TRUNK/FUEL FUEL DR Release Fuel Door Release RELSE RELSE TRUNK RELSE Trunk Release BLANK...
  • Page 424: Engine Compartment Fuse Block

    Engine Compartment Fuse Block There is one fuse block in the engine compartment located on the passenger’s side of the vehicle. See Engine Compartment Overview on page 328 for more information on location. I n f o r ma t i o n P r o v i d e d b y :...
  • Page 425 Fuse Usage Fuse Usage Transmission Control Headlamp Washer Module/Transmission Passenger Side Low-Beam Horn, Alternator Sense Headlamp Anti-lock Brakes/Real Time Damping Fuel Pump Wiper Driver Side Low-Beam Headlamp Stoplamps/Back-Up Lamps Front Fog Lamp 02 Sensor Passenger Side High-Beam Headlamp Battery Main 5 Driver Side High-Beam Headlamp Park Lamps Powertrain Relay Input/Electronic...
  • Page 426 Micro-Relays Usage Spare Fuses Usage Horn Spare Air Conditioning Compressor Spare Windshield Washer Spare Park, Position Lamps Spare Front Fog Lamp Spare High-Beam Headlamp Spare Headlamp Washer Fuse Puller Fuel Pump Diodes Usage § Mini-Relays Usage Diode 1 Rear Defog §...
  • Page 427: Capacities And Specifications

    Capacities and Specifications The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 443 for more information. Capacities Application English Metric For the air conditioning system refrigerant charge amount, see the refrigerant caution label located Air Conditioning Refrigerant R134a under the hood.
  • Page 428 Capacities Application English Metric Transmission Fluid Automatic Transmission (Pan Removal and Filter 6.5 qt 6.2 L Replacement) Manual Transmission – Base 3.6 qt 3.5 L Manual Transmission – Z51 4.2 qt 4.0 L Manual Transmission – Z06 4.5 qt 4.3 L Wheel Nut Torque 100 lb ft 140 Y...
  • Page 429: Maintenance Schedule

    Section 6 Maintenance Schedule Maintenance Schedule ........ 430 Owner Checks and Services ..... 439 Introduction ..........430 At Each Fuel Fill ........439 Maintenance Requirements ......430 At Least Once a Month ......440 Your Vehicle and the Environment .... 431 At Least Once a Year .......
  • Page 430: Maintenance Schedule

    Maintenance Schedule Maintenance Requirements Notice: Maintenance intervals, checks, Introduction inspections, replacement parts, and recommended fluids and lubricants as Important: Keep engine oil at the proper level prescribed in this manual are necessary to and change as recommended. keep your vehicle in good working condition. Any damage caused by failure to follow scheduled maintenance may not be covered by warranty.
  • Page 431: Your Vehicle And The Environment

    Your Vehicle and the Environment Using the Maintenance Schedule Proper vehicle maintenance not only helps to keep We at General Motors want to help you keep your your vehicle in good working condition, but also vehicle in good working condition. But we do helps the environment.
  • Page 432 This schedule is for vehicles that: • carry passengers and cargo within CAUTION: recommended limits. You will find these limits on the Tire and Loading Information label. Performing maintenance work on a vehicle See Loading Your Vehicle on page 307. can be dangerous.
  • Page 433: Scheduled Maintenance

    If you want to purchase service information, Scheduled Maintenance see Service Publications Ordering Information When the CHANGE ENGINE OIL message comes on page 471. on, it means that service is required for your Owner Checks and Services on page 439 tells you vehicle.
  • Page 434 If the engine oil life system is ever reset Maintenance I — Use Maintenance I if the accidentally, you must service your vehicle within message comes on within 10 months since the 3,000 miles (5 000 km) since your last service. vehicle was purchased or Maintenance II Remember to reset the oil life system whenever was performed.
  • Page 435 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and filter. See Engine Oil on page 332. Reset oil life system. • • See Engine Oil Life System on page 340. An Emission Control Service. • • Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner filter.
  • Page 436: Additional Required Services

    Additional Required Services The following services should be performed at the first maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Additional Required Services 25,000 50,000 75,000 100,000 125,000 150,000 Service and Miles (Kilometers) (40 000) (80 000) (120 000) (160 000)
  • Page 437: Maintenance Footnotes

    Additional Required Services (cont’d) 25,000 50,000 75,000 100,000 125,000 150,000 Service and Miles (Kilometers) (40 000) (80 000) (120 000) (160 000) (200 000) (240 000) Engine cooling system service (or every five years, whichever occurs first). An • Emission Control Service. See footnote (i).
  • Page 438 (e) Make sure the safety belt reminder light and all (h) Change automatic transmission fluid and filter your belts, buckles, latch plates, retractors, and if the vehicle is mainly driven under one or anchorages are working properly. Look for more of these conditions: any other loose or damaged safety belt system −...
  • Page 439: Owner Checks And Services

    Owner Checks and Services At Each Fuel Fill These owner checks and services should be It is important to perform these underhood checks performed at the intervals specified to help at each fuel fill. ensure the safety, dependability, and emission Engine Oil Level Check control performance of your vehicle.
  • Page 440: At Least Once A Month

    At Least Once a Month 2. Firmly apply both the parking brake and the regular brake. See Parking Brake on page 103. Tire Inspection and Inflation Check Do not use the accelerator pedal, and be ready to turn off the engine immediately if Visually inspect your vehicle’s tires for wear it starts.
  • Page 441 Automatic Transmission Shift Lock 2. Firmly apply the parking brake. See Parking Brake on page 103. Control System Check Be ready to apply the regular brake immediately if the vehicle begins to move. CAUTION: 3. With the engine off and without applying the regular brake, try to move the shift lever out When you are doing this inspection, the of PARK (P) with normal effort.
  • Page 442 Parking Brake and Automatic Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular Transmission Park (P) Mechanism Check brake, set the parking brake. • To check the parking brake’s holding ability: CAUTION: With the engine running and transmission in NEUTRAL (N), slowly remove foot pressure from the regular brake pedal.
  • Page 443: Recommended Fluids And Lubricants

    Recommended Fluids and Usage Fluid/Lubricant Lubricants 50/50 mixture of clean, drinkable ® water and use only DEX-COOL Engine Coolant Coolant. See Engine Coolant on Fluids and lubricants identified below by name, page 347. part number, or specification may be obtained from ®...
  • Page 444 Usage Fluid/Lubricant Usage Fluid/Lubricant Manual Transmission Fluid Hood Latch Manual (GM Part No. U.S. 88861800, in Assembly, Lubriplate Lubricant Aerosol Transmission Canada 88861801). Secondary (GM Part No. U.S. 12346293, Latch, Pivots, in Canada 992723) or lubricant ® Automatic DEXRON -VI Automatic Spring meeting requirements of NLGI #2, Transmission...
  • Page 445: Normal Maintenance Replacement Parts

    Normal Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your GM dealer. ® AC Delco Part Part GM Part Number Number Engine Air Cleaner/Filter 6.0L V8 10342024 A2945C 7.0L V8 15776148 A3077C Engine Oil Filter 6.0L V8...
  • Page 446: Engine Drive Belt Routing

    Engine Drive Belt Routing 6.0L and 7.0L Engines I n f o r ma t i o n P r o v i d e d b y :...
  • Page 447: Maintenance Record

    Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 430. Any additional information from Owner Checks and Services on page 439 can be added on the following record pages.
  • Page 448 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II I n f o r ma t i o n P r o v i d e d b y :...
  • Page 449 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II I n f o r ma t i o n P r o v i d e d b y :...
  • Page 450 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II I n f o r ma t i o n P r o v i d e d b y :...
  • Page 451: Customer Assistance Information

    Section 7 Customer Assistance Information Customer Assistance and Information ..452 Reporting Safety Defects ......470 Customer Satisfaction Procedure ....452 Reporting Safety Defects to the United Online Owner Center ......... 455 States Government ........ 470 Customer Assistance for Text Telephone Reporting Safety Defects to the (TTY) Users ...........
  • Page 452: Customer Assistance And Information

    STEP TWO: If after contacting a member of dealership management, it appears your concern Information cannot be resolved by the dealership without further help, in the U.S., contact the Chevrolet Customer Assistance Center by calling Customer Satisfaction Procedure 1-800-222-1020. In Canada, contact General...
  • Page 453 STEP THREE — U.S. Owners: Both General You may contact the BBB Auto Line Program Motors and your dealer are committed to making using the toll-free telephone number or write them sure you are completely satisfied with your at the following address: new vehicle.
  • Page 454 STEP THREE — Canadian Owners: In the event For further information concerning eligibility in that you do not feel your concerns have been the Canadian Motor Vehicle Arbitration Plan addressed after following the procedure outlined in (CAMVAP), call toll-free 1-800-207-0685. Steps 1 and 2, General Motors of Canada Alternatively, you may call the General Motors Limited wants you to be aware of its participation...
  • Page 455: Online Owner Center

    Online Owner Center My GM Canada (Canada only) My GM Canada is a password-protected section Online Owner Center of gmcanada.com where you can save information (United States only) on GM vehicles, get personalized offers, and use handy tools and forms with greater ease. The Owner Center is a resource for your GM ownership needs.
  • Page 456: Customer Assistance For Text Telephone (Tty) Users

    Chevrolet encourages customers to call the Customer Communication Centre, CA1-163-005 toll-free number for assistance. However, if a 1908 Colonel Sam Drive customer wishes to write or e-mail Chevrolet, the Oshawa, Ontario L1H 8P7 letter should be addressed to: www.gmcanada.com 1-800-263-3777 (English) United States —...
  • Page 457: Gm Mobility Reimbursement Program

    Overseas — Customer Assistance GM Mobility Reimbursement Program Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center This program, available to qualified applicants, Paseo de la Reforma # 2740...
  • Page 458: Roadside Assistance Program

    Service available 24 hours a day, 365 days a year. customer to get to the nearest service station As the owner of a new Chevrolet vehicle, you (about $5 in the U.S. and 10 litres in are automatically enrolled in the Chevrolet Canada).
  • Page 459 • Additional Services for Canadian Emergency Tow From a Public Roadway or Customers Highway: Tow to the nearest dealership for warranty service or in the event of a • Trip Routing Service: Upon Request, vehicle-disabling accident. Winch-out Roadside Assistance will send you detailed, assistance when the vehicle is mired in sand, computer-personalized maps, highlighting your mud, or snow.
  • Page 460 Roadside Assistance cannot provide you and your family. Remember, we are only a timely assistance, your advisor may authorize phone call away. U.S. customers call Chevrolet you to secure local emergency road service, Roadside Assistance: 1-800-CHEV-USA and you will be reimbursed up to $100...
  • Page 461: Courtesy Transportation

    Chevrolet and General Motors of Canada Limited Courtesy Transportation reserve the right to limit services or reimbursement To enhance your ownership experience, we and to an owner or driver when, in their sole our participating dealers are proud to offer...
  • Page 462 Scheduling Service Appointments Transportation Options When your vehicle requires warranty service, Warranty service can generally be completed contact your dealer and request an appointment. while you wait. However, if you are unable to wait, By scheduling a service appointment and GM helps to minimize your inconvenience by advising your service consultant of your providing several transportation options.
  • Page 463 Public Transportation or Fuel may include minimum age requirements, insurance coverage, credit card, etc. You are responsible Reimbursement for fuel usage charges and may also be If your vehicle requires overnight warranty repairs, responsible for taxes, levies, usage fees, and public transportation is used as ‘shuttle excessive mileage, or rental usage beyond the service,’...
  • Page 464: Vehicle Data Collection And Event Data Recorders

    Vehicle Data Collection and Event This information has been used to improve vehicle crash performance and may be used to improve Data Recorders crash performance of future vehicles and driving safety. Unlike the data recorders on many Your vehicle, like other modern motor vehicles, airplanes, these on-board systems do not record has a number of sophisticated computer systems sounds, such as conversation of vehicle occupants.
  • Page 465: Collision Damage Repair

    In addition, once GM collects or receives data, Collision Damage Repair GM may: If your vehicle is involved in a collision and it is • use the data for GM research needs, damaged, have the damage repaired by a qualified •...
  • Page 466 Recycled original equipment parts may also be Repair Facility used for repair. These parts are typically removed GM also recommends that you choose a collision from vehicles that were total losses in prior repair facility that meets your needs before you accidents.
  • Page 467 If your vehicle is leased, the leasing company • Give only the necessary and requested may require you to have insurance that assures information to police and other parties involved repairs with Genuine GM Original Equipment in the accident. Do not discuss your personal Manufacturer (OEM) parts or Genuine condition, mental frame of mind, or anything Manufacturer replacement parts.
  • Page 468 • • Gather the important information you will Choose a reputable collision repair facility for need from the other driver. Things like name, your vehicle. Whether you select a GM dealer address, phone number, driver’s license or a private collision repair facility to fix the number, vehicle license plate, vehicle make, damage, make sure you are comfortable with model and model year, Vehicle Identification...
  • Page 469 Managing the Vehicle Damage Repair Remember if your vehicle is leased you may be obligated to have the vehicle repaired with Process Genuine GM parts, even if your insurance In the event that your vehicle requires damage coverage does not pay the full cost. repairs, GM recommends that you take an active If another party’s insurance company is paying for role in its repair.
  • Page 470: Reporting Safety Defects

    Canada) in a situation like this, we certainly hope Safety Hotline toll-free at 1-888-327-4236 (TTY: you will notify General Motors. Please call the 1-800-424-9153); go to http://www.safercar.gov; or Chevrolet Customer Assistance Center at write to: 1-800-222-1020, or write: Administrator, NHTSA Chevrolet Motor Division 400 Seventh Street, SW.
  • Page 471: Service Publications Ordering Information

    In Canada, please call us at 1-800-263-3777 Service Bulletins (English) or 1-800-263-7854 (French). Or, write: Service Bulletins give technical service information General Motors of Canada Limited needed to knowledgeably service General Customer Communication Centre, CA1-163-005 Motors cars and trucks. Each bulletin contains 1908 Colonel Sam Drive instructions to assist in the diagnosis and service Oshawa, Ontario L1H 8P7...
  • Page 472 Owner Information ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Owner publications are written specifically for Eastern Time owners and intended to provide basic operational information about the vehicle. The owner For Credit Card Orders Only manual will include the Maintenance Schedule for (VISA-MasterCard-Discover), visit Helm, Inc.
  • Page 473 Airbag System (cont.) Where Are the Airbags? ......53 Accessories and Modifications ..... 318 Antenna, Diversity Antenna System ..... 270 Accessory Power Outlet(s) ......176 Antenna, XM™ Satellite Radio Antenna Active Handling System ....... 281 System ............ 270 Active Handling System Light ...... 196 Anti-Lock Brake System (ABS) ....
  • Page 474 Appearance Care (cont.) Battery (cont.) Washing Your Vehicle ......411 Before Leaving on a Long Trip ....298 Weatherstrips ........... 411 Brake Windshield and Wiper Blades ....413 Anti-Lock Brake System (ABS) ....277 Ashtray(s) ............ 177 Emergencies ..........279 Audio System(s) ..........
  • Page 475 Carbon Monoxide ....83, 106, 302, 313 Cleaning (cont.) Care of Exterior Lamps/Lenses ......412 Safety Belts ..........411 Fabric/Carpet ........... 409 Your CD Player ........270 Fiberglass Springs ........416 Your CDs ..........269 Finish Care ..........412 Cargo Cover ..........132 Inside of Your Vehicle ......
  • Page 476 Coolant Engine Temperature Gage ......197 Daytime Running Lamps ......167 Heater, Engine ........... 94 Defensive Driving ........272 Surge Tank Pressure Cap ......350 Disc, MP3 ........... 259 Cooling System ........... 352 Diversity Antenna System ......270 Courtesy Lamps .......... 171 Doing Your Own Service Work ....
  • Page 477 Driving (cont.) Engine (cont.) Hill and Mountain Roads ......300 Engine Compartment Overview ....328 In Rain and on Wet Roads ...... 293 Exhaust ........... 106 Rocking Your Vehicle to Get it Out ..307 Oil ............332 Winter ............302 Oil Life System ........
  • Page 478 Fluid Automatic Transmission ......345 Gage Manual Transmission ........ 346 Engine Coolant Temperature ....197 Power Steering ........357 Engine Oil Pressure ......... 202 Windshield Washer ........359 Fuel ............204 Fog Lamp Light ........... 203 Speedometer ........... 188 Fog Lamps ..........169 Tachometer ..........
  • Page 479 Headlamps (cont.) Installing the Roof Panel ......137 Headlamps, Front Turn Signal, and Instrument Panel Parking Lamps ........372 Overview ..........154 High Intensity Discharge (HID) Lighting ..371 Instrument Panel (I/P) High/Low Beam Changer ......160 Brightness ..........170 On Reminder ...........
  • Page 480 Lamps (cont.) Loading Your Vehicle ........307 Reading ........... 171 Lockout Protection ......... 82 ® Twilight Sentinel ........169 Locks LATCH System Automatic Door Lock ......... 81 Child Restraints ........42, 45 Door ............78 Latches, Seatback ......... 15 Lockout Protection ........82 Lifting Your Vehicle, Tires ......
  • Page 481 Maintenance Schedule (cont.) Scheduled Maintenance ......433 Navigation/Radio System, see Navigation Using ............431 Manual ............. 267 Your Vehicle and the Environment .... 431 New Vehicle Break-In ........90 Malfunction Indicator Light ......198 Normal Maintenance Replacement Parts ..445 Manual Seats ..........
  • Page 482 Overheated Engine Protection Power (cont.) Operating Mode ........352 Steering Fluid .......... 357 Owner Checks and Services ....... 439 Windows ............ 87 Owners, Canadian .......... 3 Pretensioners, Safety Belt ......30 Programmable Automatic Door Unlock ... 82 Paint, Damage ..........416 Park (P) Questions and Answers About Safety Belts ...
  • Page 483 Rearview Mirror, Automatic Dimming with Roof Panel (cont.) Compass ..........110 Storing the Roof Panel ......136 Rearview Mirror, Automatic Dimming with Routing, Engine Drive Belt ......446 ® OnStar and Compass ......108 Running the Engine While Parked ....107 Rearview Mirrors .........
  • Page 484 Seats (cont.) Steering Wheel Controls, Memory ....10 Power Lumbar and Side Bolsters ....9 Steering Wheel, Tilt Wheel ......157 Power Seats ..........8 Storage Areas Reclining Seatbacks ........13 Center Console Storage Area ....129 Seatback Latches ........15 Convenience Net ........
  • Page 485 Tires (cont.) Traction (cont.) Chains ............. 401 Limited-Slip Rear Axle ......283 Cleaning ..........415 Selective Ride Control ......284 Different Size ........... 395 Transmission Extended Mobility ........384 Fluid, Automatic ........345 High-Speed Operation ......388 Fluid, Manual ........... 346 If a Tire Goes Flat ........
  • Page 486 Vehicle (cont.) Wheels Loading ............ 307 Alignment and Tire Balance ..... 397 Parking Your ..........105 Different Size ........... 395 Symbols ............5 Replacement ..........398 Vehicle Data Collection and Event Data Windows ............86 Recorders ..........464 Power ............87 Vehicle Identification Windshield Number (VIN) ..........

This manual is also suitable for:

2007 corvette

Table of Contents
