Alcatel-Lucent OAW-AP120 Series Indoor Access Point
Installation Guide
About the Alcatel-Lucent OAW-AP120 Series Access Points
The Alcatel-Lucent OAW-AP120 series of wireless access points support the imminent IEEE 802.11n
(currently draft 2.0) standard for high-performance WLAN. These access points use MIMO (Multiple-in,
Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, pre-
802.11n 2.4GHz and 5GHz functionality while simultaneously supporting existing 802.11a/b/g wireless
services. The OAW-AP120 series access points are available in versions with single or dual radios and
with integrated antennas or RP-SMA interfaces that support detachable antennas. The OAW-AP120
series access points work only in conjunction with an Alcatel-Lucent WLAN Switch.
The Alcatel-Lucent OAW-AP120 series access points provide the following capabilities:
Wireless transceiver
Protocol-independent networking functionality
IEEE 802.11a/b/g or 802.11n operation as a wireless access point
IEEE 802.11a/b/g or 802.11n operation as a wireless air monitor
Compatibility with IEEE 802.3af PoE as well as high power over Ethernet pre-standards
(PoE + / 802.3at)
Central management configuration and upgrades through an Alcatel-Lucent WLAN Switch

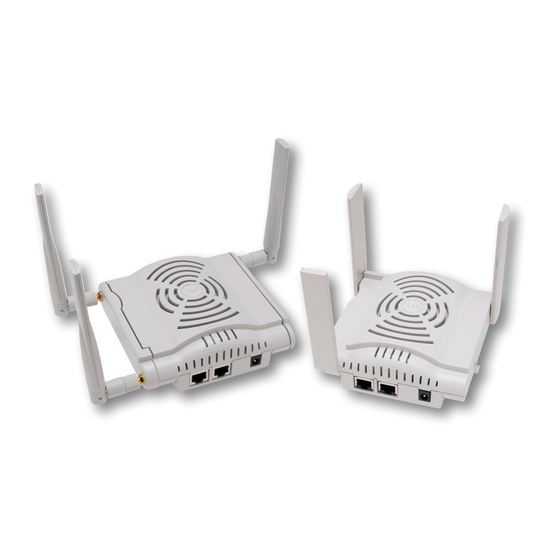

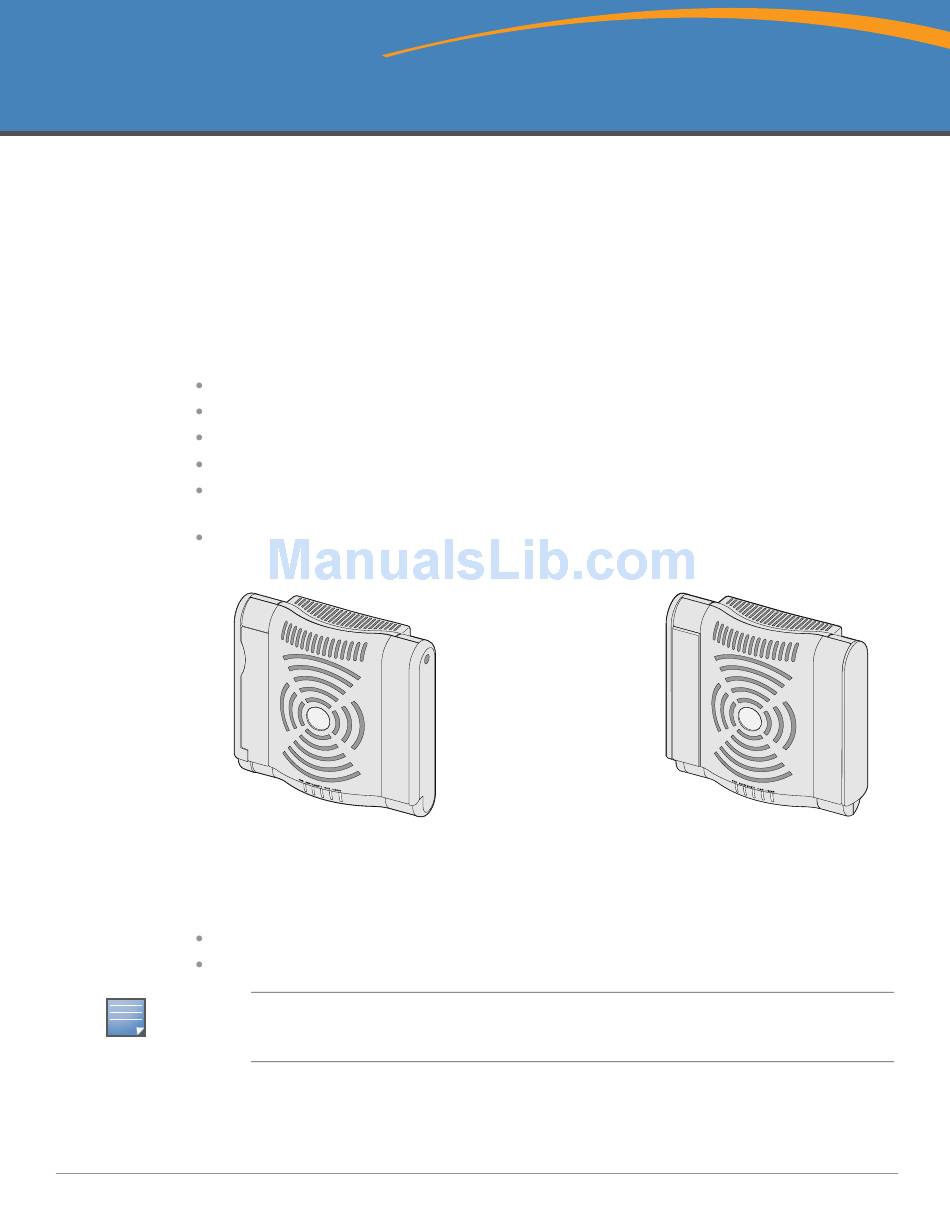

Figure 1 OAW-AP120 Series Access Points
(3 x RP-SMA interfaces for detachable antennas)
Package Contents
OAW-AP120 series access point
Installation guide (this document)
N O T E
0510462-01
| January 2008
OAW-AP120/124
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the
carton, including the original packing materials. Use these materials to repack and return the unit to
the supplier if needed.
ap12_001
OAW-AP121/125
(3 x integrated dual-band antennas)
1
Advertisement
Table of Contents
Related Manuals for Alcatel-Lucent OAW-AP120
Summary of Contents for Alcatel-Lucent OAW-AP120
- Page 1 Multiple-out) technology and other high-throughput mode techniques to deliver high-performance, pre- 802.11n 2.4GHz and 5GHz functionality while simultaneously supporting existing 802.11a/b/g wireless services. The OAW-AP120 series access points are available in versions with single or dual radios and with integrated antennas or RP-SMA interfaces that support detachable antennas. The OAW-AP120 series access points work only in conjunction with an Alcatel-Lucent WLAN Switch.
-
Page 2: Before You Begin
Alcatel-Lucent WLAN Switch(es) must be installed and initial setup performed before the Alcatel-Lucent Access Points are deployed. For initial setup of the WLAN Switch, refer to the Alcatel-Lucent AOS-W Quick Start Guide for the software version installed on your controller. -
Page 3: Verifying Pre-Installation Connectivity
Mobile Satellite Systems. You can mount the OAW-AP120 series access point on a wall or on the ceiling. Use the AP placement map generated by Alcatel’s RF Plan software application to determine the proper installation location(s). -
Page 4: Unidentified Known Rf Absorbers/Reflectors/Interference Sources
Microwave ovens and other 2.4 or 5 GHz objects (such as cordless phones) Lunch rooms and call centers with cordless headsets Installing the AP Service to all Alcatel-Lucent products should be performed by trained service personnel only. N O T E Using the Integrated Wall-Mounting Slots The keyhole-shaped slots on the back of the AP can be used to attach the device upright to an indoor wall or shelf. -
Page 5: Using The Integrated Ceiling Tile Rail Slots
(see Figure Figure 3 Antenna Orientation on a Wall-Mounted OAW-AP121/OAW-AP125 On the OAW-AP120 or OAW-AP124, install the external antennas according to the manufacturer’s instructions, and connect the antennas to the antenna interfaces on the AP (see Figure... -
Page 6: Connecting Required Cables
(perpendicular to the body of the AP) (see Figure Figure 6 Antenna Orientation on a Ceiling-Mounted OAW-AP121/OAW-AP125 On the OAW-AP120 or OAW-AP124, install the external antennas according to the manufacturer’s instructions, and connect the antennas to the antenna interfaces on the AP (see Figure Connecting Required Cables Install cables in accordance with all applicable local and national regulations and practices. - Page 7 Alcatel-Lucent WLAN Switch. Use a 4- or 8-conductor, Category 5 UTP cable up to 100 m (325 feet) long. Alcatel-Lucent OAW-AP12x APs are intended only for installation in Environment A as defined in IEEE 802.3.af, Power over Ethernet. All interconnected equipment must be contained within the same building, including the interconnected equipment’s associated LAN connections.
-
Page 8: Power Connection
Output Output Power Connection The OAW-AP120 series AP has a single 5V DC power jack socket to support powering through an AC-to- DC mains electric power adapter. Connecting a Security Cable To provide added security for the AP, you can attach a security cable to the back of the unit (see... -
Page 9: Product Specifications
Provisioning parameters are unique to each AP. These local AP parameters are initially configured on the WLAN Switch which are then pushed out to the AP and stored on the AP itself. Alcatel-Lucent recommends that provisioning settings be configured via the Alcatel-Lucent AOS-W Web UI only. Refer to the Alcatel-Lucent AOS-W User Guide for complete details. -
Page 10: Wireless Lan
5 VDC power interface, supports powering through an AC-to-DC mains electric power adapter If a power adapter other than the one provided by Alcatel-Lucent is used in the US or Canada, it should be cULus (NRTL) Listed, with an output rated 5 VDC, minimum 4A, marked “LPS”... -
Page 11: Safety And Regulatory Compliance
802.11n - Data rate MCS0 – MCS15 (from 6.5 Mbps to 300 Mbps) Safety and Regulatory Compliance Alcatel-Lucent provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Alcatel-Lucent access points. This document can be viewed or downloaded from the following location: https://service.esd.alcatel-lucent.com RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. -
Page 12: China Rohs
Batteries included with Alcatel-Lucent products must be replaced by qualified Alcatel-Lucent service personnel only. Contact Alcatel-Lucent for battery replacement. Do not attempt to replace the battery. There is a risk of explosion if you install the wrong type of battery.
