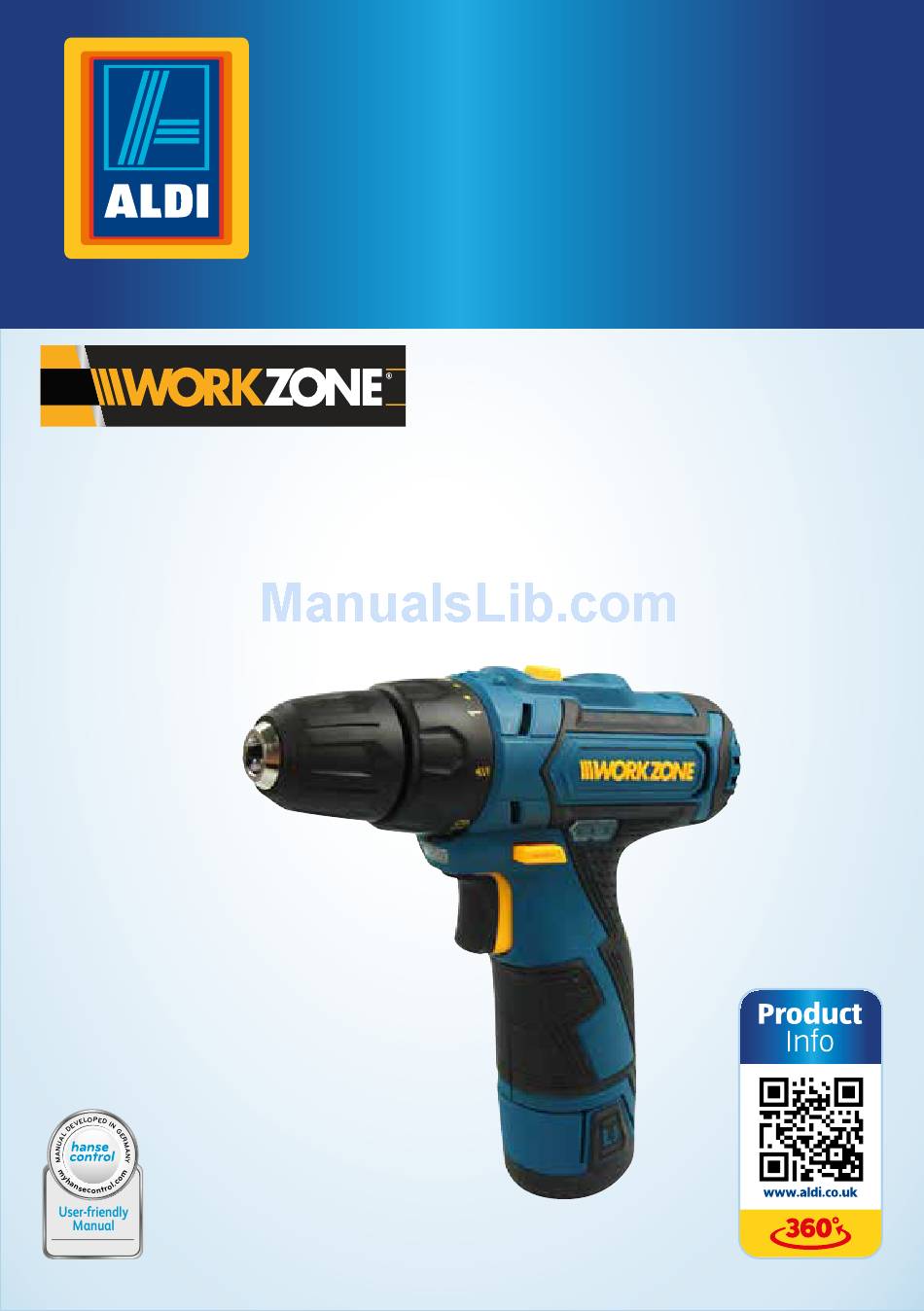

- Page 1 User Manual Spend a little Live a lot 12 V LITHIUM-ION CORDLESS DRILL WB 12-2 Translation of original user manual ID: #05007...
- Page 2 Try it out now Just scan the QR code with your smartphone and find out more about the Aldi product you have purchased.* Your Aldi Service Portal All details mentioned above can also be found in the Aldi Service Portal at www.aldi.co.uk.
-
Page 3: Table Of Contents
Contents Overview ................4 Use ..................5 Pack contents/device parts ..........6 General information ............7 Reading and storing the user manual ........7 Explanation of symbols ............7 Safety ...................9 Proper use ................. 9 Residual risks ................9 General safety notes for power tools ........10 Using and handling the cordless tool ........ -
Page 6: Pack Contents/Device Parts
Pack contents/device parts Quick-action drill chuck Torque adjustment ring Gear switch Rechargeable battery charge level indicator Right-handed/left-handed rotation selector Battery release button Rechargeable battery On/Off switch with speed control LED work light Charger Drills (HSS spiral drill bits) Magnetic bit holder Bits Storage case This instruction manual can also be downloaded as a PDF from our website... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 12 V lithium-ion cordless drill WB 12-2. It contains important information on start-up and handling. For improved readability, the 12 V lithium-ion cordless drill WB 12-2 will be referred to only as the “cordless drill”... - Page 8 Cordless drill General information Avoid contact between the rechargeable battery and water! Do not throw the rechargeable battery in water! Danger of explosion! Do not throw the rechargeable battery in the toilet. Do not throw the rechargeable battery in fire! Danger of explosion! The mains adapter complies with protection class 2.
-
Page 9: Safety
Cordless drill Safety Safety Proper use The cordless drill is only suitable for drilling and driving screws into wood, plastic and metal. The cordless drill is not designed to be used commercially, in trades or for industrial applications; it is only designed for private users and DIY projects. The cordless drill may only be used in accordance with its intended purpose. -
Page 10: General Safety Notes For Power Tools
Cordless drill Safety The user manual and, in particular, the safety notes must be carefully read and adhered to by each user before beginning work. Work using this device may only be performed by persons who have been instructed in how to use the cordless drill and who have been advised on the associated risks. -
Page 11: Electrical Safety
Cordless drill Safety Electrical safety a) The connector plug for the power tool must fit in the socket. The plug must not be modified in any way. Do not use any adapter plugs in combination with power tools with protective earthing. Plugs that have not been modified and sockets with the proper fit reduce the risk of an electric shock. - Page 12 Cordless drill Safety If you have your finger on the switch when carrying the power tool or connect the device to the power supply when it is turned on, this may cause an accident. d) Remove all adjusting tools or spanners before you switch the power tool on.
-
Page 13: Using And Handling The Cordless Tool
Cordless drill Safety f) Keep cutting tools sharp and clean. Well maintained cutting tools with sharp cutting edges are less likely to catch and are easier to guide. g) Use the power tool, accessories, insertion tools etc. in accordance with these instructions. At the same time, consider the working conditions and the work to be performed. -
Page 14: Special Safety Notes For Drills
Cordless drill Safety b) Never perform maintenance on damaged rechargeable batteries. Only the manufacturer or authorised service companies may perform maintenance on rechargeable batteries. Special safety notes for drills a) If present, use the extra handles shipped with the machine. Loss of control may cause injury. - Page 15 Cordless drill Safety h) Always make sure there is adequate ventilation when recharging the rechargeable battery. Gases may be produced. i) Only charge the rechargeable battery in closed rooms as the charger is only intended for indoor use. j) Make sure that no moisture comes into contact with the charger. Otherwise there is a risk of electric shock.
-
Page 16: Supplementary Safety Notes
Cordless drill Safety Supplementary safety notes WARNING! Risk of electric shock! A faulty electrical installation or excessive mains voltage may result in an electric shock. − Only connect the charger if the mains voltage of the socket corresponds to the rating plate on the charger. −... - Page 17 Cordless drill Safety WARNING! Risk of injury! This cordless drill is not intended to be used by persons with impaired physical, sensory or mental abilities or who lack experience and/or knowledge unless they are supervised by a person responsible for their safety or are instructed by such a person on how to use the device.
-
Page 18: Preparation
Cordless drill Preparation Preparation Checking the cordless drill and pack contents 1. Remove the packaging material and all protective foils. 2. Check to make sure that the delivery is complete (see fig. A and B). 3. Take the cordless drill out of the storage case and check whether the cordless drill or the individual parts exhibit damage. -
Page 19: Operation
Cordless drill Operation The rechargeable battery is only precharged to a low level. Therefore, charge the rechargeable battery before first use. If the rechargeable battery charge level indicator shows that the rechargeable battery power is low (red light), charge the rechargeable battery. 1. -
Page 20: Inserting Tools
Cordless drill Operation CAUTION! Risk of injury while drilling! While drilling, you could inhale dust and wood chips. − Wear a dust mask. When drilling, the loud drilling noises could damage your hearing. Noise may cause hearing loss. NOTICE! Risk of damage! If the vents on the cordless drill are covered or an unsuitable drill bit and settings are used for different materials, the cordless drill and the drill bits could be damaged. -
Page 21: Screwing And Drilling
Cordless drill Operation Screwing and drilling 1. If you would like to drill or screw into soft wood, mark the applicable area. 2. Mount the rechargeable battery in the cordless drill so that the contacts of the rechargeable battery extend into the cordless drill. The rechargeable battery must lock into the cordless drill. - Page 22 Cordless drill Operation 8. Observe the following notes on screwing and drilling: Screwing • You can drive screws into soft wood without drilling a hole in advance. • Pre-drill when screwing into hard wood and driving in large screws. • Countersink the drill hole for countersunk screws. •...
-
Page 23: Removing A Blockage
Cordless drill Cleaning 12. If necessary, change the direction of rotation of the quick-action drill chuck with the right-handed/left-handed rotation selector to remove the drill bit from the bore hole. 13. Remove the drill bit or the magnetic bit holder and the bits (see chapter “Removing tools”). -
Page 24: Storage And Transport
Cordless drill Storage and transport NOTICE! Risk of short circuit! Water that has penetrated the housing may cause a short circuit. − Do not immerse the cordless drill and the accessories in water. − Make sure that no water or other liquids penetrate the housing. 1. -
Page 25: Repairs
Cordless drill Repairs 1. Make sure that the cordless drill and the accessories are completely dry. 2. Fold up the mains cord so that it does not knot or kink. 3. Always place all accessories and especially the drill bits, the magnetic bit holder and the bits back in the storage case to prevent the loss of accessory parts. -
Page 26: Troubleshooting
Cordless drill Troubleshooting Troubleshooting Some problems may be caused by minor faults that you can fix yourself. To do so, follow the instructions in the following table. If it is still not possible to resolve the problem with the cordless drill, contact the after sales support. -
Page 27: Technical Data
Cordless drill Technical data Technical data Cordless drill Model: WB 12-2 5991103/4 Article number: 93494 Idle speed: 1st gear: 0 to 400 rpm 2nd gear: 0 to 1300 rpm Quick-action drill chuck capacity: 10 mm Rechargeable battery Rechargeable battery model:... -
Page 28: Noise And Vibration Information
Cordless drill Noise and vibration information Noise and vibration information The specified noise and vibration levels were determined in accordance with the standards EN 60745-1, EN 60745-2-1 and EN 60745-2-2. The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one power tool with another. - Page 29 Cordless drill Noise and vibration information CAUTION! Noise disturbance! This device causes a certain unavoidable noise disturbance. − Perform noisy work during the permissible hours of the day designated for work of this kind. − If necessary, observe quiet hours and restrict the duration of work to the essentials.
-
Page 30: Declaration Of Conformity
Meister Werkzeuge gmbH • Oberkamper Str. 37-39 • D-42349 Wuppertal EC-Declaration of conformity For the following product ... 12 V Lithium-ion cordless drill + Charger Cordless drill: WB 12-2 Charger: TF0451282500B WORKZONE® Nr. 5991103/4 • 07/2016 • 93494 … is herewith declared to conform with the following guidelines:... -
Page 31: Disposal
Cordless drill Disposal Disposal Disposing of the packaging Dispose of the cardboard packaging sorted into single-type materials www.recyclenow. com by making it available to the recycled paper collection service. Dispose of the foil packaging in accordance withthe applicable laws and regulations for your country. CARD PLASTIC widely... - Page 32 Cordless drill Disposal Batteries and rechargeable batteries must not be disposed of with household waste! As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.
-
Page 33: Warranty Card
AFTER SALES SUPPORT you are requested to return the faulty 00800 34 99 67 53 product please return the completed meister-service@meister-werkzeuge.de warranty card together with it. MODELL: WB 12-2 / 5991103/4 PRODUCT CODE: 93494 07/2016 Meister Werkzeuge GmbH Kundenservice Toll-free hotline. -
Page 34: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits: Warranty period: 3 years from date of purchase. Costs: Free repair/exchange. No transport costs. Hotline: Free hotline. ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors. - Page 35 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD.
