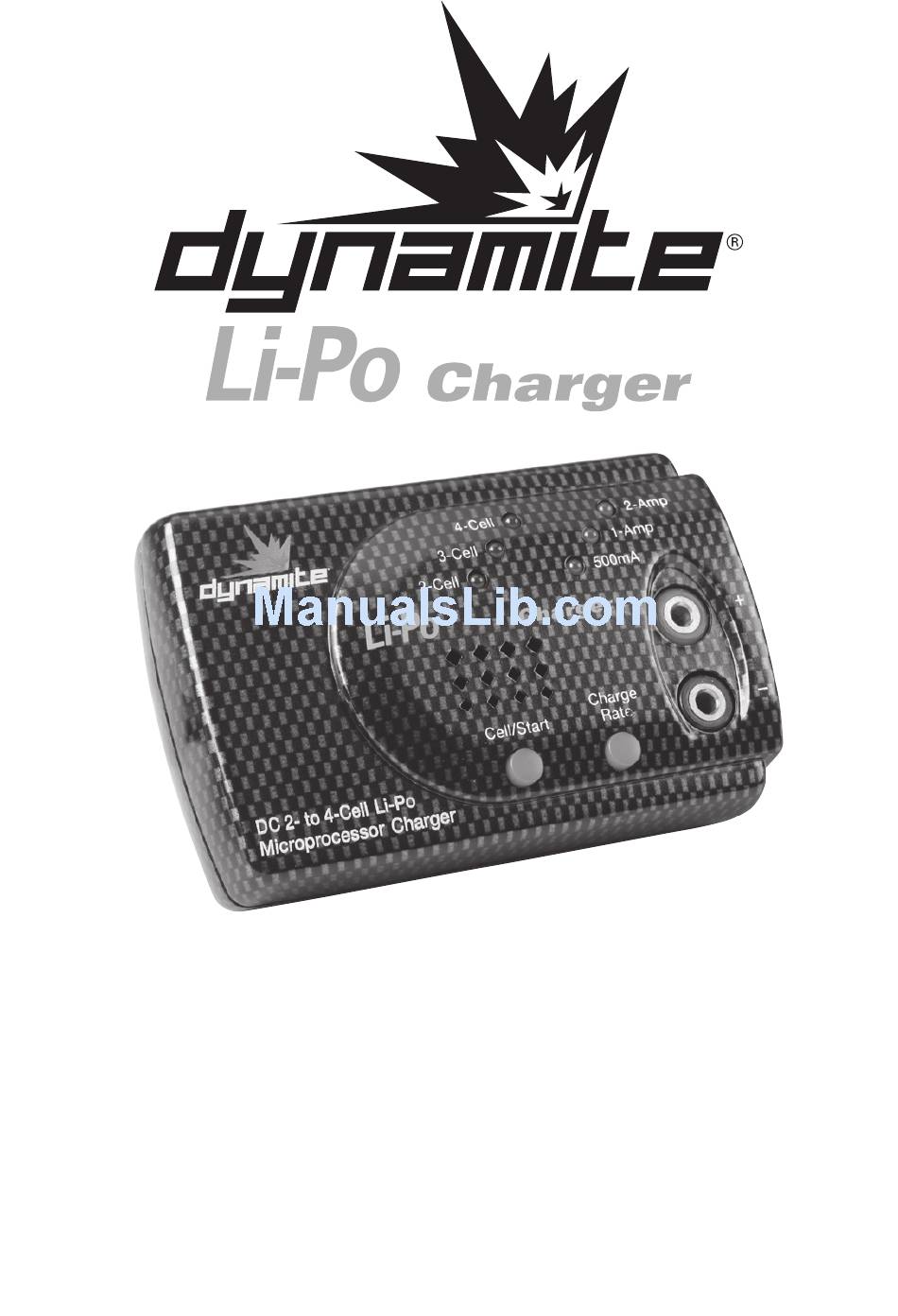

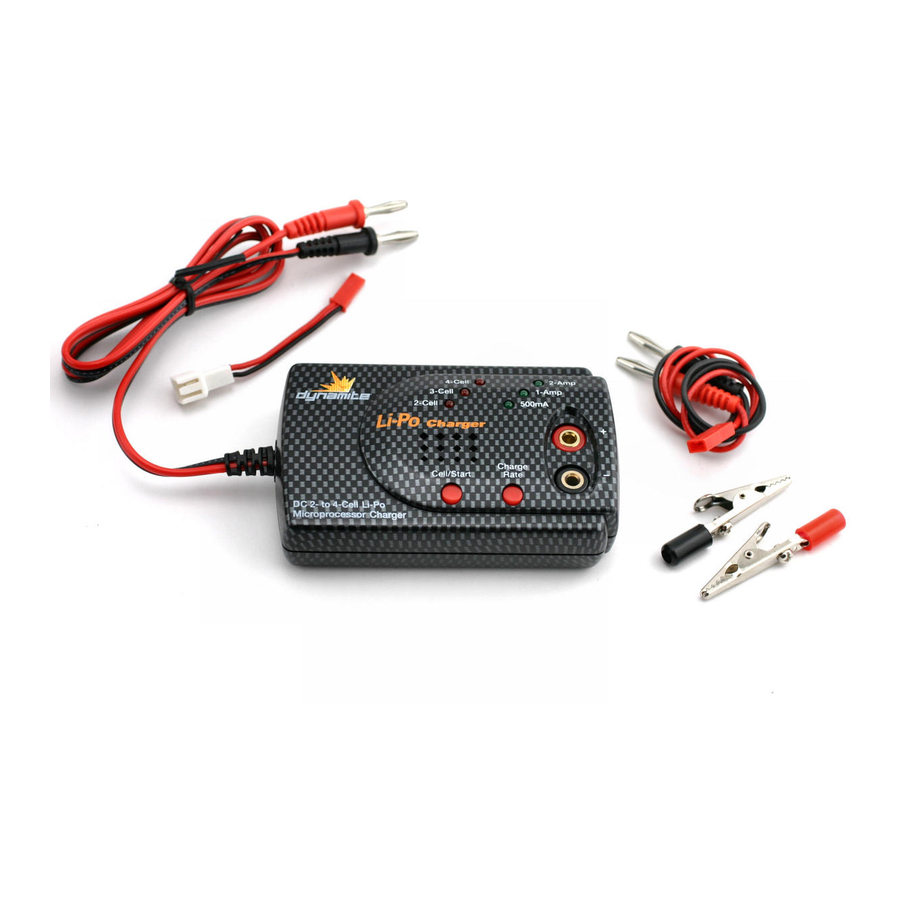

Dynamite DYN4058 User Manual

Thank you for purchasing the Dynamite
DC-powered charger meant only for 2–4 cell lithium-polymer
(Li-Po) battery packs and features a microchip CPU controller
with a large LED to display the charge status. It also precisely
follows standard Li-Po charger algorithms. This programmed
set of charging rules tells the charger to increase the voltage of
the Li-Po cell to 4.2V (per cell). While the voltage is rising, the
current is precisely kept at one of the preset rates (either 500mA,
1A or 2A). Once the maximum cell voltage is reached (at which
point the battery is 80–90% charged), the charger steadily
maintains a constant voltage, while the current decreases until
terminating the charge.
® Li-Po Charger. It' s a Features
• Microprocessor controlled technology provides efficient
and precise charging
• Uses a voltage booster to allow charging up to 4-cell
(14.8V) Li-Po batteries
• Selectable charge rate of 500mA, 1000mA and 2000mA
• Automatically detects cell count and indicates error
• LED and audible beeper indicates charging status
• Short circuit protection for both input and output

Specifications

• 12V DC-powered
• Charges 2–4 cell Li-Po packs
• Reverse polarity protection circuit
