Dynamite DYN4060 Manual

AC/DC Li-Po

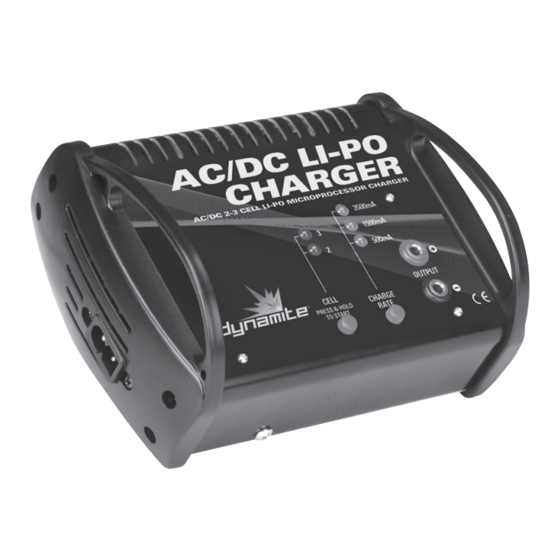

Thank you for purchasing the Dynamite
Charger. It' s a DC-powered charger meant only for 2–3 cell
lithium-polymer (Li-Po) battery packs and features a microchip
CPU controller with a large LED to display the charge status. It
also precisely follows standard Li-Po charger algorithms. This
programmed set of charging rules tells the charger to increase
the voltage of the Li-Po cell to 4.2V (per cell). While the voltage
is rising, the current is precisely kept at one of the preset rates
(either 500mA, 1500mA or 3500mA). Once the maximum
cell voltage is reached (at which point the battery is 80–90%
charged), the charger steadily maintains a constant voltage,
while the current decreases until terminating the charge.
® AC/DC Li-Po

Features

• Switching power supply for compact AC power
• Microprocessor controlled technology provides efficient
and precise charging
• Selectable charge rate of 500mA, 1500mA and 3500mA
• Automatically detects cell count and indicates error
• LED and audible beeper indicates charging status
• Short circuit protection for both input and output

Specifications

• 110-120VAC or 12V DC-powered
• Charges 2–3 cell Li-Po packs
• Reverse polarity protection circuit
• Includes JST charge cord and Mini-T battery adapter
Charger
