Module Settings

LFO Retrig

The LFO can be set to Freerun or Retrig modes. Freerun is the default mode.
• Retrig off – In this mode the LFO will start on power up and the waveform will
run continuously. This means that when you key a note, the state of the LFO
can be at any point in its duty cycle.
• LFO Retrig – In Retrig mode, the LFO's waveform will start from a 0 point each
time a key is pressed (or a sequence note is played).

Envelope Modes

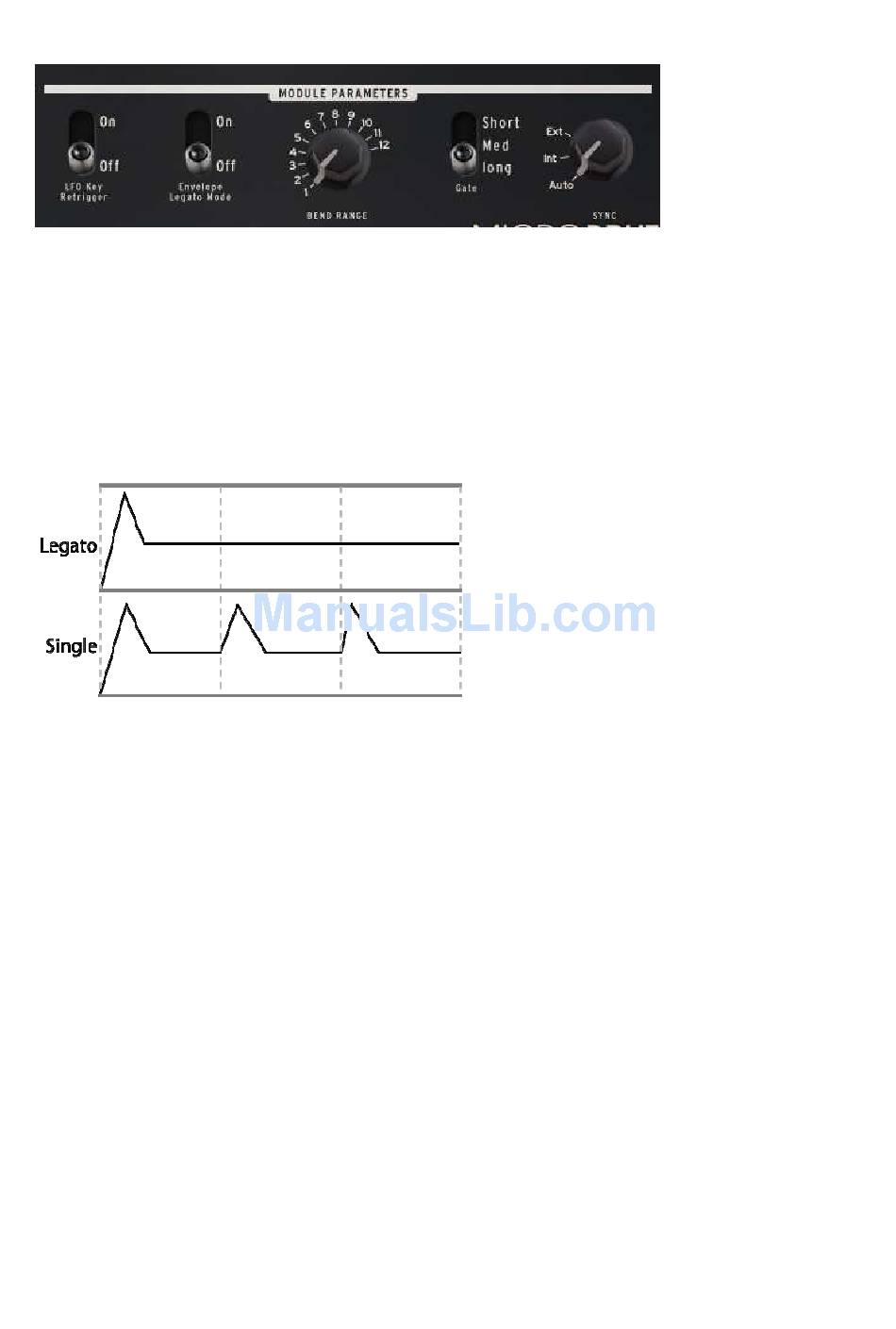

• Legato On - Legato mode will trigger the envelope one time when you play a
legato passage. If you release all keys and play a new note, then the
envelope will reset to the beginning.
• Single/Legato off - Legato allows you to trigger new notes in the envelope but
as you can see in Figure 32, the envelope picks up from the point where the
envelope currently is in its attack, decay sustain or release stage.

Pitch Bend Range

The default pitch-bend range is set to +/- two semi-tones but it can be set to range
from 1 semi-tone to 1octave +/-.

Gate Length

This allows you to set the note length of all steps in the sequencer patterns. The
default gate time is set to 50%. Typically a Note On and Note Off will be 50% of the
time of the sequence step size. An example would be if you have the step size set to
¼ notes, the actually note length would be 1/8
Short, Med and Long. Try playing a sequence with the VCA switch set to GATE by
changing this parameter you will hear the difference in note lengths.

Sync

You can sync the sequencer clock to either its own internal source, an external MIDI
clock source, a clock from the Gate Input or an audio trigger from the Audio Input.
• Auto – DEFAULT - auto will select between Internal clock or incoming MIDI
th notes at 50%. The options here are
