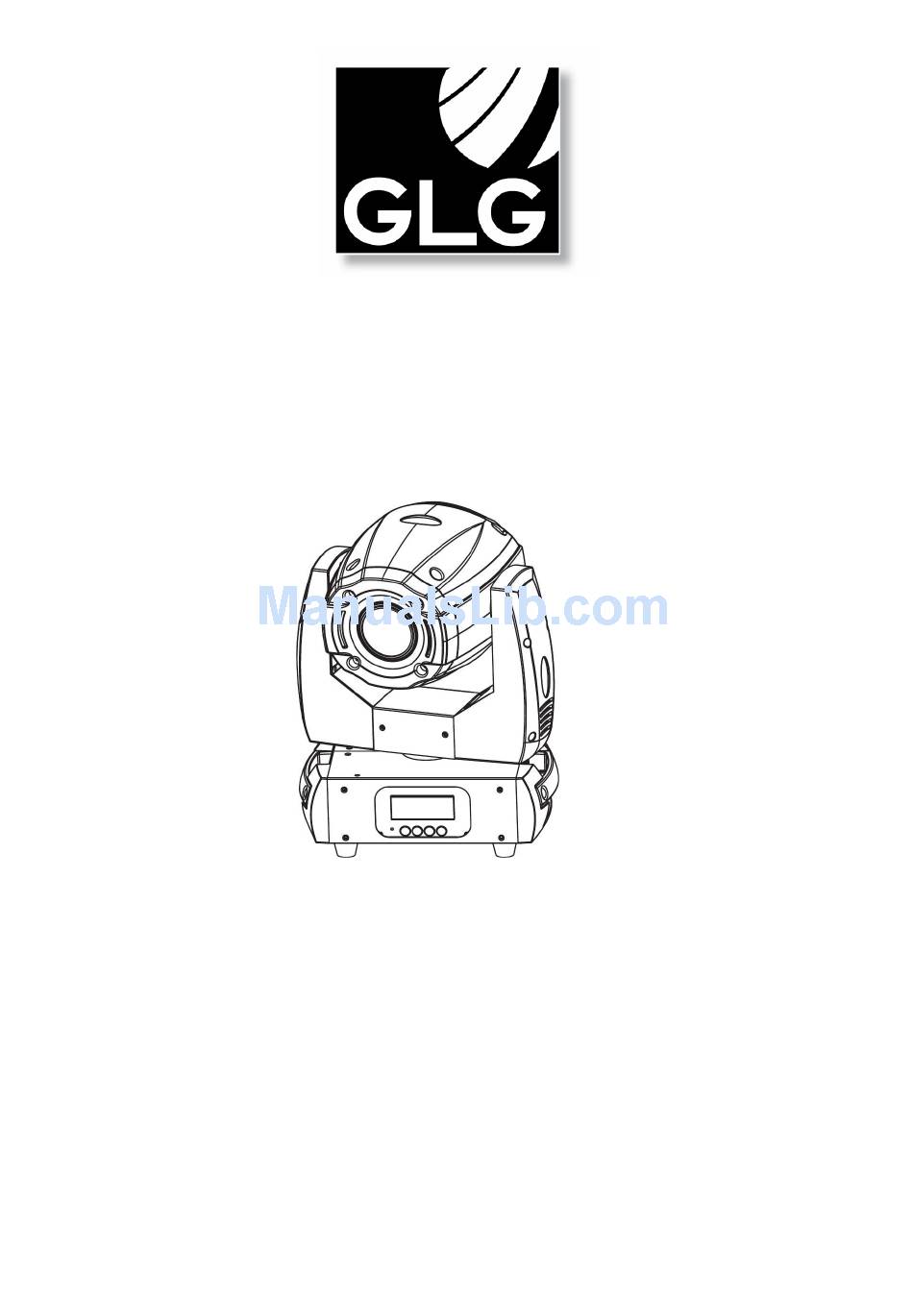

- Page 1 GLG LIGHTING EQUIPMENT Minispot 150 KEEP THIS MANUAL FOR FUTURE NEEDS www.goedlichtengeluid.nl info@goedlichtengeluid.nl...
- Page 2 1. GENERAL SAFETY INSTRUCTIONS This device has left the GLG factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
- Page 3 GLG LIGHTING EQUIPMENT 3. FEATURES A 150W white LEDlamp, 7.500K, 50.000 hourslife span and low powerconsumption 8/16 bit smooth and precise resolution for PAN/TILT movement 360° / 540° /630° PAN and 90° /180° /270° TILT movement PAN/TILT inversion available. Scan position memory, auto reposition after unexpected movement Specific high precision glass optic system with 13.2°...
- Page 4 GLG LIGHTING EQUIPMENT 4. CHANNELS 0-255 PAN movement 0-255 Pan-fine Fine control of Pan movement Tilt 0-255 Tilt movement 0-255 Tile-fine Fine control of Tilt movement 0-15 Open/white 16-31 Color1 32-47 Color2 48-63 Color3 Color 64-79 Color4 wheel 80-95 Color5...
- Page 5 GLG LIGHTING EQUIPMENT 50-59 gobo5 60-69 gobo6 70-79 gobo7 80-89 gobo8 90-99 gobo9 100-109 gobo10 110-119 gobo11 120-129 Gobo1 shake slow to fast 130-139 Gobo2 shake slow to fast 140-149 Gobo3 shake slow to fast 150-159 Gobo4 shake slow to fast...
-
Page 6: Menu Options
GLG LIGHTING EQUIPMENT 85-87 Scan motor reset 88-90 Colors motor reset 91-93 Gobo motor reset 94-96 Shutter & Dimmer motorreset 97-99 Other motor reset 100-119 lnternal program1 120-139 lntemal program2 140-159 lnternal program3 160-179 lntemal program4 180-199 lnternal program5 200-21 9... - Page 7 GLG LIGHTING EQUIPMENT Mode of Standard Mode Standard Mode channel Basic Mode Basic Mode Extended Mode Extended Mode 630°/540°/360° Select Degree PAN Degree Pan Degree, default is 540° 270°/180°/90° TILT Degree Tilt Degree, default is 270° Version V1 0-V9.9 software Version 6.
- Page 8 GLG LIGHTING EQUIPMENT Clamp Mounting: The MINISPOT ML150 provides two unique mounting bracket assembly’s that integrates the bottom of the base, the included "0mega Bracket” and the safety cable rigging point in one unit (see the illustration below). When mounting this fixture to truss be sure to secure an appropriately rated damp to the included omega bracket using a M10 screw fitted through the center hole of the omega bracket).
