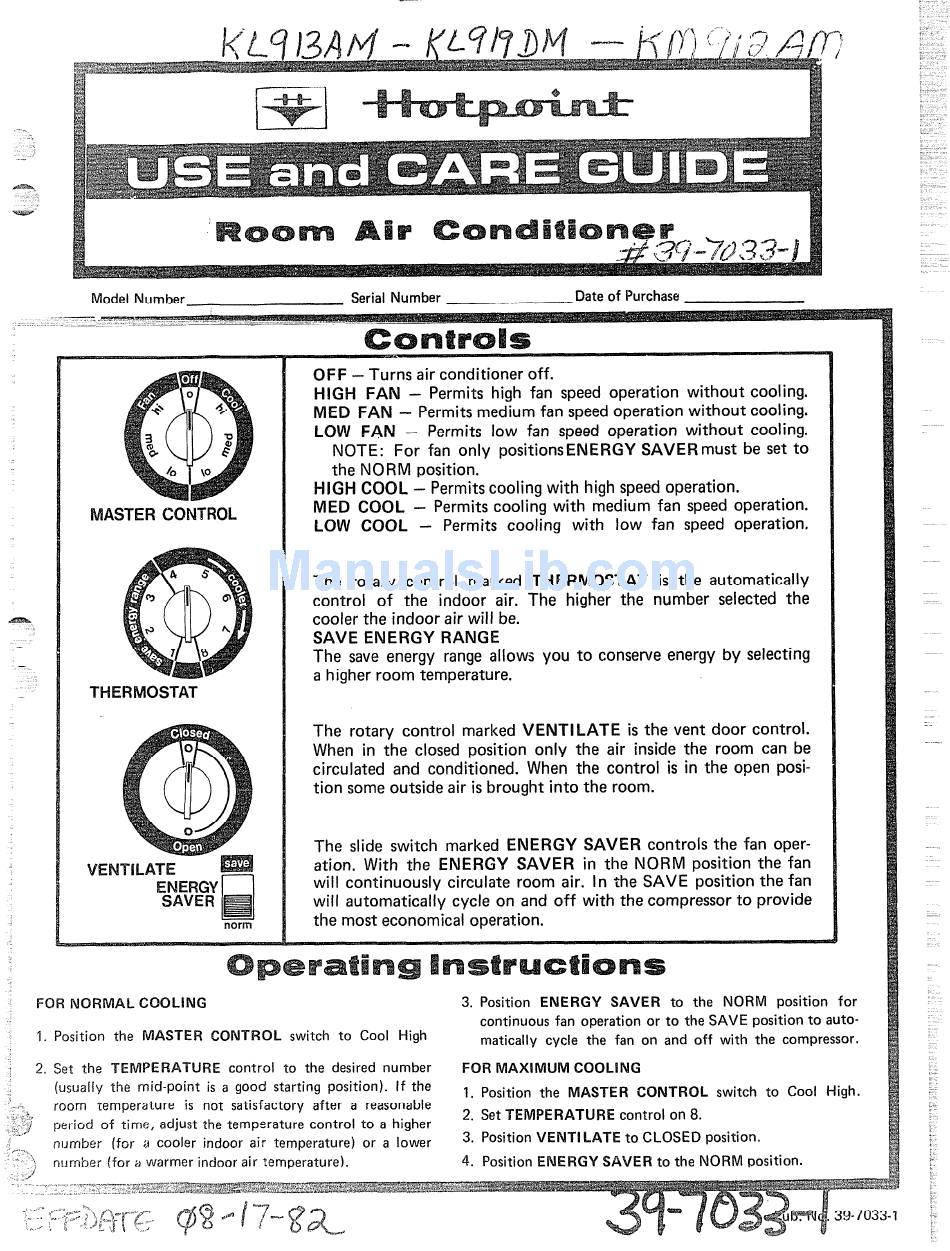

Hotpoint KL913AM Use And Care Manual

M o Number
Serial Number
Date of Purchase
MASTER CONTROL
THERMOSTAT
OFF – Turns air conditioner off.
HIGH FAN – Permits high fan speed operation without cooling.
MED FAN – Permits medium fan speedoperation without cooling.
LOW FAN – Permits low fan speed operation without cooling.
NOTE: For fan only positionsENERGY SAVER must be set to
the NORM position.
HIGH COOL – Permits cooling with high speedoperation.
MED COOL – Permits cooling with medium fan speed operation.
LOW COOL – Permits cooling with low fan speed operation.
The rotary control marked THERMOSTAT is the automatically
control of the indoor air. The higher the number selected the
cooler the indoor air will be.
SAVE ENERGY RANGE
The save energy range allows you to conserveenergy by selecting
a higher room temperature.
The rotary control marked VENT! LATE is the vent door control.
When in the closed position only the air inside the room can be
circulated and conditioned. When the control is in the open posi-
tion some outside air is brought into the room.
The slide switch marked ENERGY SAVER controls the fan oper-
ation. With the ENERGY SAVER in the NORM position the fan
will continuously circulate room air. In the SAVE position the fan
will automatically cycle on and off with the compressorto provide
the most economical operation.
FOR NORMAL COOLING 3. Position ENERGY SAVER to the NORM position
for
1.
2.
continuousfan operation or to the SAVE positionto
auto-
Position the MASTER CONTROL switch to Cool High
matically cycle the fan on and off with the compressor.
Set the
TEMPERA~UF4E
control to the desirednumber FOR MAXIMUM COOLING
(usually the mid-point is a good starting position). [f the
1, Position the MASTER CONTROL switch to Cool High.
room temperature is not satisfactory after a reasonable
2. Set TEMPERATURE control on 8.
period of tirrlf?, adjust the temperature control to a higher
m.Jrnber(for a cooler indoor air temperature) or a lower
3, PositionVENTI LATE to CLOSED position.
n{~rfi?~er {for ;i warmer indoorair temperature).
4. PositionENERGY SAVER to the NORM position.
