room essentials

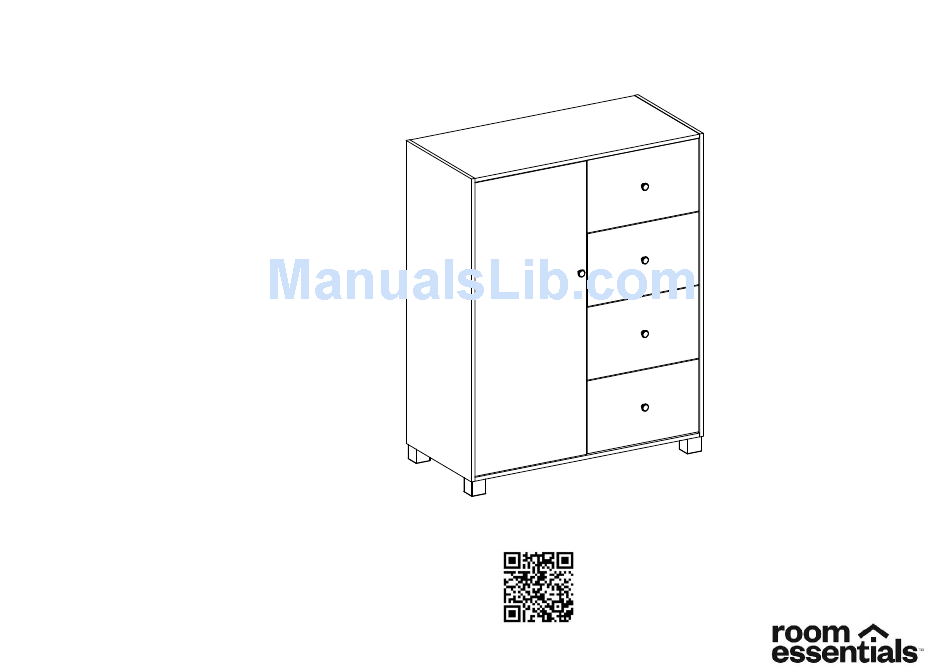

4 Drawer dresser w/ door
DPCI # 249-05-0418 (Black Woodgrain)
DPCI # 249-05-0419 (Virginia Walnut)
>> assembly instructions
92380
Video instruction as Help to assembly,
scan the QR code and see the video.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 249-05-0418 and is the answer not in the manual?

Questions and answers

Summary of Contents for Room essentials 249-05-0418

  • Page 1 4 Drawer dresser w/ door DPCI # 249-05-0418 (Black Woodgrain) DPCI # 249-05-0419 (Virginia Walnut) >> assembly instructions Video instruction as Help to assembly, 92380 scan the QR code and see the video.
  • Page 2 FREE! Do not go back to your store! wE will hElp you! Missing or Damage parts? have Questions about Assembly? The store where you made this purchase does not stock parts for this item. If you needs parts (damaged or missing) or have questions about assembly, please call our toll free support line.
  • Page 3: Before You Begin

    Check for damaged or missing parts. Please call 1-855-MYTGTHOME (855-698-4846) for parts and service. Please reference DPCI # 249-05-0418 (Black Woodgrain) DPCI # 249-05-0419 (Virginia Walnut) Use the carton as a worksurface to prevent product damage during assembly.
  • Page 4 table of contents customer service information introduction parts list hardware 6 - 7 how to use the cam lock system assembly 9 - 32 adjustment of hinge specification sheet information sheet QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
  • Page 5 ITEM DESCRIPTION QUANTITY 00590 right drawer side 00591 left drawer side 03087 drawer back 06294 drawer bottom 09732 back panel 09732 drawer front left end panel divider panel right end panel bottom panel 09732 top panel shelf door left 03087 00591 06294 00590...
  • Page 6: Hardware

    hardware 23006 11042 20203 20228 23010 25215 25233 shelf pin dowel pin drawer fastener large head nails short flat head screw flat head screw nails 26234 25610 25502 26040 26228 31570 connector bolt long feet screw drawer screw short screw handle screw cam bolt 96203...
  • Page 7 hardware 72501 52114 65806 41649 94072 door hinge rectangular foot 88060 94073 97642 hex wrench Warning label wall attachment strip drawer glide garment rod stabilizer...
  • Page 8: How To Use The Cam Lock System

    how to use the cam lock system CORRECT CORRECT 180°...
  • Page 9: Assembly

    step 1 case assembly - insert cams and dowel pins CORRECT CORRECT 20203 31683 Arrow dowel pin Place the cams into the large holes on G, L and I, so that the arrow is facing the edge of the panel. Insert dowel pins into the small outer holes on the ends of the G,L and I.
  • Page 10 step 2 case assembly - insert hinges 50505 hinge Divide hinge by loosening the screw and split hinge part from each other. Place hinge into the correct holes on the left end panel. Tighten screws but do not over tighten.
  • Page 11 step 3 case assembly - insert cam bolt 32205 31570 short feet screw cam bolt Screw cam bolts into the panels F, L and H, cam bolts must be screwed down. Tab short feet screw into panel I with a hammer.
  • Page 12 step 4 case assembly - attach drawer glides flat head screw drawer glide screw drawer glide screw 25233 26040 41649 flat head drawer glide screw screw drawer glide Place drawer glider screws and flat head screw through the correct holes on the drawer slide into the holes on the panels G + H. Tighten screws but do not over tighten.
  • Page 13 step 5 case assembly - insert garment rod holder 10601 25215 short flat head screw garment rod holder Screw the garment rod holder into the panels using short flat head screws.
  • Page 14 step 6 case assembly - attach top panel and bottom panel to divider panel 97642 25610 connector bolt hex wrench Place the cam bolts from top panel L into the holes on the divider panel G. Tighten cams. Use the hex wrench to install connector bolts into I and divivider panel G.
  • Page 15 step 7 case assembly - attach left and right panel Place the cam bolts from left and right end panels F and H into the holes on the top and bottom panels L and I. Tighten cams.
  • Page 16 step 8 case assembly - attach L-plates 25215 91405 short flat head screw L-plate Use short flat head screw to attach L-plate to the right end panel H and in alignment with top panel L, place in center. Use short flat head screw to attach L-plate to the left end panel F and in alignment with top panel L, place in center.
  • Page 17 step 9 case assembly - attach rectangular feet 26234 65806 long feet screw rectangular foot Place rectangular feet 65806 into the holes on the bottom panels I. Place the screws 26234 through holes and gently screw them onto the bottom panel. Make sure to fasten the screws together with short feet screw 32205, but be careful not to over tighten.
  • Page 18: Back Panel

    step 10 case assembly - attach back panels unfinished side 09732 09732 unfinished side 09732 09732 23010 23006 09732 09732 large head nails nails Tab 2 of the large head nails 23010 into the centre of back edge of divider panel G. ONLY HALF WAY IN. Slide the back panels 09732 up (unfinished side up) against the nails and hold smooth with bottom panel I.
  • Page 19 step 11 case assembly - mount safety wall attachment strips IMPORTANT. The screw supplied together with the wall attachment strip is to be used only for fixing the wall attachment strip to the furniture. In addition to this, you vill need to choose a screw or fitting which is suitable for securing the bracket to the kind of walls you have.
  • Page 20 step 12 case assembly - attach stabilizer 09732 09732 26040 94072 short screw stabilizer Place the stabilizer 94702 in between divider panel G and right end panel H. Place the short screw 26040 through the holes of 94702 and gently screw them into the panels G and H. Tighten screws but do not over tighten.
  • Page 21 step 13 case assembly - install shelves and cover 10901 11042 09732 09732 shelf pin cover Fix cover to the top panel L to cover the cam holes. Insert shelf pin 11042 in right end panel F and divider panel G. Place shelves T into the case assembly as shown.
  • Page 22 step14 case assembly - install garment rod 72501 09732 09732 IMPORTANT. When using garment rod - Place Shelves T in bottom. garment rod Attach garment rod 72501 into garment rod holder assembled in between left end panel F and divider panel G.
  • Page 23 step 15 case assembly - install door hinge 52114 door hinge Insert door hinge into the holes on the door W. Tighten screws but do not over tighten.
  • Page 24 step 16 case assembly - attach door 09732 09732 Align the holes in hinge and door hinge. Move the door W to perfectly assemble with left end panel F. Tighten screws but do not over tighten. Ajustment of door, see page 33.
  • Page 25 step 17 case assembly - attach handle to door and stop to divider panel 09732 09732 81009 26228 96203 handle screw handle stopper Use the handle screw 26228 to attach the handle 81009 to the door W. Attach stops 96203 to the divider panel G.
  • Page 26 step 18 drawer assembly - insert cams and cam bolts CORRECT CORRECT 00590 31683 31570 00591 cam bolt Insert cams 31683 in the large holes on the face of each drawer side. Make sure the arrow on the cam is pointed toward the edge of the drawer side as shown in the detail at left. Screw 2 cam bolts 31570 into each drawer front E.
  • Page 27 step 19 drawer assembly - attach drawer sides to drawer back 03087 00590 20228 00591 drawer fastener Align holes at back of the drawer sides, 00590 and 00591 with the holes on the drawer back 03087. Make sure the groove on the drawer back is facing the inside of the drawer.
  • Page 28 step 20 drawer assembly - attach drawer bottom 03087 00590 00591 06294 finished side up Press the drawer bottom 06294 (with the finished side up) into the grooves on drawer sides 00590, 00591and the back 03087. Paper overlays the groove, but it has a slit so drawer bottom inserts well. Repeat these steps for all 4 drawers.
  • Page 29 step 21 drawer assembly - attach drawer front 03087 00590 06294 00591 Place the cam bolts that are attached to the drawer front E into the holes on the drawer sides. Make sure the drawer bottom is completely inserted into the grooves in the drawer front and back. Tighten cams.
  • Page 30 step 22 drawer assembly - attach handle to drawer front 81009 26228 00591 06294 00590 handle screw handle 03087 Use the handle screw 26228 to attach the handle 81009 to the drawer front E. Repeat these steps for all 4 drawers.
  • Page 31 step 23 drawer assembly - attach drawer glides 25502 41649 06294 00591 03087 drawer screw drawer glide Place drawer glide on bottom of drawer side and slide forward against drawer front E. Insert drawer glide screws through the hole in the drawer glide and into the drawer side plates. Tighten screws but do not over tighten.
  • Page 32 step 24 case assembly - install drawers into case assembly and warning label on top panel 88060 Warning label Angle the drawer assembly so that the wheels are inserted into the drawer glides on divider panel G and right end panel H. Slide drawer assembly over the drawer glides on divider panel G and right end panel H.
  • Page 33 08799998 -50...
  • Page 34 specification sheet 3 YEAR WARRANTY: All Tvilum furniture is warranted to the original purchaser at the time of purchase and for 3 years after the purchase date. We warrant to you, the original purchaser, that our furniture and all furniture parts and components are free of defects in material or workmanship.
  • Page 35 Read more at www.tvilum.com THIS�PRODUCT NOUS�VOUS�GA que ce produit: will ensure you A product tested for harmful substances A été évalué pour toute substance da Helps to maintain healthy indoor climate pour garder un environnement sain à de votre maison Wood from sustainable forestry Est fabriqué...
