PREAMP
Model CM-7777 or CM-7778
4-WAY SPLITTER
MODEL CM-3214
Features and Technical Data for
the Titan 2 Series
• Number of Inputs .... 1
• Input/Downlead ..... 75 Ohms
• Connectors ............. F
• Switchable FM trap
• Gain ......................... VHF 30 dB / UHF 30 dB (CM7777)
ATTIC
BEDROOM
TV
DEN OR
KITCHEN FM STEREO
TV
VHF 16 dB / UHF 16 dB (CM7778)
ANTENNA
POWER INSERTER
MODEL PCT-MPI-1G
BEDROOM
TV
LIVING ROOM
TV

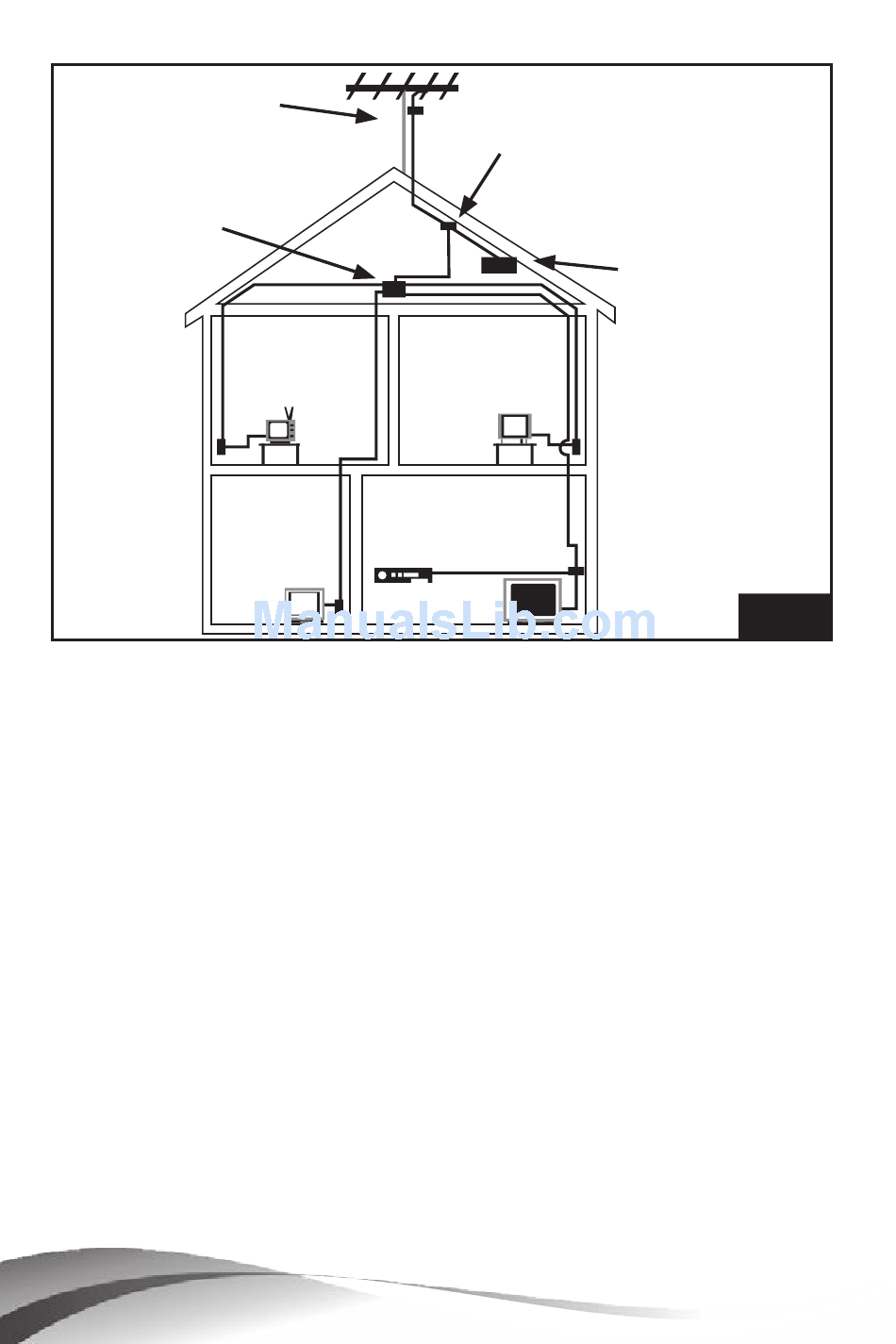

Typical Four Room
Installation
POWER SUPPLY
MODEL APA1260315U
"O" DB WALL OUTLET
(TYPICAL)
FM SPLITTER
Fig 3
TITA N 2
™
