3. TECHNICAL BRIEF
PRE_CHARGE_R
4.2V~3.92V

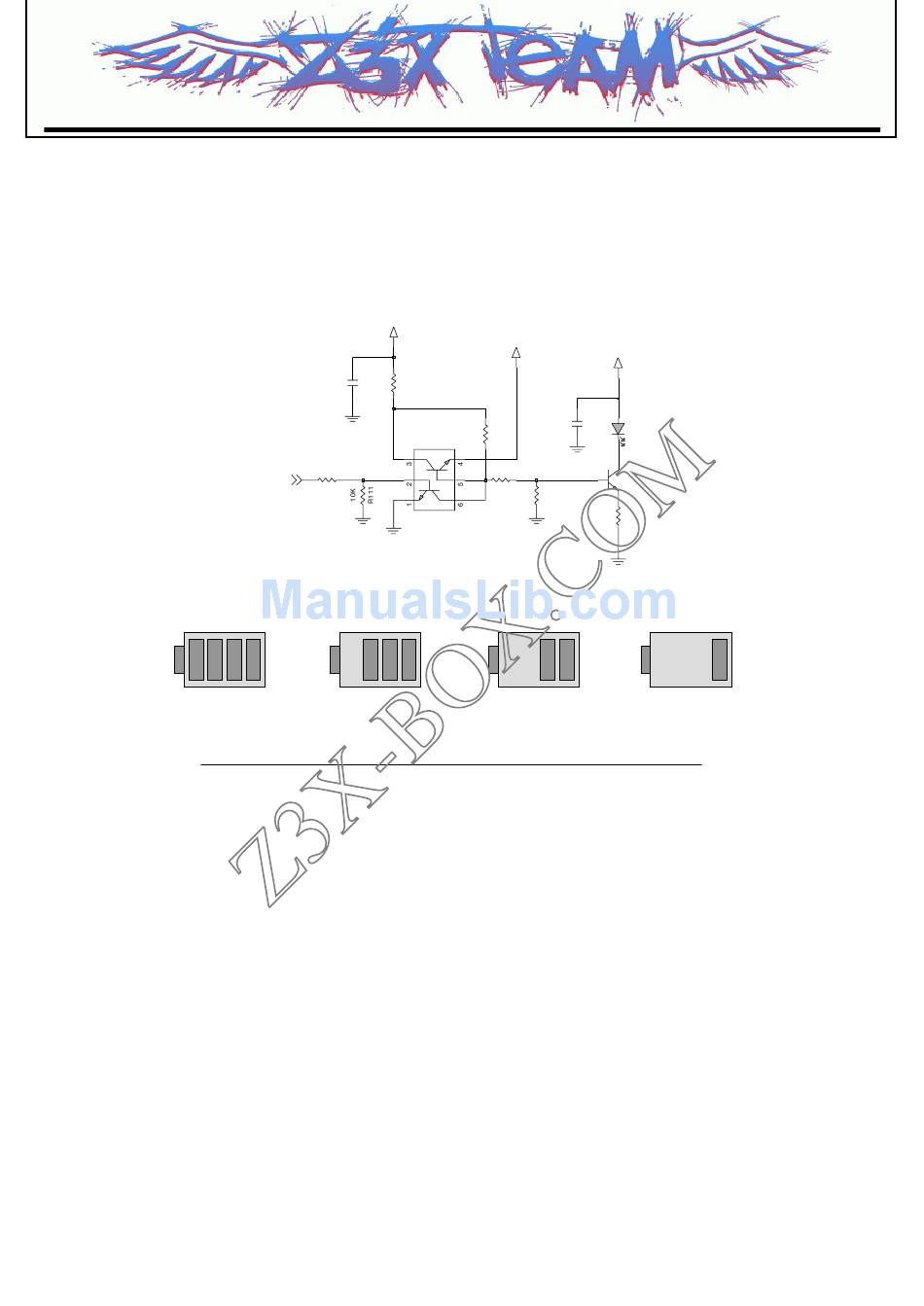

Figure 3-6 Circuit For Battery Charging and Battery Block Indication

3.3.4 Display and Interface

LCD Controlled by L_MAIN_LCD_CS, L_SUB_LCD_CS, LCD_RESET, LCD_RS, LCD_WR, L_RD,
LCD_ID, L_DATA[00:15] ports, VSYNC_OUT.
• L_MAIN_LCD_CS : MAIN LCD driver chip enable. MAIN LCD driver IC has own CS pin
• L_SUB_LCD_CS : SUB LCD driver chip enable. SUB LCD driver IC has own CS pin
• LCD_RST : This pin resets LCD module. This signal comes from AD6720 directly.
• LLCD_RS: This pin determines whether the data to LCD module are display data or control data.
• L_WR : Write control Signal
• L_RD : Read control Signal. But this pin used only for debugging.
• L_DATA[00:15] : Parallel data lines.
• LCD_ID: LCD type selection signals
• VSYNC_OUT : Vsync Interface
• For using 65K color, data buses should be 16 bits.
