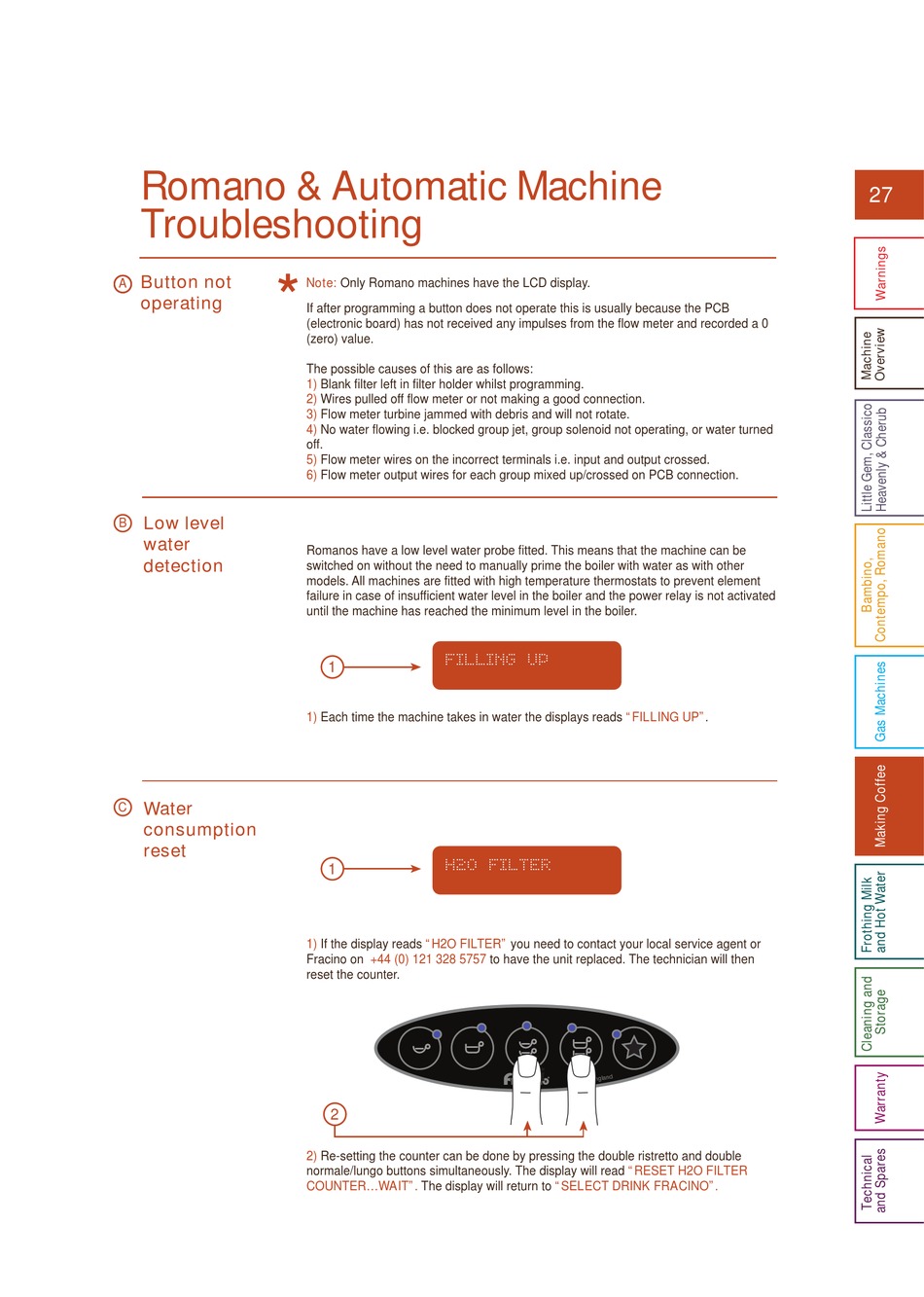

Romano & Automatic Machine
Troubleshooting
Button not
A
A
operating
Low level
B
water
detection
Water
C
consumption
reset
Note:
Only Romano machines have the LCD display.
If after programming a button does not operate this is usually because the PCB
(electronic board) has not received any impulses from the flow meter and recorded a 0
(zero) value.
The possible causes of this are as follows:
1) Blank filter left in filter holder whilst programming.
2) Wires pulled off flow meter or not making a good connection.
3) Flow meter turbine jammed with debris and will not rotate.
4) No water flowing i.e. blocked group jet, group solenoid not operating, or water turned
off.
5) Flow meter wires on the incorrect terminals i.e. input and output crossed.
6) Flow meter output wires for each group mixed up/crossed on PCB connection.
Romanos have a low level water probe fitted. This means that the machine can be
switched on without the need to manually prime the boiler with water as with other
models. All machines are fitted with high temperature thermostats to prevent element
failure in case of insufficient water level in the boiler and the power relay is not activated
until the machine has reached the minimum level in the boiler.
Filling Up
1
1)
Each time the machine takes in water the displays reads
H2O Filter
1
1) If the display reads "H2O FILTER"
Fracino on +44 (0) 121 328 5757
reset the counter.
2
2)
Re-setting the counter can be done by pressing the double ristretto and double
normale/lungo buttons simultaneously. The display will read
COUNTER...WAIT".
The display will return to
"FILLING
you need to contact your local service agent or
to have the unit replaced. The technician will then
R
"RESET H2O FILTER
"SELECT DRINK FRACINO".
UP".
