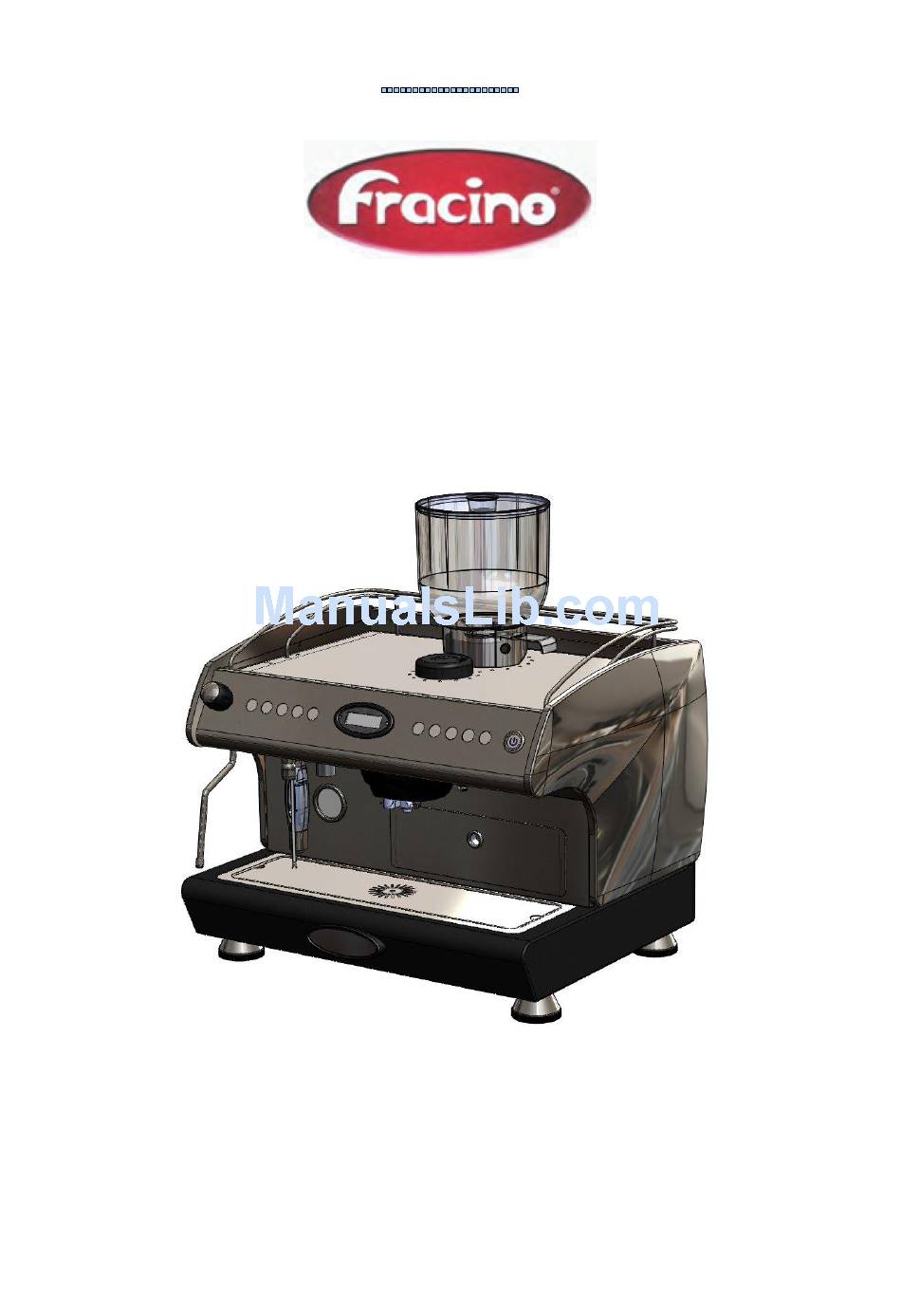

Page 1: User Manual
Cybercino Users Manual – Draft Edition – 7th January 2009 Cybercino User Manual... - Page 2 Cybercino Users Manual – Draft Edition – 7th January 2009 Cybercino Features Diagram...
- Page 3 Cybercino Users Manual – Draft Edition – 7th January 2009 Features Description Mains on/off switch Top Tray Beans Hopper Decaf Chute Display Control Buttons Steam Knob Hot Water Nozzle Steam Pipe Sight Gauge Milk Supply Pinch Valve Pressure Gauge Milk Dispense Beak...
- Page 4 Operations Power On/Off Use button to power machine on & off Decaffeinated Press button once to open flap of decaf chute. Cybercino will make coffee automatically when flap is closed. Coffee Espresso Press button once for a single espresso, twice for two espressos.
-
Page 5: Section 01 - Start Up
To configure the machine, follow the procedure as outlined in Section 03 – Configuration Mode. NOTES: 1. Ensure that the Cybercino is installed and maintained by a Fracino Ltd approved engineer. For more information contact Fracino Ltd on 0121 328 7575. - Page 6 Cybercino Users Manual – Draft Edition – 7th January 2009 2. Ensure that the Cybercino is installed on a counter top that is able to accommodate the machine’s size and weight. Ensure that there is suitable space surrounding the machine for a counter-top refrigerator.
-
Page 7: Section 02 - General Use
Drink Selection A variety of drinks can be made using the Cybercino (these are listed below). These are achieved by simply pressing a series of buttons. The drinks produced will therefore be consistent. - Page 8 Cybercino Users Manual – Draft Edition – 7th January 2009 1 x Decaf Regular Latte [02] [05] Open decaf flap after pressing buttons, insert one pre-ground decaf shot of coffee, close flap, place one regular latte glass on drip tray.
-
Page 9: Section 03 - Configuration Mode
Press button 01 to power the machine off. b. Press and hold button 07 and then simultaneously press button 01. c. As the machine starts up it will enter into configuration mode, with “CYBERCINO CONFIGURATION” displayed on the LCD d. - Page 10 Cybercino Users Manual – Draft Edition – 7th January 2009 [11] to increase grind time [10] to reduce grind time [02] to test [07] exit grinder configuration mode 2. To configure an espresso a. In general configuration mode, press button 03. This will enter the espresso configuration mode.
- Page 11 Cybercino Users Manual – Draft Edition – 7th January 2009 d. The next stage is the water volume. To start the brew press button 04 and allow the counter to cycle up. e. When the correct volume has been reached, press button 04 again.
- Page 12 Cybercino Users Manual – Draft Edition – 7th January 2009 [05] step 2, water time start [05] step 2, water time stop [05] step 3, milk time start [05] step 3, milk time stop [02] test latte [07] exit latte configuration 5.
- Page 13 Cybercino Users Manual – Draft Edition – 7th January 2009 [07] exit cappuccino configuration 6. To configure a large black coffee a. In general configuration mode, press button 08, followed by button 04. This will enter the large black coffee configuration mode.
- Page 14 Cybercino Users Manual – Draft Edition – 7th January 2009 e. When the correct volume has been reached, press button 05 again. f. The next stage is the milk volume. To start the milk flow press button 05 and allow the counter to cycle up.
- Page 15 Cybercino Users Manual – Draft Edition – 7th January 2009 h. The settings will be stored. To confirm that this is acceptable, press button 02 to produce a test large cappuccino. i. Press button 07 to exit large cappuccino configuration mode.
- Page 16 Cybercino Users Manual – Draft Edition – 7th January 2009 a. In general configuration mode, press button 10. This will enter the steamed milk configuration mode. b. Press button 10 to start the milk flow. The counter will begin to cycle up.
-
Page 17: Section 04 - Cleaning
Cybercino Users Manual – Draft Edition – 7th January 2009 SECTION 04 - Cleaning It is recommended that basic cleaning is done on a daily basis. Cleaning the coffee machine o Wipe the outer casing of the machine with a soft damp cloth (DO NOT USE A SCOURING... - Page 18 Cybercino Users Manual – Draft Edition – 7th January 2009 Hopper o Ensure that the bean hopper is kept clean (coffee dust will cause blockages and will reduce the quality of the coffees produced). Make sure nothing other than coffee goes into the hopper.
- Page 19 Cybercino Users Manual – Draft Edition – 7th January 2009 WARNING THIS MACHINE CONTAINS MOVING PARTS AND PRESENTS A RISK OF INJURY. DO NOT INSERT FINGERS INTO THE BEAN HOPPER OR THE DECAF CHUTE WITHOUT FIRST DISCONNECTING THE POWER SUPPLY.
