Specifications; Operating Instructions - JBSYSTEMS Light LED SixLight Operation Manual

ENGLISH

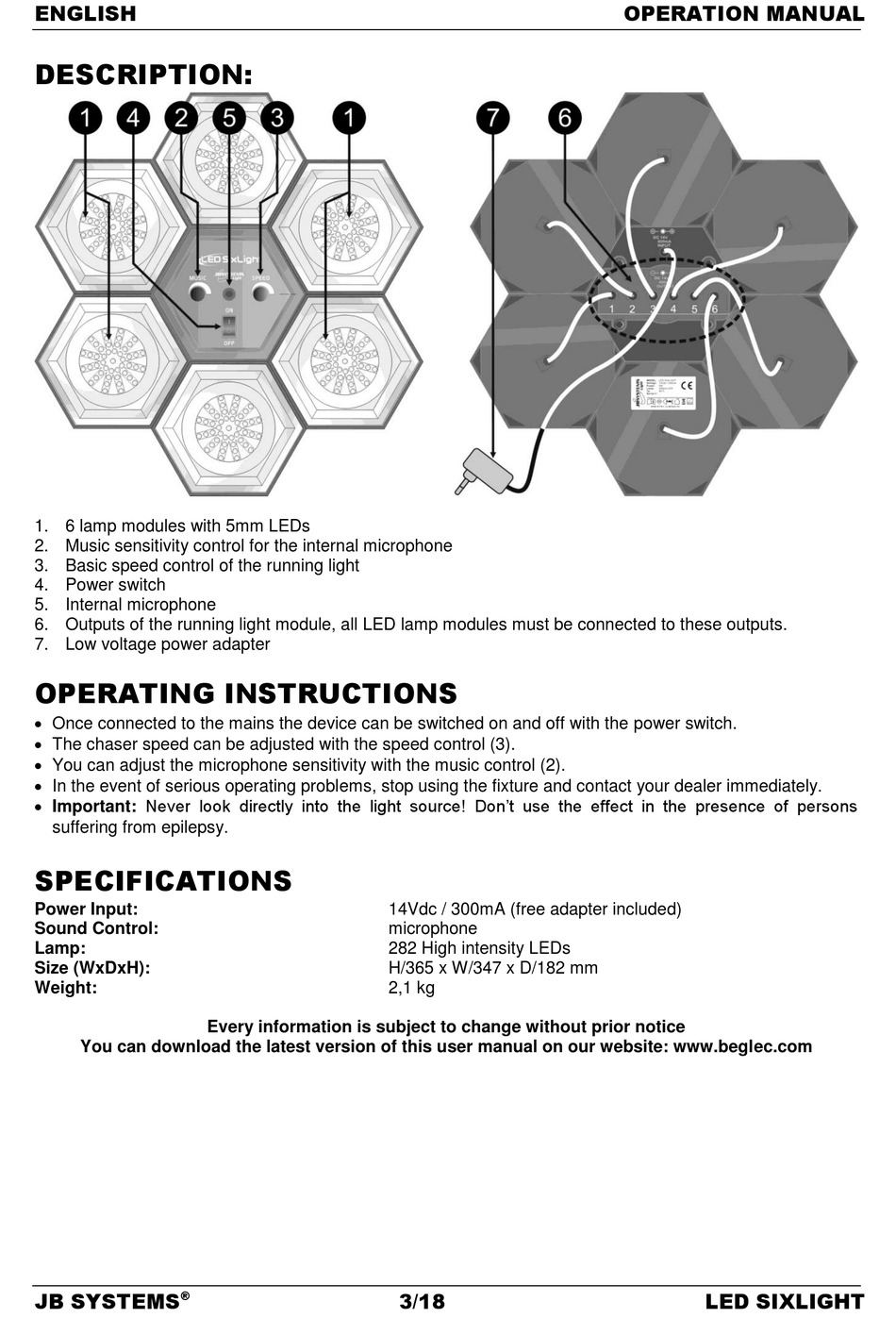

DESCRIPTION:
1. 6 lamp modules with 5mm LEDs
2. Music sensitivity control for the internal microphone
3. Basic speed control of the running light
4. Power switch
5. Internal microphone
6. Outputs of the running light module, all LED lamp modules must be connected to these outputs.
7. Low voltage power adapter

OPERATING INSTRUCTIONS

 Once connected to the mains the device can be switched on and off with the power switch.
 The chaser speed can be adjusted with the speed control (3).
 You can adjust the microphone sensitivity with the music control (2).
 In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
 Important: Never look directly into the light source! Don't use the effect in the presence of persons
suffering from epilepsy.

SPECIFICATIONS

Power Input:
Sound Control:
Lamp:
Size (WxDxH):
Weight:
You can download the latest version of this user manual on our website: www.beglec.com
JB SYSTEMS
®
Every information is subject to change without prior notice
14Vdc / 300mA (free adapter included)
microphone
282 High intensity LEDs
H/365 x W/347 x D/182 mm
2,1 kg
3/18
OPERATION MANUAL
LED SIXLIGHT
