WLX-2100 | User Manual
Delete
• Click to delete the forwarded port profile.

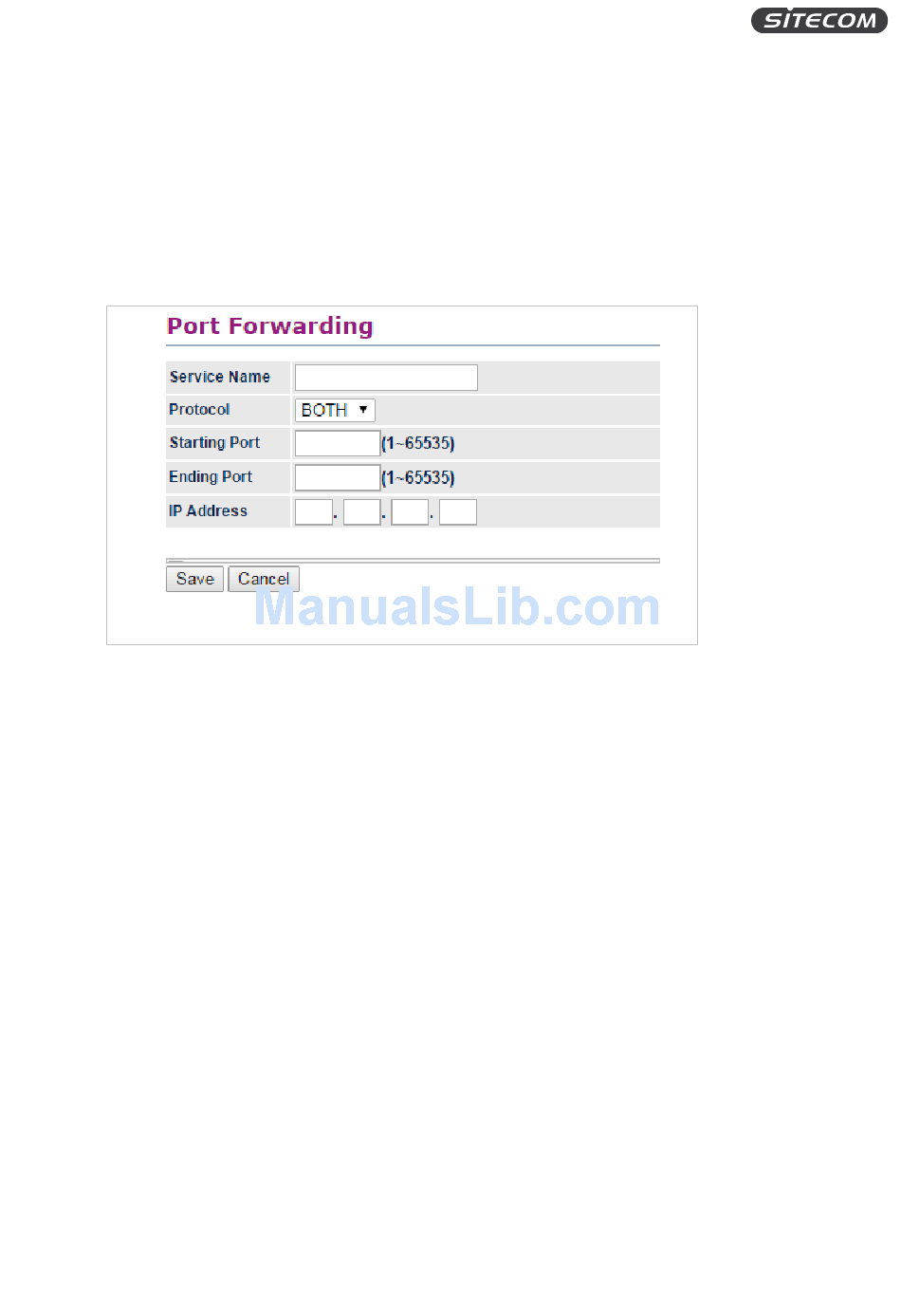

Adding port-forwarding rules
• Click Add Entry to add port forwarding rules.
• Click Accept to confirm the changes.
Service Name
• Enter a name for the port forwarding rule.
Protocol
• Select a protocol for the application: Choices are Both, TCP, and UDP.
Starting Port
• Enter a starting port number.
Ending Port
• Enter an ending port number. All ports numbers between the starting and ending ports will forward
users to the IP address specified in the IP Address field.
IP Address
• Enter the IP address of the server computer on the LAN network where users will be redirected.
Click Save to apply the changes or Cancel to return previous settings.
