PORT FORWARDING

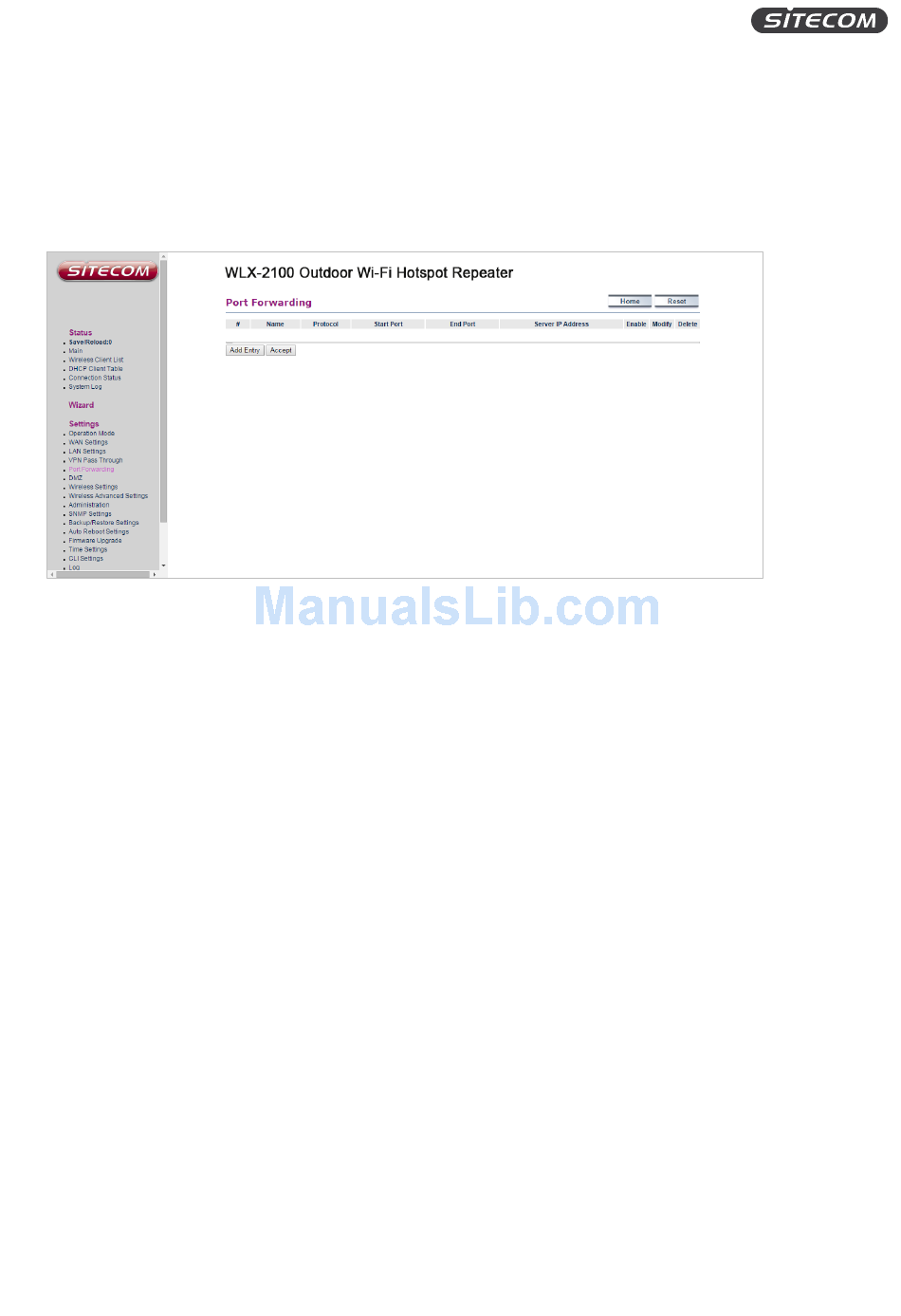

On this screen, you can configure port forwarding. Port forwarding enables multiple server applications on
a LAN to serve clients on a WAN over a single WAN IP address. The router accepts incoming client packets,
filters them based on the destination WAN, or public, port and protocol and forwards the packets to the
appropriate LAN, or local, port. Unlike the DMZ feature, port forwarding protects LAN devices behind the
firewall.
Overview of port forwarding rules
NO.
• Displays the sequence number of the forwarded port.
Name
• Displays the name of the forwarded port.
Protocol
• Displays the protocol to use for mapping from the following: TCP, UDP or Both.
Start Port
• Displays the LAN port number that WAN client packets will be forward to.
End Port
• Displays the port number that the WAN client packets are received.
Server IP
• Displays the IP address of the server for the forwarded port.
Enable
• Click to enable or disable the forwarded port profile.
Modify
• Click to modify the forwarded port profile.
34
