Intense Cycles Spider 275 User Manual page 9

1

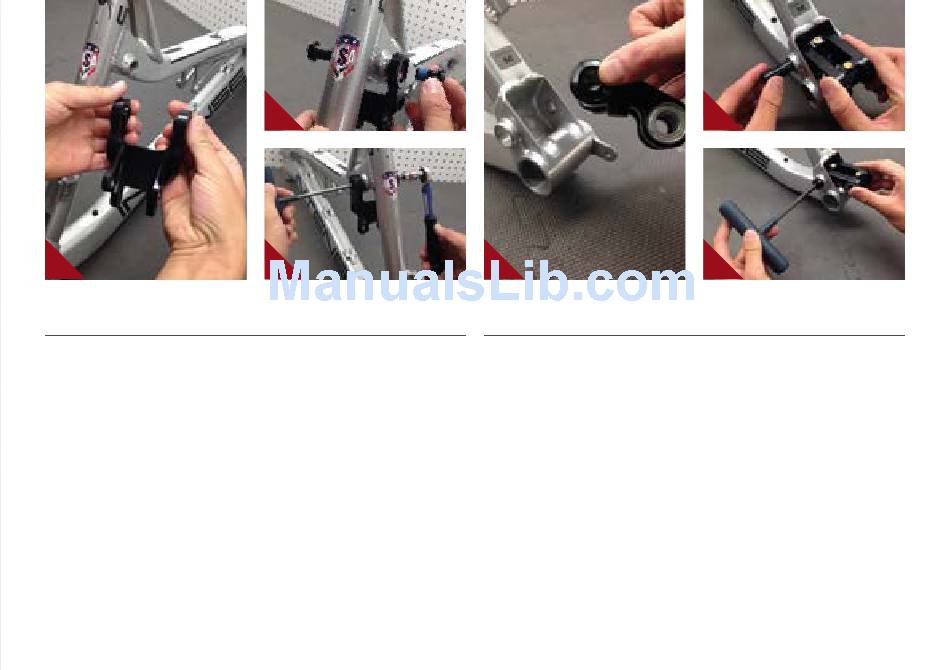

C O N N E C T I N G T O P L I N K T O F R O N T T R I A N G L E //
A
Holding top link (PART#130216) with
shock mount pointed forward; hold upper
spacer (PART#130789) against inside of
bearing race.
B
Match upper linkage to pivot point on
top tube, making sure that spacers do
not fall out (IMAGE #1).
2
3
C
Using upper pivot axle (PART
#130780), insert through non-drive side
of top link bearing and push through to
drive side bearing making sure spacers
do not fall out. Then, thread bolt into axle
from drive side using 5mm allen wrench
(IMAGE #2).
D
Holding 5mm allen wrench on non-drive
side upper axle, insert torque wrench into
bolt on drive side and tighten to 125 in/lb
(IMAGE #3).
4
C O N N E C T I N G B O X L I N K T O F R O N T T R I A N G L E //
A
Hold bearing cap (#130778) with
rounded edge facing outwards against
bearings on linkage piece (IMAGE #4).
See images and exploded view for linkage
orientation. Note that linkage will mount
to front triangle pivot point at bumper end.
I N T E N S E
5
6
B
Match link to front triangle pivot point
and insert main pivot expander bolt with
greased threads (#130791) through non-
drive side of box link, holding bearing
caps in place (IMAGE #5). Use 8mm allen
to install bolt (IMAGE #6).
C Y C L E S / / 9
