Features
Large stainless steel tank
Drainage valve
Industrial grade
ultrasonic transducer
Ceramic heater
Colour LED display
Cooling fan
Overheat Protector
Moisture-proofed PCB
Degas feature
Detachable power cord
Professional grade plastics
Tank Capacity: 3000 ml
Tank Dimension: 25.0cm X 17.4cm x 7.8cm
Easy to empty the tank, without having to move the unit.
Provides uniform distribution of ultrasonic waves,
enhancing cleaning
Mounted underneath the bottom of the tank for safe
and even heating; more durability construction
Clear display with 1 to 30-minute full range timer, temperature
settings and operation status
Ensures prolonged operation. Improves heat dissipation and
beneficial for continuous operations
Built in overheating safety protection
Offers dependable use in multiple working enviroments
Removes air bubbles and increases cleaning power
Conveinient for refilling, moving and storage
Toughened resins, ideal for bench & laboratory users
User Manual
15/01/098-V1
Advertisement
Table of Contents
Related Manuals for James ULTRA 8060
Summary of Contents for James ULTRA 8060
- Page 1 15/01/098-V1 User Manual Features Large stainless steel tank Tank Capacity: 3000 ml Tank Dimension: 25.0cm X 17.4cm x 7.8cm Drainage valve Easy to empty the tank, without having to move the unit. Industrial grade Provides uniform distribution of ultrasonic waves, ultrasonic transducer enhancing cleaning Ceramic heater...
-
Page 2: Table Of Contents
INTRODUCTION Use tap water. Special solutions are not necessary in most cases. Principles of ultrasonic cleaning: Millions of tiny air bubbles are generated within liquid by high frequency vibration. The air bubbles burst when in contact with object and dislodge the debris to achieve the cleaning effect. •... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Keep it away from children! This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. -
Page 4: Items Not Suitable For Ultrasonic Cleaning
SAFETY PRECAUTIONS Other observations: • Do not operate the product without filling the tank with water. Running dry will damage the unit. • Do not plug in the power cord before adding water to the tank. To avoid overspill, do not fill the tank above the ‘Max’... -
Page 5: Applications
APPLICATIONS 1. Metal Processing Manufacturers and Jewellery Makers: - With warm 45°-50° tap water and SeaClean2, ultrasonic cleaning can remove grease or abrasive powder from work-in-process metal items and keep them clean. - Jewellery made with investment casting often has wax layer in addition to debris. -
Page 6: Applications 6
APPLICATIONS 7. Watch and Precision Metal Part Manufacturers: Machined watch components and other precision metal parts often have coolant and debris left on the surfaces. Ultrasonic cleaning can remove the debris and keep the parts clean. 8. Shooting Clubs To reuse brass cartridges: Adding special solution such as SeaClean2 solution can make fired brass casings useable and like new again. -
Page 7: Applications 6
APPLICATIONS 12. Homes: Silverware, silver, copper or brass decorations: It’s difficult to clean debris hidden in the patterns with regular methods. Ultrasonic cleaning with 50ml (3 tablespoons) of detergent or SeaClean2 will clean the debris quickly. For silver, copper or brass items with oxidation which has darkened the items, adding small amount of SeaClean2 solution can help to remove oxidation and using ultrasonic cleaning will restore the shine. -
Page 8: Sample Applications
SAMPLE APPLICATIONS JEWELLERY PERSONAL ITEMS MEDICAL / DENTAL Eyeglasses, sunglasses, Necklaces, rings, Surgical instruments, shaver heads, watch bands, earrings, bracelets, etc. pliers, handpieces, etc. diver’s watches, dentures, etc. PRECISION PARTS SILVER, COPPER OR BRASS BABY ITEMS Bearings, gears, valves, Silverware, silver, copper or Toys, baby items, tools, fuel injectors, etc. -

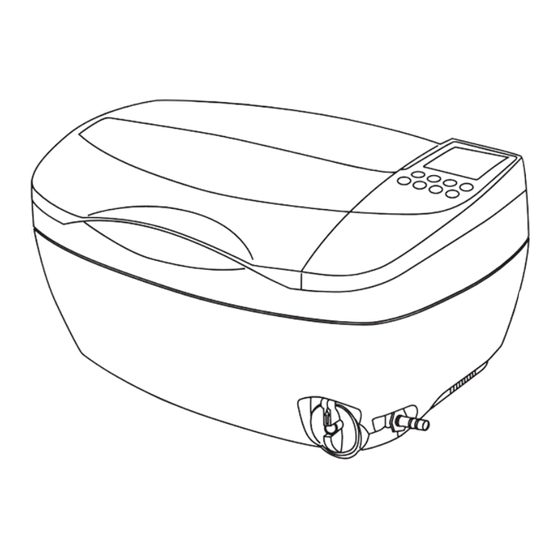

Page 9: Product Detail And Accessories
PRODUCT DETAIL A. View Window F. Drainage Pipe Fitting B. Lid G. Vent C. Stainless Steel Tank H. Power Switch D. Housing I. Power Socket E. Drainage Tap J. Control Panel Plastic Basket Hose Power Cord... -
Page 10: Control Panel And Operations
CONTROL PANEL AND OPERATIONS – Digital LED Working Time Display. It counts down after work is started. – Water temperature indicator Solid green light indicates that the water temperature is 0-30% of the set temperature. Solid orange light indicates that the water temperature is 30-60% of the set temperature. -
Page 11: Common Cleaning Methods
13. Timer Set Button. Press Time button, LED display shows Each pressing increases the time by 5 minutes. 14. On/Off Button. After powering on, the LED displays which is the default time as shown in picture, and the unit is ready with the normal working status. Press On/Off button once and the cleaning starts. - Page 12 INDIRECT CLEANING Put the items in a separate container. Use ultrasonic waves to penetrate the container to do the cleaning. Suitable Locations: medical instrument sterilisation rooms, precision electrical parts manufacturers, watch and precision parts manufacturers, mobile phone and electronics service shops, large printing shops.
- Page 13 Warm water and dishwashing liquid can soften grease and improve cleaning efficiency. 5. Press Time button to set the timer to 15 minutes. Press On/Off button to start cleaning. Grease will dissipate and appear to be like black smoke in the water. 6.
-
Page 14: Operation Guidelines
OPERATING GUIDELINES Remove the lid. Put items in the basket then put them in the cleaning tank. Add water to a level between “MIN” and “MAX” and above the area to be cleaned. If the unit is turned on without water, ultrasonic energy will not be absorbed. - Page 15 Select one of the 4 cleaning methods recommended earlier. a. When the heater is needed, press TEMP button to select one of the 5 preset temperatures. Press Heater button, flashes, indicating the heater is turned on. When the water reaches the set temperature, dims, indicating the heater is turned off.
-
Page 16: Care And Maintenance
CARE AND MAINTENANCE Do not turn on the unit without water in the tank. Even though the unit is designed with multiple protections, if it is turned on for over 30 seconds without water in the tank, it may damage the unit or severely reduce the life of the unit. -
Page 17: Level Clean Plan
The coating on some spectacle lenses can exhibit hairline cracking during ultrasonic cleaning. If in doubt check with your optician or with James Products Limited before cleaning such items. Toiletry items Electric toothbrush heads, electric shaver heads, razor blades, combs, toothbrushes, dentures etc. -
Page 18: Specifications
SPECIFICATIONS Description Professional Ultrasonic Cleaner Model ULTRA 8060 Tank Capacity Max. Fluid 2500 ml 3000 ml Min. Fluid 1500 ml Tank Size 25.0 x 17.4 x 7.8 cm Power Supply 150 W (AC 220~240V 50/60Hz) Digital Timer Settings 1 to 30-minute full range timer... - Page 19 *Repair or replacement is at the discretion of the manufacturer. www.jamesproducts.co.uk Registered in England No. 5250754 Registered Office: James Products Ltd, Unit 1, Church Close Business Park, Todber, Sturminster Newton, Dorset DT10 1JH, England...
