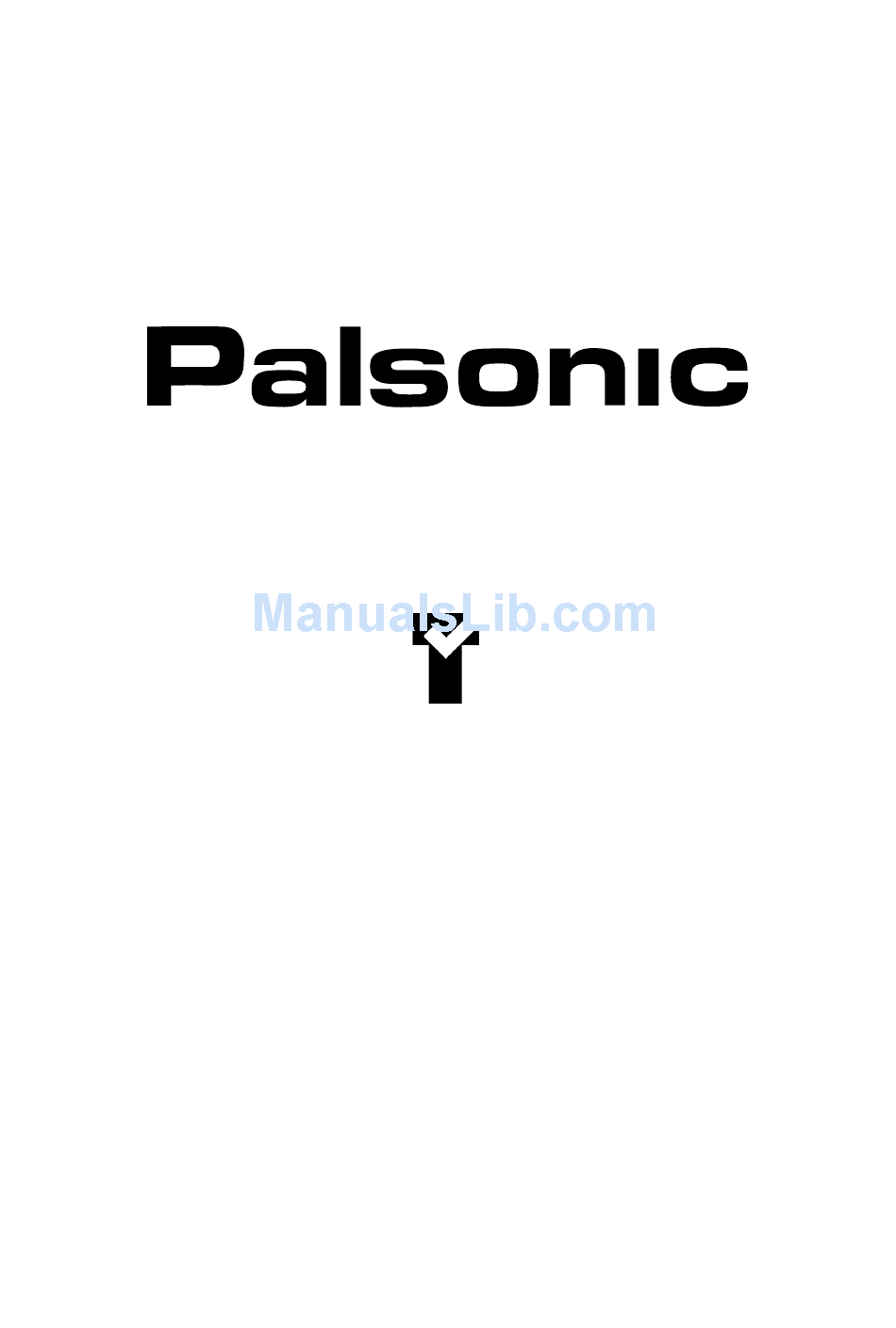

OWNER'S MANUAL
51CM CORDLESS REMOTE LCD TV/MONITOR
MODEL: TFTV-510
Type Tested
Electrical
Safety
AS/NZ 3250
Standards Australia
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFTV-510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Palsonic TFTV-510

Summary of Contents for Palsonic TFTV-510

  • Page 1 OWNER'S MANUAL 51CM CORDLESS REMOTE LCD TV/MONITOR MODEL: TFTV-510 Type Tested Electrical Safety AS/NZ 3250 Standards Australia PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE...

  • Page 2: Table Of Contents

    Congratulations on your purchase of this Palsonic LCD TV/MONITOR. We recommend that your thoroughly read this manual before use to fully enjoy the many functions and excellent effects of this LCD TV/MONITOR. Retain this manual in an easily accessible location for future reference.

  • Page 3: Features

    Features Features TV/Monitor High brightness/High contrast LCD Resolution: 640 x 480 @ 60Hz Brightness: 450 cd/m Contrast Ratio: 350:1 Multi digital processing & Picture improvement circuit English/Chinese on-screen menu display Sleep Timer Backlight Adjustment Channel Edit Low power consumption/Low voltage PC audio input VGA input AV input...

  • Page 4: Cautions For Safety

    When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. Contact a qualified service department in your local area. Do not expose this unit in the rain or spatter by liquid, Do not use this product near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
  • Page 5 Cautions for safety Cautions for safety Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 1. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 6 This TV set can operate on a power of ~240V, 50Hz. You must not use any other type of power supply. Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock. High Voltage exists in this TV set.

  • Page 7: Identification Of Controls

    Identification of controls Front/Back Front 1. To input signal select 2. To access menu 3. CH+/-: to select a higher/lower numbered channel or cycle through the menus. 4. VOL+/-: press to raise/lower the volume or adjust the selected item. 5. Power on/standby 6.

  • Page 8: Back

    Back AUDIO IN PHONE SPEAK OUT TUNER POWER IN Antenna input AC Power input S-VIDEO input Earphone jack VGA input PC audio line in Speaker output Video/audio input...

  • Page 9: Remote Control

    Remote control Remote control Power on/standby Channel select Press the button to switch the set among TV/AC/S-VIDEO/PC Press to adjust picture (including brightness, contrast, saturation and sharpness). Volume up/down selector. In menu operation adjust the selected item or access the sun-menu. Setting sleep timer Muting Sound In PC mode, auto correct picture...

  • Page 10: Battery Installation

    Battery Installation Please install the batteries before using the remote control. Open the battery cover. Effective remote range Install two "AA" batteries matching the +/- polarities of the battery to the +/- marks. Notes: 1. When the remote control will not be used for a long period of time or when the batteries are worn out, remove the batteries.

  • Page 11: Installation

    Installation Antenna connection/Power connection/Elevation adjustment Antenna connection Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area. Notes: Turn off the power firstly when you connect an outdoor antenna to the antenna input terminal.

  • Page 12: Power Connection

    Power Connection Notes: 1. This TV can only be operated on a power of AC 240V 50 Hz. 2. Please remove the power plug from the wall outlet when the TV will not be used for a long period of time. Elevation adjustment You can adjust the angle of the LCD TV as follows.

  • Page 13: Connecting Video/Audio Equipment

    Installation Connecting video/audio equipment Connecting video/audio equipment Composite VIDEO Signal Connection (RCA) Connect the composite signal terminal on the TV to the output of AV equipment through composite cable as illustrated. If you select the video signal, please set the input signal source to AV mode (please refer to page 13).
  • Page 14 1. Carefully check the terminals for position and type before making any connections. 2. Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their terminals. 3. When connecting an external device, turn off the power of the main unit first to prevent any possible damage.

  • Page 15: Basic Operations

    Basic operations Turning On/Turning Off/Selecting input signal/Menu introduction SOURCE VOL- POWER VOL+ MENU SOURCE VOL- VOL+ MENU Turning On Insert the power plug to wall outlet, then the red indicator lights up and the unit is in STANDBY mode. Press the POWER button on the unit's control panel or the button on the remote control to turn on (the indicator turns to yellow).

  • Page 16: Menu Introduction

    Menu introduction In TV mode, there are three menu pages. In MENU operations, the CH+/- buttons are used to select item (selected item will turn to white), the VOL+/- buttons are used to adjust or confirm selected item. But in PC mode, only one menu can be accessed. During MENU operation process, pressing MENU button repeatedly or waiting for 5 seconds can exit menu.

  • Page 17: Operations In Tv Mode

    Operations in TV mode Channel preset Auto search/Channel search/Fine tuning/Skip setting SOURCE MENU POWER VOL- VOL+ MENU DIGIT VOL- VOL+ MENU Auto search Press MENU button third times to access menu (Refer to Menu introduction on page 14). Press CH+/- to select Auto search item.

  • Page 18: Fine Tuning

    To conduct the following operation, you must select TV input signal (Refer to Selecting input signal on page 13). SOURCE MENU POWER VOL- MENU VOL+ DIGIT VOL- VOL+ MENU Fine tuning Press DIGIT buttons or CH+/- buttons to select the desired channel.

  • Page 19: Channel Edit

    Operations in TV mode Channel preset Channel edit SOURCE MENU POWER VOL- MENU VOL+ DIGIT VOL- VOL+ MENU (continued) Channel Edit After Auto Channel Preset, this function is for you to edit the order of programs conveniently according to your favourite. Use DIGIT buttons or CH+/- buttons to select current channel number.

  • Page 20: Channel Select

    Using DIGIT buttons/Using CH+/- buttons/Using previous channel button SOURCE MENU POWER DIGIT -/-- Using DIGIT buttons To select one-digit channel number: Press 0-9 digit buttons to select the desired channel. Two seconds later, the channel is selected. To select two-digit channel number: Press -/-- button repeatedly to display -- on the screen.

  • Page 21: Picture Adjustment

    Operations in TV mode Picture adjustment Picture adjustment SOURCE MENU POWER VOL- MENU VOL+ VOL- VOL+ MENU (continued) Press MENU button once to access the menu (refer to Menu introduction on page 14). Press CH+/- to select item. Press VOL+/- to adjust selected item.

  • Page 22: Sound Adjustment

    SOURCE MENU POWER VOL- VOL+ MENU VOL- VOL+ MENU Adjusting sound/Adjusting volume/Muting the sound Adjusting sound Press MENU button twice to access the menu (refer to Menu introduction on page 14). Press CH+/- to select Sound Set item. Press VOL+/- to access the sub-menu.

  • Page 23: System Setting

    Operations in TV mode System Setting Blue screen/OSD Language/Colour system/Sound system SOURCE MENU POWER VOL- MENU VOL+ VOL- VOL+ MENU (continued) Blue screen Press MENU button twice to access the menu (refer to Menu introduction on page 14). Press CH+/- to select Blue Background item.

  • Page 24: Sound System

    SOURCE MENU POWER VOL- VOL+ MENU VOL- VOL+ MENU Sound system Press MENU button twice to access the menu (refer to Menu introduction on page 14). Press CH+/- to select Sound sys item. Press VOL+/- to select correct sound system according to your area.

  • Page 25: Timer Setting

    Operations in TV mode Timer setting Using SLP button/Using CLOCK button SOURCE MENU POWER VOL- VOL+ CLOCK VOL- VOL+ (continued) Using SLP button Press SLP button to display Sleep menu. Press SLP button repeatedly to set sleep time between: 0, 10, 20, 30, 60, 90, 120, 180, 240 minutes.

  • Page 26: Operations In Av/S-Video Mode

    Operations in AV/S-VIDEO mode SOURCE MENU POWER SOURCE VOL- MENU VOL+ SOURCE VOL- MENU You can connect the set to video tape recorder, VCD, DVD, or other equipment with AV, S-VIDEO output to watch the program from them (refer to Connecting video/audio equipment). Firstly, the TV set-must be in AV/S-VIDEO mode (refer Selecting input signal on page 13).

  • Page 27: Operations In Pc Mode

    Operations in PC mode Accessing PC mode/PC signal format/Auto adjusting/Picture adjustment SOURCE MENU POWER SOURCE VOL- MENU VOL+ CORRECT SOURCE Accessing PC mode Press SOURCE button on the unit or on the remote control repeatedly until the screen displays PC, which indicates that the set is in PC mode (refer to page 13).

  • Page 28: Picture Adjustment

    POWER SOURCE MENU VOL- MENU VOL+ VOL- VOL+ MENU Picture adjustment Press MENU button to access the menu. Press CH+/- buttons to select the item. Press VOL+/- buttons to adjust the item. Item Function Brightness Adjusting the brightness Contrast Adjusting the contrast Horizontal Adjusting horizontal position Vertical...

  • Page 29: Troubleshooting

    Troubleshooting Troubleshooting Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. Symptoms Power is not turned on Poor colour, poor tint Spots appear on the screen Stripes appear on the screen Double images or "ghosts"...

  • Page 30: Specifications

    Power Supply: Power Consumption: Dimensions (mm): Weight (kg): CRT: TV system & channel range System PAL-B/G 2-12 Colour System: Sound output: Accessories: Design and specifications are subject to change without notice. Specifications ~240V, 50Hz 730 x 290 x 560 51cm CATV 21-69 X~Z+2,S1~S41...
  • Page 31 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L22A13-00...
