Operating instructions
POWER PEAK FUN
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
'SELECT' button
33

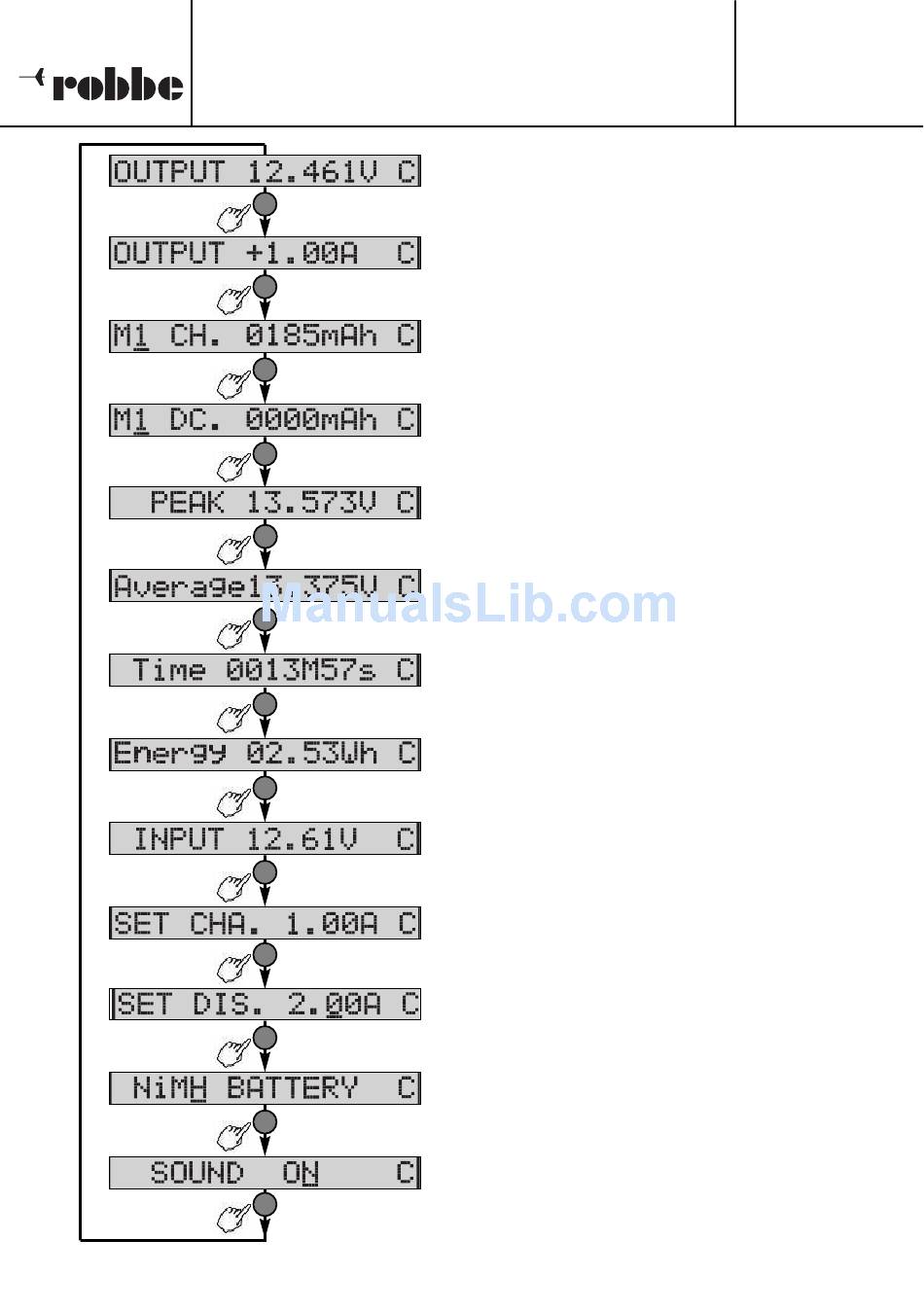

Current output voltage display, in our
example 12.461 Volts; the status indi-
cator 'C' flashes
Current charge current display, in our exam-
ple 1.00 A; the status indicator 'C' flashes
Display of the capacity charged in so
far, in our example 185 mAh; the sta-
tus indicator 'C' flashes
Display of the capacity discharged so far,
in our example no discharge has taken
place; the status indicator 'C' flashes
Maximum voltage display, in our example
13.573 Volts; the status indicator 'C' flashes
Average voltage display, in our exam-
ple 13.375 Volts; the status indicator
'C' flashes
Display of elapsed charge time / discharge
time; in our example 13 minutes and 57
seconds; the status indicator 'C' flashes
Display of charged-in or discharged
energy, in our example 2.53 W/h; the
status indicator 'C' flashes
Input voltage display, in our example
12.61 Volts; the status indicator 'C'
flashes
Set charge current (1.00 A); the cursor
and the status indicator 'C' flash
Set discharge current (2.00 A); the cur-
sor and the status indicator 'C' flash
Setting the battery type, in our exam-
ple NiMH; the cursor and the status
indicator 'C' flash
Switching the Piezo buzzer on / off,
currently activated; the cursor and the
status indicator 'C' flash
Order No.
8467
