Quick Installation Guide

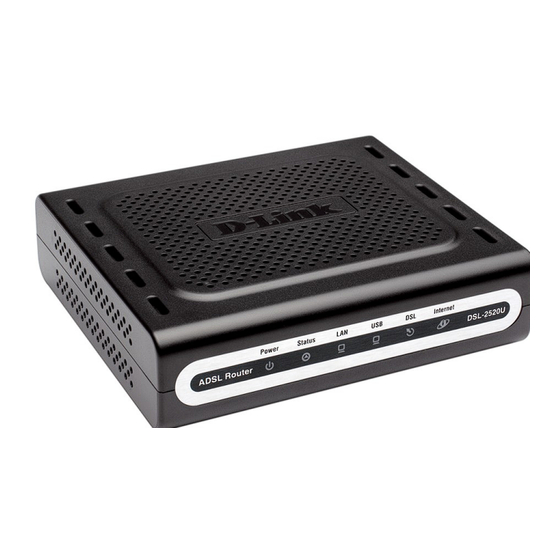

DSL-2520U
ADSL2/2+ Router with USB and Ethernet Ports

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-2520U

Summary of Contents for D-Link DSL-2520U

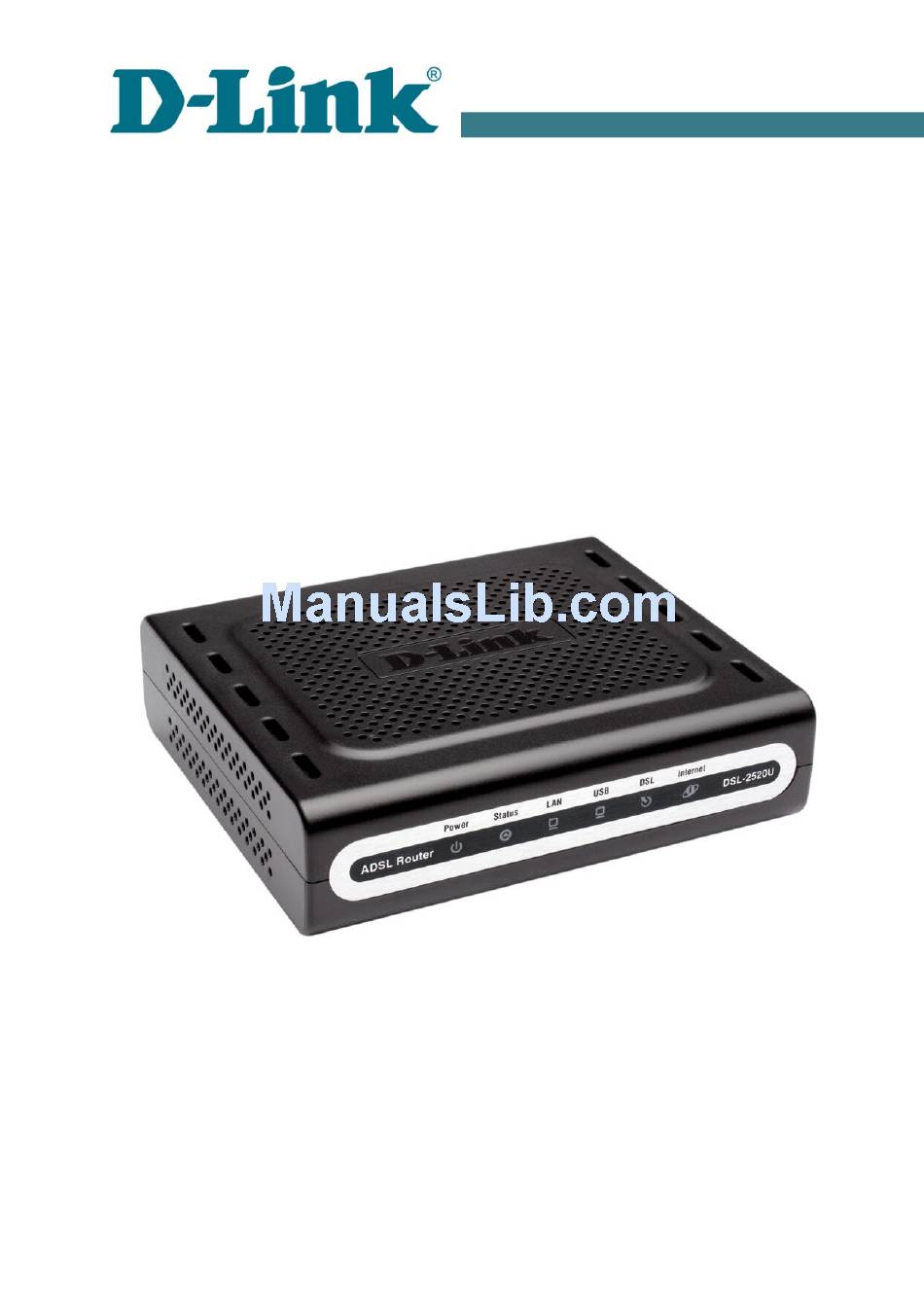

  • Page 1 Quick Installation Guide DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports...

  • Page 2: Before You Begin

    • If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents in Russian and English are available on D-Link website (see ftp.dlink.ru/pub/ADSL/DSL- 2520U/Description/). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: Pc With Ethernet Adapter

    DSL-2520U Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between the Ethernet port located on the back panel of the router and the Ethernet port of your PC.

  • Page 4: Pc With Usb Port

    D-Link website (ftp.dlink.ru/pub/ADSL/DSL-2520U/Drivers/) and run it. Wait until the USB driver installation is completed and click the Finish button. 3. Connect a phone cable between the DSL port of the router and the ADSL OUT port of the splitter. Connect your phone to the PHONE port of the splitter.
  • Page 5 DSL-2520U Quick Installation Guide Obtaining Address Automatically in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
  • Page 6 DSL-2520U Quick Installation Guide 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 5. Click the ОК button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
  • Page 7 DSL-2520U Quick Installation Guide Obtaining Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 8 DSL-2520U Quick Installation Guide 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 7. Click the OK button in the connection properties window. Now your computer is configured to obtain an IP address automatically.

  • Page 9: Configuring Router

    DSL-2520U Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface 1. Start a web browser. 2. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.1.1). Press the Enter key.
  • Page 10 To get back to the quick settings page from any Wizard or web-based interface menu section, left-click the D-Link logo in the top left corner of the page. The web-based interface of the router is multilingual. Select a needed language from the menu displayed when the mouse pointer is over the Language caption.

  • Page 11: Configuring Connection To The Internet

    DSL-2520U Quick Installation Guide Configuring Connection to the Internet You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your WAN connection.
  • Page 12 DSL-2520U Quick Installation Guide 6. For the PPPoE and PPPoA connection types, enter authorization data provided by your ISP in the PPP section (the username (login) in the Username field and the password in the Password and Password confirmation fields). If these data have not been provided by your ISP, select the Without authorization checkbox.

  • Page 13: Configuring Local Area Network

    DSL-2520U Quick Installation Guide Configuring Local Area Network Go to the Net / LAN page. If needed, change the IP address of the router's LAN interface and the mask of the local subnet in the IP Address and Netmask fields. Then click the Save button.

  • Page 14: Changing Administrator Password

    DSL-2520U Quick Installation Guide Changing Administrator Password It is highly recommended to change the administrator password upon initial configuration. This helps you to improve your network security. 1. Go to the System / Administrator password page. 2. Enter a new password for the administrator account in the Password and Confirmation fields.

  • Page 15: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
