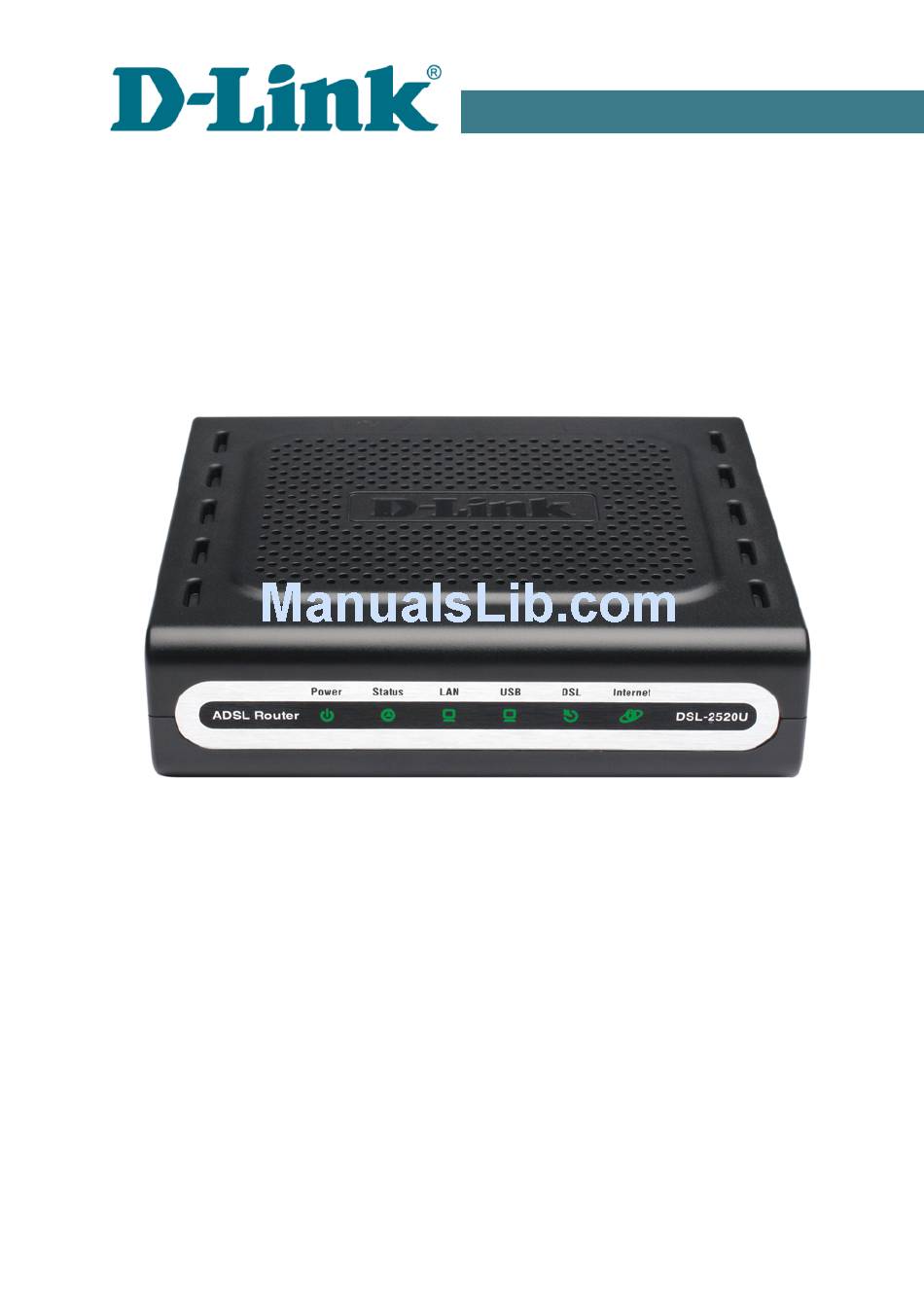

- Page 1 Quick Installation Guide DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports...
-
Page 2: Before You Begin
DSL-2520U Quick Installation Guide BEFORE YOU BEGIN Delivery Package Router DSL-2520U • Power adapter DC 5V/1A • RJ-11 telephone cable • Straight-through Ethernet cable (CAT 5E) • USB cable • Splitter • CD-ROM with “User Manual” and “Quick Installation Guide”... -
Page 3: Connecting To Pc (Os Windows Xp)
DSL-2520U Quick Installation Guide CONNECTING TO PC (OS WINDOWS XP) PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between the Ethernet port located on the back panel of the router and the Ethernet port of your PC. -
Page 4: Pc With Usb Port
DSL-2520U Quick Installation Guide PC with USB Port Do not connect your router to your PC until the USB driver is installed. 1. Turn on your computer and wait until the operating system is completely loaded. Insert the CD from the router's delivery package into the CD ROM drive. - Page 5 DSL-2520U Quick Installation Guide Now you should configure your PC to obtain an IP address automatically (as DHCP client). 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
- Page 6 DSL-2520U Quick Installation Guide 4. Select the Obtain an IP address automatically radio button. Click the OK button. Click the ОК button. Now your computer is configured to obtain an IP address automatically.
-
Page 7: Configuring Router
DSL-2520U Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface 1. Start a web browser. 2. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.1.1). Press the Enter key. -
Page 8: Configuring Connection To The Internet
DSL-2520U Quick Installation Guide The web-based interface of the router is multilingual. Select a needed language from the menu displayed when the mouse pointer is over the Language caption. You can change the language of the web-based interface in any menu item. - Page 9 DSL-2520U Quick Installation Guide 3. In the Physical layer section, specify the VPI and VCI in the relevant fields, and then select a method of encapsulation from the Encapsulation Mode drop-down list. For the IPoE and IPoA connection types, fill in the IP Address, Netmask, and Gateway IP Address fields in the IP settings section.
- Page 10 DSL-2520U Quick Installation Guide 5. For the PPPoE and PPPoA connection types, enter authorization data provided by your ISP in the PPP Settings section (the username (login) in the PPP Username field and the password in the Password and Password confirmation fields). If these data have not been provided by your ISP, select the Without authorization checkbox.
-
Page 11: Configuring Local Area Network
DSL-2520U Quick Installation Guide Configuring Local Area Network Go to the Net / Connections page and select the LAN connection. If needed, change the IP address and subnet mask for the LAN interface of the router in the IP Address and Netmask fields of the IP settings section. -
Page 12: Changing Administrator Password
DSL-2520U Quick Installation Guide Changing Administrator Password It is highly recommended to change the administrator password upon initial configuration. This helps you to improve your network security. 1. Go to the System / Administrator password page. 2. Enter a new password for the administrator account in the Password and Confirmation fields. -
Page 13: Technical Support
Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
