Mounting
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting method:
1. Place hands on each side of the monitor and lift up to the highest position.
Remove the cable cover (Figure M.1).
NOTE: If you have difficulty removing the cable cover, please
push the the cover up (towards the top of the monitor)
in order to unhook the cover from the stand, then
remove, as shown in (Figure). Handle with care when
removing cable cover.
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure M.2).
NOTE: Handle with care when the monitor is facing down to avoid damaging
the front buttons.
4. Remove the 4 screws connecting the stand to the monitor (Figure M.2).
5. Remove the stand (Figure M.3).
6. Connect the cables to the back of the monitor.
7. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.

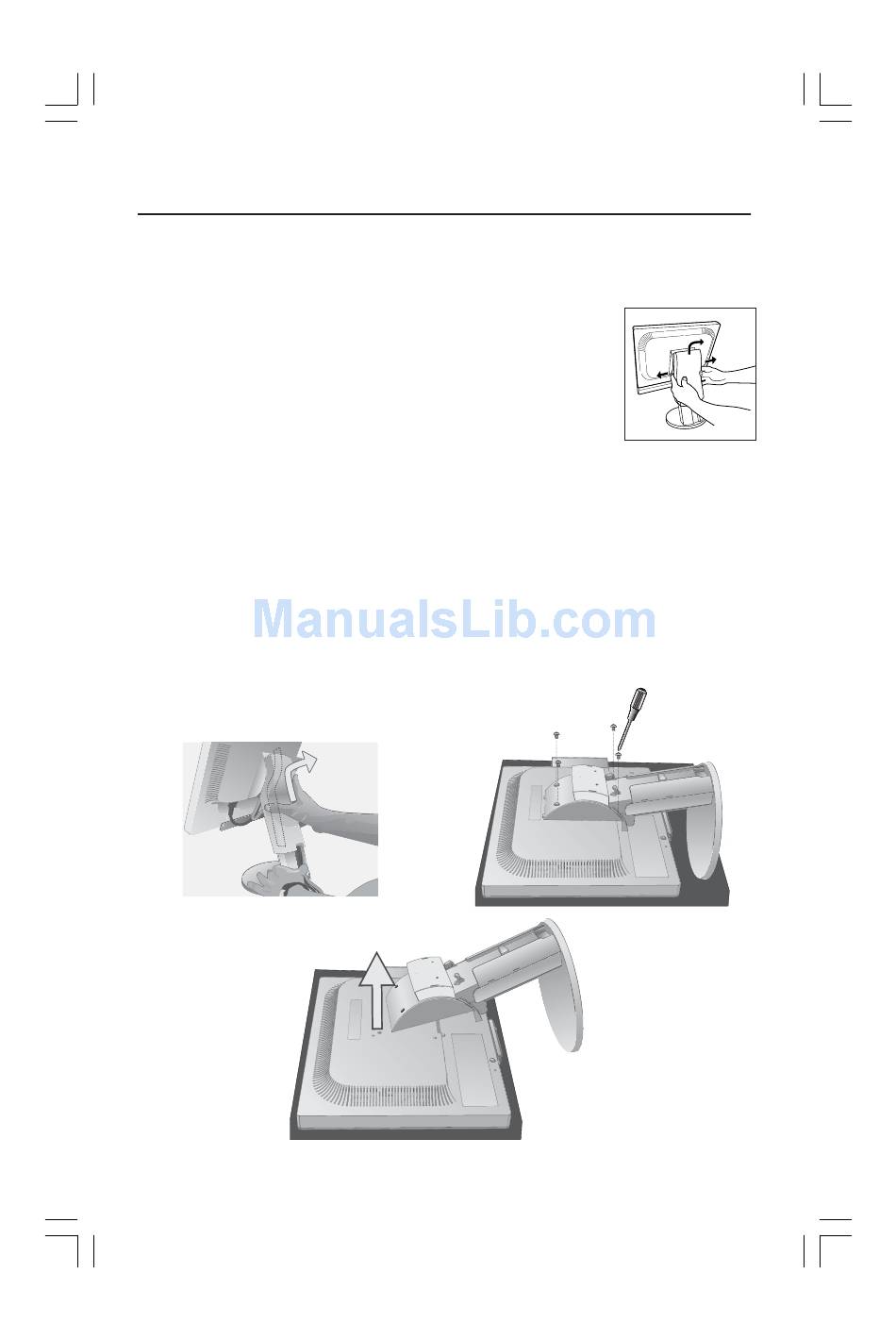

Figure M.1
