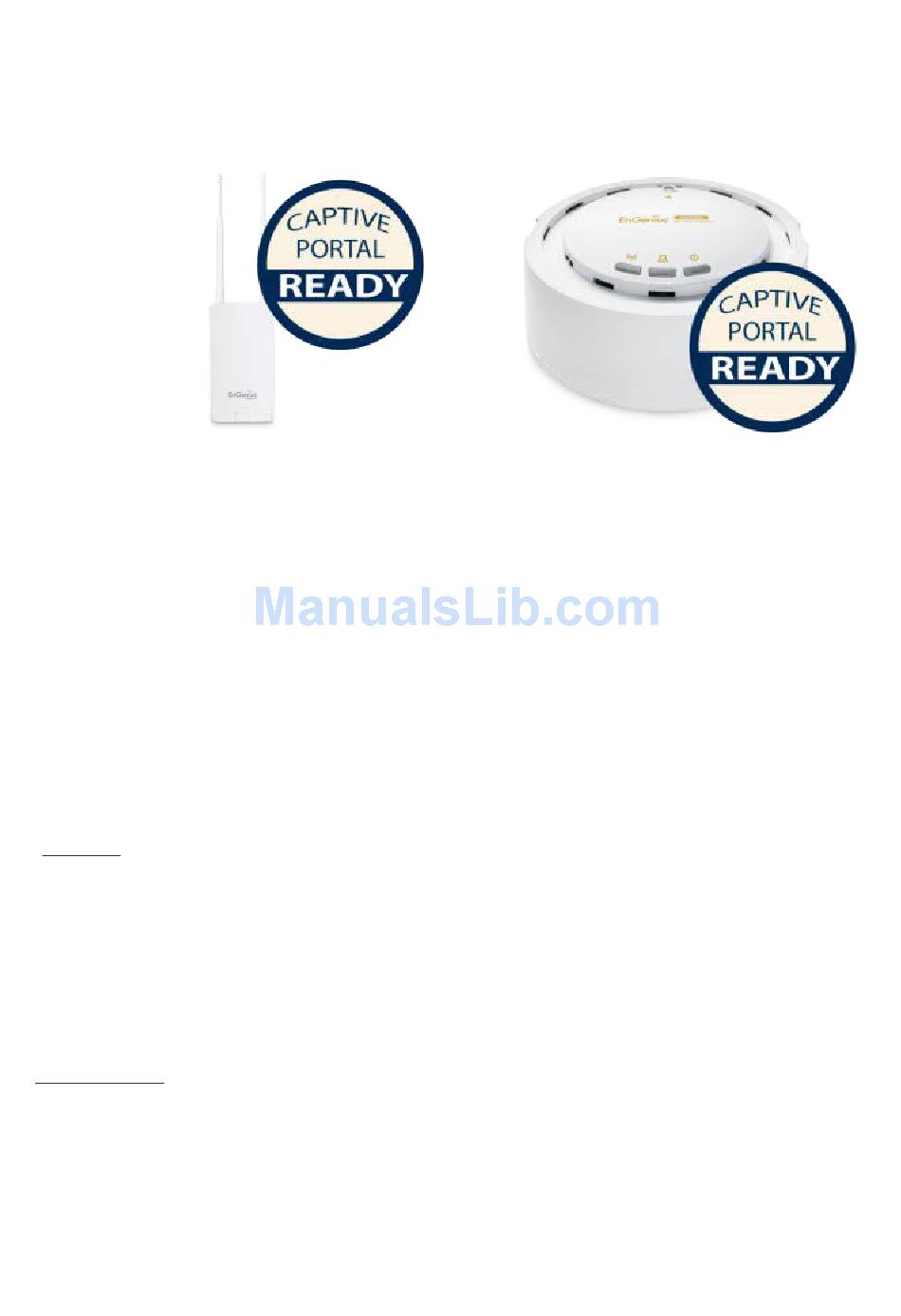

EnGenius Captive Portal "Ready"
Quick Installation Guide
The package labelled "Captive Portal Ready" herein contains a Third-Party firmware &
management feature. It has distinctly different properties, configuration and capabilities
of that the stock product mentioned in the datasheet, CD user manual and box
packaging. This Quick Installation Guide supersedes any datasheet, CD user manual
and information on the box packaging to contain important instructions in setting up
your EnGenius Captive Portal Ready wireless networks. Please read and follow this
guide thoroughly to have an enjoyable experience in setting up your EnGenius Captive
Portal Ready Wireless Network.
Note: Guest authentication feature requires a separate paid subscription from third-
party cloud captive providers to work.
Check List:
Internet connection should be already setup & ready to use* (ADSL /Cable/Fiber modem router)
•
Modem/Router must provide RJ45 port to connect with EAP300-CP or ENS202EXT-CP. An Ethernet cable
•
is further required for the ENS202EXT-CP
Internet Browser (Recent version of Microsoft Internet Explorer or Firefox browser)
•
A pencil or pen ready to use "My Personal Notes" on the last page to assist you in remembering
•
any account names and passwords created
Important Notes:
(*) The internet connection should give you the ability to ping www.yahoo.com (resolve DNS) and to
•
normally browse a web page via http and https (SSL). If in doubt, use a laptop or computer with your
existing internet connection (which you will be connecting the equipment to) and type
http://www.yahoo.com on your browser. If there is no response, you need to resolve this with your internet
service provider before proceeding further this Quick Installation Guide
Version 1.1 (for Cloud4Wi)
*** MUST READ ***
Advertisement
Related Manuals for EnGenius caprive portal ready
Summary of Contents for EnGenius caprive portal ready
-
Page 1: Quick Installation Guide
EnGenius Captive Portal Ready wireless networks. Please read and follow this guide thoroughly to have an enjoyable experience in setting up your EnGenius Captive Portal Ready Wireless Network. -
Page 2: Installing The Device
Installing the device STEP 1 Follow the instructions on the user ID-sticker. The sticker is located on the device. Go to http://controlpanel.cloud4wi.com and logon with your your account. If you do not have an account, kindly contact an Authorized Cloud4WI Distribution Partner. - Page 3 Once you have logged in, click on <+Create New> to activate the device with your account. Under the Router Menu, kindly ensure the fields are entered as follow: Router type : EnGenius MAC address : 88:DC:96:XX:XX:XX Note: Change XX to the similar characters as shown on your device or ID-Sticker.
- Page 4 After the adding the device in the controlpanel.cloud4wi.com, connect a LAN cable from the LAN port of your existing Internet modem router to the ethernet port of the EnGenius Captive Portal Ready device and power up. The device will perform an initial setup which the status LED will constantly blink for 2 minutes.
- Page 5 STEP 4 Your device is now ready to use. Connect to the SSID “ My Hotspot” and a simple authentication will appear as below before internet access is allowed. Changing of Guest Access For any changes of access such as vouchers, email, sms, social media login by guest, you can login at http://controlpanel.cloud4wi.com with your account and select the desired packages.
-
Page 6: Single Step
Installing additional devices Because of the Mesh capabilities, additional devices can be added wirelessly or by the wired LAN. If you want to add it wirelessly, place the additional device close to the first device with the wired internet access. Single Step Confirm that the first device is powered up and connected to your internet router. - Page 7 ___________________________________________________________________________ Completion of "Quick Installation Guide" Kindly visit http://www.wifiabc.com and click on Knowledge Base for a complete guide and tutorials on the Captive Portal Ready Devices, such as changing SSIDs, adding or changing passphrase, blocking guest to Local Area Networks and VLANs configuration.
- Page 8 My personal Notes: My MAC Address (SSID)Name Password Account Name Guest Access Node Name (SSID#1) Node Name (SSID#2) My Memos: _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________ _______________________________________________________________...
