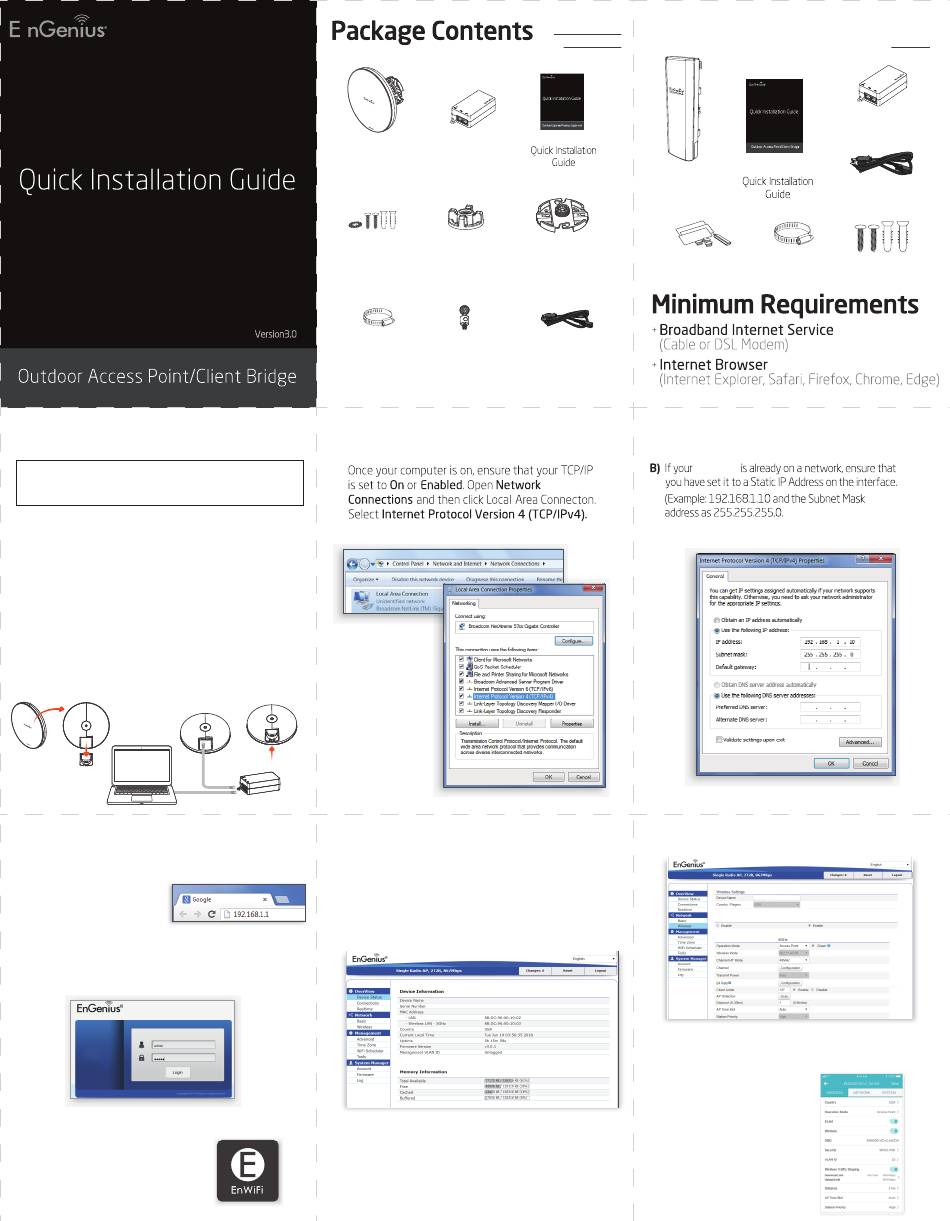

EnGenius EnStation5-AC Quick Installation Manual

1
Connecting the Device
You must know :
This kit is pre-configured in AP (Master, 192.168.1.1) and CB (Remote,
192.168.1.2) mode. Wireless connection will be built automatically once the
devices are powered up.
A)
Remove the rear bottom panel.
B)
Connect one end of the Ethernet cable into the LAN(PoE) port of the
device and the other end to the PoE Port on the PoE Adapter.
C)
Connect the Power cord to the PoE Adapter and plug the other end
into an electrical outlet.
D) Connect the second Ethernet cable into the LAN port of the PoE
Adapter and the other end to the Ethernet Port into the computer.
E) Place the panel removed from step A back onto the device.
Note:
+ The device should ONLY be powered via Ethernet cable connected
to included PoE Adapter. EnStation5-AC/ENH500: Support proprietary
24V PoE input. EnStationAC: Support proprietary 54V PoE input
+ For EnStationAC : The 2nd Ethernet port of the device can supply
the 802.3af power source when used with the included PoE Adapter.
A
B
3
Device Setup
A) To configure the device, open a web browser and enter IP
address as below.
- IP: 192.168.1.1 If the last two
digits of the serial number
on the device label is -1.
- IP: 192.168.1.2 If the last two digits of the serial number
on the device label is -2.
B) A login screen will appear. By default, the username of the
device is admin and the password is admin. Enter the current
username and password of the device and then click Login.
EnStationAC
Note: The model name on login screen depends on the product
you are using.
C) You can also use the EnWiFi App and
connect to the management SSID which
is on the device label and GUI to configure
the device. The default Wi-Fi password is
12345678.
Device*2
Screw Set*2
EnStation5-AC Kit
EnStationAC Kit
ENH500 Kit
Version3.0
Pole Mounting
Strap*2
2
IP Address Configuration
A)
E
B
D
4
Switching Modes
Configure on GUI
A) The device can operate in the following modes.
EnJet enabled: Access Point, Client Bridge, WDS AP, WDS Station.
EnJet disabled: Access Point, Client Bridge, WDS AP, WDS Bridge,
WDS Station.
EnStationAC
Note: The model name on login screen depends on the product
you are using.
EnStation5-AC
EnStationAC
PoE Adapter*2
Sealing nut*2 Bracket*2
Dynamic Stick*2 Power Cord*2
EnStationAC
Device *2
Waterproof *2 Pole Mounting *2
computer
)
Click on the Wireless link under the Network and setup the
B)
Operation Mode.
EnStationAC
EnStationAC
EnJet
* It may take up to 90 seconds for device to initially power up.
Configure on EnWiFi App
C) Use EnWiFi App, open configure →
Wireless to setup the Operation
Mode.
ENH500
PoE Adapter*2
Power Cord*2
Wall Mount
Screw Set *2
