5.3.2 Define first Scaling point

Firstly set the input value for the start of the
slope using the respective unit (mA, V)
Than set the display value for the start of the
slope
5.3.3 Define the second scaling point
Set input value
Set display value

5.3.4 Define further scaling points

Additional scaling points will be requested only,
when in section 5.3.1 more than 2 scaling
14
Menu <–> Selection
press the
Menu <–> Selection
press the
Menu <–> Selection
press the
Menu <–> Selection
press the
points are defined.

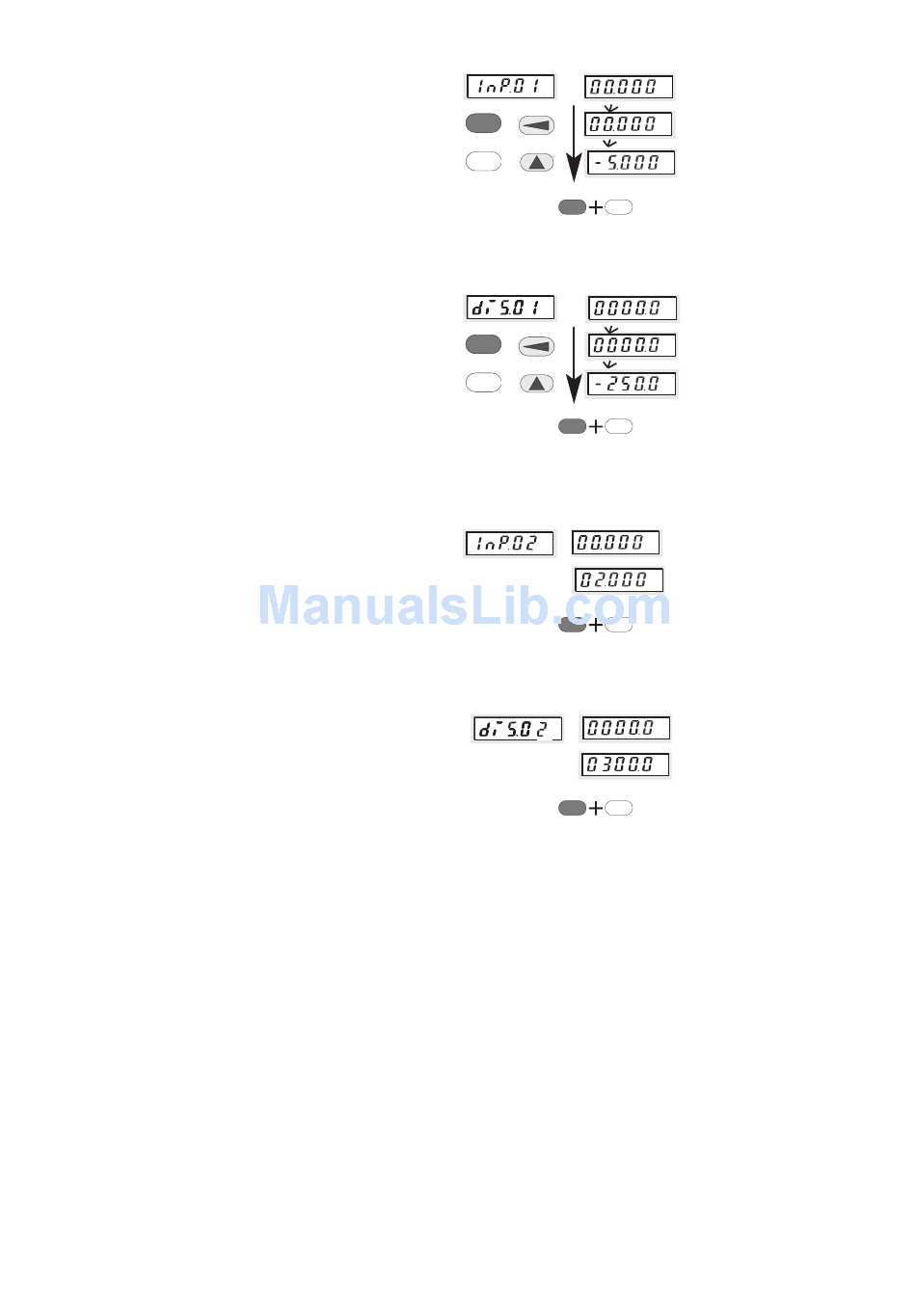

Example: –5.000
Select digit
Set digit
key to accept
Example: –250.0
Select digit
Set digit
key to accept
Example: 2.000
key to accept
Example: 300.0
key to accept
