Kubler 573T Operating Manual

Multifunctional display, process indicator with two 16 bit analog inputs, touch screen and graphic display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

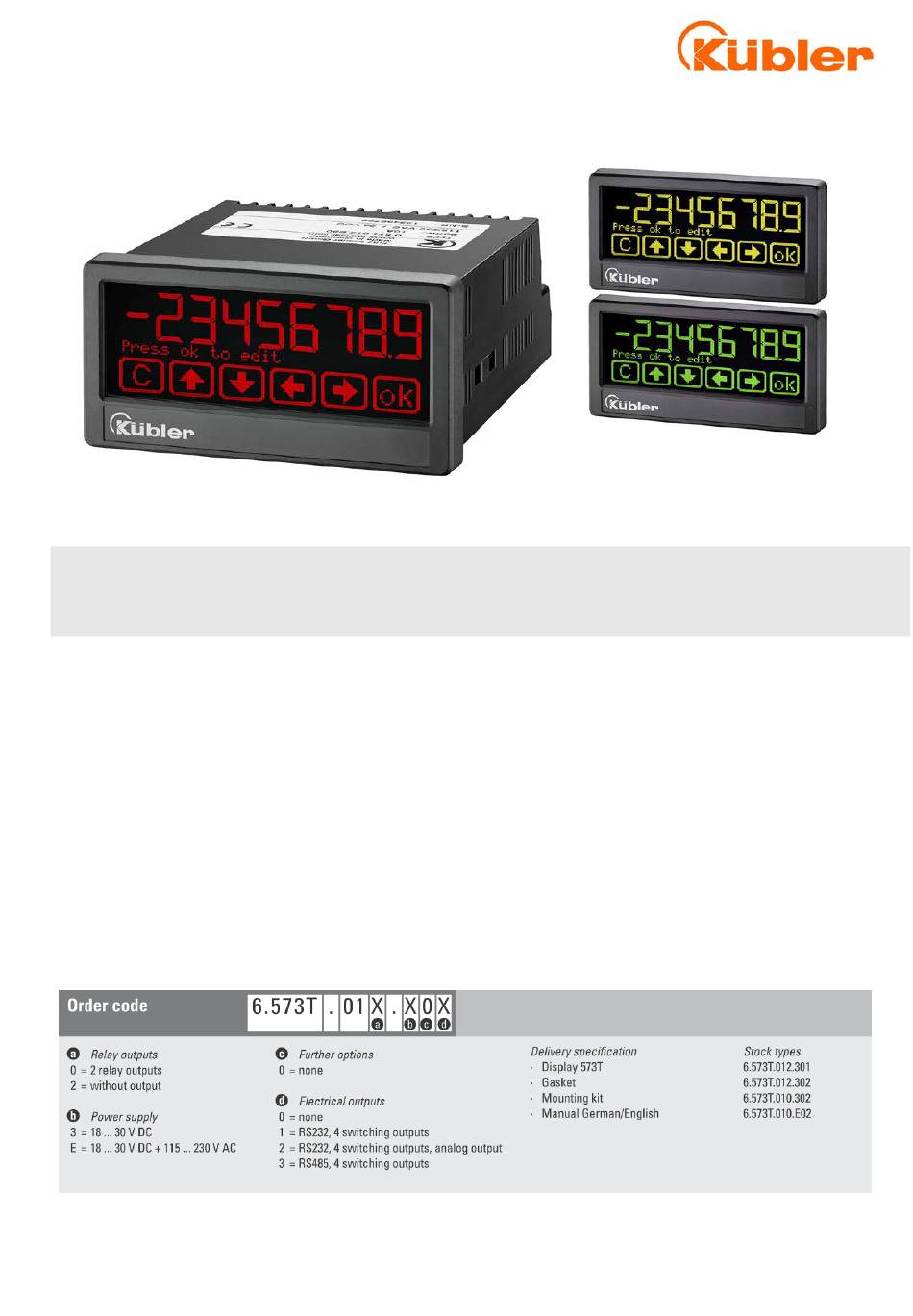

Operating Manual
German is the original version.
Process indicator with two 16 bit analog inputs, touch screen and graphic display
Product Features:
Operating modes for visualization of input 1, input 2 or combinations of inputs (IN1+IN2, IN2-IN2, IN1xIN2, IN1:IN2)
•
• Two universal 16 bit analog inputs for -10 ... +10 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA
• High accuracy reference output 10 V for potentiometers > 1 kOhm
• Bright and high-contrast display with event-dependent color variations
• Emulation of a 7-segment display inclusively icons and units
• Intuitive and easy parameterization by plain text and touchscreen
• 24 V auxiliary output for encoder supply
• Totalization for each input
• Linearization with 24 control points for each input
• Numerous features, e. g. tara, averaging filter, sampling time for each input
• 96 x 48 mm (3.78 x 1.89 inch) norm panel housing and IP65 protection
*) IO-Link in preparation / available on request
R60726.0002 - Index 4
Multifunctional Display 573T
*)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 573T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kubler 573T

Summary of Contents for Kubler 573T

  • Page 1 Operating Manual R60726.0002 - Index 4 German is the original version. Multifunctional Display 573T Process indicator with two 16 bit analog inputs, touch screen and graphic display Product Features: Operating modes for visualization of input 1, input 2 or combinations of inputs (IN1+IN2, IN2-IN2, IN1xIN2, IN1:IN2) •...
  • Page 2 Version Description 573T_01a /Jan-17 First Version 573T_02a /Feb-17 Second Version 573T_02b /March-17 minor changes and fixes 573T_3a /Oct-17 Index 3, expansion of the scale units 573T_4a /April-18 Extension with IO-Link in preparation / available on request  573T_5a /June-18 Extension with Modbus Legal notices: All contents included in this manual are protected by the terms of use and copyrights of Fritz Kübler GmbH.

  • Page 3: Table Of Contents

    Table of Contents 1. Safety Instructions and Responsibility ..............5 General Safety Instructions ....................5 Use according to the intended purpose ................5 Installation ........................6 Cleaning, Maintenance and Service Notes ................6 2. Introduction ......................7 Operation mode ........................ 7 Function diagram ......................

  • Page 4: R60726.0002 - Index

    Technical specifications....................59 R60726.0002 – Index 4 EN - page 4...

  • Page 5: Safety Instructions And Responsibility

    1. Safety Instructions and Responsibility General Safety Instructions This operation manual is a significant component of the unit and includes important rules and hints about the installation, function and usage. Non-observance can result in damage and/or impairment of the functions to the unit or the machine or even in injury to persons using the equipment! Please read the following instructions carefully before operating the device and observe all safety and warning instructions! Keep the manual for later use.

  • Page 6: Installation

    Installation The device is only allowed to be installed and operated within the permissible temperature range. Please ensure an adequate ventilation and avoid all direct contact between the device and hot or aggressive gases and liquids. Before installation or maintenance, the unit must be disconnected from all voltage-sources. Further it must be ensured that no danger can arise by touching the disconnected voltage-sources.

  • Page 7: Introduction

    2. Introduction This series of display unit is suitable for analog signals (-10 … 10V or 0/4 … 20 mA). It is very versatile in use, due to the intuitive handling and the extensive range of functions and options. Operation mode All functions are can be configured in the parameter menu.

  • Page 8: Function Diagram

    Function diagram R60726.0002 – Index 4 EN - page 8...

  • Page 9: Electrical Connections

    3. Electrical Connections The terminal screws should be tightened with a slotted screwdriver (blade width 2 mm). DC Power Supply The unit accepts DC supply from 18 to 30 V at the terminals 1 and 2. The power consumption depends on the level of the supply voltage with approx.

  • Page 10: Analog Input

    Analog Input The reference potential (AGND) for the analog inputs is connected at terminal 5. The unit provides two 16 bit analog inputs at terminal 6 and 7. The characteristics of the analog inputs (voltage input or current input) can be set in the Menu IN 1/IN 2 PROPERTIES. Important: Before connecting the sensor the configuration (voltage or current input) must be set! Wiring of the incremental inputs:...

  • Page 11: Control Inputs

    Control Inputs The three control inputs at terminal 10, 11 and 12 have HTL PNP characteristics. In the COMMAND MENU the programmable functions for the control inputs can be assigned. Available functions are: reset the display value, display switching, locking the touch screen or release the lock function of the control or relay outputs.

  • Page 12: Serial Interface (Option Rs232 Or Rs485)

    Serial interface (Option RS232 or RS485) A serial interface (RS232 or RS485) is available at terminal 16, 17 und 18. This interface can be configured in the SERIAL MENU. The serial interface RS232 or RS485 can be used: • for easy setup and commissioning of the units •...

  • Page 13: Control-Output (Option)

    Control-Output (Option) Four control outputs are available at terminal 20, 21, 22 and 23. Switching conditions can be set in the PRESELECTION MENU. The output Ctrl. Out 1 – 4 are fast PNP outputs with a switching capability of 5 – 30 Volt / 200 mA per channel. The switching states is displayed (display with unit and status bar) as C1 …...

  • Page 14: Relay Output (Option)

    3.10 Relay Output (Option) Two relay outputs with potential-free changeover contacts are available at terminal 27, 28, 29 and 30, 31, 32. Switching conditions can be set in the PRESELECTION MENU. The switching states are displayed (display with unit and status bar) as K1 and K2. AC-switching capacity max.

  • Page 15: Io-Link (Option)

    3.11 IO-Link (Option) An interface for connecting to an IO-Link master is available at terminal 34, 35 and 36. The display device (IO-link device) must always be connected to a separate power supply (AC or DC). The display device (IO-link device) can be operated in two ways. •...

  • Page 16: Display And Touch Screen

    4. Display and touch screen Screen structure for parametrization The parameter menus and the parameters are described in chapter 5. Start setup procedure: To edit the parameters, press the touchscreen for 3 seconds. Menu selection: Select the parameter menu via arrow buttons and confirm with “OK”.

  • Page 17: Screen Structure In Operation

    Screen structure in operation The following screens are available during operation. Depending on the device version and the selected operation mode, not all displays will be shown. The source (IN1, IN2, …) for the single channel display and the two channel display are defined in the DISPLAY MENU.

  • Page 18: Parameter / Overview-Menu Structure

    5. Parameter / Overview-Menu Structure This section provides an overview of the menus and their parameters. The menu names are printed bold and the associated parameters are listed under the menu name. Depending on the device version and the selected operation mode, only the necessary menus / parameters are shown. Menu / Parameter Menu / Parameter GENERAL MENU...
  • Page 19 Menu / Parameter Menu / Parameter IO LINK PROPERTIES PRESELECTION 4 MENU IN1 FACTOR SOURCE 4 IN1 DIVIDER MODE 4 IN1 ADDITIVE VALUE HYSTERESIS 4 IN1 DECIMAL POINT PULSE TIME 4 IN1 SCALE UNITS OUTPUT TARGET 4 IN2 FACTOR OUTPUT POLARITY 4 IN2 DIVIDER OUTPUT LOCK 4 IN2 ADDITIVE VALUE...

  • Page 20: General Menu

    General Menu OPERATIONAL MODE This parameter specifies the selected measuring function. SINGLE Single channel mode, only input 1 DUAL Dual channel mode, input 1 and input 2 separated IN1 + IN 2 Dual channel mode, sum of input 1 and input 2 IN1 –...

  • Page 21: In 1 Properties

    IN 1 Properties This menu defines the parameter for input 1. CONFIGURATION This parameter defines the configuration of input 1. -10 … 10 V -10 … 10 V 0 … 20 mA 0 … 20 MA 4 … 20 mA 4 …...
  • Page 22 Continuation “IN 1 Properties”: SAMPLING TIME (S) The configured value corresponds to the sampling interval. This time interval in seconds defines the time between the single samples of the analog signals. This parameter directly affects the response time of the unit. 0.001 Shortest sampling time 0.01...

  • Page 23: In 1 Linearization

    IN 1 Linearization The linearization points of input 1 are defined in this menu. This menu is shown only, if the linearization is selected in 1 PROPERTIES. Linearization description and examples are shown in the appendix. P1(X) … P24(X) X-coordinate of the linearization point. This value representing the display value which the unit show in the display without linearization.

  • Page 24: In 1 Totalization

    IN 1 Totalization The totalization function is defined in this menu. This menu will only be showed, if the totalization is active in Menu IN 1 PROPERTIES. The totalizator depends on the operation mode. See in the following list. Totalization Operation mode INPUT 1 TOTAL INPUT 2 TOTAL...

  • Page 25: In 2 Properties

    IN 2 Properties This menu defines the parameter for input 2. CONFIGURATION Configuration of input 2, see IN 1 Properties START VALUE Display value of input 2 at 0 V or 0/4 mA, see IN 1 Properties END VALUE Display value of input 2 at +10 V or 20 mA, see IN 1 Properties DECIMAL POINT Position of the decimal point, see IN 1 Properties SCALE UNITS...

  • Page 26: In 2 Linearization

    IN 2 Linearization The linearization points of input 2 are defined in this menu. P1(X) … P24(X) X-coordinate of the linearization point, see IN 1Linearization. P1(Y) … P24(Y) Y-coordinate of the linearization point, see IN 1Linearization. IN 2 Totalization The totalization of input 2 function is defined in this menu. TIME BASE The time base of the totalization, see IN 1 Totalization DIVIDER...

  • Page 27: Linkage Properties

    Linkage Properties In this menu the parameters for the linked operation mode are defined. This menu is shown only, if in GENERAL MENU an operation mode (e.g. IN1 – IN2) with link was selected. The parameters in Menu IN 1 PROPERTIES and IN 2 PROPERTIES have to be set, before using a linked operation mode.

  • Page 28: Io-Link Properties

    IO-Link Properties This menu defines the parameters for the display of the two output process data. This menu is only displayed if the device is equipped with the option (IO-Link Modul). IN1 FACTOR (Multiplication factor) This parameter defines the factor the received value is multiplied with. -99999999 Smallest value Default value...

  • Page 29: Preselection Values

    IN2 SCALE UNITS (scale units for value 2, see IN1 SCALING UNITS 5.10 Preselection Values This menu is used to set the preselection values or the switching points. The preselection values / switching points are always referred to the display value. This menu is only available for devices with option Control-, Analog- or Relay-Output.

  • Page 30: Preselection 1 Menu

    5.11 Preselection 1 Menu Switching conditions for preselection 1. Output/ relay/ display switches under the following conditions. This function is only available for devices with option Control-, Analog- or Relay-Output. SOURCE 1 This parameter defines the reference source for PRESELECTION 1 the reference source is input 1 INPUT 1 the reference source is input 2...
  • Page 31 Continuation „Preselection 1 Menu“: MODE 1 Switching conditions for preselection 1. Output/ relay/ display switches under the following conditions: Absolute value of the display value is greater or equal absolute value of PRESELECTION 1 0 |RESULT|>=|PRES| With HYSTERESIS 1 not equal 0 the following switching condition is applied: Display value >= PRESELECTION 1 ...
  • Page 32 Continuation „Preselection 1 Menu“: HYSTERESIS 1 This parameter defines the switching hysteresis of the switch-off point for preselection 1 No switching hysteresis … 99999 Switching hysteresis of 99999 PULSE TIME 1 (S) Duration of output pulse for the switching condition of preselection 1 0,000 No output pulse (static signal) …...
  • Page 33 Continuation „Preselection 1 Menu“: START UP DELAY 1 (S) Start-up suppression for the switching condition of preselection 1. Time to start the monitoring function. This adjustment is only valid for the switching condition |RESULT|<=|PRES| or RESULT<=PRES (Start Up Delay 3 and 4 have an automatic start up suppression). 0.000 No start-up suppression …...

  • Page 34: Preselection 2 Menu

    5.12 Preselection 2 Menu SOURCE 2 The reference source for PRESELECTION 2, see PRESELECTION 1 MENU MODE 2 Switching conditions for preselection 2, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 2: RES>=PRES-TRAIL Display value is greater or equal to PRESELECTION 1 – PRESELECTION 2 PRESELECTION 2 is the trailing preselection from PRESELECTION 1.

  • Page 35: Preselection 3 Menu

    5.13 Preselection 3 Menu SOURCE 3 The reference source for PRESELECTION 3, see PRESELECTION 1 MENU MODE 3 Switching conditions for preselection 3, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 3: RES>=PRES- Display value is greater or equal to PRESELECTION 4 – PRESELECTION 3 TRAIL PRESELECTION 3 is the trailing preselection from PRESELECTION 4.

  • Page 36: Preselection 4 Menu

    5.14 Preselection 4 Menu SOURCE 4 The reference source for PRESELECTION 4, see PRESELECTION 1 MENU MODE 4 Switching conditions for preselection 4, see PRESELECTION 1 MENU (expect trailing preselection) See chapter PRESELECTION 1 MENU Trailing preselection 4: RES>=PRES- Display value is greater or equal to PRESELECTION 3 – PRESELECTION 4 TRAIL PRESELECTION 4 is the trailing preselection from PRESELECTION 3.

  • Page 37: Serial Menu

    5.15 Serial Menu This menu defines the basic settings of serial interface. This function is only available for devices with option Control- and Analog-Output. UNIT NUMMER This parameter defines serial device addresses. The addresses between 11 and 99 can be assigned to the devices.
  • Page 38 Continuation „Serial Menu”: SERIAL PROTOCOL Determines the sequence of characters send, when using the serial output for cyclic data transmission under time control (xxxxxxx = value SERIAL VALUE). Setting „1“ removes the unit address from the string which allows a slight faster transmission cycle. Transmission report = Unit Nr., +/-, data, LF, CR Transmission report = +/-, data, LF, CR SERIAL TIMER (S)

  • Page 39: Analog Out Menu

    5.16 Analog Out Menu This menu defines the basic settings of the analog output. This function is only available for devices with option Analog Output. ANALOG SOURCE This parameter defines the reference source for the Analog Output 0 INPUT 1 the reference source is input 1 1 INPUT 2 the reference source is input 1...
  • Page 40 Continuation „Analog Out Menu“: ANALOG GAIN (%) This parameter sets the maximum modulation. The ANALOG GAIN returns the max. Control of the analogue output in% related to (+/-) 10 V or 20 mA. e. g. 102.00 corresponds to a conversion of 10.2 V or 20.4 mA, when the ANALOG END value is reached. e.

  • Page 41: Command Menu

    5.17 Command Menu INPUT 1 ACTION This parameter defines the function of the input “Ctrl. In 1”. No function TARA INPUT 1 Value of input 1 is stored as an OFFSET of input 1 TARA INPUT 2 Value of input 2 is stored as an OFFSET of input 2 Value of input 1 is stored as an OFFSET of input 1 TARA INPUT 1+2 Value of input 1 is stored as an OFFSET of input 1...
  • Page 42 Continuation „Command Menu:“ INPUT 1 CONFIG This parameter defines the switching characteristics of the input “Ctrl. In 1”. ACTIVE LOW Active at „LOW“ (static) ACTIVE HIGH Active at „HIGH“ (static) RISING EDGE Activate at rising edge (dynamic) FALLING EDGE Activate at falling edge (dynamic) INPUT 2 ACTION This parameter defines the function of the input “Ctrl.

  • Page 43: Display Menu

    5.18 Display Menu Parameter changes become active only after closing the menu selection. START DISPLAY This parameter defines the start display after switching on the device. Single-line display Single The source must be defined in SOURCE SINGLE Dual The sources must be defined in SOURCE DUAL TOP / DOWN. SOURCE SINGLE (Reference source for single-line display) the reference source is input 1 INPUT 1...
  • Page 44 SOURCE DUAL DOWN (Reference source for two-line display, second line) the reference source is input 1 INPUT 1 the reference source is input 2 INPUT 2 LINKAGE 1 – 2 the reference source is the result of the linking of input1 and input 2 the reference source is input 1 with totalization INPUT 1 TOTAL the reference source is input 2 with totalization...
  • Page 45 Continuation „ Display Menu“: COLOR This parameter defines the display color. Event-depending change of the display color by a switching condition is possible (see PRESELECTION 1…4 MENU) Event-depending changes are only available for devices with option Control-, Analog- or Relay-Output. Red display GREEN Green display...

  • Page 46: Appendix

    6. Appendix Data readout via serial interface All codes shown in the parameter SERIAL VALUE are available for serial readout by PC or PLC. For communication the monitors use the Drivecom Protocol according to ISO 1745. All protocol details can be found in our manual SERPRO which is available for download from our homepage www.kuebler.com.

  • Page 47: Appendix: Display Of Scale Units

    Appendix: Display of scale units SCALE UNITS This parameter defines the required engineering unit. This parameter does not affect the calculation of the display value. The number of decimal places must be defined with the parameter DECIMAL POINT. Default km/h feet/min inch/min inch...
  • Page 48 Parameter / serial codes # Menu Name Serial Code Value Default OPERATIONAL 0 GENERAL MENU MODE 1 GENERAL MENU PIN PRESELECTION 9999 2 GENERAL MENU PIN PARAMETER 9999 3 GENERAL MENU BACK UP MEMORY 4 GENERAL MENU FACTORY SETTINGS 5 GENERAL MENU 6 GENERAL MENU 7 GENERAL MENU 8 GENERAL MENU...
  • Page 49 # Menu Name Serial Code Value Default 46 IN 1 LINEARIZATION P13(X) -99999999 99999999 47 IN 1 LINEARIZATION P13(Y) -99999999 99999999 48 IN 1 LINEARIZATION P14(X) -99999999 99999999 49 IN 1 LINEARIZATION P14(Y) -99999999 99999999 50 IN 1 LINEARIZATION P15(X) -99999999 99999999 51 IN 1 LINEARIZATION...
  • Page 50 Menue Name Serial Code Value Default 90 IN 2 LINEARIZATION P1(X) -99999999 99999999 91 IN 2 LINEARIZATION P1(Y) -99999999 99999999 92 IN 2 LINEARIZATION P2(X) -99999999 99999999 93 IN 2 LINEARIZATION P2(Y) -99999999 99999999 94 IN 2 LINEARIZATION P3(X) -99999999 99999999 95 IN 2 LINEARIZATION P3(Y)
  • Page 51 Serial Menue Name Value Default Code 138 IN 2 TOTALIZATION BASE 139 IN 2 TOTALIZATION DIVIDER 140 IN 2 TOTALIZATION DECIMAL POINT 141 IN 2 TOTALIZATION SCALE UNITS 142 IN 2 TOTALIZATION 143 IN 2 TOTALIZATION 144 IN 2 TOTALIZATION 9999999 145 LINKAGE PROPERTIES FACTOR...
  • Page 52 174 PRESELECTION 1 MENU MODE 1 175 PRESELECTION 1 MENU HYSTERESIS 1 99999 176 PRESELECTION 1 MENU PULSE TIME 1 60000 177 PRESELECTION 1 MENU OUTPUT TARGET 1 178 PRESELECTION 1 MENU OUTPUT POLARITY 1 179 PRESELECTION 1 MENU OUTPUT LOCK 1 180 PRESELECTION 1 MENU START UP DELAY 1 60000...
  • Page 53 Continuation „Parameter / serial codes“: Serial Menue Name Value Default Code 184 PRESELECTION 2 MENU SOURCE 2 185 PRESELECTION 2 MENU MODE 2 186 PRESELECTION 2 MENU HYSTERESIS 2 99999 187 PRESELECTION 2 MENU PULSE TIME 2 60000 188 PRESELECTION 2 MENU OUTPUT TARGET 2 189 PRESELECTION 2 MENU OUTPUT POLARITY 2...
  • Page 54 Continuation „Parameter / serial codes“: Serial Menue Name Value Default Code 226 ANALOG OUT MENU ANALOG SOURCE 227 ANALOG OUT MENU ANALOG FORMAT 228 ANALOG OUT MENU ANALOG START -99999999 99999999 229 ANALOG OUT MENU ANALOG END -99999999 99999999 10000 230 ANALOG OUT MENU ANALOG GAIN % 11000...
  • Page 55 Serial codes of commands: Serial Code Command TARA INPUT 1 TARA INPUT 2 TARA INPUT 1 + 2 RESET TOTAL 1 RESET TOTAL 2 RESET TOTAL LINKAGE TEACH PRESELECTION 1 TEACH PRESELECTION 2 TEACH PRESELECTION 3 TEACH PRESELECTION 4 SCROLL DISPLAY CLEAR MIN/MAX VALUES CLEAR LOOP TIME ACTIVATE DATA...

  • Page 56: Linearization

    Linearization The linearization function of this unit allows converting a linear input signal into a non-linear developing (or vice versa). There are 24 programmable x/y coordinates available for input 1 and input 2, which can be set in any desired distance over the full conversion range. Between two coordinates, the unit uses linear interpolation.
  • Page 57 Application Example: We like to display the filling quantity (volume) of a tank as shown below, with use of a pressure sensor mounted to the bottom of the tank. With this application the analogue pressure signal is proportional to the filling level, but not to the filling quantity. Volume P16_x P16_y...

  • Page 58: Dimensions

    Dimensions Dimension in mm [inch] R60726.0002 – Index 4 EN - page 58...
  • Page 59 Technical specifications Technical Specifications: Connections: Connector type: screw terminal, 1.5 mm² / AWG 16 Power supply (DC): Input voltage: 18 … 30 VDC Protection circuit: reverse polarity protection Consumption: approx. 100 mA (unloaded) Fuse protection: extern: T 0.5A Power supply (AC): Input voltage: 115 …...
  • Page 60 Kübler Group Fritz Kübler GmbH Schubertstrasse 47 78054 Villingen-Schwenningen Germany Phone +49 7720 3903-0 +49 7720 21564 info@kuebler.com www.kuebler.com R60726.0002 – Index 4 EN - page 60...
