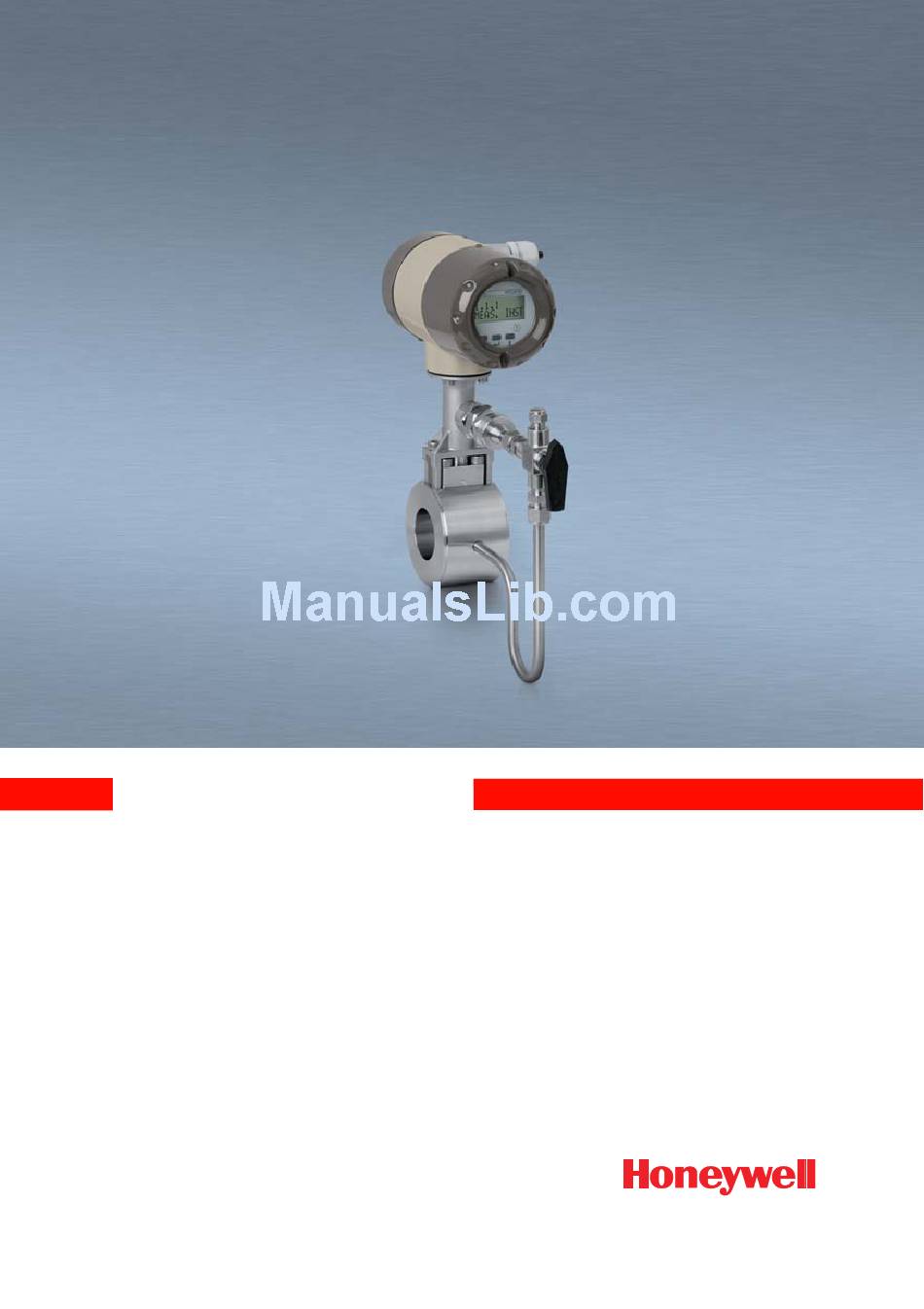

- Page 1 VERSAFLOW VORTEX Quick Start Vortex-flowmeter...
-
Page 2: General Safety Notes
VERSAFLOW VORTEX General safety notes You can find the newest and/or additional information on the CD-ROM provided, in the handbook, the datasheet, special manuals, certificates and the download center at www.honeywell.com/ps. Installation, mounting, commissioning, and maintenance can be performed only by trained personnel. Responsibility for suitability and intended use of this instrument rests solely with the user. -
Page 3: Visual Check
VERSAFLOW VORTEX Visual check • Check the consignment for damage. • Check the information on the nameplate against your order specifications. Scope of delivery Flowmeter in the version ordered Quick Start directions Certificates, calibration report and parameter datasheet CD with complete documentation Bar magnet www.honeywell.com/ps... -
Page 4: Permitted Temperature Ranges
VERSAFLOW VORTEX Transportation Permitted temperature ranges Max. medium temperature see tech. datasheet Max. storage temperature and ambient temperature Ambient temp.: Ex devices -20...+65°C, non Ex devices -40...+85°C Storage temperature: -50...+85°C Protect device from direct exposure to sunlight 34-VF-25-56 iss.1 GLO Sept 07 US... -
Page 5: Preferred Installation Locations For The Signal Converter
VERSAFLOW VORTEX Preferred installation locations for the signal converter Above a horizontal pipe Below a horizontal pipe On a vertical pipe Thermal insulation Max. height of insulation up to intermediate piece between measuring sensor and signal con- verter Max. thickness of the insulation up to the bend of the pressure pipe Insulation www.honeywell.com/ps... -
Page 6: Minimum Inlet Runs
VERSAFLOW VORTEX Minimum inlet runs General inlet run without disturbing flow ≥ 20 DN Behind a control valve ≥ 50 DN After a pipe diameter reduction ≥ 20 DN 34-VF-25-56 iss.1 GLO Sept 07 US... - Page 7 VERSAFLOW VORTEX After a single bend 90°≥ 20 DN After a double bend 2x90° ≥ 30 DN After a double three-dimensional 2x90° bend ≥ 40 DN www.honeywell.com/ps...
-
Page 8: Minimum Outlet Runs
VERSAFLOW VORTEX INFORMATION! If a flow straightener is installed, the required inlet run is shortened. Straight inlet run upstream of straightener ≥ 2 DN Flow straightener Straight pipe run between flow straightener and flowmeter ≥ 8 DN Minimum straight outlet run ≥ 5 DN Minimum outlet runs Upstream of pipe expanders, pipe bends, control valves, etc. -
Page 9: Piping With Control Valves
VERSAFLOW VORTEX Piping with control valves Recommended: Installing the flowmeter upstream of the control valve, distance ≥ 5 DN Not recommended: Installing the flowmeter directly downstream of control valves, due to vor- tex formation. Vapor and gas measurement CAUTION! Prohibited: Installing the flowmeter in a lower pipe bend 1, risk of condensate formation 2! Lower pipe bends Condensate... -
Page 10: Liquid Measurement, Prohibited Installation Locations
VERSAFLOW VORTEX Liquid measurement, prohibited installation locations CAUTION! Prohibited: Installing the flowmeter in an upper pipe bend 1, risk of gas bubbles forming! CAUTION! Prohibited: Installing the device in a downstream pipe upstream pipe of a run-out 4. There is the risk of a partially-filled pipe! 34-VF-25-56 iss.1 GLO Sept 07 US... -
Page 11: Liquid Measurement, Recommended Installation Locations
VERSAFLOW VORTEX Liquid measurement, recommended installation locations CAUTION! It is absolutely necessary to maintain the required inlet and outlet runs! Recommended: If the flowmeter is installed in a downpipe, it is absolutely essential to install a riser pipe immediately after it. Recommended: Installing the flowmeter in an inclined riser pipe. -
Page 12: General Installation Instructions
VERSAFLOW VORTEX General installation instructions CAUTION! Make sure that the connection flanges are sitting concentrically. On metering points with varying thermal loads the flowmeters are to be mounted with stress bolts (DIN 2509). Installed length of flowmeter + thickness of gaskets. 34-VF-25-56 iss.1 GLO Sept 07 US... - Page 13 VERSAFLOW VORTEX CAUTION! The inside diameters of the connection pipe flange, of the flowmeter and of the gaskets must be the same! The gaskets must not project into the pipe cross-section. Internal diameter connection pipe Internal diameter flange and gasket Internal diameter measuring sensor www.honeywell.com/ps...
-
Page 14: Installing Instruments In Flange Design
VERSAFLOW VORTEX Installing instruments in flange design Install the flowmeter as follows: • Fix the flowmeter to one side of a flange using bolts and fixing nuts 2. • Insert the gaskets between sensor and flange and align them. • Check that the gaskets are concentric;... -
Page 15: Installing Instruments In Sandwich Design
VERSAFLOW VORTEX Installing instruments in sandwich design Install the flowmeter as follows: • Push the first bolt through hole of both flanges. • Screw on the nuts with washers at both ends of the bolt but do not tighten them. •... -
Page 16: Turning The Connection Housing
VERSAFLOW VORTEX Turning the connection housing DANGER! All work on the flowmeter electrics may only be carried out by appropriately trained personnel. The regional occupational health and safety directives and safety regulations must be observed without exception. Do not damage the electrical cable by over tightening. Do not undo the electrical plug connection. -
Page 17: Turning The Lcd Display
VERSAFLOW VORTEX Turning the LCD display INFORMATION! If the flowmeter is installed in a vertical pipe, you have to turn the display by 90 ; if installed below a pipe, turn 180 ° ° Turn the display as follows: • Switch off the power supply to the flowmeter. -
Page 18: Protection Category
VERSAFLOW VORTEX Protection category DANGER! The flowmeter meets the requirements of protection category IP After all servicing and maintenance work on the flowmeter, the specified protection category has to be ensured again. Therefore it is essential to observe the following points: •... -
Page 19: Electrical Connections Of The Signal Converter
VERSAFLOW VORTEX Electrical connections of the signal converter Housing cover of the electrical terminal compartment Electrical connection terminals with the housing cover open Terminal A Current output - Terminal A+ Current output + Terminal B Pulse output - Terminal B+ Pulse output + PE terminal in housing PE terminal on connection piece between measuring sensor and signal converter. -
Page 20: Electrical Connection For Current Output
VERSAFLOW VORTEX Electrical connection for current output The maximum load resistance R is calculated as follows: 14 V 22 mA Power supply Optional amperemeter Load 34-VF-25-56 iss.1 GLO Sept 07 US... -
Page 21: Electrical Connection Pulse Output
VERSAFLOW VORTEX Electrical connection pulse output Power supply Optional amperemeter Load e.g. counter www.honeywell.com/ps... - Page 22 VERSAFLOW VORTEX 34-VF-25-56 iss.1 GLO Sept 07 US...
- Page 23 VERSAFLOW VORTEX www.honeywell.com/ps...
- Page 24 VERSAFLOW VORTEX Honeywell Field Solutions 512 Virgina Drive Fort Washington, PA 19034 www.honeywell.com/ps 34-VF-25-56 iss.1 GLO Sept 07 US...
