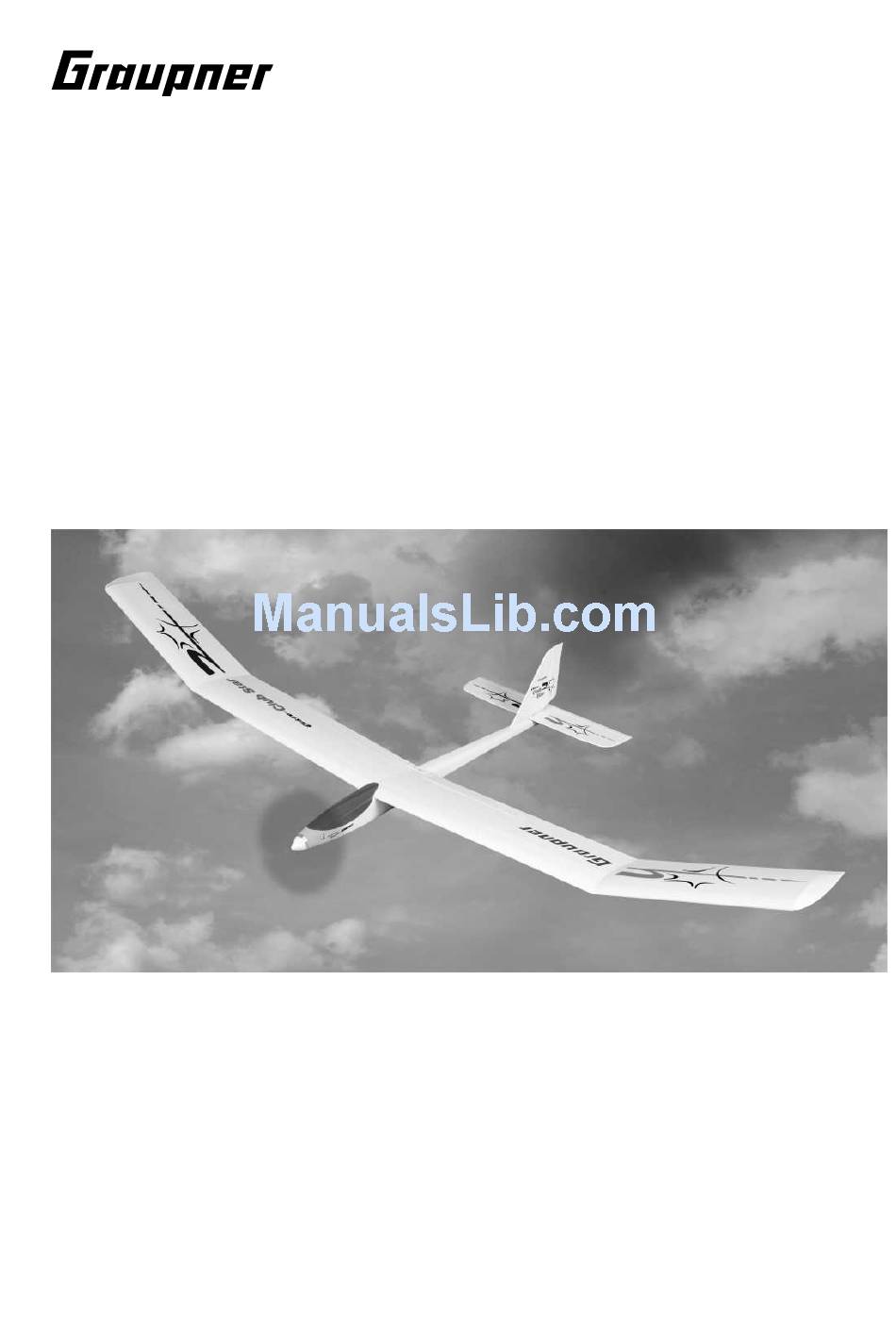

Order No. 4547
4548
INSTRUCTIONS

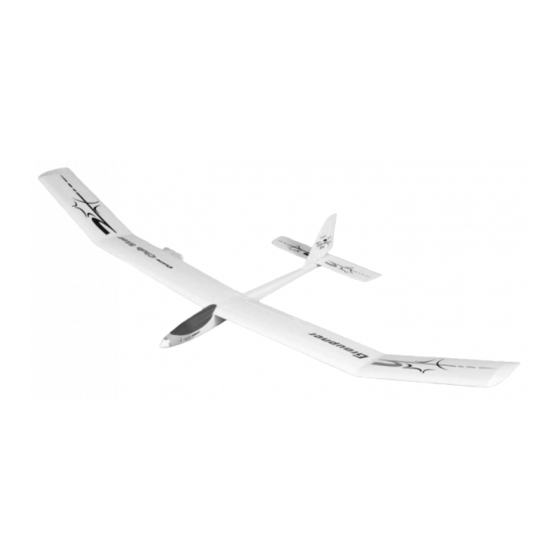

CLUB STAR II
Glider and
Electric
For electric power system and 2 or 3 LiPo cells
This model requires a four-function radio control system
GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors Id. No. 0061845
04/2010
1
Advertisement
Related Manuals for GRAUPNER CLUB STAR II
Summary of Contents for GRAUPNER CLUB STAR II
- Page 1 Glider and Electric For electric power system and 2 or 3 LiPo cells This model requires a four-function radio control system GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845 04/2010...
-
Page 2: Specification
The CLUB STAR II features a GRP fuselage, while the wing and tail panels are of balsa construction: ribs and spars for the wing, laser-cut strip tail construction. - Page 3 Never operate your model over public roads, paths or squares, close to buildings or in the vicinity of high-tension overhead cables. Never fly your CLUB STAR II in a nature reserve or protected area, and take care not to harm animals and plants which live in the countryside.
- Page 4 Slide the joiner rube (15) into the appropriate hole; leave it projecting by about 5 - 6 mm. Cut the aluminium pivot tube (14) to length (approx. 400 mm) and slide it GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 5 Clamp the sheet panel to the spar using a packing strip to avoid damaging the surface. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 6 (4). Glue the root facing rib (4.1) to the bevelled face of the triangular strip (26). GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 7 Allow the glue to set hard, then pin down the airbrake on the building board and glue the leading edge sealing strip (27) to it. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 8 Cut a slot in the triangular strip and the rib to clear the tip dihedral brace (43), and check that it is a snug fit. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 9 Sand the tailplane mounting doubler (55) to the shape shown, and glue it to the top surface of the tailplane, as shown on the plan. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 10 Trial-fit the fin in the slot in the fuselage (71), and file out the slot if necessary. Drill 3.2 mm Ø holes in the tailplane for the retaining screws; see picture and plan. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 11 (check also that the wing is exactly central). GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 12 0.5 mm wide, again using cyano. Fix the tailplane to the fuselage using the plastic M4 x 20 retaining screws (73). GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 13 Cut the snake outer sleeves to the lengths shown in the picture. Fit the servos in the openings, drill the pilot-holes, and screw them in place. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 14 Glue the horn and the spreader plate to the control surface. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 15 (77) and retain them with the plastic nuts (78); check that they ro- tate smoothly, but without lost motion. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845 04/2010...
- Page 16 “sprung” in order to fit the canopy. The wire latch should end flush with the canopy at the front end. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 17 Velcro tape. Route the receiver lead to the receiver, and connect the other lead to the battery. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 18 Now all that remains is for all of us to wish you many hours of pleasure flying your CLUB STAR 2. Yours - the team ! GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845 04/2010...
- Page 19 Balsa 2, laser-cut Balsa 2, laser-cut Balsa 2, laser-cut Balsa 2, laser-cut Balsa 2, laser-cut Balsa 2, laser-cut Balsa 2, laser-cut GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845 04/2010...
- Page 20 Plastic Ready made Ball-end bolt Metal Ready made Spreader plate Plastic Metal Grubscrew Metal M2 x 3 Pushrod Metal 0.8 Ø GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845 04/2010...
- Page 21 Unless otherwise prescribed by binding law, the obligation of the GRAUPNER company to pay compensation, regardless of the legal argument employed, is excluded. This includes personal injury, death, dam-...
- Page 22 Costs of transport, packaging, freight and journeys are payable by the purchaser. We accept no liability for transport damage. Please send the offending item to GRAUPNER or to the approved service centre for your country, and include a concise, accurate description of the fault together with the dated purchase invoice.
- Page 23 Be sure to use only those parts included in the kit, together with other genuine Graupner accessories and replacement parts as recommended expressly by us. Even if you change a single component you can no longer be sure that the system will work reliably, and such changes also invalidate your guarantee.
- Page 24 Do not switch on the electric motor unless you are sure that there is nothing in the rotational plane of the propeller. Never attempt to stop the spinning propel- GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
- Page 25 If you take reasonable care, model flying is a highly creative, instructive, enjoyable and relaxing pastime. Notes on building and flying the CLUB STAR II Before you start construction: When you are buying a radio control system it is important to ensure that the trans- mitter and receiving system are designed for use with model aircraft, and are ap- proved by your national Post Office approvals authority.
- Page 26 Ask your local authority if you are not sure of its location. GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors Id. No. 0061845...
