Sample Network Confi guration

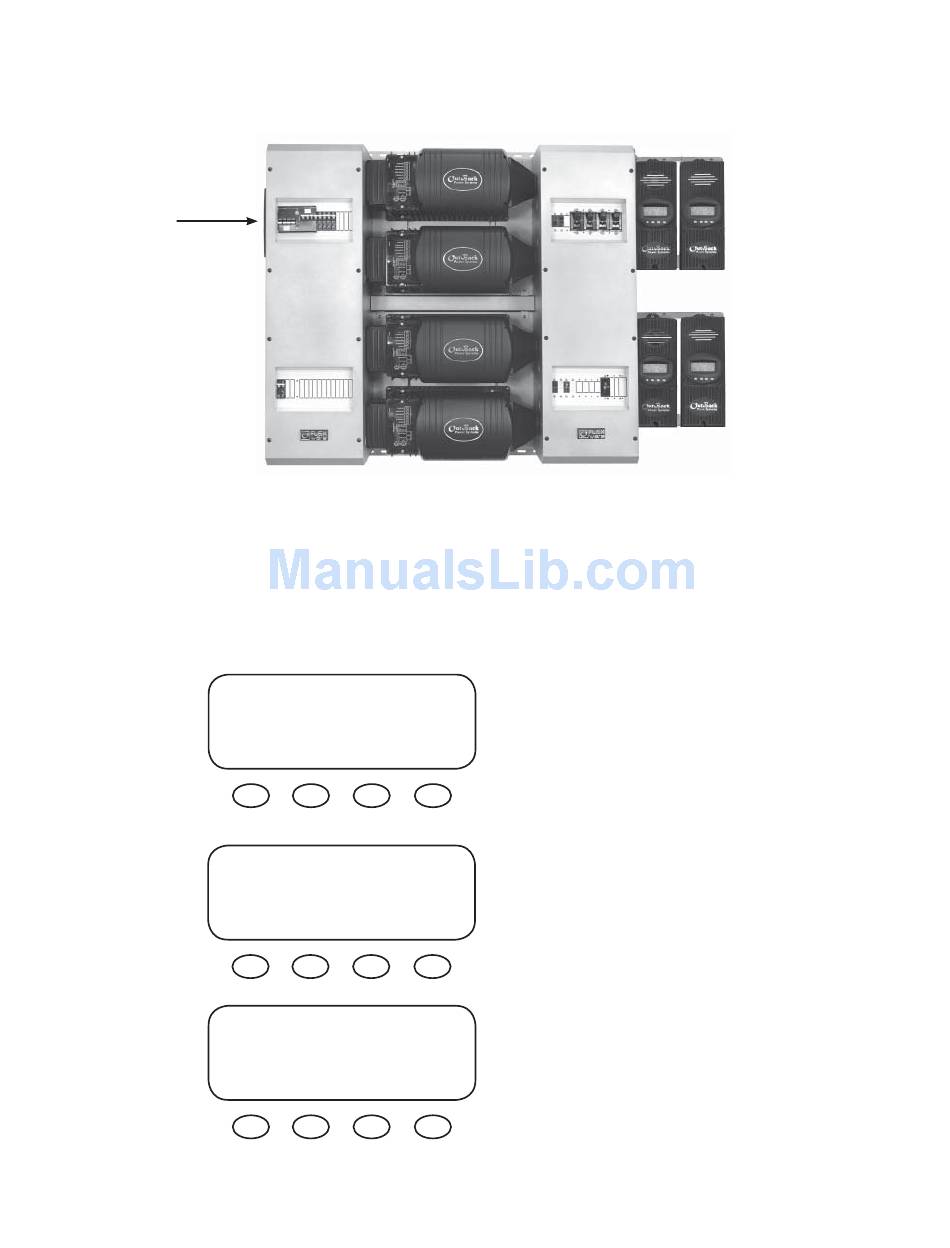

HUB 10 fastened to
side of FLEXware
1000 AC
Enclosure
OutBack HUB 10 connected to four FX Series Inverter/Chargers and four Charge Controllers
MATE Power Up
As soon as the MATE cable is plugged into a powered OutBack product, the MATE itself will power-up
and display several information screens.
Code 4.0.5
Serial #: 00000000
Screen EE 4.2.3
FLEXware 1000 System
G'day Mate
(C) 2008
OutBack
Power
Systems
Version
OxBF5B
First Screen
Second Screen
Third Screen
• "Code" dictates the MATE's operation and
features
• "Serial #" matches the bar code sticker inside
the MATE, behind the back cover
• "Screen EE" refers to the MATE's menu system
