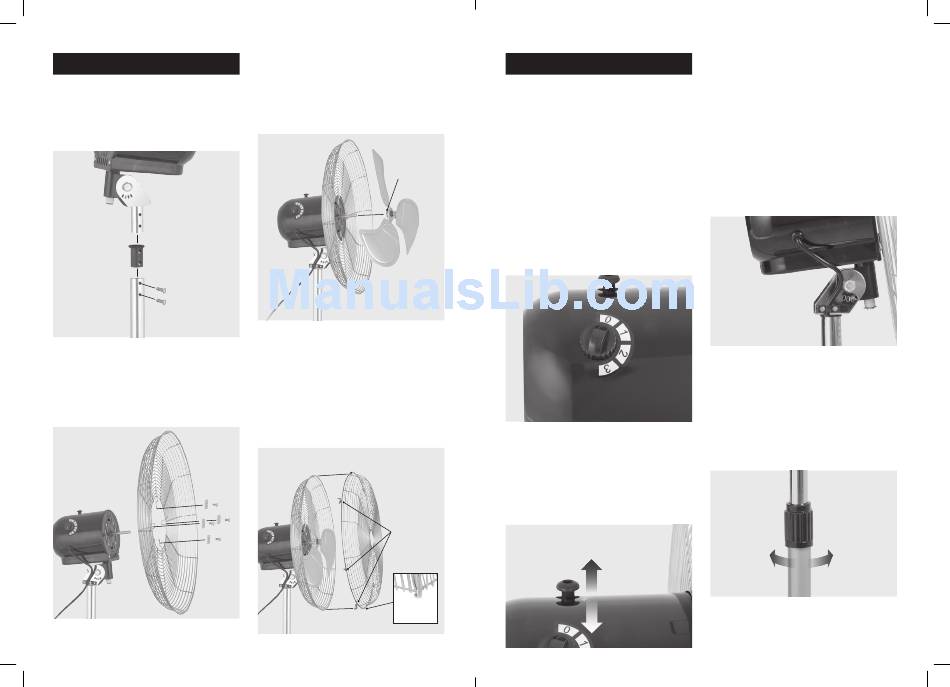

ASSEMBLY
4. Remove the 2 pole screws from the
motor connector, place the motor
connector into the inner pole and
secure into position by replacing pole
screws and tightening securely.
Figure 5
Motor Connector
Inner Collar
Pole Screws
5. Remove the 4 screws and washers
located on the front of the motor
unit. Place the rear grille into
position on the motor unit (handle
up), then secure in position with the
4 screws and washers provided.
Figure 6
Grill Screws
& Washers
Rear Grille
6. Place the fan blade onto the
motor shaft, aligning the flat on
the shaft with the fan blade screw.
Securely tighten the fan blade screw.
Figure 7
Fan Blade
Screw
Fan Blade
7. After loosening, remove the fixing
screw and nut from the front grille.
Place the front grille over the rear
grill, press grille retaining clips into
position, then tighten grille fixing
screw and nut. Ensure that the fan
blade is completely enclosed and the
complete grille is securely in position.
Figure 7
Front Grille
Grille Retaining
Clips (6)
Grille Fixing
Screw & Nut
6
OPERATION
Make sure that you read all of the safety
warnings before you operate this unit for
the first time.
Plug the unit to a standard mains socket
and turn on the mains switch.
Off / Speed Switch
1. Turn the rotary switch on the top of
the motor unit to select between fan
speeds: 0 (OFF),1, 2 or 3.
0= Off
1= Low Speed
2= Medium Speed
3= High Speed
Figure 8
Oscillation Control
2. Push the oscillation knob downward
to allow the motor unit to oscillate
horizontally through approximately
90° angle. Lift oscillation knob
upward to turn off oscillation mode.
Figure 9
OFF
ON
CPIN002693
Vertical Direction of Motor Unit
3. The vertical direction of the motor
unit can be adjusted by tilting the
complete head unit (incorporating
motor unit and assembled grille)
forward or back ward until the
desired direction is reached. Note
that stepped positions are obtained
within the neck locating mechanism
of the motor connector.
Figure 10
Height Adjustment
4. The fan height can be adjusted by
loosening the height adjustment
fastener, lifting the inner pole (with
attached motor unit), and then
tightening the height adjustment
fastener when the desired height
is obtained.
Figure 10
Tighten
Loosen
