Arlec APF107 Operating Instructions page 3

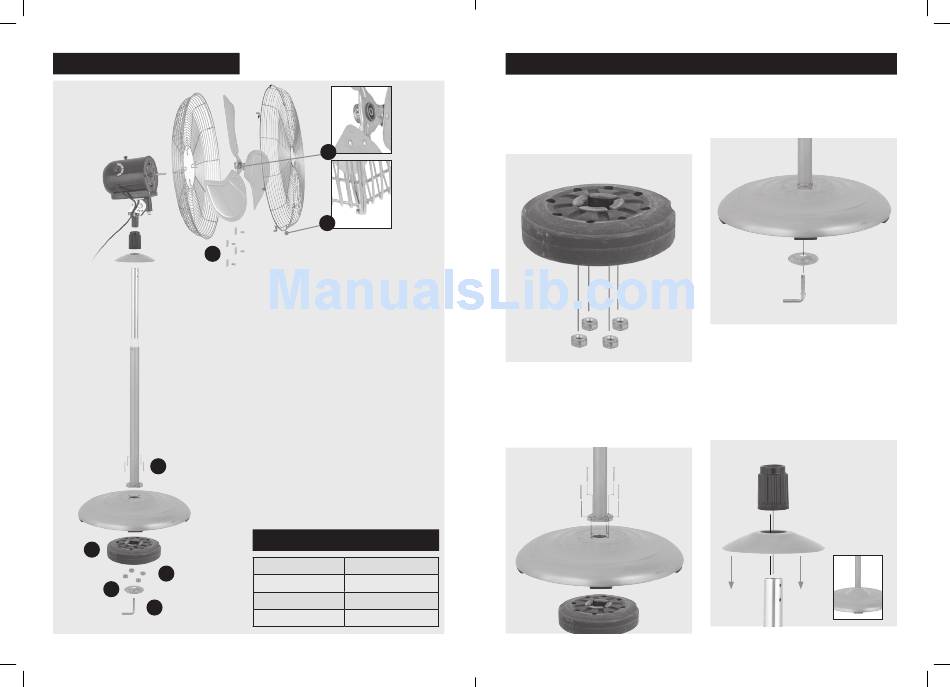

EXPLODED DIAGRAM
6
1. Base fixing device
2. Base fixing washer
3. Base weight fixing nuts
4. Base weight
5. Pole screws
6. Rear grille screws
7. Grille fixing screw & nut
8. Fan Blade Screw
5
4
Model No
3
Rated Voltage
2
Rated Frequency
1
Power
4
8
7
and washers
TECHNICAL SPECIFICATIONS
APF107
220-240V a.c.
50Hz
130W
ASSEMBLY
1. Remove all the sub assemblies
from the box.
2. Place the base weight fixing nuts into
the holes at the bottom of the heavy
weight (Fig.1).
Figure 1
Base Weight
Base Nuts
Place the base weight fixing screws
one by one through the holes in the
outer pole flange and base, making
sure that all of the screws, holes and
nuts are aligned before tightening.
(Fig .2).
Figure 2
Pole Screws
Base
Base Weight
CPIN002693
Place the base fixing device through
the base fixing washer into the outer
pole (Fig.3), ensuring that the
assembled base is stable.
Figure 3
Base Fixing
Washer
Base Fixing
Device
3. After loosening the height adjustment
fastener and removing it from the
outer pole, slide the base cover onto
the base of the outer pole. Replace
and secure the height adjustment
fastener into position again. Now the
assembly of the fan base with pole
has been completed.
Figure 4
Height
Adjustment
Fastener
Base Cover
Pole
5
