Arlec DCF6060 Assembly And Installation Manual

INSTALLATION
RECORD FORM
Please Complete This Form For Your Records
NOTE: SEND TO ARLEC FOR WARRANTY CLAIMS ONLY.
A WARRANTY WILL ONLY BE ACCEPTED IF ACCOMPANIED BY THE FOLLOWING:
1. A completed copy of this form.
2. Proof of purchase.
3. Proof of installation by a licenced electrical contractor.
Please retain all invoices and, if provided for by law, electrical certificate(s) as proof that a qualified
installer has performed this installation.
The installer can assist you in completing this form (please use block letters).
Insufficient or illegible information will delay your warranty claim.
CUSTOMER (OR TENANT) ACTUAL INSTALLATION ADDRESS DETAILS:
Name: .....................................................................................................................................................................
Address: ..................................................................................................................................................................
Unit/Lot Number: ...................................................................................................................................................
Suburb: ............................................ ............................Postcode:..........................State: ......................................
Telephone: ....................................... Mobile: ...............................................Fax: ...................................................
Email: ......................................................................................................................................................................
Alternative contact name: ......................................................................................................................................
Telephone: .....................................................................Email: ..............................................................................
WARRANTY ISSUE: ......................... ......................................................................................................................
PRODUCT PURCHASE DETAILS:
Date of Purchase: ..........................................................Model No. (as shown on product): .................................
Electricians Detail ..................................................................................................................................................
Company/Business Name and Address: ...............................................................................................................
Telephone: ....................................... Mobile: ..................................................Fax: ................................................
Electricians Name: ........................................................Registered Contractor No: .............................................
TO MAKE A WARRANTY CLAIM:
Please send a copy of this record form,
Phone us on: (03) 9982 5111
a copy of your purchase receipt and
New Zealand Toll Free: 0800 003 329
a copy of your certificate of electrical
Fax the above details (toll free) to: 1300 360 650
compliance from a licenced electrical
Email (preferred, so we can answer) to: custservice@arlec.com.au
contractor, plus your name, physical
site address and contact phone number.
CARE & CLEANING
Periodic cleaning of your new ceiling fan is the only BUMPS-IN-THE-NIGHT
maintenance that is needed. Use a soft brush or lint
This is the biggest cause for service calls which are
free cloth to avoid scratching the finish.
outside the manufacturer's warranty. If a fan has a
Do not use water when cleaning your ceiling fan, it fault, it will be noticeable at all times. Naturally
could damage the motor or the wood blades and when everything is quiet at night, you will be more
create the possibility of an electrical shock. inclined to hear small noises which may not be
noticeable at other times. Even slight power
Motor has permanently lubricated ball bearings. No
fluctuations, and mains frequency signals
need to oil.
superimposed in you electricity supply for off-peak
This fan is not intended for use by young children or
hot water control may cause a change in fan motor
infirm persons without supervision.
noise. This is normal.
Do not allow young children to play with the fan.
SUMMER/WINTER OPERATION
WOBBLE
The fan incorporates a reversing switch. Open the
Ceiling fans tend to move during operation due to
battery compartment and the switch is located just
the fact that they are not generally rigidly mounted -
above the battery housing. With the switch set to the
if they were, they could generate excessive ceiling
position marked "S" i.e. Summer air flow is directed
vibration and stress on their mountings. downwards. This is best for summer cooling. With
the switch set to the position marked "W" i.e. Winter
Movement of a couple of centimetres is quite OK and
airflow is directed upwards. This is best for winter
does not suggest the fan will fall down.
operation, assists in moving air around the room,
Ceiling fans are mounted very securely on steel
makes heating more efficient.
brackets with rubber cushioning or with ball joints
Turn the fan OFF before you change the switch
to allow free movement.
position.
Please note that all ceiling fans are not the same,
even in the same model - some may move more or
less than others.
The following procedures should eliminate any
wobble. Check for wobble after each step. It is
impossible to eliminate wobble completely.
A Check that all blade brackets are tightened
securely.
B Most wobble problems result from inconsistent
blade level. To check blade level, measure the
distance from each blade tip to the ceiling. If
measurements are inconsistent, adjustments of
brackets will be required.
C Wobble problem could also result from deviations
in distance from blade to blade. To check blade
separation, measure the distance from blade tip
to blade tip. Should measurements vary, loosen
screws connecting blades and brackets (one at a
time) then shift blade to proper position and
re-tighten screws.
NORMAL WEAR AND TEAR
Threaded components working slightly loose or
blade carriers even slightly bent due to vigorous
cleaning or bumping can cause extra wobble and
noise. This is not covered under guarantee - but a
little care and maintenance can reduce or prevent
this problem.
TROUBLE SHOOTING CHECKLIST
Trouble Problem Cause Suggested Remedy
Fan will not start a Fuse or circuit breaker blown a Check main and branch circuit fuses
b Loose power line connections or circuit breakers.
b Check line wire connections to fan.
to the fan.
c Reversing switch (where c Push switch either fully up or down.
applicable) neither up or down.
Fan wobbles a Fan blades not horizontal a Measure from ceiling to tip of blades, then rotate
to ceiling. fan so all 6 blades are checked for equal height
from ceiling.
(Note: adjustments may be made by slight
pressure up or down on blade holders)
b Blade screws are loose. b Make sure all screws are securely fastened.
Fan sounds noisy a Loose fan blade screws. a Re-tighten all screws on fan blades but never
over-tighten.
b Ceiling fan not secured b Re-tighten all screws in the hanging bracket
against ceiling. or plate.
Mechanical Noise a Allow for at least 8 hours settling-in period.
WARRANTY
Arlec also warrants to the original first purchaser of this product For goods purchased in Australia (only):
(you) from a retailer with which this document is given
The Warranty is in addition to other rights and remedies you
that this product will be free of defects in materials and
may have under a law in relation to the product to which the
workmanship for a period of 12 months from the date of
Warranty relates.
purchase; provided the product is not used or installed other
Our goods come with guarantees that cannot be excluded
than for the purpose, or in a manner not within the scope
under the Australian Consumer Law. You are entitled
of the recommendations and limitations, specified by Arlec,
to a replacement or refund for a major failure and for
is new and not damaged at the time of purchase, has been
compensation for any other reasonably foreseeable loss or
properly installed by a licensed electrician or contractor who
damage. You are also entitled to have the goods repaired or
is licensed to install electrical products in the place in which
replaced if the goods fail to be of acceptable quality and the
the product was installed and in accordance with Arlec's
failure does not amount to a major failure.
installation instructions, has been maintained in accordance
For goods purchased in New Zealand (only):
with the recommendations specified by Arlec, has not been
The Warranty is in addition to, and does not affect, other
subjected to abuse, misuse, neglect or damage, has not been
rights and remedies you may have under a law in relation to
modified or repaired without the approval of Arlec and has
the product to which the Warranty relates.
not been used for, or installed in premises which are used
Our goods may come with guarantees that can only be
for, commercial purposes (Warranty).
excluded under the New Zealand Consumer Guarantees
If you wish to claim on the Warranty, you must, at your own
Act 1993 to the extent you are acquiring the product for a
expense, return the product or that part of the product which
business purpose and it would be fair and reasonable for
you believe is defective in materials and workmanship, and
Arlec to contract out of those guarantees.
provide proof of original purchase, your name, address and
telephone number and a certificate of installation or other
document required by law for the installation of electrical
products in the place in which the product was installed
issued by the licensed electrician or contractor who installed
the product, to Arlec at the address below within 12 months
Arlec Australia Pty. Ltd. ACN 009 322 105 gives the
from the date of purchase. Please note that the Warranty
Warranty for goods purchased from a retailer in
does not cover removal or
Australia by you and Arlec New Zealand Limited NZBN
re-installation of the product or that part of the product
9429030738294 gives the Warranty for goods purchased
which you believe is defective.
from a retailer in New Zealand by you (collectively Arlec).
Arlec will assess any claim you may make on the Warranty in
Arlec's telephone number, address and email address for
the above manner and if, in Arlec's reasonable opinion, the
purposes of giving the Warranty are:
Warranty applies, Arlec will at its own option and expense
Telephone Number: (03) 9982-5111 (in Australia)
replace the product (or part of the product) with the same or
0800 003 329 (in New Zealand)
similar product (or part of the product) or repair the product
(or part of the product) and return it to you or refund the Street Address: Building 3, 31-41 Joseph Street, Black-
price you paid for the product. Arlec will bear its own burn North, Victoria, 3130, Australia
expenses of doing those things, and you must bear any other Postal Address: Blackburn North LPO, P.O. Box 1065,
expenses of claiming on the Warranty.
Blackburn North, 3130, Australia
Email: custservice@arlec.com.au
6
DCF6060 Instructions A5 x 8 pages CPIN003215

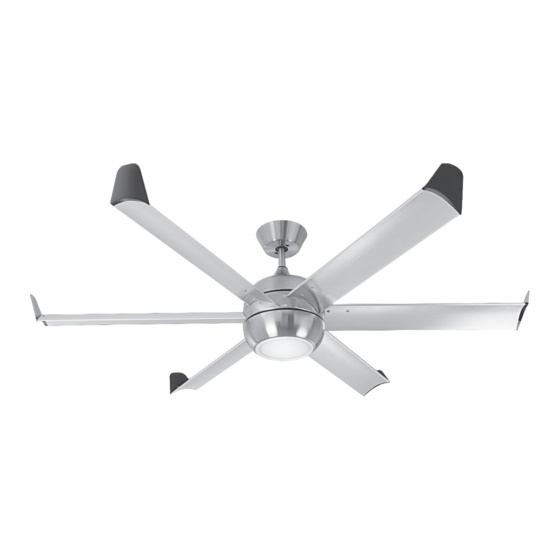

6 BLADE 150cm
CEILING FAN
.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
MOLOCH
Note: This fan must be installed by a license electrical contractor.
Improperly installed ceiling sweep fans can be Warning:
dangerous and expensive to repair and will void This appliance is not intended for use by persons
guarantee. (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
This fan is designed for indoor use only. Do not
knowledge, unless they have been given supervision
mount in positions where fan is subject to water
or instructions concerning use of appliance by a
or moisture.
person responsible for their safety.
The fan must be installed so that the blades are
Children should be supervised to ensure that they
greater than 2.1 metres from floor.
do not play with the appliance.
All wiring must comply with the requirements of
Australian and New Zealand Standard AS/NZ 3000.
The fan blades supplied for this fan are matched to
minimize wobble. If installing more than one fan do
not mix blade sets.
CPIN003215
MODEL NO
DCF6060
