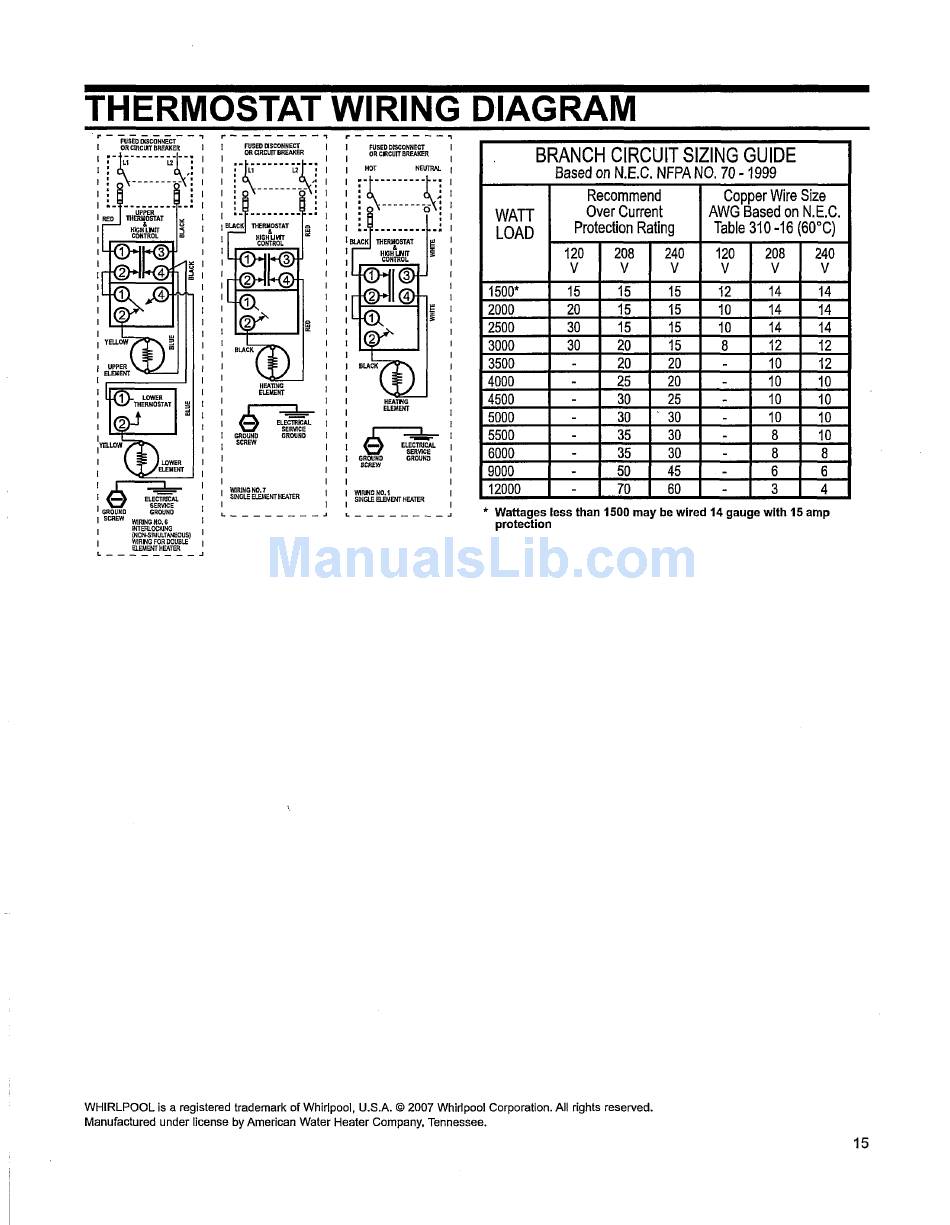

THERMOSTAT WIRING DIAGRAM
ELE~AL
GROUND
GROtIND
GR~N9
GROUND
SCREW
BRANCH CIRCUIT SIZING GUIDE
WATT
LOAD
Based on N.E.C. NFPA NO, 70- 1999
Recommend
Copper Wire Size
Over Current
AWG Based on N.E.C.
Protection Rating
Table 310 -16 (60°C)
120
208
240
120
208
240
V
V
V
V
V
V
1500"
15
15
15
12
14
14
2000
20
15
15
10
14
14
2500
30
15
15
10
14
14
3000
30
20
15
8
12
12
3500
20
20
10
12
4000
25
20
10
10
4500
30
25
10
10
5000
30
" 30
10
10
5500
35
30
8
10
6000
35
30
8
8
9000
50
45
6
6
12000
70
60
3
4
* Wattages less than 1500 may be wired 14 gauge with 15 amp
protection
WHIRLPOOL is a registered trademark of Whirlpool, U.S.A. © 2007 Whirlpool Corporation. All rights reserved.
Manufactured under license by American Water Heater Company, Tennessee.
15
