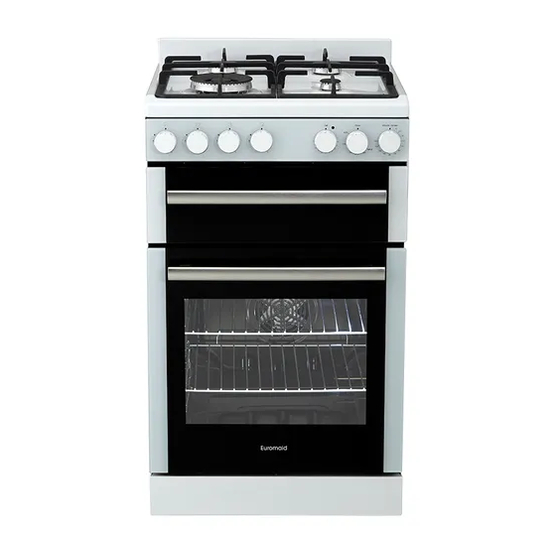

540mm Upright Cooker with GAS oven User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGO54W and is the answer not in the manual?

Questions and answers

Related Manuals for Euromaid FGO54W

Summary of Contents for Euromaid FGO54W

  • Page 1 540mm Upright Cooker with GAS oven User manual...

  • Page 2: Table Of Contents

    540mm Upright Cooker with GAS oven User manual contents Conditions of use ......................3 Safety precautions.....................3 Other important safety information ................4 Warnings for use of grill, oven, and appliance hob ...........4 Disposal of packaging ....................4 Installation, cleaning and servicing ................4 Product description ....................5 Controls ........................5 First time use the appliance ..................6 Oven shelf location ....................6...

  • Page 3: Conditions Of Use

    540mm Upright Cooker with GAS oven User manual We recommend that you read the instructions in this Manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance.

  • Page 4: Other Important Safety Information

    540mm Upright Cooker with GAS oven User manual This appliance must not be used as a space heater Do not obstruct the ventilation slots on front or back of appliance. Do not remove rating or warning labels or use abrasive/ corrosive cleaners on surfaces According to the electrical safety regulations the appliance equipment must be properly earthed.

  • Page 5: Product Description

    540mm Upright Cooker with GAS oven User manual  Gas models are NOT APPROVED for installation in marine craft, caravans or mobile homes. 1. Cast iron pan support (trivet) includes WOK trivet (not pictured) 2. Hotplate Burner with removable cap, distributor x 3.

  • Page 6: First Time Use The Appliance

    540mm Upright Cooker with GAS oven User manual • Sets “reminder” alarm count-down time that will have an audible sound when cooking time reached.  Ensure shelf orientation is correct (refer picture).  Slide into oven at an angle until raised back of shelf is past the stop on side runners. ...
  • Page 7 540mm Upright Cooker with GAS oven User manual Shelf position is counted from the bottom shelf up. Bottom shelf position is 1.

  • Page 8: Using The Oven

    540mm Upright Cooker with GAS oven User manual  Always follow the instructions for putting the shelves and side racks into the oven, to avoid accidents.  Do not line the oven with foil, it will damage the enamel.  Do not touch the hot surfaces or heating elements inside the oven.

  • Page 9: Oven Cooking Guide

    540mm Upright Cooker with GAS oven User manual the thermocouple to heat up and check that the burner has lit properly through the inspection hole B. The cooking temperature is set by turning the knob clockwise to the value required, between 50° and 231°. If the burner accidentally goes out, turn the knob to the off ( ) position and wait at least one minute before trying to relight it.

  • Page 10: Understanding Baking Problems

    540mm Upright Cooker with GAS oven User manual Fish Problem Causes What to do Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Remove oven tray. Use smaller trays or dishes Uneven cooking Trays not in centre Put trays in centre Oven fan causing uneven browning or...

  • Page 11: Using The Grill

    540mm Upright Cooker with GAS oven User manual Roast meat and potatoes Poor hot air circulation Elevate food onto a rack to allow air circulation not browning in fan oven Oven temperature is too low Increase temperature to 200 - 220 Not long enough in oven Continue cooking for another 15+ minutes ...
  • Page 12 540mm Upright Cooker with GAS oven User manual chops buckling...
  • Page 13 540mm Upright Cooker with GAS oven User manual The symbols on the control knobs mean the following: ● No gas flow Maximum gas flow Minimum gas flow NOTE: All operating positions must be set between the maximum and minimum flow settings, and never between the maximum setting and the closed position.
  • Page 14 540mm Upright Cooker with GAS oven User manual  Always make sure that the cooker is turned off before cleaning.  Always clean cooker immediately after use.  Do not use steam cleaners. These may cause moisture build-up.  Do not use caustic- based cleaners. These will damage aluminums parts, and remove enamel gloss. ：...
  • Page 15 540mm Upright Cooker with GAS oven User manual  Lift the grill tray out.  Clean the Grill Compartment with hot soapy water. If stronger action is needed use a nonabrasive oven cleaner applied with a nylon scourer.  Open the door fully. ...
  • Page 16 540mm Upright Cooker with GAS oven User manual  Clean the glass door using non-abrasive products or sponges and dry it with a soft cloth.  Do not use the oven without the inner door glass fitted.  Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

  • Page 17: Solving Problems

    540mm Upright Cooker with GAS oven User manual If you have a problem with your appliance, check the table below before calling service. You may be able to avoid a service call by and avoid unnecessary inconvenience and expense. For cooking problems, refer to Understanding Baking Problems. Problem Causes What to do...
  • Page 18 540mm Upright Cooker with GAS oven User manual Connecting appropriate power supply ` terminal board/ connector block:  Using a screwdriver ,prize open tabs of the Terminal board cover.  Remove the wire clamp screw.  Fasten the wires beneath the corresponding screw heads, using brass ‘bridge’ for single phase supply.
  • Page 19 540mm Upright Cooker with GAS oven User manual...
  • Page 20 540mm Upright Cooker with GAS oven User manual  Determine position of cooker and ant-tilt plate.  Securely fix the anti-tilt plate to the floor with appropriate fasteners.  Remove front kick plate to obtain access to stability bolt, by removing screws from top of the kick plate. Removing the oven door will make this procedure easier.
  • Page 21 540mm Upright Cooker with GAS oven User manual When packaging is removed from product you will notice there are several items nested in the packaging base. The burner crowns, burner caps and trivets to be fitted to the hob. ： ：...
  • Page 22 540mm Upright Cooker with GAS oven User manual assembly must be certified to AS/NZS 1869 class B or D, be of appropriate internal diameter for the total gas consumption, be kept as short as possible (not exceeding 1200mm), must not be in contact with the floor or any hot or sharp surfaces.
  • Page 23 540mm Upright Cooker with GAS oven User manual When the installation is complete, always performance a gas leakage check that all the unions are absolutely tight using a soapy solution. Never use a flame to make this check.

  • Page 24: Safety Warning About Installation

    540mm Upright Cooker with GAS oven User manual  The cooker must be installed and serviced only by an authorized person.  A certificate of compliance must be supplied by Installer and is to be kept by the customer.  The packing materials must be removed before you install the cooker.

  • Page 25: Testing The Operation Of The Gas Cooker

    540mm Upright Cooker with GAS oven User manual Gas leakage and operation of the appliance must be tested by the installer before leaving. Check all burner flames are blue in colour, stable and completely ignite at both high and low flame settings with no appreciable yellow tipping, carbon deposition, lifting, floating, lighting back or objectionable odour.

  • Page 26: Technical Specifications

    540mm Upright Cooker with GAS oven User manual Technical specifications Model FGO54W, GG54GOW oven capacity(L) grill capacity(L) voltage(v) 220-240 frequency (Hz) 50/60 circuit breaker(A) grill power（W） 1650-1800 product dimension（mm） 540*630*910 package size（mm） 636*740*976 gross/net weight（Kg） 49.5/57 Total Gas Consumption: Model...
  • Page 27 540mm Upright Cooker with GAS oven User manual THIS SECTION HAS BEEN LEFT BLANK INTENTIONALLY Distributed by Home Appliance Pty Ltd 20 Carlotta Street, Artarmon NSW 2064 AUSTRALIA After Sales Service – 1800 444 357 www.euromaid.com.au...
  • Page 28 540mm Upright Cooker with GAS oven User manual...
