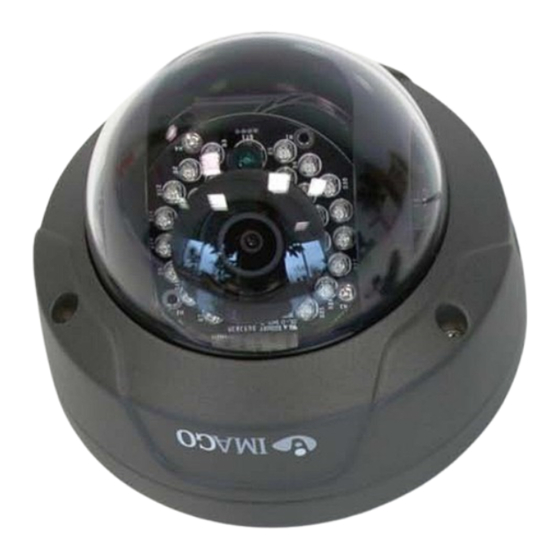

Quick Installation Guide for IMAGO camera model:
IVN-x2P3 NB 2.8
Thank you for purchasing the Imago IP Camera. For its proper installation, follow this short instruction and user
manual to ensure the trouble-free operation and long life of the camera. If you have any questions during the
installation or use of the product, contact the technical support of your supplier.
Package contents
•
Camera
•
Wrench for removing the camera case
•
Drill template
•
Set of wall plugs (ø 6 mm) and screws
•
Waterproof cap for RJ-45 connector
•
CD with recording software iVMS-4200, Camera Installation Wizard
Fig.1: Package contents
1
IMAGO IVN-x2P3 NB 2.8 – Quick Installation Guide
www.imago-video.com
Advertisement
Summary of Contents for IMAGO IVN-x2P3 NB 2.8
-
Page 1: Package Contents
IVN-x2P3 NB 2.8 Thank you for purchasing the Imago IP Camera. For its proper installation, follow this short instruction and user manual to ensure the trouble-free operation and long life of the camera. If you have any questions during the installation or use of the product, contact the technical support of your supplier. - Page 2 IMAGO IVN-x2P3 NB 2.8 – Quick Installation Guide Notice • The camera should be stored in a dry environment • Do not turn on the camera and do not work with voltage in a humid environment • Do not install cameras in a high humidity environment •...
- Page 3 IMAGO IVN-x2P3 NB 2.8 – Quick Installation Guide Fig.3: Camera interior with sensor module Fig. 2: Camera IVN-x2P3 NB 2.8 lock Fig. 4 Dismantled cap of the RJ-45 connector Fig. 5 Assembled cap of the RJ-45 connector The first access to the camera •...
-
Page 4: Restoring The Factory Settings
IMAGO IVN-x2P3 NB 2.8 – Quick Installation Guide User name: admin choose your own password when loging-in for the first time Password: • After logging in, use the "Settings" menu on the top bar and select the "Device Management" •...
