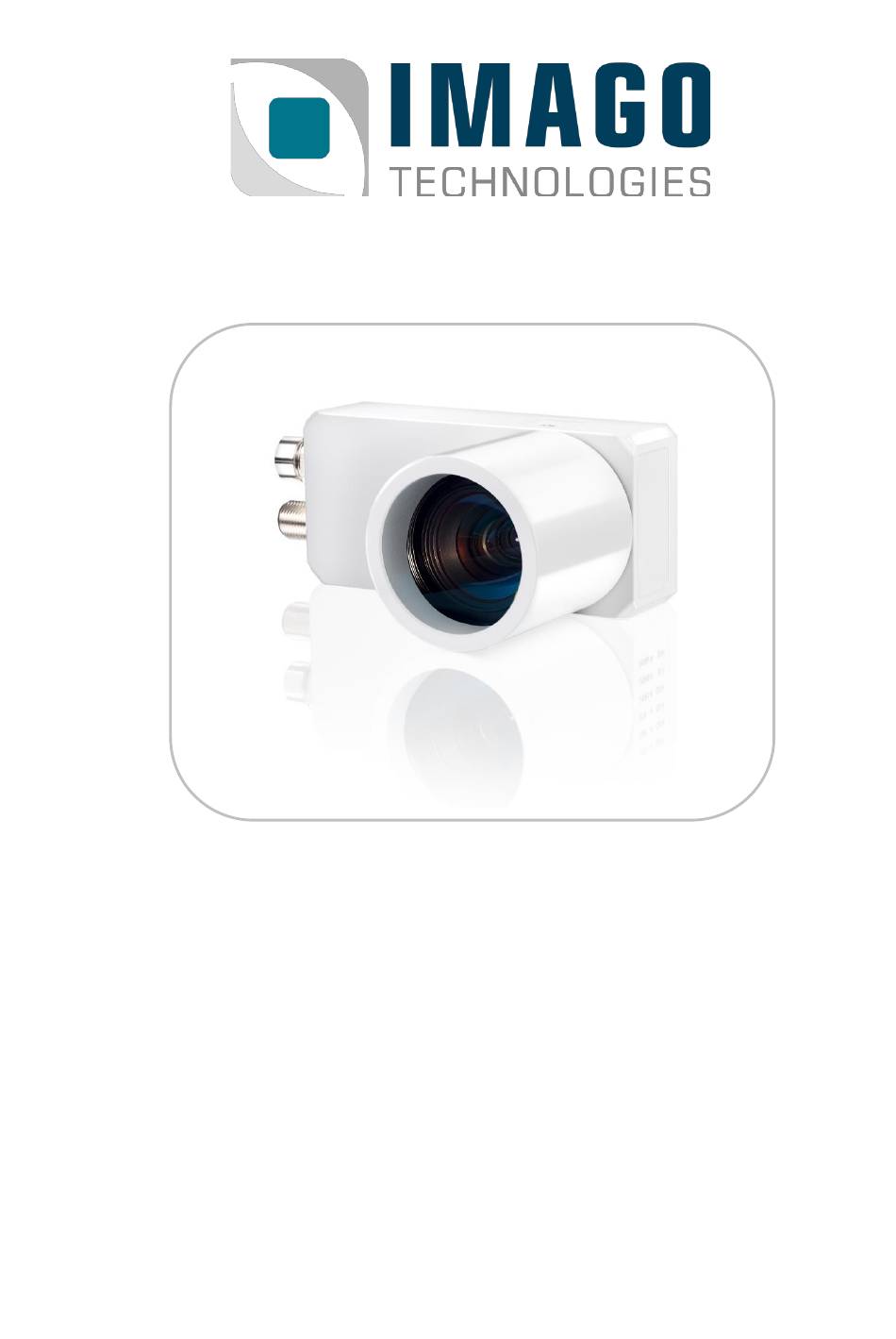

- Page 1 Hardware Manual Vision Cam XM2 Vision Cam LM2 Version 1.5 – March 2025...
-
Page 2: Table Of Contents
Sony IMX56x ........................22 Gpixel GL7004 ........................24 6 Mechanical Drawings ................26 Vision Cam XM2 – Standard model ................26 Vision Cam XM2 – D-Sub model ..................27 Vision Cam XM2 – Lens tubes ..................28 Vision Cam LM2 ........................ 29 7 Thermal Considerations ................ - Page 3 Contents Page 3 / 35 Length ............................33 7.1.4 8 Support ....................... 34 9 History ......................35 IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
-
Page 4: Handling And Safety Instructions
≤ 30 m. Only open the housing if advised by IMAGO! ➔ Warranty void if product is opened without authorization by IMAGO. Please take special note of the voltage range which may be applied to the device. Otherwise, permanent damage to the device may result! Due to the characteristics and physical principles of flash memories, SSDs have a finite lifetime depending on the number of write operations. -
Page 5: Introduction
The integrated Real-Time Communication Controller (RTCC) ensures proper timing for trigger signals, inde- pendently from the operating system. The IMAGO SDK provides a consistent C++ and Python programming interface for controlling the RTCC. Due to its small size, powered by 24 V and without fan, the Vision Cam can be mounted into nearly every... -
Page 6: Main Features
1× USB 2.0 RS-422 encoder input for Vision Cam LM2 and XM2 model “Line Scan” • Storage NVMe SSD 60 GB • Housing Passive cooling without heat sink IP65 versions available Lens mount: C-mount IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 7: Block Diagram
2 Introduction Page 7 / 35 Block Diagram Figure 1: Block diagram IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 8: Technical Data
3 Technical Data Page 8 / 35 3 Technical Data Configurations Vision Cam XM2 Vision Cam LM2 Standard Line Scan Gpixel GL7004 Sensor IMX56x Lince5M F-mount Lens mount C-mount Ethernet 1000BASE-T – M12 Digital I/O 4 × IN / 4 × OUT RS-422 4 ×... -
Page 9: Operating Conditions
-10 … +70 °C Storage humidity, relative, non-condensing 5 … 95 Device weight Vision Cam XM2 without lens / tube ≈0.34 Vision Cam LM2 without lens ≈0.65 Operating temperature: The maximum operating temperature depends on many parameters like the configured power mode, sys- tem workload, mounting situation, and environment. - Page 10 Output high voltage - 0.2 Supply RS-422: Parameter Min. Typ. Max. Unit Receiver differential input threshold -200 Receiver input hysteresis Receiver data rate Mbps 5 V encoder supply output current 12 V encoder supply output current IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
-
Page 11: Mass Storage
The time can be adjusted with Linux either manually, by an NTP server on the internet, or by a local NTP server. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 12: Interfaces
Pin 15 UART_SEL: controls UART routing, see section RS-232 (not available for Lince5M models). Pin 16 must be left open for normal operation. Connecting pin 16 to GND during power-on will put the device into USB recovery mode, see section USB. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 13: Digital I/O
Figure 2: Simplified digital I/O circuit The input signals use a Schmitt trigger circuit with the power supply GND as voltage reference. The digital output circuit uses open-emitter configuration. All outputs are internally supplied by the 24 V power input. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 14: Usb
Connecting pin 16 to GND during power-on will put the device into USB recovery mode. This is indicated by a green blinking power LED. Only use this mode if advised by IMAGO. Do not try to flash the Jetson OS image provided by NVIDIA! IMAGO Technologies GmbH info@imago-technologies.com;... -
Page 15: Gigabit Ethernet / M12
Pin Number Function Shielded cables are recommended, for example: Length Product IMAGO order code Phoenix contact 1407471 “NBC-MSX/ 1,0-94F/R4AC SCO” 10007049 Phoenix contact 1407472 “NBC-MSX/ 2,0-94F/R4AC SCO” 10007050 Phoenix contact 1407473 “NBC-MSX/ 5,0-94F/R4AC SCO” 10008076 IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 16: Status Leds
Page 16 / 35 Status LEDs Color Function Green Ethernet link is up Ethernet activity Green Power On Green USB recovery mode blinking Power off Green User LED 0 Green User LED 1 IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 17: Rs-422 / D-Sub 15Hd
Connector pins 5 and 15 provide a 5 V / 12 V power supply for RS-422 encoders. See chapter 3 for current limits. Do not insert a plug while the device is powered. There is a risk of making a short circuit on the supply output pins with the connector shield. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 18: Rs-232 / D-Sub 9 (Option)
GND reference. A null modem cable is required to connect the Vision Cam to another PC. Pin 15 UART_SEL on the I/O connector can be used to change the UART routing, see section RS-232. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 19: Image Sensors
5 Image Sensors Page 19 / 35 5 Image Sensors The following sensors are available for the Vision Cam XM2 / LM2: Teledyne Anafocus Sony Sony Gpixel IMX565 IMX567 GL7004 Lince5M Type Monochrome or Bayer pattern Quad color line sensor (RGBW) Optical 1”... -
Page 20: Teledyne Anafocus Lince5M
Digital Gain 0 … 8 Sensitivity 6 V / lux-s DSNU 50 e-/sec, 10 DN12/sec PRNU 0.5 % Dynamic Range 58 dB 42 dB Free Run, Trigger Modes SW-Trigger, HW-Trigger via RTCC Exposure Indicator output IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... - Page 21 Total Quantum Efficiency – Monochrome sensor Color Filter Response – Color sensor Note: The use of an IR cut‐off filter in the optical path is necessary to obtain good color separation when using light with an NIR component. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
-
Page 22: Sony Imx56X
Pixel Size 2.74 µm × 2.74 µm A/D Converter 10-bit, with linear or compressed mapping to 8 bit Analog Gain 0 … 24 dB Free Run, Trigger Modes SW-Trigger, HW-Trigger via RTCC Exposure Indicator output IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... - Page 23 Total Quantum Efficiency – Monochrome sensor Color Filter Response – Color sensor Note: The use of an IR cut‐off filter in the optical path is necessary to obtain good color separation when using light with an NIR component. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
-
Page 24: Gpixel Gl7004
… x4 (for each sensor line / color) Adjustable for compensation of physical displacement of Line delay the sensor lines. Horizontal: off / 2 / 4 Binning Vertical: off / 2 Free Run, Trigger Modes Trigger via RTCC Exposure Indicator output IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... - Page 25 5 Image Sensors Page 25 / 35 Spectral Response IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
-
Page 26: Mechanical Drawings
6 Mechanical Drawings Page 26 / 35 6 Mechanical Drawings Vision Cam XM2 – Standard model Figure 4: Dimensions for the Vision Cam XM2 (standard model) IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 27: Vision Cam Xm2 - D-Sub Model
A D-Sub connector is provided for the following VisionCam XM2 models: • VisionCam XM2 “Line Scan” with RS-422 interface: D-Sub 15HD • VisionCam XM2 with optional RS-232 interface: D-Sub 9 Figure 5: Dimensions for the Vision Cam XM2 with D-Sub connector IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 28: Vision Cam Xm2 - Lens Tubes
6 Mechanical Drawings Page 28 / 35 Vision Cam XM2 – Lens tubes Figure 6: Available tube heights for the Vision Cam XM2 IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 29: Vision Cam Lm2
6 Mechanical Drawings Page 29 / 35 Vision Cam LM2 Figure 7: Dimensions for the Vision Cam LM2 IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... -
Page 30: Thermal Considerations
CPU cores used and the frequency for CPU, GPU and other SoC units • Mechanical mounting situation • Environment: temperature and air flow More information about thermal trip points and Jetson Power Modes can be found in the Vision Cam XM2 Linux OS documentation available at https://api.imago.tech: • Thermal considerations •... -
Page 31: Mechanical Mounting Recommendations
Stainless steel (A2, A4 or SUS) is less suitable. Insulating materials like plastic or wood are not recom- mended. Figure 9: Material choice for the Vision Cam XM2 holder For applications where insulating materials are unavoidable, additional cooling may be necessary, e.g. by using active cooling. -
Page 32: Geometry / Contact Surface
Figure 12: Material thickness influence heat dissipation, thicker holder extends heat dissipation path Shorter conduction path between the device and installation results in better heat dissipation. Thin materi- als transport heat much faster than thick ones, therefore a mounting fixture should be as thin as possible. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com... - Page 33 4. When a holder is mounted onto low-conducting surface, the setup benefits from longer heat path to the surface (thicker and longer holder). 5. Heat sinks or active cooling is not necessary for most applications if the camera mount is designed properly. IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
- Page 34 8 Support Page 34 / 35 8 Support Finally, if you have any open questions, the IMAGO support team is happy to assist you in any cases. For direct contact to the support, please use our ticket system: https://imago.freshdesk.com The SDK documentation is available online: https://api.imago.tech...
- Page 35 Add Sony IMX56x models August 2024 Update chapters Thermal Considerations and RS-232 February 2024 Add section Thermal Considerations September 2023 Add missing information in section Operating Conditions Add mechanical drawing of Encoder Version. July 2023 Initial release IMAGO Technologies GmbH info@imago-technologies.com; www.imago-technologies.com...
