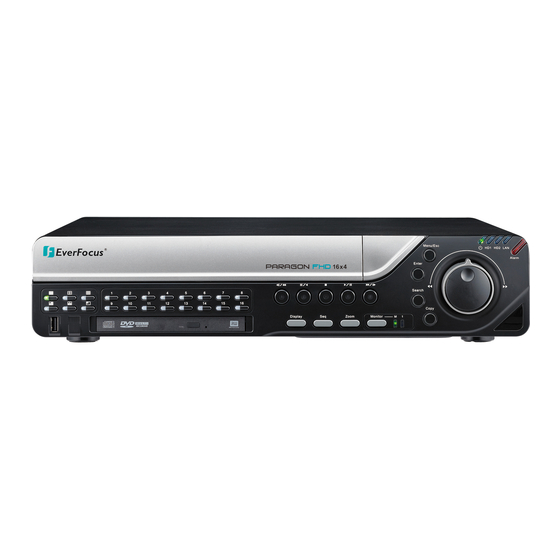

PARAGON FHD 16x4
16CH, H.264, 1080p Full HD DVR

Quick Installation Guide

Copyright © EverFocus Electronics Corp.
Release Date: May, 2016
This content is subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARAGON and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus PARAGON

Summary of Contents for EverFocus PARAGON

  • Page 1: Quick Installation Guide

    PARAGON FHD 16x4 16CH, H.264, 1080p Full HD DVR Quick Installation Guide Copyright © EverFocus Electronics Corp. Release Date: May, 2016 This content is subject to change without notice.

  • Page 2: Front Panel

    PARAGON FHD 16x4 1. Overview 1.1 Front Panel 19 20 No. Name Description Screen Layout Press the type of layout you want for displaying your channel feeds. Channel Press to display the channel in full screen. The LED indicates the 1~16 channel is displayed in full screen.
  • Page 3 PARAGON FHD 16x4 Use the Shuttle (outer wheel) to: • In Playback mode, use the Shuttle wheel for fast forward / fast Jog / Shuttle reverse. Wheel • Switch between Menu options / parameters. Shuttle • Highlight individual cameras. Use the Jog (inner wheel) to: •...

  • Page 4: Rear Panel

    PARAGON FHD 16x4 1.2 Rear Panel 10 11 Name Description Connects to the 100-240 VAC~ power using the supplied Power Power Port Power Switch Press to turn on or off the power. Connects up to 16 alarm inputs and 4 alarm outputs devices. You...
  • Page 5 PARAGON FHD 16x4 This can be used as a Call monitor output. Connects to the CVBS Port (BNC) monitor using a BNC cable (see 3.1 Monitor Connection). This can be used as a Main monitor output. Connects to the HDMI Port monitor using a HDMI cable (see 3.1 Monitor Connection).

  • Page 6: Ez. Controller Function Description

    OSD through Preset 95. Note: 1. The eZ.Controller function for PTZ control is only supported for EverFocus AHD (1080p, 720p) PTZ cameras. 2. After connecting the PTZ camera to the DVR through the coaxial cable, you will have to go...
  • Page 7 OSD at the camera installation site as the Diagram A below. It will take extra effort, time and people to adjust the camera. Now, EverFocus’ eZ.Controller allows users to control the camera OSD simply on the monitor at the DVR end as illustrated in Diagram Use eZ.Controller to Control Camera OSD...

  • Page 8: Packing List

    Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.

  • Page 9: Optional Accessories

    PARAGON FHD 16x4 1.6 Optional Accessories • EKB200 (USB controller keyboard: connect to the PC or DVR to control the PTZ cameras connected to the DVR). Please refer to 6.9.6 EKB200 Setting in the User Manual of the EKB200 Keyboard.
  • Page 10 PARAGON FHD 16x4 Fix the two HDD brackets on both side of the HDD using the Silver Screws. Push the Rubber Spacer into the bottom slot of Bracket. Bracket Rubber Spacer Insert Black Long Screws into the Rubber Spacers. Black Long...
  • Page 11 PARAGON FHD 16x4 Connect the internal power cable to the HDD. Note: The internal power cable is connected to the Main board inside the DVR. The power cable features two connectors, which can be used to connect to two HDDs.

  • Page 12: Hard Disk Compatibility List

    Screw the rest HDDs on the HDD tray. 10. Screw back the housing to the DVR. 2.2 Hard Disk Compatibility List Please go to the PARAGON FHD 16x4 Web page on EverFocus’ website http://www.everfocus.com.tw to see the latest Hard Disk Compatibility List.

  • Page 13: Basic Connection

    PARAGON FHD 16x4 3. Basic Connection The instructions below the figure describe the basic connection for the PARAGON FHD 16x4. Line Level Power Supply Audio In 1~16 Mouse Network Line Level Main Monitor Camera 1~16 Audio Out (HDMI) Web Remote...

  • Page 14: Monitor Connection

    3.1 Monitor Connection Connect the monitor to the CVBS, HDMI or VGA port on the rear panel of the DVR. The PARAGON FHD 16x4 DVR provides 1 main monitor output (HDMI); and 2 call monitor outputs (VGA and BNC) with identical functionality.
  • Page 15 PARAGON FHD 16x4 3.2 Alarm I / O The DVR provides 16 alarm inputs and 4 alarm outputs. You can also connect the radio-controlled clock to the alarm input of the DVR for the time synchronization. The DVR supports the radio-controlled clock which will automatically synchronize to the time standard so that you won’t need to reset the time manually.

  • Page 16: Turning On/Off The Power

    PTZ Camera 1~16 EKB500 Keyboard Note: EverFocus FHD series DVR supports the eZ.Controller function, which enables users to control PTZ camera from DVR using only a coaxial cable without the need of a RS-485 cable between the PTZ camera and the DVR (see 1.4 eZ. Controller Function Description).

  • Page 17: Checking The Dynamic Ip Address

    5. Checking the Dynamic IP Address You can look up the IP address and access the Web interface of the DVR using the IP Utility (IPU) program, which can be downloaded from EverFocus’ Website: http://www.everfocus.com/HQ/Support/DownloadCenter_p1.aspx. Please connect the DVR in the same LAN of your computer.
  • Page 18 PARAGON FHD 16x4 b. Type the Username and Password. Click the OK button, the status of the selected camera will display Login. Note: 1. The default user ID is admin and the default password is 11111111. 2. If you select more than one mobile DVRs that have the same user ID / password, you will be able to log in several mobile DVRs at once.
  • Page 19 PARAGON FHD 16x4 5. If you log in for the first time, follow the instruction steps on the interface to update the latest Plugin version (ePlayer). After reloading the webpage, the login window pops up again. Type the user ID and password to log in again. By default, the user ID is admin and the password is 11111111.
  • Page 20 PARAGON FHD 16x4 If you encounter the following problem or still can’t access the remote Web interface, please see below:  If the Error window appears, please be sure to close ALL the Web browser windows first and then click Retry. When the Completing the ePlayer Setup Wizard window shows up, click Finish.
  • Page 21 PARAGON FHD 16x4  If your PC or laptop is running with Windows, it’s required to run the browser as administrator when first entering the remote web page of the device. Go to C:\Program Files (x86)\Internet Explorer, right-click the browser and then click Run as administrator.

  • Page 22: Specifications

    System Control Front Panel Buttons, Mouse, IR Remote Control Simultaneous Live, Recording, Playback, Archive and Remote Pentaplex Operation Viewing PTZ Protocol Supported EverFocus, Pelco D, Pelco P, Samsung, Transparent Video Compression Format H.264 Video Format NTSC / PAL Video Inputs...
  • Page 23 Intel HD 2000 LAN Speed 10 / 100 / 1000 Mbps (RJ45) Web Browser IE9 and later, Firefox 4.0-9.0, Chrome (Windows v44 and earlier) 1. EverFocus’ CMS: Genie XMS. Other Remote 2. EverFocus’ mobile app: MobileFocus (iOS / Android); Application MobileFocusHD (iPad).
  • Page 24 FAX: +81 3 5625 8189 sales@everfocus.com www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
