Carrier 58MXA Product Data

Carrier 58MXA Product Data

Deluxe 4-way multipoise fixed-capacity condensing gas furnace
Hide thumbs Also See for 58MXA:
Table of Contents

Advertisement

Quick Links

See also: Service and Maintenance Instructions , Product Data
HEATING & COOLING
Copyright 1994 Carrier Corporation
Product
Data
This document was created with FrameMaker 4.0.4
Deluxe 4-Way Multipoise
Fixed-Capacity Condensing
Input Capacities: 40,000 thru 120,000 Btuh
4-way Multipoise Design
Allows More Applications . . .
The model 58MXA is a must for your
product line. This high-efficiency
furnace allows more applications with
its reliable 4-way multipoise design.
The model 58MXA is available in 10
heat/airflow combinations and with the
4-way multipoise design can be
installed in upflow, downflow, or
horizontal positions covering up to 40
different applications. The furnace is
factory configured for upflow
application.
This versatile unit utilizes hot surface
ignition (HSI) which ignites the burners
directly. HSI eliminates gas waste that
typical continuous-pilot designs can
bring. Hot surface ignition provides
reliable start-up and operation.
Take a look at the control center on
the model 58MXA. Control of the
ignition, inducer, and blower operation
is all handled in 1 central printed circuit
board. The status indicator on the
control signals when a fault has
occurred and identifies where the
problem is. This, along with the
component test feature, makes the
58MXA one of the easiest gas furnaces
to troubleshoot.
High efficiency is achieved by
maximizing heat transfer. The model
58MXA uses 100% outdoor air for
combustion in a sealed combustion
system. The result is energy-saving
efficiency, 92% Annual Fuel Utilization
Efficiency (AFUE), and reduced
operational noise. The model 58MXA
is 1 of the quietest furnaces in the
industry.
A unique feature of this unit is the
patented polypropylene-laminated heat
exchanger. This secondary heat
exchanger ensures that all available heat
is properly transferred to the airstream
58MXA
Gas Furnace
Series 111
Form 58MXA-2PD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 58MXA and is the answer not in the manual?

Questions and answers

Deanice Hoffman
January 20, 2025

Is my heat exchanger under warranty!? I literally just moved into this house 2 months ago?!?! It appears this make is garbage. That’s what all the service providers are telling me

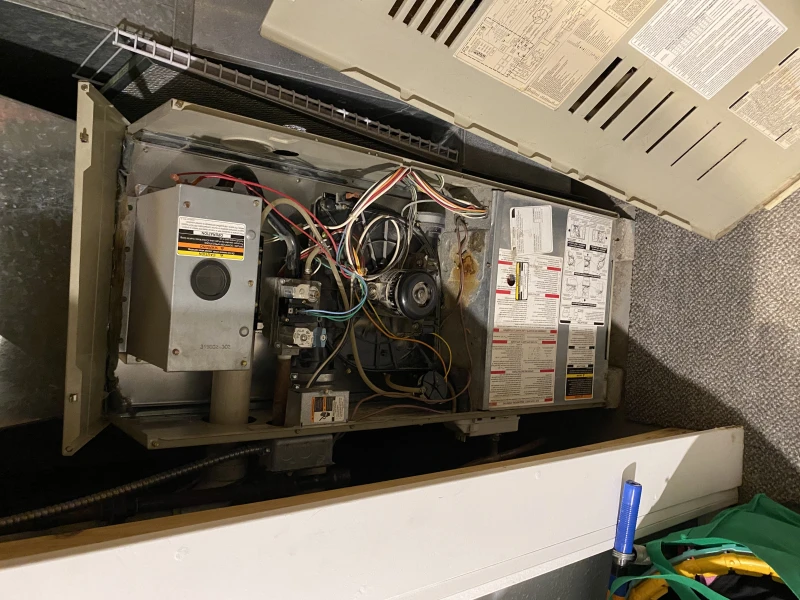

User image 678ec2290819e
0
1 comments:
Mr. Anderson
February 4, 2025

Yes, the heat exchanger for the Carrier model 58MXA is under warranty for the lifetime of the original owner in a single-family residence and for 20 years in other residential and commercial applications.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Carrier 58MXA

Summary of Contents for Carrier 58MXA

  • Page 1 Series 111 Input Capacities: 40,000 thru 120,000 Btuh 4-way Multipoise Design Allows More Applications . . . The model 58MXA is a must for your product line. This high-efficiency furnace allows more applications with its reliable 4-way multipoise design. The model 58MXA is available in 10...

  • Page 2: Heat Exchangers

    The model Warranty on the heat exchangers for the Adjustable Blower Speed —For 58MXA is equipped for either left- or lifetime of original owner in single precise airflow selection of heating or right-side connections. Blower speeds family residence;...

  • Page 3: Model Number Nomenclature

    Provides easy access for exit in a roof or sidewall. A Carrier humidifier will add included. cleaning filter. Accepts one moisture to winter-dry air to 16 x 25 x 1 in. filter.
  • Page 4 A93202 NOTES: 1. The 58MXA Furnaces are for use with natural gas, but can be field-converted for propane gas with a factory-authorized and listed accessory conversion kit. 2. Component location and configuration may be different than shown above. Combustion-air intake connection to ensure Secondary condensing heat exchanger (inside).

  • Page 5: Physical Data

    Physical data UNIT SIZE 040-08 040-12 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 OUTPUT CAPACITY BTUH† (Nonweatherized ICS) 37,200 37,200 55,800 55,800 74,400 74,400 74,400 93,000 93,000 111,600 INPUT BTUH* 40,000 40,000 60,000 60,000 80,000 80,000 80,000 100,000 100,000 120,000 SHIPPING WEIGHT (Lb) CERTIFIED TEMP RISE RANGE ( °...

  • Page 6: Concentric Vent

    Dimensions ⁄ " ⁄ " ⁄ " ⁄ " AIRFLOW ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " 19" ⁄ ⁄ ⁄ " " " 2-IN. COMBUSTION- ⁄ " CONDENSATE DRAIN AIR CONN OUTLET OUTLET TRAP LOCATION (DOWNFLOW & CONDENSATE DRAIN 2-IN.

  • Page 7: Condensate Trap

    CONDENSATE TRAP FURNACE BLOWER SHELF CONDENSATE DOOR TRAP FURNACE CONDENSATE DOOR FURNACE TRAP (INSIDE) FURNACE SIDE SIDE FIELD FIELD DRAIN DRAIN ALTERNATE DRAIN CONN CONN TUBE LOCATION SIDE VIEW FRONT VIEW END VIEW FRONT VIEW CONDENSATE TRAP DRAIN TUBE LOCATION DOWNFLOW AND ALTERNATE HORIZONTAL UPFLOW APPLICATIONS...

  • Page 8: Performance Data

    Performance data UNIT SIZE 040-08 040-12 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 DIRECT-DRIVE MOTOR Hp (PSC) MOTOR FULL LOAD AMPS 11.1 11.1 11.1 RPM (Nominal)—SPEEDS 1075—3 1075—4 BLOWER WHEEL DIAMETER X WIDTH (In.) 10 x 6 10 x 7 10 x 7 11 x 8 10 x 7...

  • Page 9: Electrical Data

    Electrical data UNIT SIZE 040-08 040-12 060-12 060-16 080-12 080-16 080-20 100-16 100-20 120-20 UNIT VOLTS—HERTZ—PHASE 115—60—1 OPERATING VOLTAGE RANGE (Min—Max)† 104—127 MAXIMUM UNIT AMPS 10.0 14.1 10.2 14.8 14.6 UNIT AMPACITY** 10.0 12.8 10.4 13.4 18.4 13.5 19.3 19.1 MINIMUM WIRE SIZE MAXIMUM WIRE LENGTH (Ft)* MAXIMUM FUSE SIZE OR CKT BKR (Amps)‡...

  • Page 10: Combustion-Air And Vent Piping

    Combustion-air and vent piping MAXIMUM ALLOWABLE PIPE LENGTH (FT) ALTITUDE NUMBER OF 90° ELBOWS ABOVE SEA UNIT SIZE TERMINATION TYPE PIPE DIA LEVEL (FT) (IN.)* 040-08 2 Pipe or 2-In. Concentric 1-1/2 040-12 1-1/2 060-12 2 Pipe or 2-In. Concentric 060-16 1-1/2 080-12...
  • Page 11 MAXIMUM ALLOWABLE PIPE LENGTH (FT) Continued ALTITUDE NUMBER OF 90° ELBOWS ABOVE SEA PIPE DIA LEVEL (FT) UNIT SIZE TERMINATION TYPE (IN.)* 1-1/2 040-08 2 Pipe or 2-In. Concentric 040-12 1-1/2 060-12 2 Pipe or 2-In. Concentric 060-16 080-12 6001 to 7000‡ 2 Pipe or 2-In.
  • Page 12 MAXIMUM ALLOWABLE EXPOSED VENT PIPE LENGTH (FT) WITH INSULATION IN WINTER DESIGN TEMPERATURE AMBIENT* INSULATION THICKNESS (IN.)† WINTER DESIGN MAXIMUM PIPE TEMP °F UNIT SIZE 1-1/2 040-08 1-1/2 040-12 –20 1-1/2 060-12 060-16 –20 2-1/2 080-12 080-16 2-1/2 080-20 –20 2-1/2 100-16 100-20...

  • Page 13: Typical Installations

    Typical installations Basement — Upflow Application A93063 Closet — Downflow Application A93064...
  • Page 14 Syracuse, New York 13221 7-94 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations Book Page 14 Catalog No. 525-861 Printed in U.S.A. PC 101 Form 58MXA-2PD Replaces: 58MXA-1PD 6a 8a...
