Briggs & Stratton MS-1055 Repair Manual

3 cylinder liquid-cooled diesel engines
Hide thumbs Also See for MS-1055:
Table of Contents

Advertisement

Quick Links

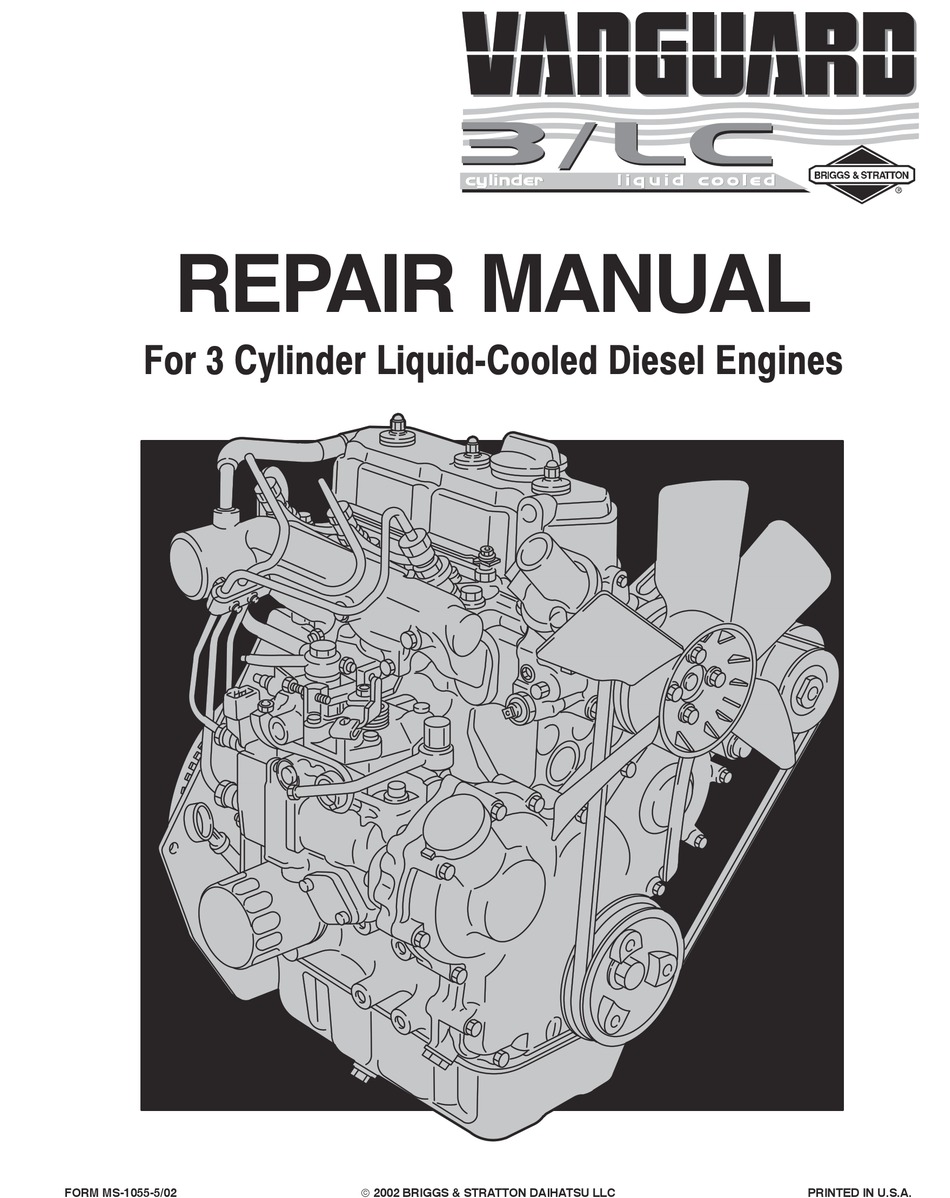

REPAIR MANUAL
For 3 Cylinder Liquid Cooled Diesel Engines
 2002 BRIGGS & STRATTON DAIHATSU LLC
FORM MS-1055-5/02
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Briggs & Stratton MS-1055

Summary of Contents for Briggs & Stratton MS-1055

  • Page 1 REPAIR MANUAL For 3 Cylinder Liquid Cooled Diesel Engines  2002 BRIGGS & STRATTON DAIHATSU LLC FORM MS-1055-5/02 PRINTED IN U.S.A.

  • Page 2: General Information

    BRIGGS & STRATTON DAIHATSU 3 CYLINDER LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055) Section 1 General Information Section Contents Page ENGINE IDENTIFICATION ............... .
  • Page 3 GENERAL INFORMATION IN THE INTEREST OF SAFETY 16. DO NOT touch hot muffler(s) or cylinder(s) because contact may cause burns. This safety alert symbol indicates that this 17. DO NOT remove the radiator cap while the engine message involves personal safety. Signal is hot.
  • Page 4 GENERAL INFORMATION ENGINE VIEWS Diesel 1. Thermostat 2. Oil filler cap 3. Electric starter 4. Oil pan 6. Injector nozzle 5. Alternator 7. Glow plug 8. Oil drains 9. Oil filter 10. Dipstick 11. Injector pump 12. Engine Date code xxxxxxxx 13.
  • Page 5 GENERAL INFORMATION ENGINE SPECIFICATIONS 582447 Model 432447 522447 @58A447 @588447 Type Diesel, 4-cycle, 3 cylinder, in-line, liquid cooled Valve mechanism OHV, gear driven 68 x 64 68 x 78 72 x 78 Bore x stroke mm (in) (2.680 x 2.520) (2.680 x 3.070) (2.834 x 3.070) Piston displacement...
  • Page 6 GENERAL INFORMATION Type Single piece casting Cylinder Cylinder Head Material Cast Iron Combustion Chamber Swirl Type ° Intake Valve seat angle Valve seat angle ° Exhaust Opens 10° BTDC Valve Valve Intake Intake 235° 235° Closes 45° ABDC Specifications Valve timing Specifications Valve timing Opens 45°...
  • Page 7 GENERAL INFORMATION LUBRICATING SYSTEM Lubricating Method Pressure lube Type Trochoid Oil Pump Oil Pump Drive Gear drive Oil Filter Type Full flow, paper Oil Capacity 3.3 ltr (3.5 qt) Oil Pump Relief Valve Opening Pressure 4.6 Bar (65 psi) Lubrication Oil API SE/CD class or higher COOLING SYSTEM Cooling Method...
  • Page 8 GENERAL INFORMATION TABLE 1 Injection Pump Timing Engine Date Code Before 99010100 Model/Type No. Timing Specification ± ± 0.93 .03 mm (.0365” .001”) 432447-0150-E2 ± ± 0.93 .03 mm (.0365” .001”) 522447-0105-E2 ± ± 0.93 .03 mm (.0365” .001”) 522447-0106-E2 ±...
  • Page 9 INJECTOR PUMP IDENTIFICATION IDENTIFICATION CODE SERIAL 7 : 700 cc DESTINATION U : USA 8 : 850 cc NUMBER J : Japan 9 : 950 cc X : Except for NAME PLATE IDENTIFICATION CODE TABLE 3 Engine Speed Specification Chart Pump Mfg.
  • Page 10 GENERAL INFORMATION Description Wrench/Socket Size Torque Alternator Adjust. Bracket 12 mm 19.0 Nm (170 in. lbs.) Alternator – 14 Amp (to bracket) 12 mm 19.0 Nm (170 in. lbs.) Alternator – 40 Amp (to bracket) 12 mm 61.0 Nm (45 ft. lbs.) Alternator Bracket (to block) 12 mm 19.0 Nm (170 in.
  • Page 11 GENERAL INFORMATION BRIGGS & STRATTON DAIHATSU NUMERICAL NUMBER SYSTEM All Briggs & Stratton Daihatsu engines have a unique numerical designation system. Each engine is identified by a Model, Type and Code/Serial number. Example: Model Type Code/Serial 432447 0125 01 020521145 This chart explains the numerical model designation system.
  • Page 12 GENERAL INFORMATION MAINTENANCE SCHEDULE More frequent service is required when operating in adverse conditions (note 4 below). Every Every Every Every Every System Maintenance Operation Daily Yearly hours hours hours hours hours Check oil level Check for oil leaks Lubrication Lubrication system Change oil...

  • Page 13: Cylinder Head And Valves

    BRIGGS & STRATTON DAIHATSU 3 CYLINDER LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055) Section 2 Cylinder Head and Valves Section Contents Page REMOVE CYLINDER HEAD ............. .
  • Page 14 CYLINDER HEAD AND VALVES REMOVE CYLINDER HEAD ALWAYS disconnect fuel shut off solenoid wire from injection pump before checking compres- sion, to prevent accidental starting. Drain cooling system and disconnect radiator hoses. 1. Remove the following parts from engine, Fig. 1-Fig. 5: a.
  • Page 15 CYLINDER HEAD AND VALVES Fig. 5: k. Fuel injector nozzles Glow plugs Fig. 5 – Remove Glow Plugs And Injectors 2. Set No. 1 piston at TDC, Fig. 6: REFERENCE a. Rotate crankshaft pulley until timing mark on POINT pulley is aligned with reference point on timing cover.
  • Page 16 CYLINDER HEAD AND VALVES DISASSEMBLE CYLINDER HEAD 1. Cylinder Head Assembly 2. Cylinder Head Gasket 3. Valve Stem Cap 4. Valve Spring Retainer Locks 5. Valve Spring Retainer 6. Valve Spring 7. Valve 8. Valve Spring Seat 9. Valve Stem Seal 10.
  • Page 17 CYLINDER HEAD AND VALVES INSPECT AND REPAIR STRAIGHT 1. Check cylinder head mounting surfaces, Fig. 12 EDGE and Fig. 13. Be sure all gasket material is removed from surfaces before checking. Use a gasket scraper if necessary. a. Inspect cylinder head for cracks or damage. b.
  • Page 18 CYLINDER HEAD AND VALVES 3. Install combustion chamber, Fig. 16. Align locating projection on combustion chamber with groove in cylinder head. Use a soft hammer and drive in new combustion chamber until it bottoms. COMBUSTION CHAMBER Fig. 16 – Install Combustion Chamber CHECK AND REPAIR VALVE GUIDES 1.
  • Page 19 CYLINDER HEAD AND VALVES 3. Using bushing driver, Tool #19416, press in new valve guide bushing until tool bottoms on cylinder head, Fig. 19. Fig. 19 – Installing Valve Guide Bushing VALVES AND SEATS 1.0 mm 1. Valve faces may be resurfaced to 45°. See Fig. 20 0.8 mm TO 1.2 mm (.040”) (1/16”...
  • Page 20 CYLINDER HEAD AND VALVES 4. Inspect valve stem cap for wear, Fig. 23. Replace if cap is worn recessed. Fig. 23 – Check Valve Stem Cap 5. Check valve springs for squareness and free length, Fig. 24. Replace if out of square more than 1.0 mm (.040 in.).
  • Page 21 CYLINDER HEAD AND VALVES 2. Check rocker arms and shaft, Fig. 26. a. Check rocker arm-bearing surface. Replace if greater than 10.03 mm (0.395 in.). b. Check rocker arm shaft Replace if less than 9.96 mm (0.392 in.). c. Check rocker arm studs for stripped threads and replace if required.
  • Page 22 CYLINDER HEAD AND VALVES ASSEMBLE CYLINDER HEAD 1. Cylinder Head 2. Cylinder Head Gasket 3. Valve Stem Cap 4. Valve Spring Retainer Locks 5. Valve Spring Retainer 6. Valve Spring 7. Valve 8. Valve Spring Seat 9. Valve Stem Seal 10.
  • Page 23 CYLINDER HEAD AND VALVES 2. Install valve spring seats, Fig. 30. NOTE: Lightly coat valve stems with Valve Guide VALVE SPRING Lubricant #93963 before installing valves. SEATS 3. Install valves. Fig. 30 – Install Valve Spring Seats And Valves 4. Install valve springs with valve spring compressor, Tool #19417, Fig.
  • Page 24 CYLINDER HEAD AND VALVES 3. Lubricate push rods with engine oil then install with recessed end up, Fig. 34. RECESSED END UP Fig. 34 – Install Push Rods 4. Install valve stem caps on valve stems. Install rocker arm assembly, Fig. 35. Install washers and torque nuts to 19.0 Nm (170 in.
  • Page 25 CYLINDER HEAD AND VALVES 7. Install exhaust manifold with new gasket, Fig. 38. a. Torque screws to 19.0 Nm (170 in. lbs.). Fig. 38 – Install Exhaust Manifold GENERAL ASSEMBLY 1. Install water pump with new gasket, Fig. 39. a. Torque screws and nuts to 19.0 Nm (170 in. lbs.).
  • Page 26 CYLINDER HEAD AND VALVES ADJUST VALVES REFERENCE 1. Before adjusting valves, make sure that No. 1 POINT cylinder is at TDC – compression stroke, Fig. 42. TIMING MARK Fig. 42 – Set Cylinder No. 1 at TDC a. Adjust valves and check, Fig. 43. Valve Clearance (cold) IN and EX 0.20 mm (0.008 in.) b.
  • Page 27 BRIGGS & STRATTON DAIHATSU 3 CYLINDER LIQUID-COOLED DIESEL ENGINE REPAIR MANUAL (MS-1055) Section 3 Timing Gears and Gear Case Section Contents Page REMOVE TIMING GEAR COVER AND GEARS ............
  • Page 28 TIMING GEARS AND GEAR CASE REMOVING TIMING GEAR COVER AND GEARS Make sure that #1 cylinder is at TDC, compression stroke. See Section 2, Fig. 6. Remove V-belt and fan (if equipped). Drain oil from engine. NOTE: Clean areas around fuel lines and injec- tors to prevent dirt entry.
  • Page 29 TIMING GEARS AND GEAR CASE 6. Remove oil pump drive gear, Fig. 5. a. Check oil pump drive gear for damaged teeth. PUMP GEAR Fig. 5 – Removing Oil Pump Gear CHECKING GEARS Inspect gear teeth for wear or damage. CHECK GEARS IN SEQUENCE SHOWN.
  • Page 30 TIMING GEARS AND GEAR CASE 4. Hold idler gear as shown and check gear backlash between injector pump timing gear and idler gear using dial indicator, Fig. 9. Injector pump timing gear backlash must not exceed 0.2 mm (.008”). NOTE: Idler gear must not turn while checking. If gears are worn it is recommended that they be replaced as a set.
  • Page 31 TIMING GEARS AND GEAR CASE REPLACE TIMING GEAR COVER OIL SEAL 1. Drive out oil seal. 2. Use seal driver, Tool #19423, to install new oil seal, Fig. 13. Fig. 13 – Replacing Oil Seal ASSEMBLE TIMING GEAR CASE AND GEARS 1.
  • Page 32 TIMING GEARS AND GEAR CASE 4. Assemble idler gear shaft with arrow up, as shown ARROW in Fig. 17. Fig. 17 – Installing Idler Gear Shaft Engine models 432000 and 582000 after date code 990111007, and all engine models 522000 are equipped with right angle helical timing gears.
