Motion Control Damper Service

Motion Control Damper Removal

1. Tilt seat forward and disconnect the battery.
2. Remove the appropriate fender / pod as shown in
this chapter.
3. Remove the (1) shoulder bolt (A) and washer that
secures the upper motion control damper eyelet to
the actuator arm.
4. Remove the nut and bolt (B) that secure the lower
motion control damper eyelet to the control box (Fig.
016).
B

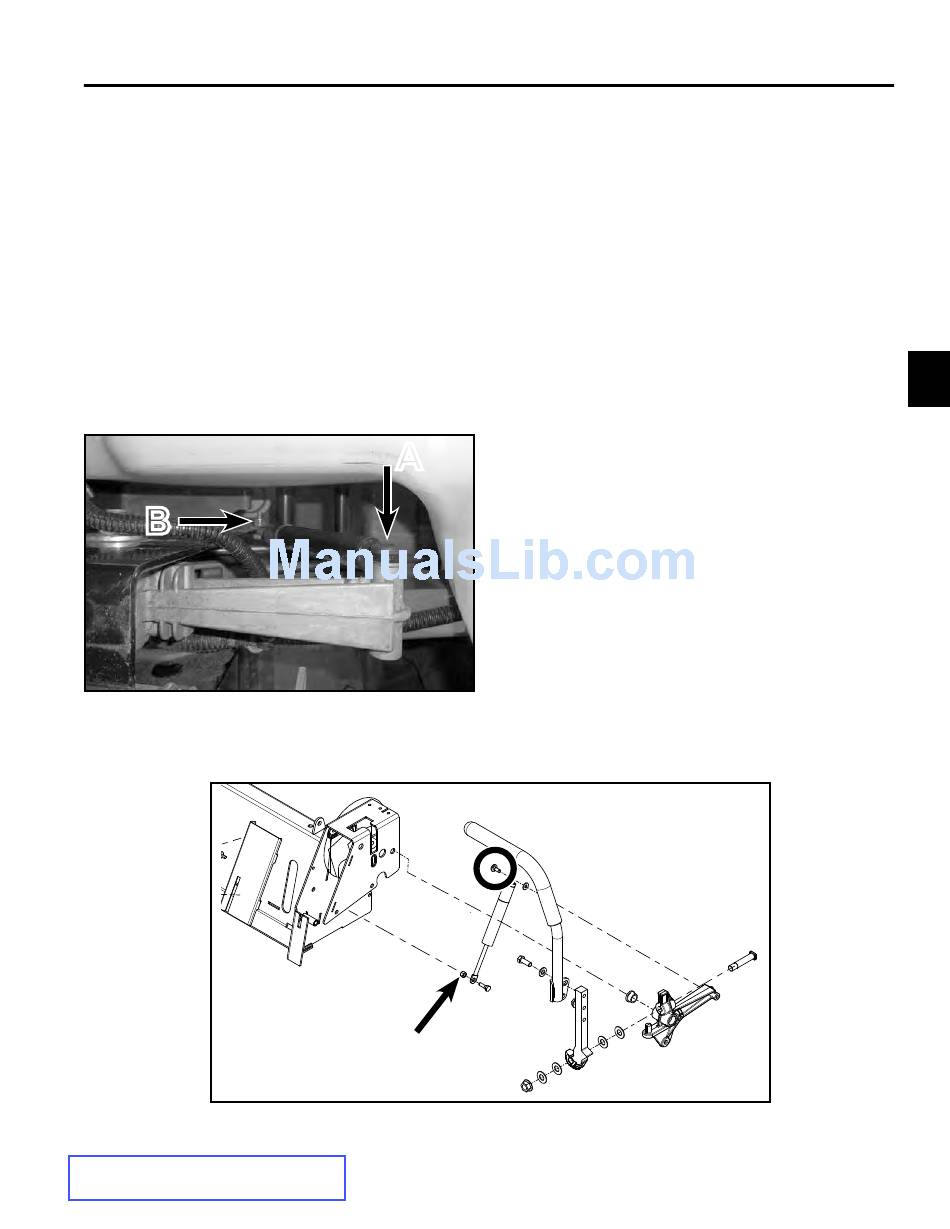

Fig. 016
5. Remove the motion control damper from the unit.
Toro TITAN 2009-2013 Service Manual

Motion Control Damper Installation

1. Install the washer and upper damper eyelet to the
actuator arm and torque the shoulder bolt (A) to
specification – 7.5 ft-lbs. (10 Nm).
2. Install the lower damper eyelet to the Control Box
and torque the nut (B) to specification – 7.5 ft-lbs.
(10 Nm).
3. Install the fender / pod as shown in this chapter.
4. Check the motion control system for proper function.
(Fig. 017)
A
PICT-2071
A
B
Fig. 017
