Summary of Contents for Flexit SPIRIT K2
-

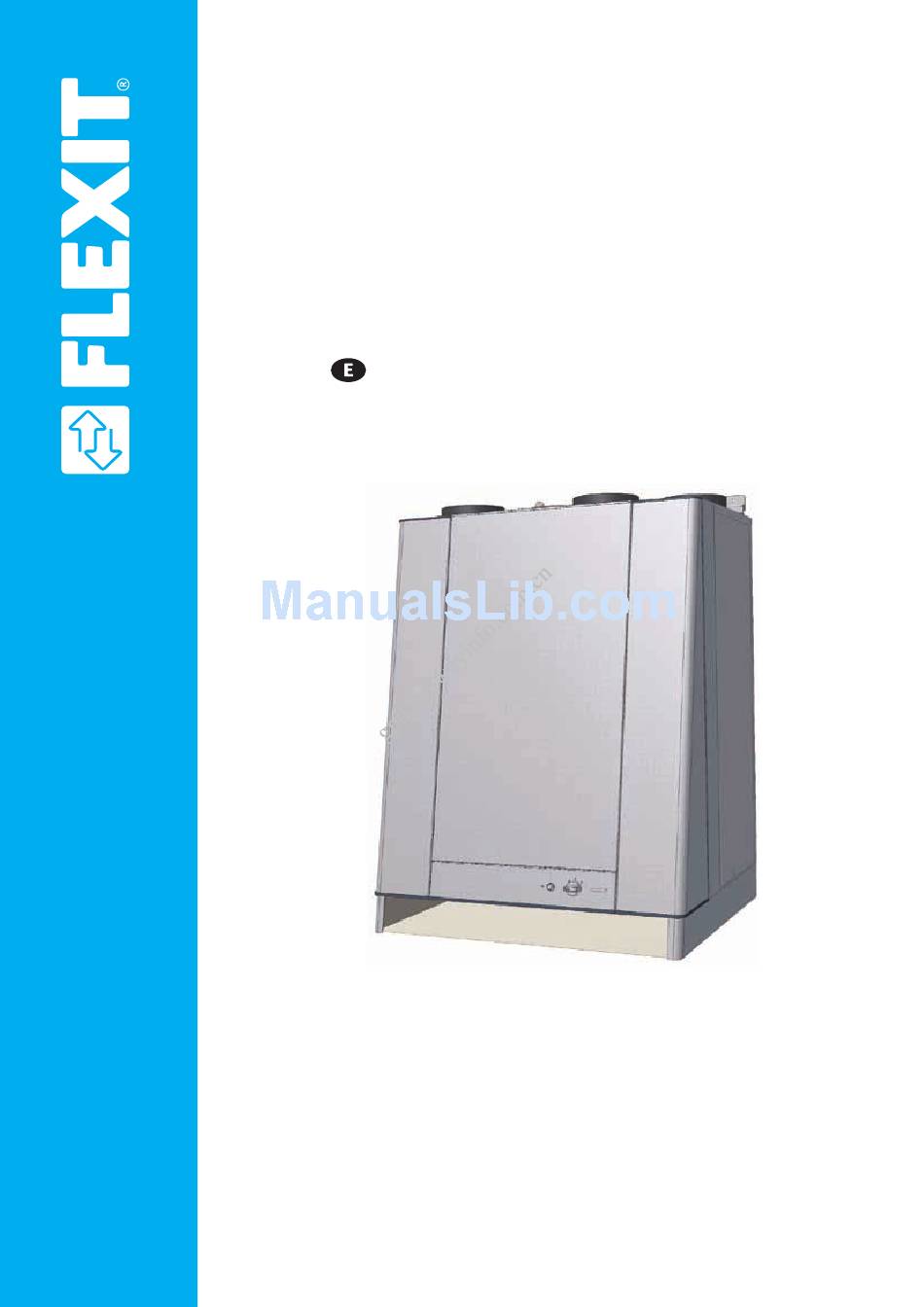

Page 1: Installation Instructions
111140E-04 2012-11 ART.NO.: 700010 -700017 700024 -700027 FlexIt SPIRIt K2 Installation instructions Air handling unit with kitchen hood and control panel... -
Page 2: Table Of Contents
Adjusting the Kitchen Hood 11.1 Forced Ventilation 12 Adjustment Curves 12.1 Forced ventilation Flexit SPIRIT K2 R Final checks/first use 14 EC Declaration of Conformity Our products are subject to continuous development and we therefore reserve the right to make changes. -
Page 3: Symbols Used
Installation instructions K2R Important Safety Instructions: It is the installer's responsibility to carry out a full safety and function assessment of the appliance To reduce the risk of fire, electric shock or injury, read all the safety instructions and warning texts before using the appliance. -
Page 4: Installation/Preliminaries
Installation instructions K2R Installation/Preliminaries See separate documentation for installation of ducts, valves, 1.3 location requirements etc. The unit has been designed for location in the kitchen over the cooker as it contains an integrated kitchen hood. The The unit is designed for indoor installation. unit is available in left or right versions (exhaust air nipple to the left or right), depending on what is the most favourable in relation to the duct location. - Page 5 Installation instructions K2R Recommended sound attenuation for wall-mounting For wall mounting, the (included) wall bracket fixed to the unit is used. The unit must not be placed on a wall with rooms on the other side which are sensitive to noise. The wall must be sound-insulated.
-
Page 6: Installation Of Flexit Spirit K2 R
Fig. 5 B=2mm B=2mm 596 mm Flexit SPIRIT K2 R is designed for installation in the kitchen above the cooker, see Fig. 11. The unit is supplied in left and right-hand versions depending on what suits duct locations best (Chap. 5.1). -
Page 7: Encasing
Installation instructions K2R 2.2 encasing 3. The casing must not be deeper than 270 mm, measured When encasing ducts above the unit, make sure that the door from the wall on which the unit is installed (dimension B). leaves do not collide with the encasing above the unit. The door will move slightly above the top of the unit when it is put in place. -
Page 8: Connection Of Unit And Electrical Work
Installation instructions K2R Connection of unit and electrical work 3.1 Connection of unit 3.3 Automatic Control • Ensure that the ducts arrive at the right muff coupling. See The control pack is included in the unit package. The the marking on the unit (top/bottom and behind door). low-voltage cable must be laid between the unit and the The symbols are explained on page 3 and the location is switch unit. -
Page 9: Sizes/Physical Dimensions
Installation instructions K2R 4 Sizes/Physical Dimensions 4.1 Dimensioned sketch Flexit SPIRIt K2 R (Shown as left-hand model) (Shown as right-hand model) -
Page 10: General Drawings And System Drawings
Installation instructions K2R 5 General Drawings and System Drawings (Shown as left-hand model. The right-hand version is a mirror image.) Outdoor Supply Extract Exhaust General Diagram (Rotary Wheel-type Heat Exchanger) (FI2) Extract filter F 7 2 (FI1) Supply air filter F 7 3 (EB1) Heating element (F10-20) -
Page 11: Capacity And Sound Data
Installation instructions K2R 6 Capacity and sound data 6.1 Capacity diagram, sound data, specifications - K2 R AC Supply air side (with F7 filter) 230V 190V 170V 150V 230V 120V 190V 105V 170V 150V 120V 105V 70dB(A) Yellow field: SFP < 1.0 per fan 65dB(A) 60dB(A) 55dB(A) -
Page 12: Capacity Diagram, Sound Data, Specifications - K2 R Ec
Installation instructions K2R 6.2 Capacity diagram, sound data, specifications - K2 R eC Supply air side (with F7 filter) 100% 100% Yellow field: SFP < 1.0 per fan 70dB(A) 65dB(A) 60dB(A) 55dB(A) Air flow rate, m /h - Pressure correction factor Extract air side (with F7 filter) 100% 100%... -
Page 13: Technical Data
Installation instructions K2R technical data 7.1 technical data Flexit SPIRIt K2 R 700W 700W 350W Rated voltage 230 V/50 Hz 230 V/50 Hz 230 V/50 Hz Fuse size 10 A 10 A 10 A Rated current, total 3,7 A 3,91 A... -
Page 14: Installation Of Control Panel Ci 60/600
Installation instructions K2R 8 Installation of control panel CI 60/600 8.1 Content Control panel Back piece for concealed installation Back piece for surface installation Installation instructions Cable for control panel 8.2 Installation of CI60/600 Fig. 8 CAUtION! The control panel must be connect- ed to the ventilation unit before the ventilation unit is connected to mains. -
Page 15: Concealed Installation
Installation instructions K2R 8.3 Concealed installation 8.5 Finishing off – CI60 Lay the cable between the wall box and the ventilation unit in Slide the panel off as shown by arrow no. 1 (see Fig. 11) and the preinstalled conduit pipe. Fit the back piece (item no. 2), fit the control panel straight into the back piece as shown over the wall box and click the cable in directly from behind by arrow no. -
Page 16: Adjusting Ec Units
Installation Instructions K2R 9 Adjusting eC units 9.1 Adjustment with CI60 Fig. 14 The unit's air supply MUST be adjusted before the unit is used for the first time. This should be done in accordance with the projection documents. Adjust the values based on the projected values. -
Page 17: Adjustment With Ci600
START MENU MAIN MENU REGULATION TYPE > SUPPLY AIR > LANGUAGE COOLING > EXTRACT AIR > FIRE LANGUAGE NORMAL NEUTRAL ZONE TIMER TIME AND DATE > NORMAL > TIME AND DATE > > EXT. TEMP. CONTROL AIR VOLUME COMP STAR >... -
Page 18: Adjusting Ac Units
Installation Instructions K2R 10 Adjusting AC units The unit's air supply MUST be adjusted before Fig. 15 the unit is used for the first time. This should be done in accordance with the projection documents. Adjust the values based on the projected values. -
Page 19: Adjusting The Kitchen Hood
12 Adjustment Curves If basic ventilation is desired via the kitchen hood, the 12.1 Forced ventilation Flexit SPIRIt K2 R damper from the factory must be replaced. Replace it with a damper with adjustment options. This is not supplied with the unit. -
Page 20: Final Checks/First Use
• The unit has filters for both outdoor air and extract air. • Tumble dryers must not be connected to the unit. The installer may be held liable for any incorrect or defective installation. Flexit SPIRIT K2 R, Left-hand model Flexit SPIRIT K2 R, Right-hand model... -
Page 21: Ec Declaration Of Conformity
Council Directives and standards: 2004/108/eF electromagnetic Compatibility (eMC) 2006/95/eF low-voltage Directive (lVD) 98/37/eeC Machine Directive (Safety) Manufacturer: FLEXIT AS, Televeien 15, 1870 Ørje, Norway type: K2 R Ventilation unit Conforms to following standards: Safety standard EN 60335-1:2002... - Page 24 Flexit AS, Televeien 15, 1870 Ørje, Norway www.flexit.com...
