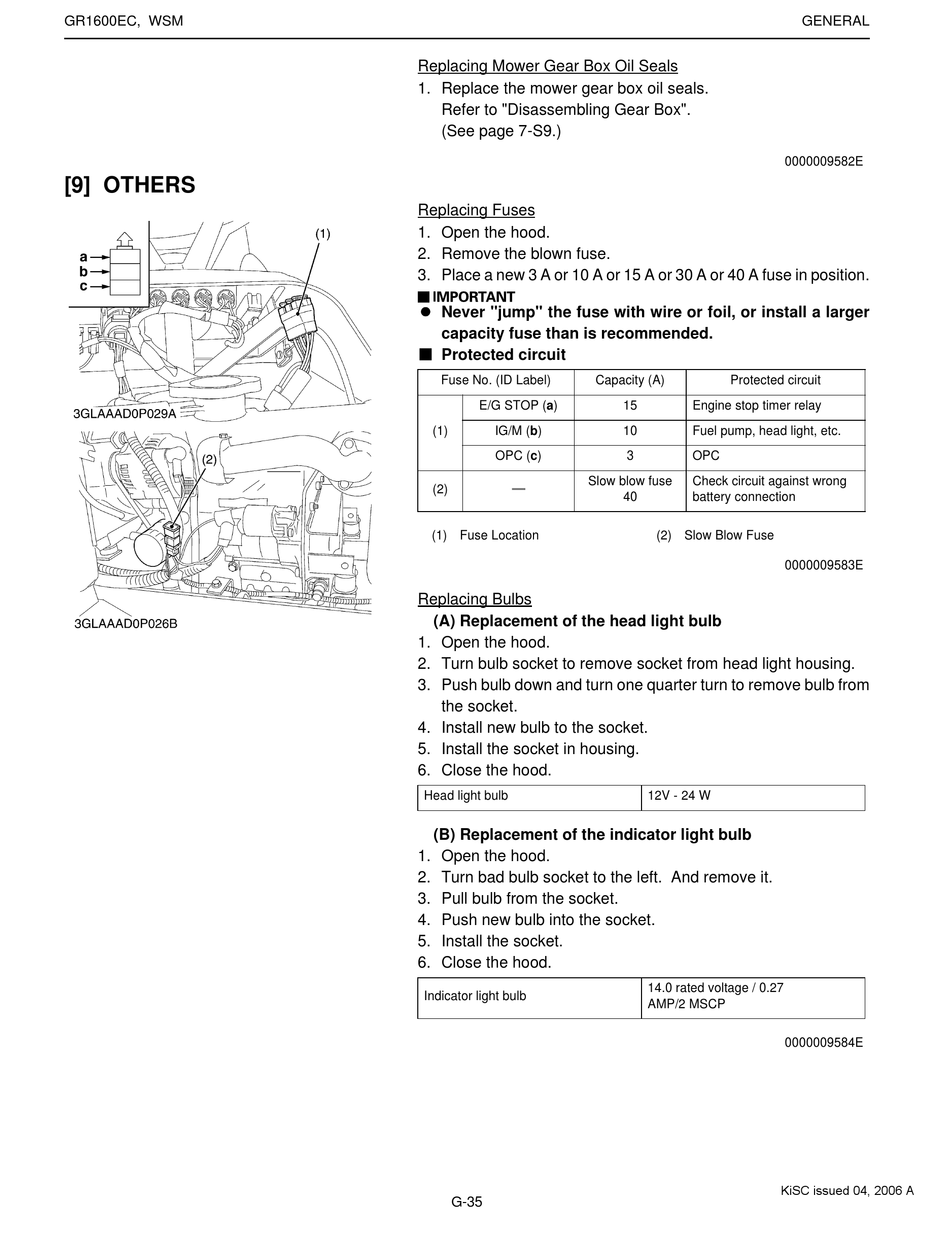

[9] OTHERS

Replacing Mower Gear Box Oil Seals
1. Replace the mower gear box oil seals.
Refer to "Disassembling Gear Box".
(See page 7-S9.)
Replacing Fuses
1. Open the hood.
2. Remove the blown fuse.
3. Place a new 3 A or 10 A or 15 A or 30 A or 40 A fuse in position.
A Never "jump" the fuse with wire or foil, or install a larger
capacity fuse than is recommended.
B Protected circuit
Fuse No. (ID Label)
E/G STOP (a)
(1) IG/M (b)
OPC (c)
Slow blow fuse
(2)
(1) Fuse Location
Replacing Bulbs
(A) Replacement of the head light bulb
1. Open the hood.
2. Turn bulb socket to remove socket from head light housing.
3. Push bulb down and turn one quarter turn to remove bulb from
the socket.
4. Install new bulb to the socket.
5. Install the socket in housing.
6. Close the hood.
Head light bulb
(B) Replacement of the indicator light bulb
1. Open the hood.
2. Turn bad bulb socket to the left. And remove it.
3. Pull bulb from the socket.
4. Push new bulb into the socket.
5. Install the socket.
6. Close the hood.
Indicator light bulb
G-35
Capacity (A) Protected circuit
15 Engine stop timer relay
10 Fuel pump, head light, etc.
3 OPC
Check circuit against wrong
40 battery connection
(2) Slow Blow Fuse
12V - 24 W
14.0 rated voltage / 0.27
AMP/2 MSCP
