AJS G2 Servise Manual page 90

Brake drum bearing Fig. 28. With the brake drum away from the frame.
to dismantle:
Remove dummy spindle (12).
Remove circlip (11) and cup for oil seal (5).
Remove bearing by drifting out, with second cup.
Remove oil seal (4) and distance piece (6).
Refit the oil seal with metal backing towards the inside of brake drum.
Use a little anti-centrifuge grease for the bearing.

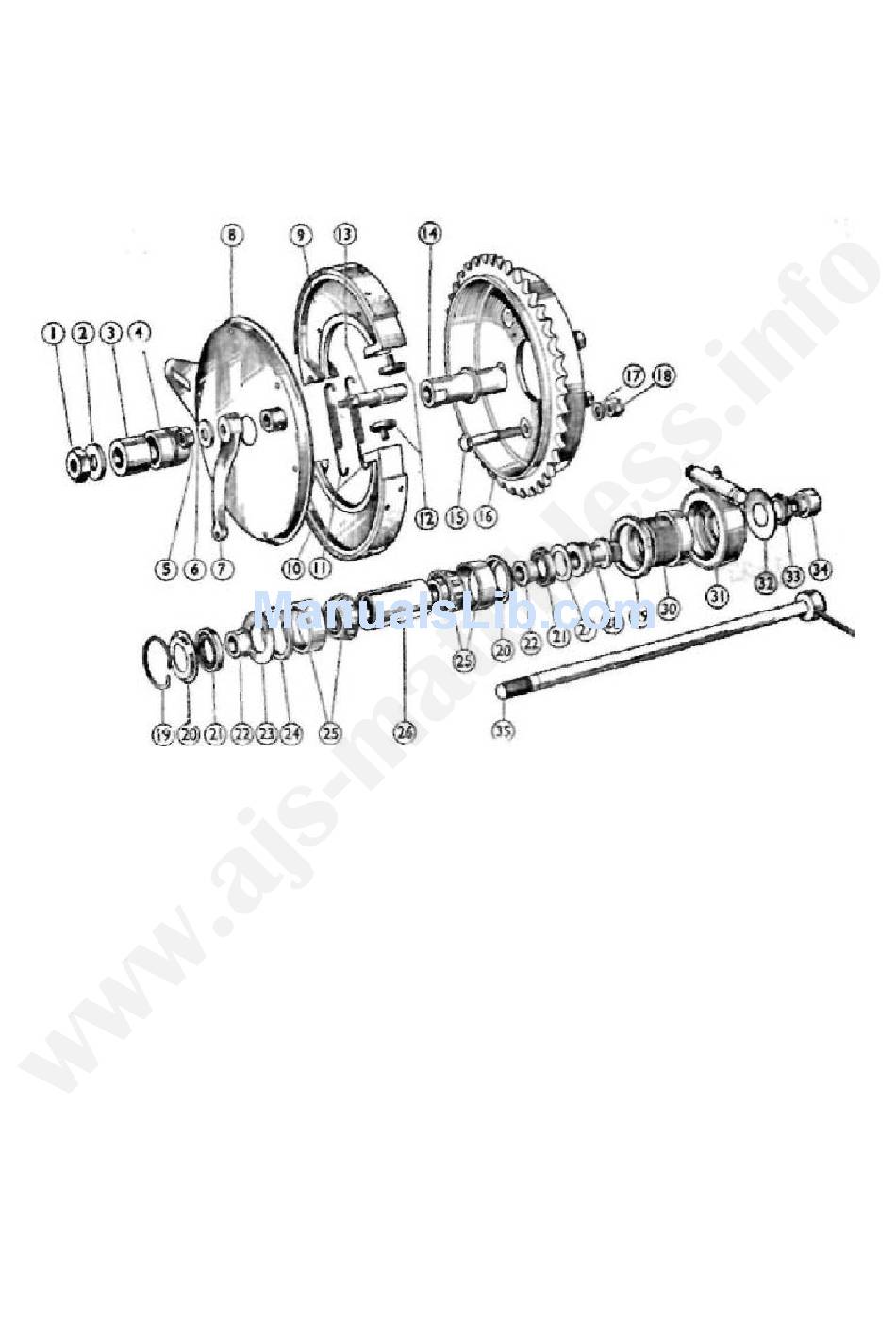

FIG 27 Non-quick-detachable wheel assembly
1 Nut for wheel solid spindle
Washer, for wheel spindle nut
2
Spacer, for wheel spindle nut
3
Spacer, for cover plate, outer
4
5 Nut, for expander lever
6
Washer, for expander lever nut
7 Lever, expander
Plate, cover
8
Shoes, brake, with linings
9
10 Linings, for brake shoes.
Spring, for brake shoes
11
Pin thrust, adjusting brake
12
shoes
Expander, for brake shoes
13
Spacer, for cover plate, inner
14
15 Bolt, retaining, sprocket to
hub shell
16 Sprocket and brake drum
17
Washer, sprocket retaining bolt
18 Nut, sprocket retaining bolt
19 Ring, spring, locating bearing
20 Cup, for bearing oil seal
21 Oil seal, for bearing
Spacer, on spindle, for oil seal
22
Ring, retaining hub bearing, large
23
Spacer, between bearing and oil
24
seal
25
Bearing, roller
26 Spacer, between bearings
Ring, retaining hub bearing,
27
small
28 Spacer, on spindle, for
speedometer gearbox
Nut, lock, bearing adjusting ring
29
Ring, adjusting bearing
30
Speedometer gearbox
31
Washer, outside, speedometer
32
gearbox
33
Nut, locking, speedometer
gearbox
34
Spacer, on spindle, speedometer
gearbox side
35 Spindle, rear wheel solid
