Power LED Behavior

LED state
Solid green
Solid orange
Alternating:
Green (0.5 secs)
Orange (1.5 secs)
Alternating:
Green (0.5 secs)
Orange (0.5 secs)

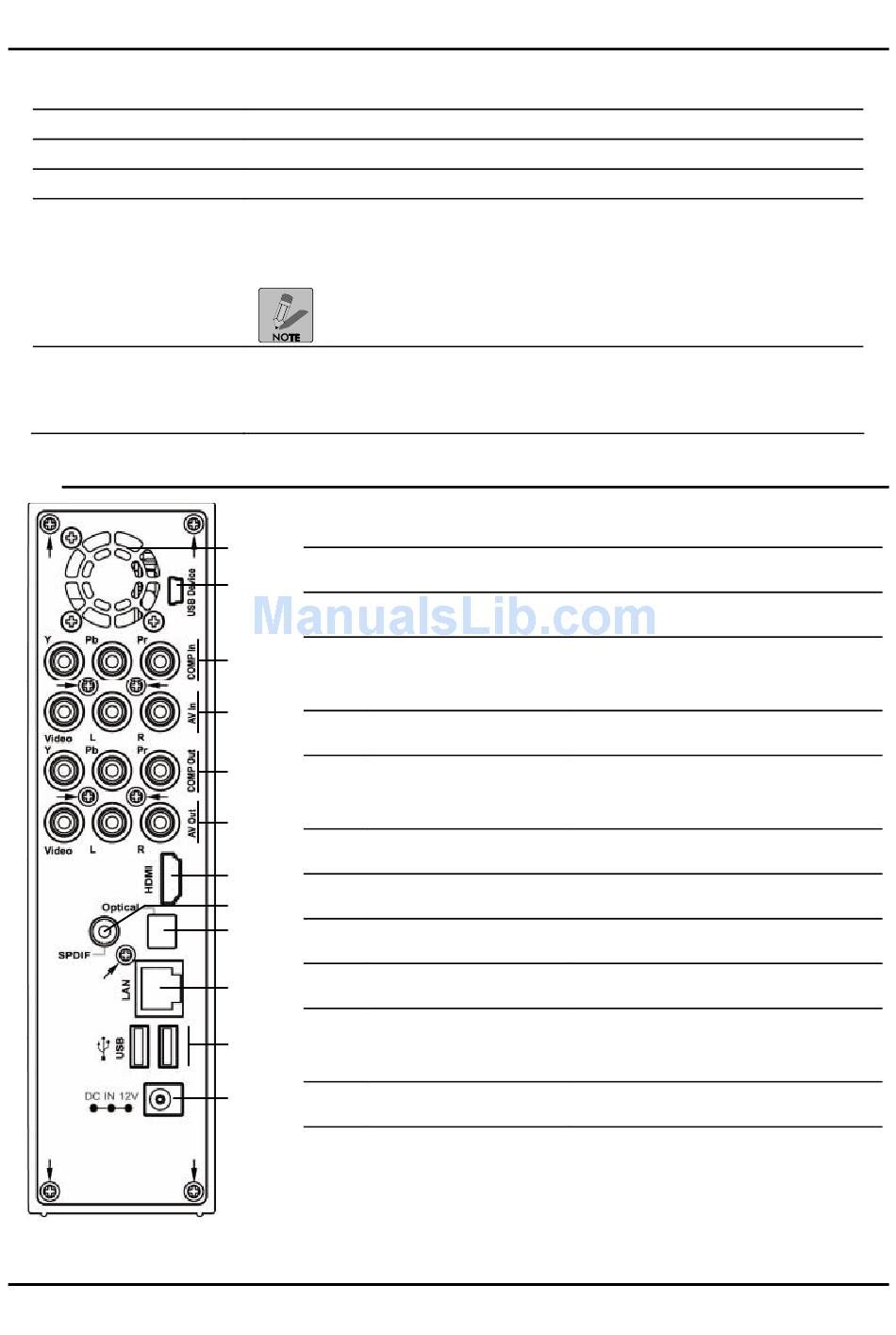

Rear View

System condition
Power on and operation normal
Standby
System starting up – approximately 7 seconds
OR
System shutting down – 10 to 13 seconds
Start up and shutdown times depend on HDD size
System error, for example overheating or fan failure
No. Item
1
1. Cooling fan
2
2. Mini USB port
3
3. Component In
jacks
4
4. AV In jacks
5
5. Component Out
jacks
6
6. AV Out jacks
7
7. HDMI Out port
8
9
8. SPDIF jack
10
9. Optical port
10. LAN port
11
12
11. USB host ports
12. DC power jack
Description
Regulates HDD temperature
Connect to PC USB port
Connect Component input
devices
Connect AV input devices
Connect Component output
devices
Connect AV output devices
Connect HDMI devices
Connect SPDIF devices
Connect optical devices
Connect RJ-45 Ethernet
cable to LAN
Connect USB devices
Connect DC power adapter
