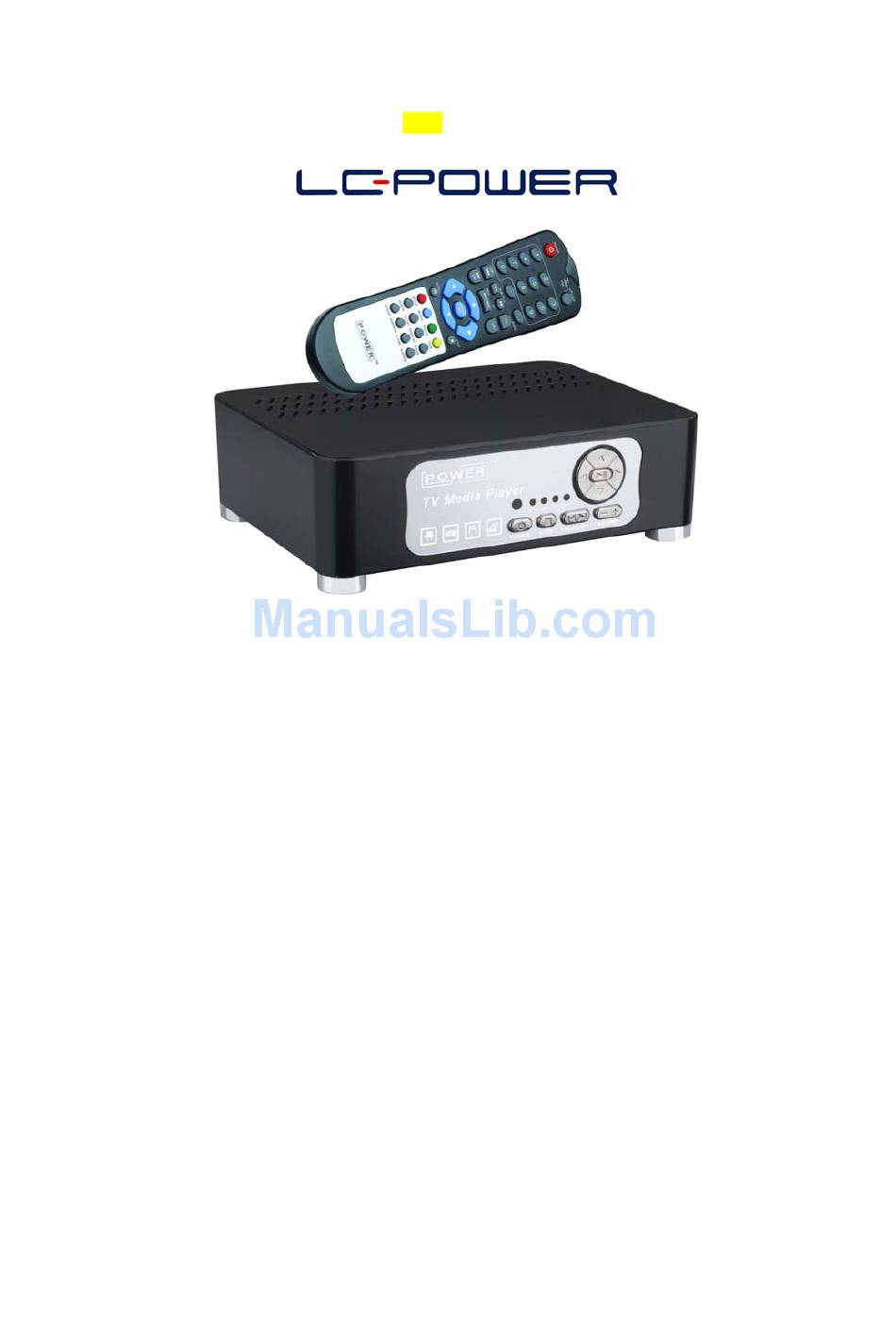

- Page 1 TV MEDIA PLAYER EH-35B-MPS User Manual...
- Page 2 1. Warnings and safety instructions This section describes precautions that should be observed in order to prevent injury to the user and damage to property, and to ensure safe use of the product. Be sure to observe the following points when using the product to avoid malfunction.
- Page 3 Any product without a warranty or serial number barcode or ● serial number label EH-35B-MPS is not designed or intended to, and may not be used to violate any copyrights or other IP (intellectual property) rights. Each user of EH-35B-MPS may only use it in connection with materials legally owned by or licensed to the user and only extend such ownership or license rights that will permit such use.
- Page 4 It saves many blank discs and unnecessary time waiting for a medium to be burnt. It's no longer necessary to buy a fast DVD burner. The EH-35B-MPS makes it a thing of the past. Now you can enjoy film, music and photo playback instantly!
- Page 5 JPG (15fps/30fps) or BMP** format. Data storage box Backup all files on EH-35B-MPS and use it as a portable external disk drive and storage device. This could be done through the USB 2.0 interface at high speed 480Mbit/s and transfer all data from PC or Mac.
- Page 6 MPEG-4 compression standard. can reduce an MPEG-2 video (the same format used for DVD) to approx. ten percent of its original size. EH-35B-MPS is compatible with DivX® format and can play any movie encoded with this compression format 4.x, 5.x. XviD compatibility XviD is an ISO MPEG-4 compliant video codec.
- Page 7 Package Contents ● E H-35B-MPS (no any hard drive included) ● I nfrared Remote Control ● A /V Cable (Composite Video RCA and Audio L/R RCA) ● U SB 2.0 high speed cable (AM to BM) ● S crew bag for hard drive (screws: 4pcs) U ser manual ●...
- Page 8 3. Name and functionalities of components Elegant Outlook and Smart Design outlook design of the product is quite elegant. It looks like an audio device nearby TV in living room. Four stands of enclosure are not only stands but also works as smart screws to guarantee you need of screw driver tool when you want to put in or take off 3.5”...
- Page 9 AT PC mode, this is USB connection LED, Orange blinking color as long as USB port is connected to PC ● IR Receiver –The sensor window of the Infrared Remote Control Rear Panel View: ● POWER in—DC input, provide 12V/5V power adapter for TV Play mode or PC mode.
- Page 10 Explanation of the Remote Control POWER Enter or exit standby mode SETUP: Enter function Setup Menu Select TV video output (Composite, S-Video, YPbPr, TV-OUT: YcbCr and VGA) Press the button to enter Movie Menu, all movies are MOVIE: shown in directory structure MUSIC: press the button to enter Music Menu, all music are shown in directory Structure on the screen PHOTO: Press the button to enter Photo Menu, a photo preview...
- Page 11 Environment (IDE) and SATA Hard Drive Requirements TV System: Multi-standard (NTSC or PAL) Specifications Product EH-35B-MPS Name High quality plastic body and plastic cover Housing Material Any 3.5” parallel ATA (IDE) and SATA Hard Drive HDD Type Playback Media Formats:...
- Page 12 File Format Video Codec Audio Codec Video MPEG-1 MPEG-1 MPEG-2 MPEG-2 MPG, MPEG, MPEG-1 MPEG-1 M-JPG MPEG-2 MPEG-2 DivX, XviD MP3, AC3 AVI, MPEG-4 MPEG-4 MP3, AC3 MPEG-4 ASP, ASF It is normal to experience an occasional out-of-order and “skip effect” during video playback due to clarity of digital contents during internet download Do not support GMC (Global Motion Compression), Qpel (Quarter Pixel) features...
- Page 13 PWR LED Power on/off: Green color on/off System standby: Red color on Display HDD LED HDD data access: Blue color blinking IR LED Remote control signal on/off: Red color on/off External Power Adapter universal auto-switching Power (CE) Supply Input: AC 100-240V, 0.6A, 50~60Hz Output: DC +5V/2A USB Bus Power (max.
- Page 14 EH-35B-MPS (no Hard Drive Included) Package Infrared Remote Control, A/V Cable, Multi-Video Contents Cables, USB 2.0 High Speed Cables, USB Driver CD for Windows 98/SE, User Manual, External Power Adapter Carton Dimension (W x L x H): 51 x 29 x 52.5cm Ordering Retail Box Dimension (W x L x H) 27 x24.5 x...
- Page 15 5. Installation of 3.5” Hard Disk Drive (HDD) Cautions before starting the installation We strongly recommend you read below cautions before starting installation. Please carefully read and follow instructions in this user’s manual ● Please use the supplied AC power adapter, all video/audio cables and USB cable when purchasing this product.
- Page 16 supported in the future). When used as USB storage device extended partitions, FAT32 and NTFS supported. ● The hard disk can be fragmented after using a period of tine. This can affect playing movie files from your hard disk. It is recommended that you assign a partition for file storage while another partition is for movies.
- Page 17 7. Close the top cover 8. Screw the stands on 9. Finish HDD installation...
- Page 18 ● Normally, the USB port provides enough power to power on EH-35B-MPS. However it depends on USB port of you PC. If your PC cannot power on, it is recommended to connect the supplied AC power adapter.
- Page 19 HDD of product. Compact, Light and Smart Design The weight of EH-35B-MPS is only approximately 300g (includes 3.5” HDD). Its dimension is as compact as depicted in the adjacent figure. The smart screw-less design of enclosure guarantees you no need to bring screwdriver tool when anytime you want to put in or take off 3.5”...
- Page 20 Video Connections of TV Mode Connect to a TV set, through Video Composite output SETUP MENU Setting: Select TV output to S-Video/Composite Note: TV-OUT button can be pressed only at Main Menu but not any other Menu. Connect to a TV set, through Video S-video output...
- Page 21 SETUP MENU Setting: Select TV output to S-Video/Composite Note: TV-OUT button can be pressed only at Main Menu but mot any other Menu. Connect to a TV set, through Video Y, Pb /Cb, Pr/Cr SETUP MENU Setting: Select TV output to YpbPr Connect to a Monitor or LCD Display, through Video VGA...
- Page 22 SETUP MENU Setting: Select TV output to VGA Note: TV-OUT button can be pressed only at Main Menu but not any other Menu. Audio Connections of TV Mode Connect to TV set or Hi-Fi equipment, through Stereo L/R SETUP MENU Setting: Select Audio output to Stereo L/R Connect to TV set or Hi-Fi equipment, through Digital coaxial...
- Page 23 SETUP MENU Setting: Select Audio output to Stereo L/R Connect to TV set or Hi-Fi equipment, through Digital Optical SPDIF SETU MENU Setting: Select Audio output to Digital Optical SPDIF/RAW or Digital Optical SPDIF/PCM...
- Page 24 6. Getting Started After connecting proper video & audio cables to your TV set, now you can start to operate step by step. Power on Power on your TV set first Connect to TV set Power on by pressing “POWER” button or by remote control “POWER”...
- Page 25 If the TV is distorted or flicking, press SETUP button and select TV type to match your TV system, NTSC or PAL. 7. Basic Operations Movie, Music, Photo Playback There are three main functions for media playback Play & watch movies (with favorite subtitle language) Play &...
- Page 26 navigation buttons, and press PLAY or Enter button start movie playback On the left-hand side is Switch Buttons for switching to another hard drive (HD1, D2, D3 or HD4) or return back to Main Menu On the left-hand side, pressing PLAY ALL button will execute all movies auto-playback.
- Page 27 to search proper photo file you want to display You can access photo Menu by pressing the navigation buttons, and press PLAY or ENTER button. On the left-hand side is Switch Buttons for switching to another hard drive or return back to Main Menu On the left-hand side, pressing PLAY ALL BUTTON will execute...
- Page 28 values to the product.
- Page 29 8. Advanced Operations Explanation of Movie Menu The Movie Menu consists of several parts below. Switch Buttons: Switch to other hard drive partitions or go back to Main Menu or playback all (PALY ALL) movies inside this directory Sub Menu: display Movie, Music, Photo, File sub Menu FILE directory: display all movie/video files and sub directory in current directory OSD Display: display any command in the selected OSD...
- Page 30 Repeat Mode: REPEAT button can be used to select below -REPEAT FOLDER ON: playback all video files in current folder continuously -REPEAT FOLDER OFF: playback all video files in current folder and stop -REPEAT ONE ON: playback the selected single video file continuously To switch to other hard drive partitions or return back to Main Menu, use LEFT or RIGHT buttons and press ENTER...
- Page 31 Subtitle Language Select correct language corresponding to subtitle file. For example, if the subtitle file to be displayed is German. Then, you have to select Subtitle Language as Deutsch on Setup Menu. Explanation of Music Menu The Music Menu consists of several parts below. File Info Window: display file information of the selected music file Switch Buttons: Switch to other hard drive partitions or go back...
- Page 32 REPEAT button can be used to select below -REPEAT ON: playback all video files in current folder/directory continuously -REPEAT OFF: Playback all video files in current folder/directory and stop -REPEAT ONE: Playback selected single video file continuously To switch to other hard drive partitions or return back to Main Menu, use LEFT or RIGHT buttons and press ENTER Explanation of photo Menu The Photo Menu consists of several parts below.
- Page 33 locate photo files. Use PageUp (PREW Ⅰ) or PageDn (NEXT Ⅰ) to jump to the previous or next page. Press ENTER or PLAY/PAUSE /Ⅱ button to play selected photo file in full screen. While a single photo is playing, press PREW Ⅰ(PageUp) or PageDn (NEXT Ⅰ), LEFT or RIGHT buttons to jump to previous or next movie file directly.
- Page 34 Mode 7: ROLL: LEFT TO RIGHT Mode 8: ROLL: RIGHT TO LEFT Mode 9: ROLL: LEFT/RIGHT TO CENTER Mode 10: ROLL: CENTER TO LEFT/RIGHT Mode 11: ROLL: IMPLODE Mode 12: BLIND: LEFT TO RIGHT Mode 13: CROSS FADE Mode 14: SLIDE MODE: RADOM Transition Time (Interval Time): While viewing Slide Show, you can use S-TIME button to change the transition time to change interval time...
- Page 35 Subtitle Subtitle Color Orange (Adjust subtitle font color) Setup Blue Gray Semi-Transparent* Subtitle Background Color (Adjust color subtitle White background color) Black Blue English* Francais Deutsch OSD Language (Select OSD language displayed Italiano while system operation) Language Swedish Setup Danish Portuguese Spanish English*...
